Specifications
Brand Name :
Henrriet
Certification :
CE、ISO 9001
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
T/T
Delivery Time :
25-35Work days
Packaging Details :
Film with Foam
Pressure method :
Press up and down
Number of layers :
1-layer
Platen size :
5200mm x 2800mm x 20mm x 3 pieces
Platen spacing :
200mm
Height of equipment base bracket :
750mm
Maximum temperature :
60℃
Maximum pressure :
100T
Oil cylinder specification :
9pcs(70mmX100mm)
Power :
5.5KW
Heating method :
Electric heating
Description
100T Pressure Automatic Gantry Movable Hot Press Machine
For insulation doors and cold storage doors manufacturing
Product Overview
The Gantry Mobile Thermal Press System represents an integrated production solution that merges a mobile gantry press host with an automated conveyor framework. Its architectural core comprises a movable gantry frame, precision-engineered hot press platens, hydraulic elevation modules, automated conveyor racks, and intelligent electrical controls.
Unlike conventional fixed hot presses, this system employs a mobile gantry design that glides along tracks, enabling seamless coordination with multiple fixed workstations to achieve a "single-host, dual-workstation" circular operation model. By replacing manual workpiece handling with gantry frame mobility, the system minimizes workpiece transfer time and human intervention, streamlining production efficiency.
Key Features
  • Superior Production Capacity: The system's "single-host, multi-workstation" cyclic operation redefines traditional intermittent workflows, enabling sequential processing and continuous production rhythm that eliminates idle time between processes.
  • Integrated Safety and Protection: Comprehensive safety mechanisms including track safety interlocks, anti-collision buffers, torque-limiting systems, emergency stop controls, and independent over-temperature protection circuits.
  • Wide-Ranging Application Versatility: Supports specialized door manufacturing across thermal insulation doors, explosion-proof doors, and cold storage doors for various industrial applications.
  • Easy Maintenance and Technical Support: Modular positioning design allows quick mold changes, with comprehensive operator training and regular diagnostic checks to ensure long-term performance integrity.
Technical Specifications
Pressure Method Press up and down
Number of Layers 1-layer
Platen Size 5200mm x 2800mm x 20mm x 3 pieces
Platen Spacing 200mm
Height of Equipment Base Bracket 750mm
Maximum Temperature 60℃
Maximum Pressure 100T
Oil Cylinder Specification 9pcs (70mmX100mm)
Power 5.5KW
Heating Method Electric heating
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions designed around your production needs
  • CE & ISO 9001 Certified: Global-ready equipment meeting international standards
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing worldwide
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline, respond to repair needs within 48 hours
  • Free video training for operators and provision of process guidance manuals
  • Lifetime technical support and software upgrade services
Scope of Application
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors

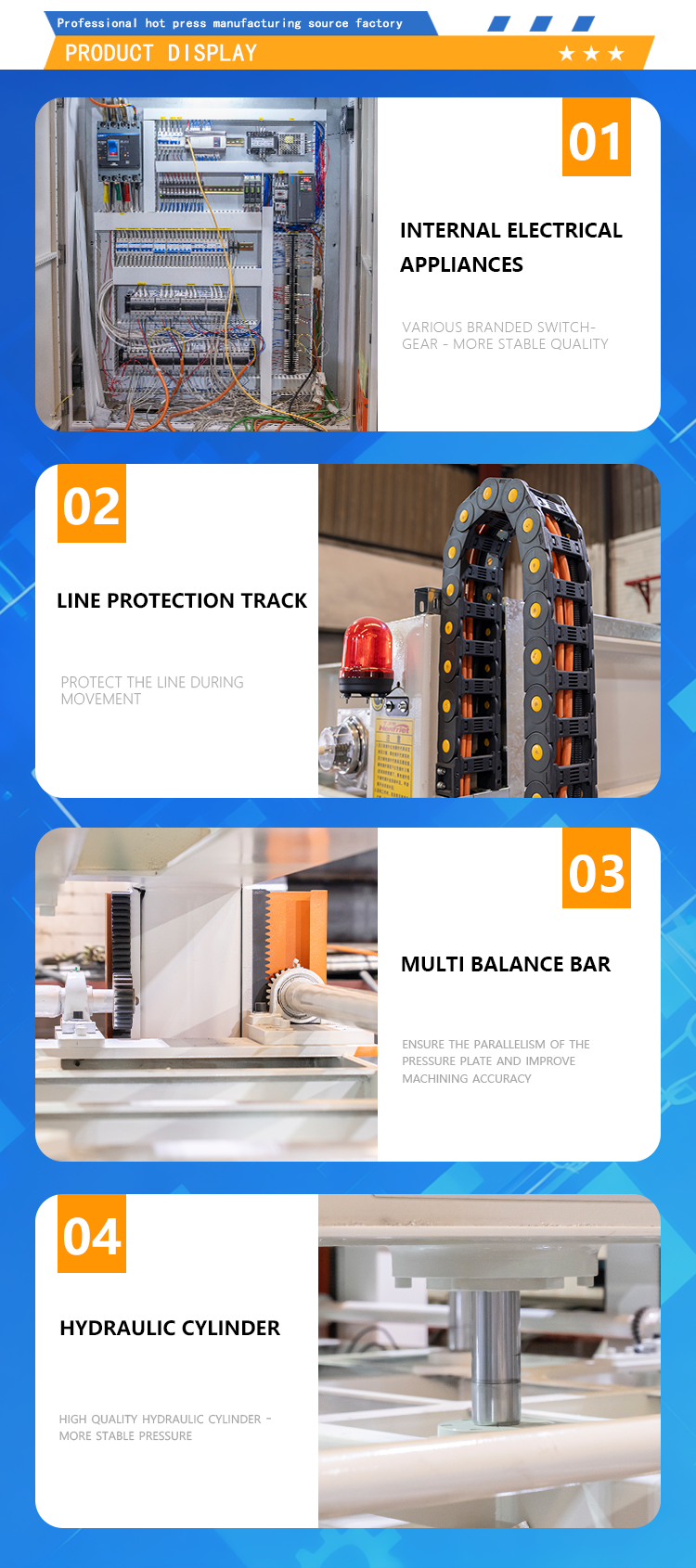

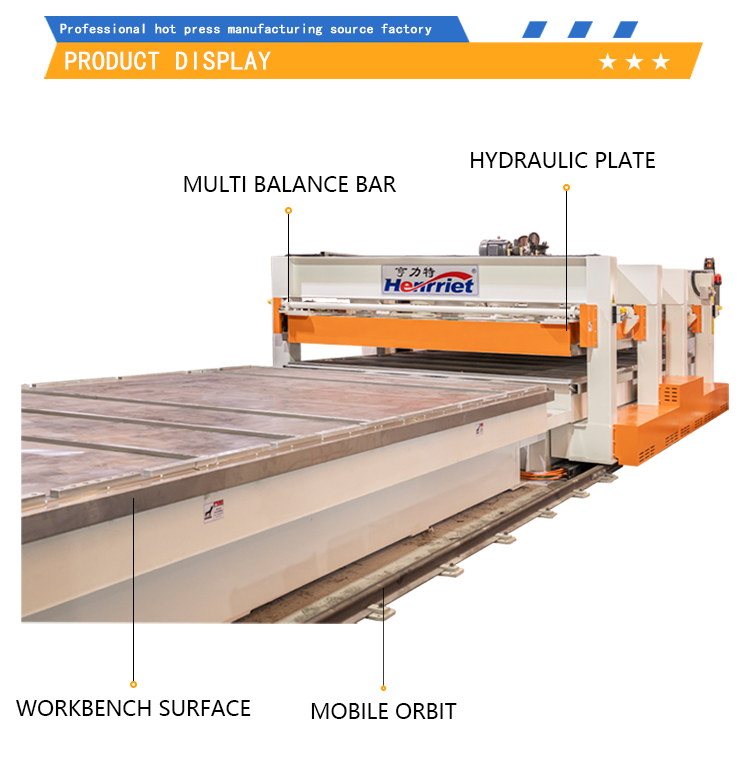

Product Display
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors

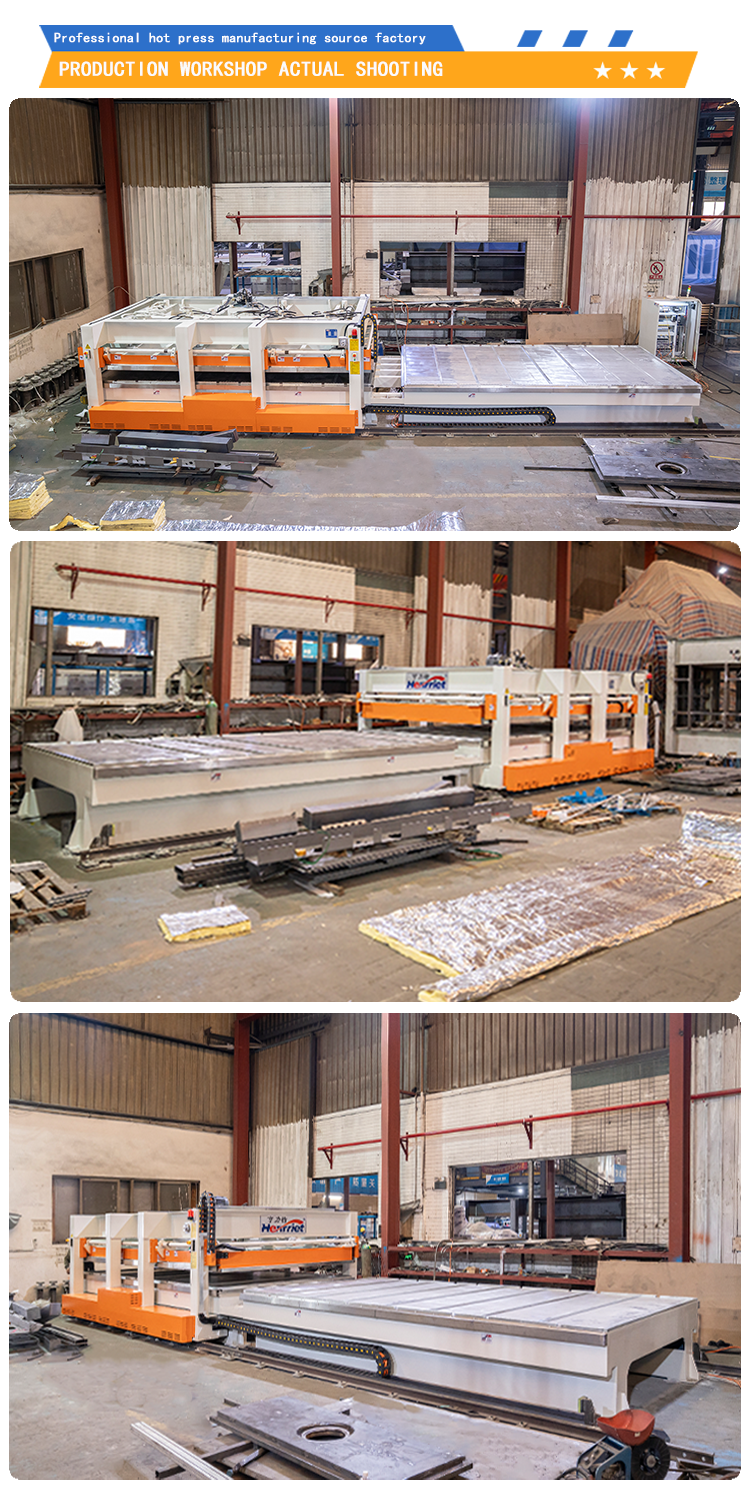

Production Workshop
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Product Details
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors 100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Corporate Advantages
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors 100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors 100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Visitors and Communication
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Production Level and Manufacturing Process
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Exhibition and Exchange
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Packaging and Logistics
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
Certificates and Honors
100T Pressure Automatic Gantry Movable Hot Press Machine with Electric Heating for Insulation and Cold Storage Doors
