Specifications
Brand Name :
Henrriet
Model Number :
HLY-50T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
T/T,MoneyGram
Delivery Time :
20-35Work days
Packaging Details :
Film with Foam
Name :
Woodworking Cold Press Machine
Work plate size :
2500*1250mm
Max pressure :
50T
Slide Stroke :
1000mm/1300mm/1500mm
Power :
4Kw
Oil Cylinder size :
125*2pcs
Warranty :
1 Year
Weight :
2000Kg
Description
Hydraulic Cold Press Machine for Woodworking Door Stainless Door Plywood Mdf Board Aluminium Honeycomb Panels
Product Description:

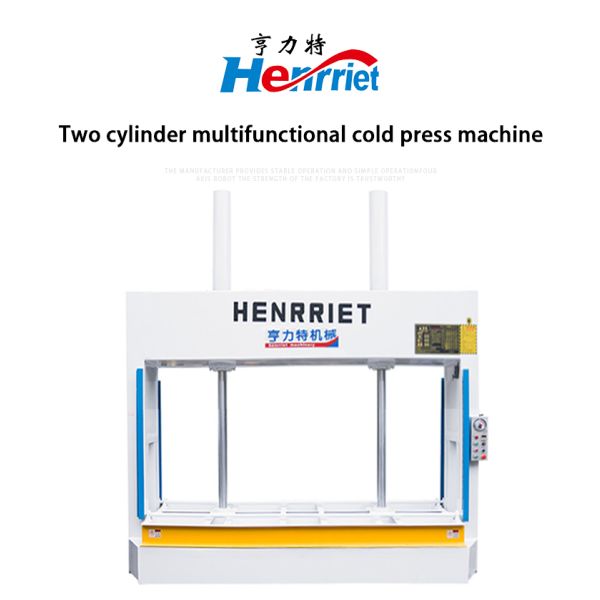

A dual cylinder cold press machine is an industrial equipment that uses a hydraulic system to drive two symmetrical cylinders to press, form, bond, or cure materials at room temperature (non heating). It combines the stability of hydraulic transmission and the uniform force advantage of dual cylinder structure, and is widely used in machining fields that require high precision, high pressure, and no thermal deformation.
Enhanced Production Efficiency and Accuracy
The synchronized twin-cylinder hydraulic system ensures consistent force application across the entire workpiece surface. This eliminates common pressing defects such as warping, layer separation, or uneven adhesion, which are frequently encountered in conventional pressing equipment.
With optimized platen movement rates and fully programmable dwell duration, the press smoothly accommodates a spectrum of process needs—from high-speed repetitive batches to delicate bonding operations involving complex or multi-layer materials.

Comprehensive Safety and Protection
An integrated monitoring system automatically detects excess pressure conditions and instantly cuts off the hydraulic flow, preventing motor strain and potential component damage. The inclusion of an emergency stop circuit and mechanical relief valves offers redundant safety layers during high-intensity operations.
The electrical cabinet incorporates overload protection, phase-loss monitoring, and short-circuit prevention. Physical safety measures such as protective guarding and accessible emergency stop buttons further secure the working environment for personnel and equipment.

Extensive Application Flexibility
The press is capable of processing a wide array of materials—including wood composites, metal sheets, and engineered laminates—making it suitable for industries such as furniture manufacturing, architectural element production, and metal forming.

Streamlined Maintenance and Operational Support
An integrated monitoring system tracks operational parameters such as pressure stability and hydraulic integrity, generating immediate alerts for deviations like pressure loss or seal leaks. This allows personnel to preempt failures and minimize unplanned interruptions.
Machine Specifications
Maximum Pressure 50 T (customizable)
Worktable Sizes 2500mm × 1250mm (customizable)
Maximum Processing Thickness 1000mm, 1300mm, 1500mm
Power Supply 380V/50Hz, three-phase
Power 4kW (customizable)
Dwell Time 0-99.99 hours (Adjustable)
Platen Lift Speed 10-12mm/s
Pressure Accuracy ±1% (ISO-compliant)
Size 3000mm × 1250mm × 2550mm
Weight 2000KG
Service & Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
