Specifications
Brand Name :
Henrriet
Model Number :
HLY-50T
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
MoneyGram,T/T
Delivery Time :
20-25Work days
Packaging Details :
Film with Foam
Name :
Cold Pressing Machine
Work plate size :
4000*2000mm
Max pressure :
50T
Slide Stroke :
1000mm/1300mm/1500mm
Power :
5.5KW
Oil Cylinder size :
100mm*6pcs
Warranty :
1 Year
Weight :
6000KG
Description

Hydraulic Cold Press Machine with 4000*2000mm Work Plate 50T Max Pressure and 1000mm/1300mm/1500mm Slide Stroke

Product Description:

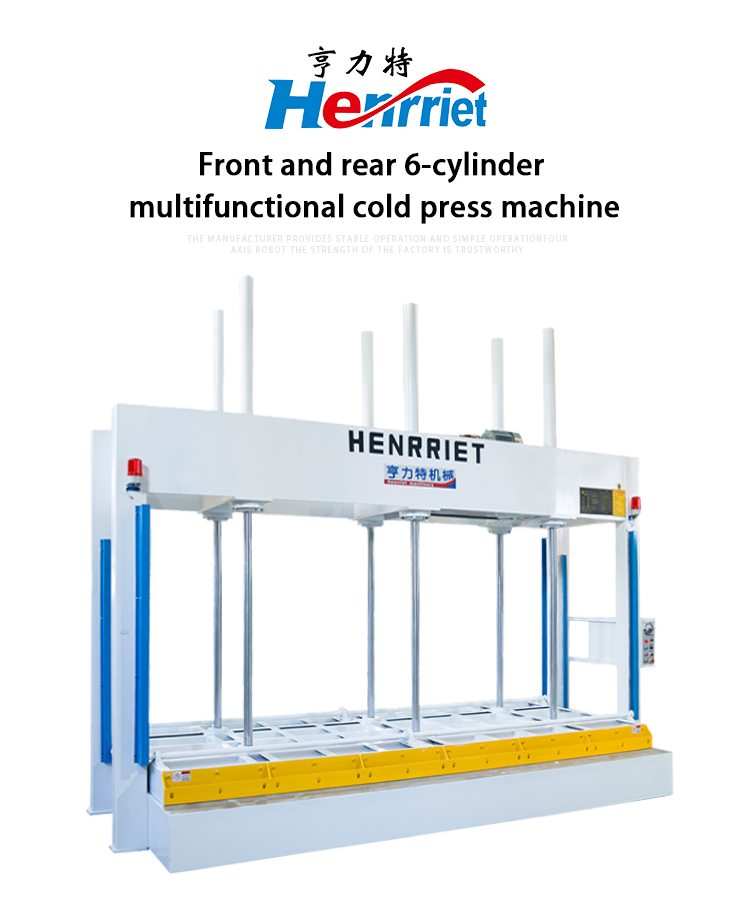

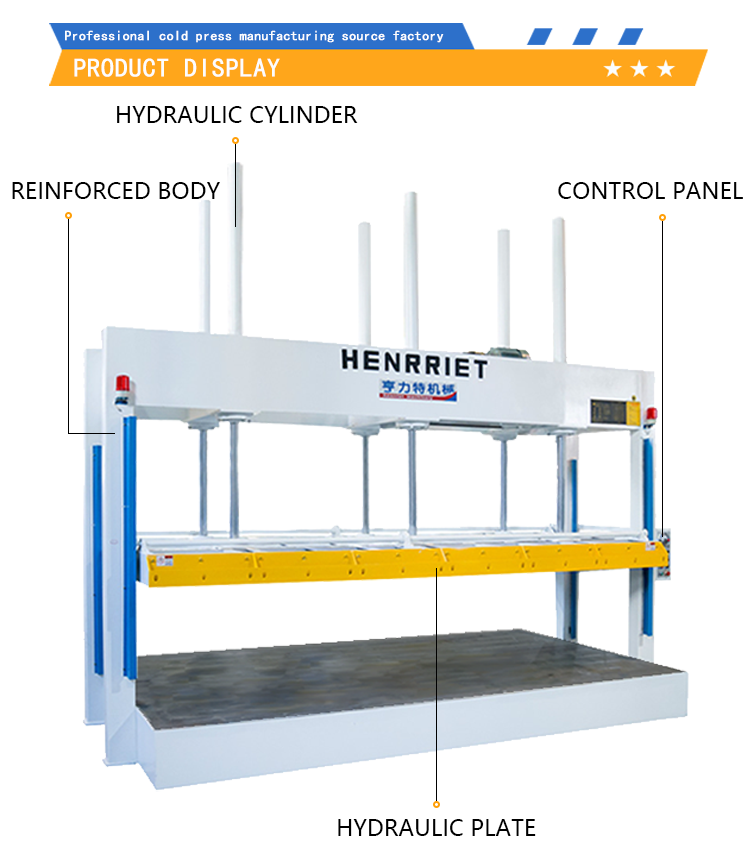

Engineered for unparalleled stability, efficiency, and large-scale production, the front & rear six-cylinder hydraulic cold press redefines industrial pressing standards. Its dual-sided six-cylinder synchronous design delivers uniform pressure across the entire workpiece, making it the ultimate choice for businesses demanding exceptional quality, high throughput, and reliable operation in complex lamination and forming tasks.

Machine Features and Advantages

Superior Production Capacity

The six-cylinder synchronous hydraulic system is the core of its outstanding productivity. It delivers continuous, stable pressure up to 50 tons (customizable) with an accuracy of ±0.5% (exceeding ISO standards), ensuring flawless bonding and forming without warping, delamination, or unevenness—even for extra-large or thick workpieces. With a platen lift speed of 12-15mm/s and adjustable dwell time , it adapts to diverse process requirements, completing high-precision pressing cycles in minutes.

Uncompromised Safety

Safety is integrated into every aspect of the six-cylinder design. Equipped with dual-circuit automatic overpressure control and pressure oil shut-off protection, it effectively prevents motor overload, cylinder damage, and system malfunctions during high-load, long-duration runs. The electrical system features multi-layer safeguards (short-circuit protection, voltage surge protection, thermal overload protection), complemented by a ergonomically placed emergency stop switch and safety interlock system—ensuring immediate shutdown if anomalies occur.
Versatile Application Scope
Designed to excel across multiple sectors, this press offers exceptional flexibility for complex processing demands.

Building & Construction: Lamination of large-scale exterior wall insulation panels, aluminum honeycomb panels, and composite building materials.

Furniture & Woodworking: Pressing of extra-large solid wood doors, multi-layer plywood, and custom furniture panels.

Easy Maintenance & Reliable Support
Built for long-term durability and low operational costs, the press features a fully sealed hydraulic system with high-quality leak-resistant components, requiring only annual hydraulic oil replacement. Routine maintenance is streamlined: monthly filter cleaning and lubrication of transmission parts keep it operating at peak performance.
Machine Specifications
Parameter Value
Maximum Pressure 50 T (customizable)
Worktable Sizes 4000mm × 2000mm (customizable)
Maximum Processing Thickness 1000mm, 1300mm, 1500mm (customizable)
Power Supply 380V/50Hz, three-phase
Power 5.5kW (customizable)
Dwell Time 0-99.99 hours (Adjustable)
Platen Lift Speed 10-12mm/s
Pressure Accuracy ±1% (ISO-compliant)
Size 4500mm × 2000mm ×3700mm
Weight 6000KG

Service Support

Warranty: 1 year
Packaging: Film with foam.
24-hour customer service hotline, respond to repair needs within 48 hours.
Free video training for operators and provision of process guidance manuals.
Lifetime technical support and software upgrade services.
