Fully Automated Hot Press Production Line with 10M Conveyor System and PLC Control for 100t Maximum Pressure Wood Veneer Laminating
Fully Automated Hot Press Production Line with 10M Conveyor System and PLC Control for 100t Maximum Pressure Wood Veneer Laminating
Fully Automated Hot Press Production Line with 10M Conveyor System and PLC Control for 100t Maximum Pressure Wood Veneer Laminating
Fully Automated Hot Press Production Line with 10M Conveyor System and PLC Control for 100t Maximum Pressure Wood Veneer Laminating
Fully Automated Hot Press Production Line with 10M Conveyor System and PLC Control for 100t Maximum Pressure Wood Veneer Laminating
Fully Automated Hot Press Production Line with 10M Conveyor System and PLC Control for 100t Maximum Pressure Wood Veneer Laminating
Specifications
Payment Terms :
T/T
Total power :
164.6KW
Upstage fabric rolling motor :
1.5KW*2
Certification :
CE、ISO 9001
Heating method :
Electric heating heat transfer oil heat transfer
Price :
Online/offline communication
Brush motor :
1.1KW
Maximum temperature :
100℃
Hydraulic system motor power :
7.5KW
Delivery Time :
25-35Work days
Heating cycle motor :
3KW*2pcs
Plate thickness :
60mm*2pcs
Belt conveyor power :
3KW
Actual composite maximum size :
9800*1200mm
Place of Origin :
China
Maximum pressure :
100t
Packaging Details :
Film with Foam
Oil cylinders and quantity (piston cylinders) :
12PCS（70mm*100mm*300mm）
Heating system power :
90KW*2=180KW
MOQ :
1
Number of layers :
1-layer
Brand Name :
Henrriet
Pressure plate size :
10000*1300mm
Opening spacing :
0-300mm
Description

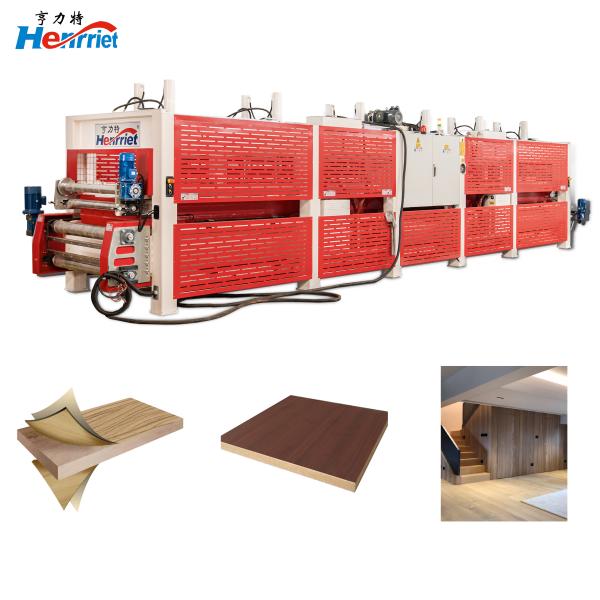

Fully Automated Hot Press Production Line – 10M Conveyor System with PLC Control

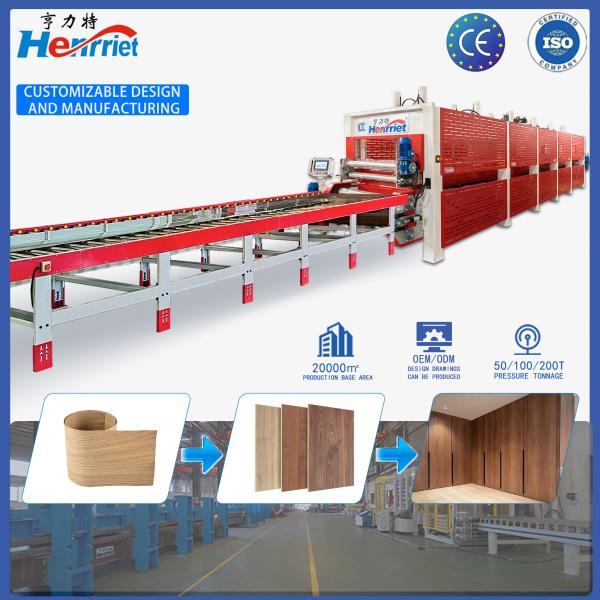

This 10-meter automatic conveying hot laminating line integrates auto feeding, precision temperature-controlled hot pressing, cooling shaping and auto stacking. It is designed for continuous lamination of wood veneer sheets, furniture decorative panels and custom home cabinet boards.
Full-process PLC control ensures consistent flatness and bonding quality of batch veneer workpieces, with fully enclosed safety protection and standardized spare parts for easy overseas maintenance.
Key Features

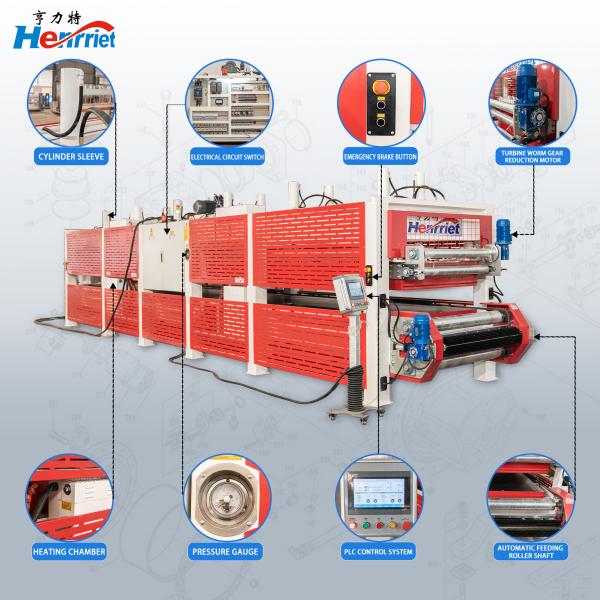

  • Superior Production Capacity: PLC control system manages the entire process with unified parameters from substrate feeding to finished product discharging, maintaining consistent pressing temperature, holding duration and conveying speed for every batch.
  • Integrated Safety and Protection: Over-temperature monitoring with multi-point temperature data collection, automatic heating circuit cutoff, and multi-point emergency stop buttons for fast risk response.
  • Wide-Ranging Application Versatility: Suitable for wood veneer lamination and furniture decorative panel pressing with uniform full-panel pressure for indentation-free surfaces.
  • Easy Maintenance and Technical Support: Routine upkeep verification and no-load test runs ensure sustained performance and reliability.
Technical Specifications
Maximum Pressure100 Ton
Pressure Plate Size10000×1300mm
Plate Thickness60mm×2pcs
Actual Composite Maximum Size9800×1200mm
Number of Layers1-layer
Opening Spacing0-300mm
Heating Cycle Motor3KW×2pcs
Belt Conveyor Power3KW
Brush Motor1.1KW
Upstage Fabric Rolling Motor1.5KW×2
Hydraulic System Motor Power7.5KW
Oil Cylinders and Quantity12PCS (70mm×100mm×300mm)
Heating System Power90KW×2=180KW
Heating MethodElectric Heating Heat Transfer Oil Heat Transfer
Maximum Temperature100℃
Total Power164.6KW
Manufacturing Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions for your production needs, floor space, and budget
  • CE & ISO 9001 Certified: Global-ready equipment meeting international safety and quality standards
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline, respond to repair needs within 48 hours
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services
