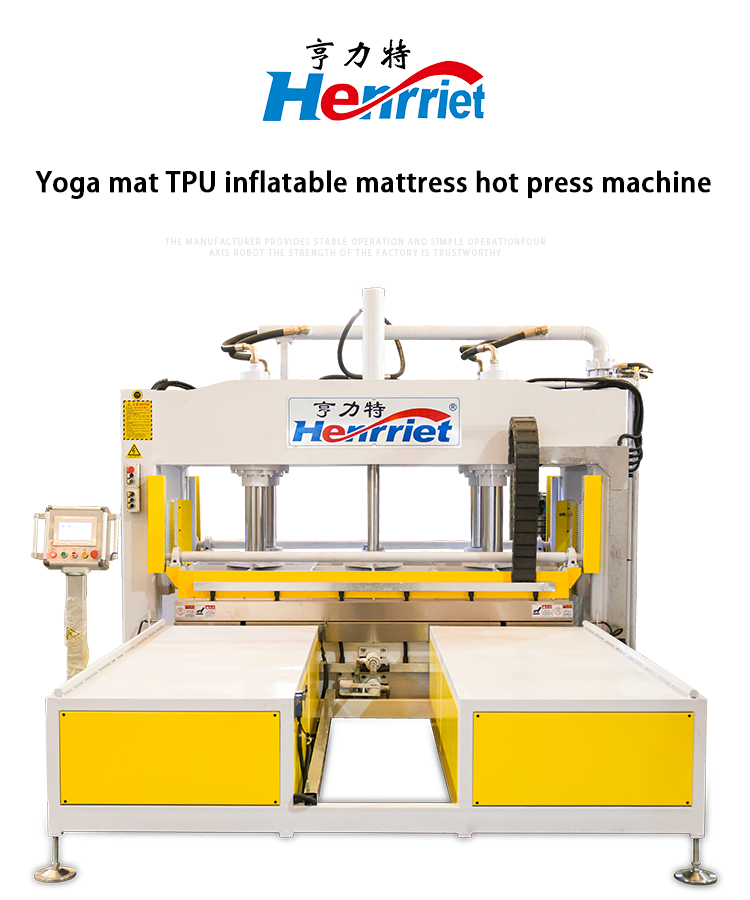

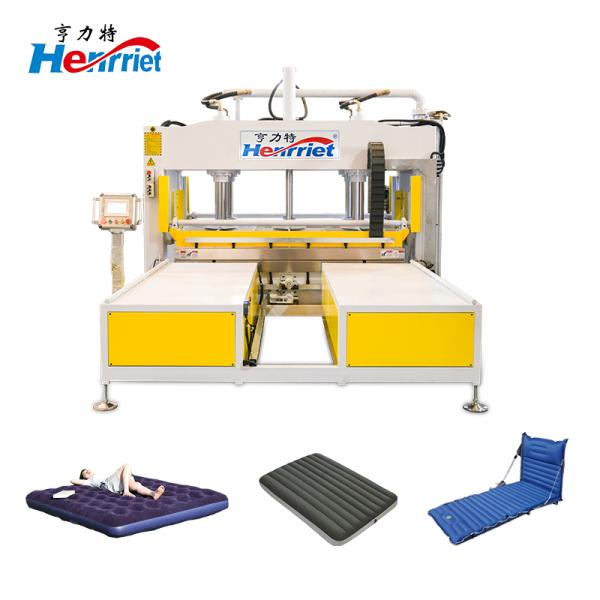

Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing
Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing
Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing
Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing
Specifications
Brand Name :
Henrriet
Certification :
CE、ISO 9001
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
T/T
Delivery Time :
25-35Work days
Packaging Details :
Film with Foam
Max pressuer :
100T
Work platen size :
2200*1650mm
Systm pressure :
20 mpa
Max.platen opening :
400mm
Maximum temperature :
180℃
Working level :
1-layer
Oil cylinder specification :
125mm*90mm * 4pcs
Hydraulic pump power :
11kw
Hot oil pump power :
3kw
Heating pipe power :
72kw
Overall dimensions :
6275*2940*2658mm
Weight (about) :
11000 kg
Description
Automatic Feeding and Discharging Rubber Vulcanization Yoga Mat Embossing Heat Press Laminating Machine
Product Overview
This industrial-grade intelligent hot press laminating machine is a purpose-built system developed for rubber foam composite materials including yoga mats, fitness mats, inflatable beds, and protective cushions. By seamlessly integrating automatic loading/unloading mechanisms with high-temperature vulcanization and surface embossing, the equipment delivers continuous, end-to-end automation across the entire production cycle.
The PLC-based touchscreen control system orchestrates mold closing and opening, automatic material feeding, controlled heating and vulcanization, and finished product discharge—establishing a fully integrated production workflow. This benchmark platform enables sports equipment factories, outdoor gear manufacturers, and rubber product facilities to achieve large-scale, standardized, high-quality production of rubber mat products.

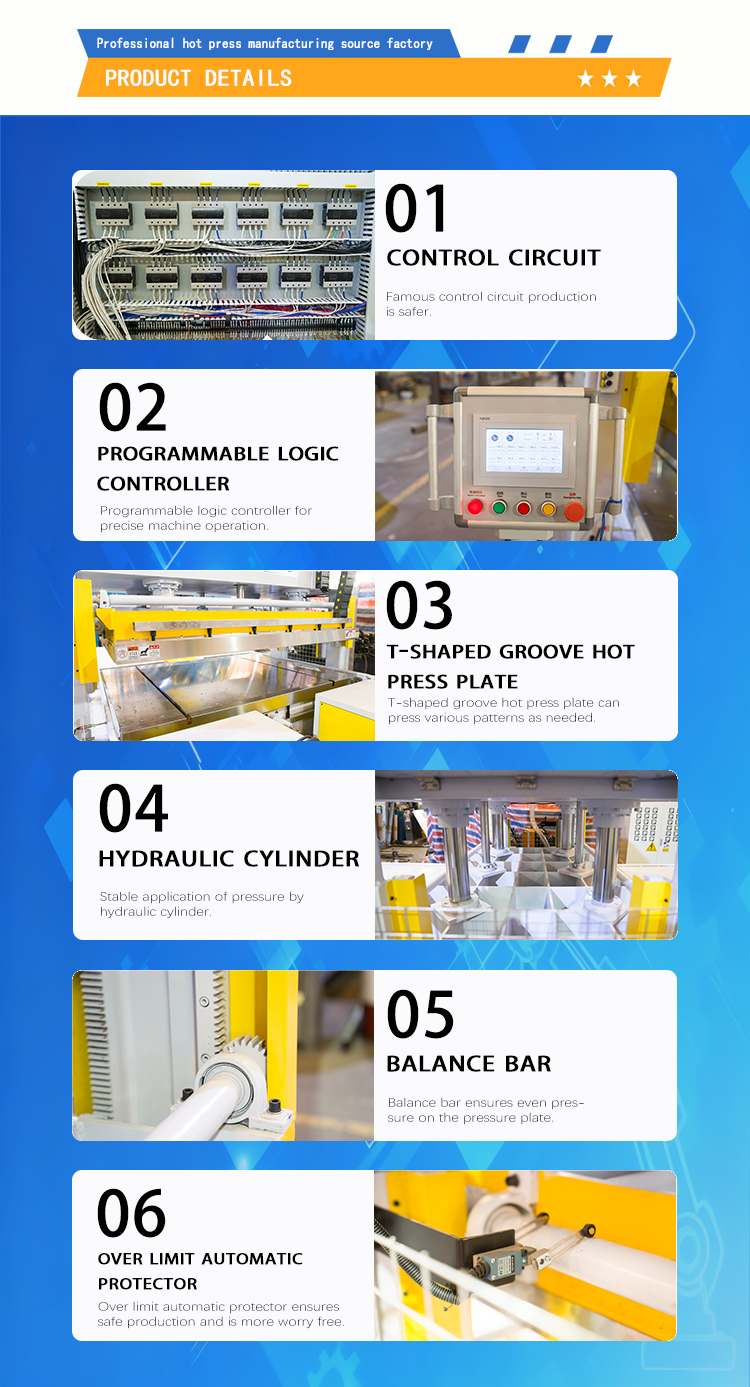

Key Features
  • Superior Production Capacity: Consolidates traditional vulcanization and embossing stages into a single streamlined operation, eliminating intermediate handling and waiting intervals. Advanced intelligent temperature control ensures rapid platen warm-up without prolonged preheating delays.
  • Integrated Safety and Protection: High-resolution infrared light curtain safety gratings with dual-channel logic interlock, temperature control system with automatic power interruption, emergency brake button, and hydraulic system monitoring with pressure detection and overpressure warning.
  • Wide-Ranging Application Versatility: Suitable for yoga mats, fitness mats, inflatable mattresses, medical rehabilitation products, and outdoor leisure gear with precise dimensional stability and consistent material properties.
  • Easy Maintenance and Technical Support: Monthly cleaning protocols for platen and heating elements, periodic sensor calibration and verification to ensure consistent vulcanization across the platen surface.
Technical Specifications
Specification Value
Max Pressure 100 T
Work Platen Size 2200×1650mm
System Pressure 20 MPa
Max Platen Opening 400mm
Maximum Temperature 180℃
Working Level 1-layer
Oil Cylinder Specification 125mm×90mm × 4pcs
Hydraulic Pump Power 11kW
Heating Pipe Power 72kW
Overall Dimensions 6275×2940×2658mm
Weight (Approx.) 11000 kg
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
  • CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline, respond to repair needs within 48 hours
  • Free video training for operators and provision of process guidance manuals
  • Lifetime technical support and software upgrade services

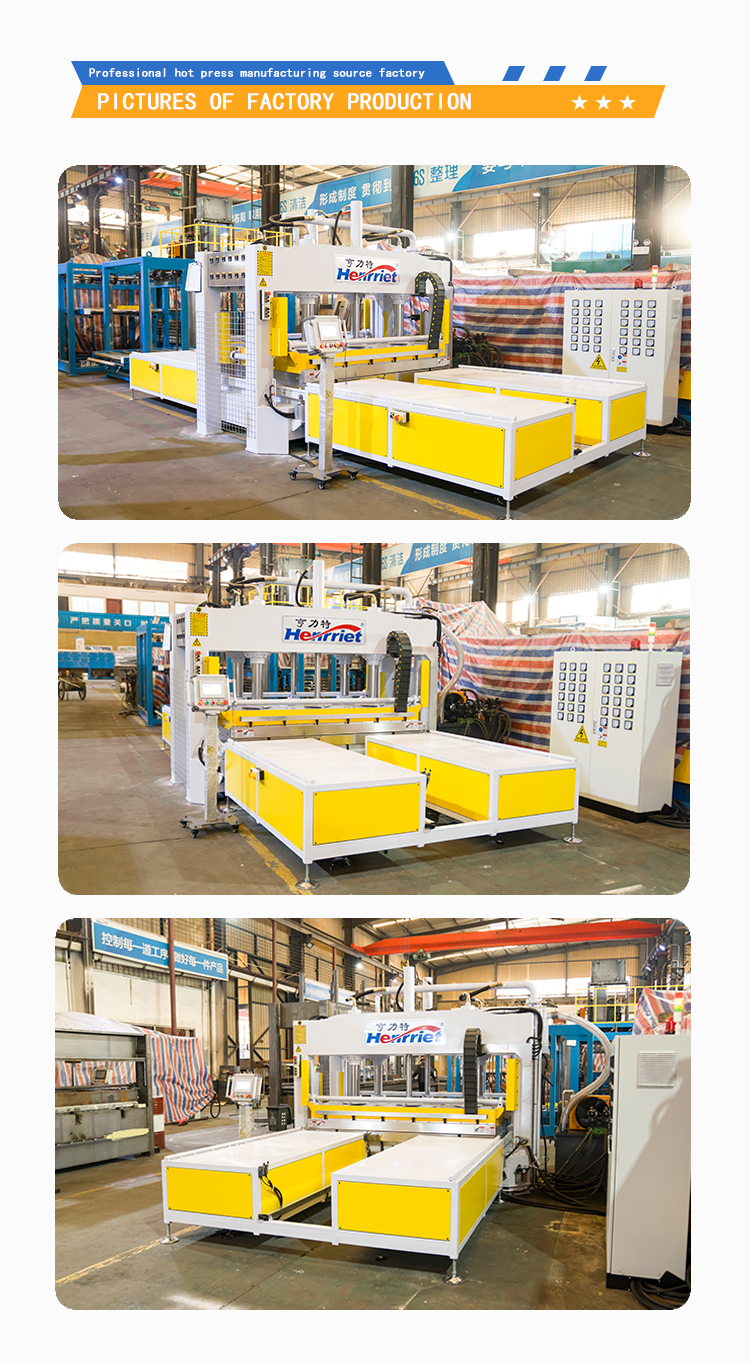

Product Images
Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing Automatic Feeding and Discharging 100T Rubber Vulcanization Press Machine with 2200*1650mm Work Platen for Yoga Mat Embossing
