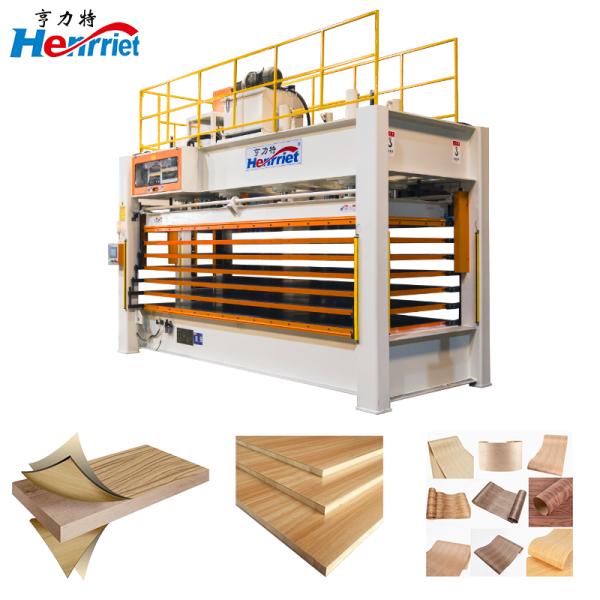

160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production
160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production
160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production
160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production
Specifications
Brand Name :
Henrriet
Certification :
CE、ISO 9001
Place of Origin :
China
MOQ :
1
Price :
Online/offline communication
Payment Terms :
T/T
Delivery Time :
25-35Work days
Packaging Details :
Film with Foam
Actual maximum size of composite board :
3800mm*1350mm
Plate thickness :
50mmX7 pcs
Number of layers :
6-layer
Spacing :
120mm
Heating cycle motor :
3kw
Hydraulic system motor power :
7.5kw
Oil cylinder and quantity :
8 pcs（110mm*80mm）
Heating system power :
54KW
Total power :
64.5KW
Weight (approximately) :
23500 KG
Description
160 Ton 6-Layer Artificial Board Hot Press Laminating Machine
Product Overview

This 160 ton 6-layer artificial board hot press laminating machine features an electric thermal oil circulation heating system. The hot press board utilizes solid drilling deep hole technology for uniform thermal conductivity, rapid heating, and precise temperature control, ensuring complete resin curing and strong surface adhesion. Ideal for continuous operation in furniture manufacturing, secondary processing of artificial boards, and production of building decoration materials.

Voltage and power configurations available for various regions including 110V, 60Hz for United States and 380V, 60Hz for South America.

Key Features
Superior Production Capacity
  • Scale production advantages for continuous rapid operation
  • Hot pressed plates maintain stability without deformation during long-term use
  • Intelligent closed-loop temperature control for rapid heating from room temperature
  • Simultaneous heating and pressurizing reduces production cycle time
Integrated Safety & Protection
  • Infrared grating protection with emergency braking system
  • Hydraulic system safety valves prevent overpressure operation
  • Hydraulic control check valves maintain pressure during power outages
  • Optional additional safety features available
Wide-Ranging Application Versatility
  • Melamine resin decorative paper impregnated boards
  • Joinery sandwich panel compression with various substrate structures
  • Compatible with urea formaldehyde or phenolic resin bonding processes
  • Suitable for multiple composite material types
Easy Maintenance & Support
  • Comprehensive hydraulic system maintenance protocols
  • Regular calibration of synchronous lifting accuracy and flatness
  • Complete inspection of safety protection systems
  • Proactive component replacement program
Technical Specifications
Maximum Pressure 160 T
Work Platen Size 4000mm × 1450mm
Maximum Composite Board Size 3800mm × 1350mm
Plate Thickness 50mm × 7 pieces
Number of Layers 6-layer
Spacing 120mm
Heating Cycle Motor 3kW
Hydraulic System Motor Power 7.5kW
Oil Cylinder Quantity 8 pieces (110mm × 80mm)
Heating System Power 54kW
Maximum Temperature 80℃
Total Power 64.5kW
Overall Dimensions 4580 × 2000mm × 4866mm
Approximate Weight 23,500 kg
Company Advantages
  • Direct Manufacturing: Two in-house factories ensure competitive pricing and faster delivery
  • Custom Engineering: 30+ senior engineers design machines tailored to your production needs
  • Global Certification: CE & ISO 9001 certified for international compliance
  • Proven Experience: 1,000+ projects delivered to 50+ countries worldwide
Service & Support
  • Warranty: 1 year comprehensive coverage
  • Packaging: Protective film with foam insulation
  • 24-hour customer service hotline
  • 48-hour response time for repair needs
  • Free video training for operators
  • Comprehensive process guidance manuals
  • Lifetime technical support
  • Software upgrade services
Product Visuals
160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production
Corporate Overview
160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production 160 ton 6-layer Artificial Board Hot Press Laminating Machine with Electric Thermal Oil Heating for Melamine Board Production
