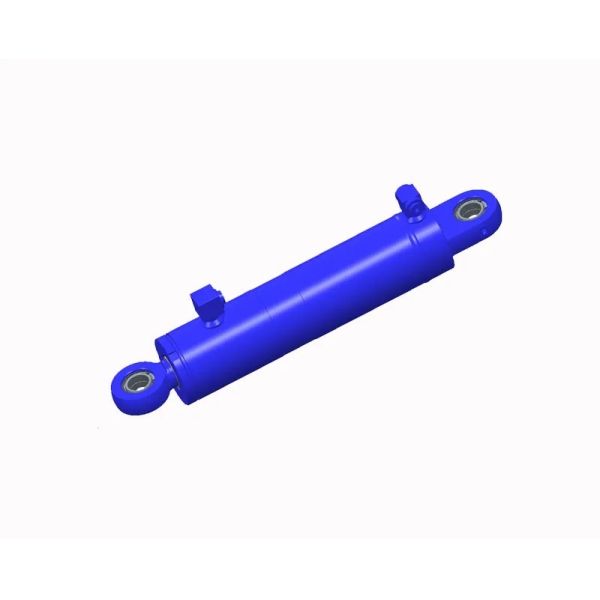

Steering Cylinder
Product description:

A Steering cylinder, also known as a hydraulic steering cylinder or power steering actuator, is an essential hydraulic component used in heavy machinery, agricultural vehicles, construction equipment, and industrial transport systems. It converts hydraulic energy into linear motion to control wheel or axle steering, ensuring smooth, precise, and reliable maneuverability.

By transmitting hydraulic pressure from the steering control valve to the steering linkage, the steering oil cylinder enables operators to easily control large and heavy vehicles, even under full load or rough terrain conditions. It is widely applied in wheel loaders, tractors, forklifts, mining trucks, and cranes, where steering accuracy and power are critical.

hydraulic cylinders are actuators that convert hydraulic energy into linear mechanical force. They have a compact structure, high output force, and smooth operation. They are the core components for performing actions such as pushing, pulling, lifting, and pressing in various mechanical and industrial systems, and are widely used in construction machinery, metallurgy, mining, shipping, and other fields.

Parameters:

Pictures:

Working Principle and Structure

The hydraulic steering cylinder works on the principle of fluid power. When pressurized oil enters one chamber of the cylinder, it pushes the piston and piston rod in one direction, turning the vehicle’s wheels or axles accordingly. Reversing the oil flow moves the piston in the opposite direction, enabling smooth and precise steering control.

The cylinder typically includes:

• Cylinder barrel: Made from precision seamless steel tubes to ensure strength and sealing.
• Piston and piston rod: Transmit hydraulic force to the steering linkage system.
• End caps and mounting joints: Connect the cylinder to the steering arm or axle.
• Sealing system: Prevents oil leakage and ensures stable pressure retention.
• Most steering cylinders are double-acting, providing hydraulic force in both directions for accurate, balanced steering under varying load conditions.

Material and Manufacturing Process

The cylinder barrel is manufactured from high-strength alloy or carbon steel, with precision honing to ensure excellent internal finish and sealing reliability. The piston rod is treated with hard chrome plating or QPQ nitriding, giving it superior corrosion resistance, smooth operation, and extended service life.

All components are CNC-machined to achieve precise dimensions and consistent performance. The welding process uses automated robotic systems for high structural integrity.

The sealing elements are sourced from internationally recognized brands such as Parker, Hallite, and NOK, ensuring long-lasting durability and zero leakage. Every steering cylinder undergoes strict testing following ISO 9001, DIN, and CE quality standards before delivery.

Key Features and Advantages

• Smooth and Accurate Steering Control – Ensures precise wheel response and handling stability.
• High Pressure Resistance – Designed for demanding hydraulic systems up to 35 MPa.
• Durable and Corrosion Resistant – Chrome-plated rods and treated surfaces for long life.
• Excellent Sealing Performance – High-quality seals prevent internal leakage.
• Compact and Strong Design – Ideal for limited space in steering assemblies.
• Customizable Options – Various bore sizes, strokes, and mounting types available.
• Low Maintenance – Easy to inspect, disassemble, and service.
• Reliable Performance Under Heavy Loads – Maintains accuracy and stability even in harsh environments.

Working principle of hydraulic cylinder:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core executive component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

The Steering Hydraulic Cylinder is used in a wide range of vehicles and equipment where hydraulic steering systems are required, including:

• Wheel Loaders and Bulldozers: Provide powerful and precise steering control.
• Agricultural Tractors and Harvesters: Enable smooth turning and direction control on uneven terrain.
• Forklifts and Industrial Vehicles: Offer easy and safe maneuvering in confined spaces.
• Mining Trucks and Dumpers: Ensure accurate steering under extreme loads.
• Cranes and Concrete Pump Trucks: Control steering systems for mobile and heavy-duty equipment.
• Marine and Offshore Machinery: Assist in rudder or deck steering operations.
• Special-Purpose Vehicles: Fire trucks, airport vehicles, and road maintenance machines.
• Its versatility, reliability, and strength make the hydraulic steering cylinder indispensable in modern hydraulic steering systems.

Quality Control and Testing

Every cylinder undergoes strict inspection and hydraulic testing before delivery. Quality assurance includes:

Pressure and leakage testing under rated loads

Dimensional accuracy verification

Coating adhesion and corrosion resistance testing

Fatigue and endurance testing for long-term reliability

All products comply with ISO, DIN, and CE standards, guaranteeing consistent performance and safety in demanding industrial environments.

Company profile:

Certification:

Packaging and Transportation:

Why us?

We focus on the research, development, production and sales of seamless steel pipes, special-shaped steel pipes and hydraulic cylinders. We have a complete production chain and an advanced equipment system, including piercing machines, cold drawing machines, hot rolling machines, high-precision flaw detection and testing equipment. The company has passed multiple authoritative certifications such as ISO9001, API, SGS, CCS, DNV, ABS, CE, RoHS, etc., ensuring that each product complies with international standards. We are committed to providing customers with high-quality, customizable solutions to meet diverse application needs.

Relying on our own built processing base and modern workshops, combined with multiple branches and storage centers across the country, we have achieved sufficient inventory and efficient logistics coordination, significantly shortening the delivery cycle and ensuring the rapid delivery of orders.

We have established a complete service and support system. After the order is signed, the professional after-sales team can provide timely and safe on-site guidance and technical support to ensure that customers are at ease throughout the process from procurement to use.

FAQ:

1. Do you support customized design and production?

Sure. We have a professional engineering team that can conduct customized design and production with special sizes, control systems or OEM according to your requirements.

2. How fast can you deliver?

In stock sizes, it takes 3-5 days. For customized sizes, it takes 30-35 days.

3. What payment methods do you support?

We support TT payment. Generally, 30% to 50% of the payment is made in advance, and the remaining amount is paid before shipment.

4. Can you provide material certification (MTC)?

Yes, we will provide MTC to you after production is completed to ensure that the material quality meets the standards.

5. What is the minimum order quantity?

Generally, we accept trial orders. The minimum order quantity is 1-3 tons, which can be determined according to different products.
