Product description:

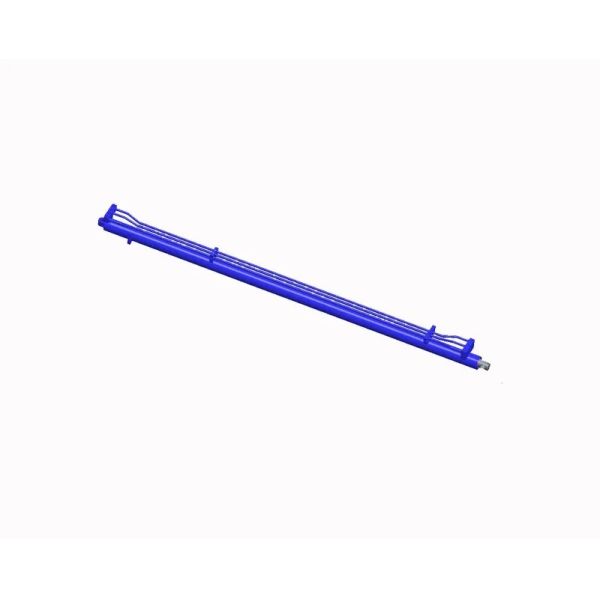

An Outrigger extension cylinder, also known as a hydraulic outrigger cylinder or outrigger telescopic cylinder, is a crucial component used in cranes, concrete pump trucks, aerial work platforms, and heavy construction machinery. Its primary function is to extend and retract the outriggers, which provide stability and balance during lifting or working operations.

By using hydraulic power, the outrigger extension cylinder ensures that the machine maintains a safe, steady, and level position on uneven or soft ground. This prevents tipping or shaking during heavy load operations, making it an indispensable part of modern construction, transportation, and lifting equipment.

hydraulic cylinders are actuators that convert hydraulic energy into linear mechanical force. They have a compact structure, high output force, and smooth operation. They are the core components for performing actions such as pushing, pulling, lifting, and pressing in various mechanical and industrial systems, and are widely used in construction machinery, metallurgy, mining, shipping, and other fields.

Parameters:

Pictures:

Working Principle and Structure

The hydraulic outrigger extension cylinder operates by converting hydraulic pressure into linear motion. When pressurized hydraulic fluid is introduced into the cylinder, the piston rod extends or retracts, adjusting the position of the outrigger beam.

This movement allows the equipment to widen its base for improved stability or retract it for compact storage and transportation.

A standard outrigger cylinder consists of:

• Cylinder barrel: Made from seamless precision steel for high pressure resistance.
• Piston and piston rod: Transmit hydraulic force to control outrigger movement.
• Sealing system: Prevents oil leakage and ensures consistent performance.
• End caps and mounting points: Secure the cylinder to the outrigger frame.
• Most outrigger extension cylinders are double-acting, providing hydraulic force in both extension and retraction directions for smooth and reliable control.

Material and Manufacturing Process

The cylinder body is made from high-strength alloy steel or precision seamless steel tubes, which are honed and polished for excellent sealing and smooth motion. The piston rod undergoes hard chrome plating or QPQ nitriding treatment, providing exceptional corrosion resistance and surface hardness.

All parts are produced using CNC precision machining to ensure tight tolerances and excellent performance. Advanced robotic welding ensures strong, uniform joints, while the sealing system utilizes imported brands such as Parker, Hallite, and NOK for superior reliability.

Every cylinder is tested under high pressure and load conditions, in compliance with ISO 9001, DIN, and CE standards, ensuring excellent performance and long service life.

Key Features and Advantages

• High Stability and Safety: Provides strong support and load-bearing capacity for equipment operation.
• Smooth and Accurate Movement: Ensures precise outrigger extension and retraction.
• Superior Sealing Performance: Prevents internal leakage and pressure loss under heavy loads.
• High Pressure Resistance: Withstands pressures up to 35 MPa for demanding hydraulic systems.
• Corrosion and Wear Resistance: Advanced surface treatments extend working life.
• Compact and Durable Design: Easy installation and long-term reliability.
• Customizable Dimensions: Available in multiple bore sizes, strokes, and mounting types.
• Low Maintenance Requirements: Easy replacement of seals and simple structure design.

Working principle of hydraulic cylinder:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core executive component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

The Outrigger Extension Hydraulic Cylinder is widely used in heavy machinery and lifting equipment, such as:

• Truck Cranes: Controls outrigger beam extension for enhanced stability during lifting.
• Concrete Pump Trucks: Provides support to balance the vehicle during pumping operations.
• Aerial Work Platforms: Ensures safe positioning and load distribution at working heights.
• Firefighting Trucks: Stabilizes vehicles during rescue and firefighting tasks.
• Drilling Rigs and Mining Machines: Maintains equipment balance on rough terrain.
• Utility and Maintenance Vehicles: Enables stable operation of hydraulic booms.
• Marine Cranes and Offshore Platforms: Provides stability for lifting equipment on ships or rigs.
• In all these applications, the outrigger extension cylinder ensures the equipment remains steady, safe, and efficient under heavy-duty conditions.

Quality Control and Testing

Every cylinder undergoes strict inspection and hydraulic testing before delivery. Quality assurance includes:

Pressure and leakage testing under rated loads

Dimensional accuracy verification

Coating adhesion and corrosion resistance testing

Fatigue and endurance testing for long-term reliability

All products comply with ISO, DIN, and CE standards, guaranteeing consistent performance and safety in demanding industrial environments.
