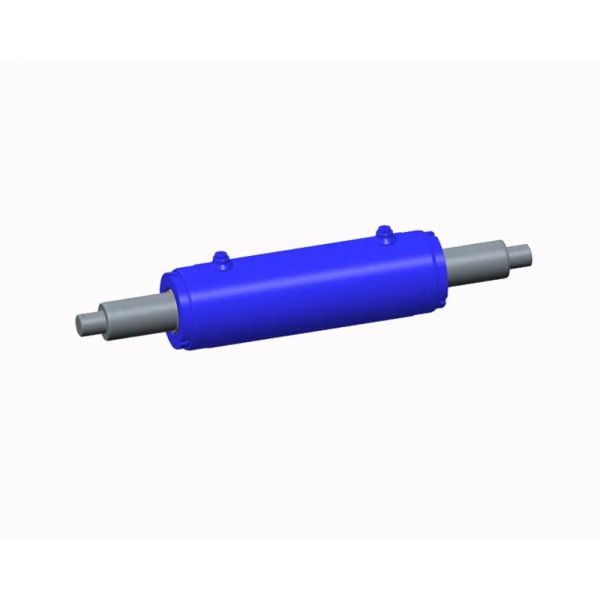

Steering Cylinder
Product description:

A Steering cylinder, also known as a hydraulic steering cylinder or steering actuator, is a critical component in hydraulic steering systems used to control the direction of movement in vehicles and machinery. It converts hydraulic pressure into linear mechanical motion, allowing smooth and precise steering control under various load and road conditions.

Steering cylinders are widely applied in agricultural tractors, construction machinery, forklifts, loaders, trucks, mining vehicles, ships, and special engineering equipment. By ensuring reliable and responsive steering performance, they enhance driving safety, maneuverability, and operational efficiency.

hydraulic cylinders are actuators that convert hydraulic energy into linear mechanical force. They have a compact structure, high output force, and smooth operation. They are the core components for performing actions such as pushing, pulling, lifting, and pressing in various mechanical and industrial systems, and are widely used in construction machinery, metallurgy, mining, shipping, and other fields.

Parameters:

Pictures:

Structure and Working Principle

The hydraulic steering cylinder consists of a cylinder barrel, piston, piston rod, seals, end covers, and hydraulic ports. When pressurized oil enters one side of the cylinder, it pushes the piston and extends or retracts the piston rod. This linear movement is transmitted to the steering linkage or wheel assembly, changing the vehicle’s direction.

In modern hydraulic steering systems, the cylinder often works together with a steering control valve or orbitrol steering unit, enabling smooth, stable, and precise steering. Some systems use double-acting steering cylinders, which provide equal force and speed in both directions, ensuring consistent handling even under heavy loads or uneven terrain.

Materials and Manufacturing Process

The cylinder body is manufactured from high-strength alloy steel or seamless Precision steel tubes, honed and polished internally for superior sealing performance and low friction. The piston rod is hard chrome plated or QPQ nitrided to resist wear, corrosion, and impact.

All components are precisely machined using CNC equipment and assembled with advanced robotic welding and heat treatment processes to ensure strength, durability, and dimensional accuracy. The sealing system uses high-quality materials from brands such as NOK, Hallite, and Parker, providing long-lasting, leak-free operation.

Each steering cylinder is designed and manufactured under strict ISO, DIN, and CE standards, guaranteeing global quality compliance and performance reliability.

Key Features and Advantages

• Accurate Steering Control: Provides smooth, responsive, and precise hydraulic steering for improved maneuverability.
• High Pressure and Load Capacity: Designed for heavy-duty applications with working pressures up to 35 MPa.
• Superior Sealing Performance: Advanced sealing systems ensure long-term reliability and zero internal leakage.
• Durable Construction: Built from high-strength alloy materials with corrosion-resistant surface treatments.
• Compact and Efficient Design: Optimized structure for easy installation and space-saving in tight engine compartments.
• Customizable Configurations: Available in various bore sizes, stroke lengths, and mounting types to match different steering systems.
• Low Maintenance: Simple structure with replaceable seals and minimal wear parts reduces service downtime.

Working principle of hydraulic cylinder:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core executive component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

The hydraulic steering cylinder is an essential component in a wide range of mobile and industrial equipment, including:

• Agricultural tractors and harvesters – for stable, efficient field maneuvering.
• Wheel loaders and forklifts – to provide responsive steering under load.
• Construction machinery – such as graders, bulldozers, and excavators, for precise directional control.
• Heavy-duty trucks and trailers – for safe steering assistance and load balancing.
• Mining and off-road vehicles – for strong and reliable steering in rough environments.
• Marine and ship steering systems – to control rudders for accurate navigation.
• In all applications, steering cylinders deliver stable, smooth, and reliable performance, ensuring safe and efficient vehicle operation.

Quality Control and Testing

Every cylinder undergoes strict inspection and hydraulic testing before delivery. Quality assurance includes:

Hydraulic Pressure and leakage testing under rated loads

Dimensional accuracy verification

Coating adhesion and corrosion resistance testing

Fatigue and endurance testing for long-term reliability

All products comply with ISO, DIN, and CE standards, guaranteeing consistent performance and safety in demanding industrial environments.
