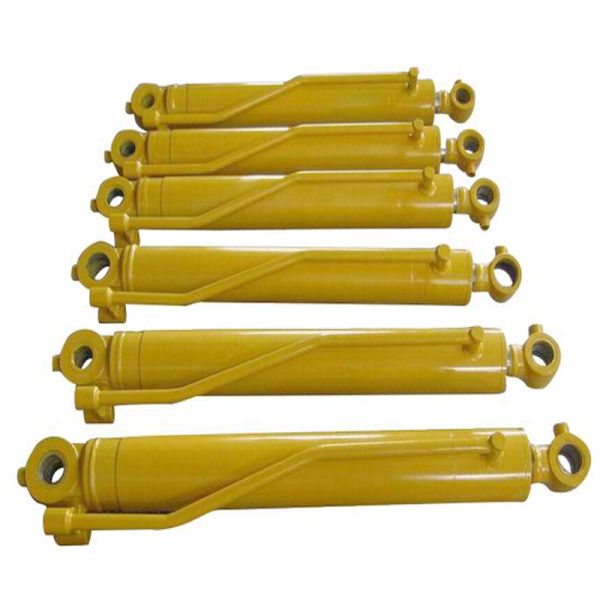

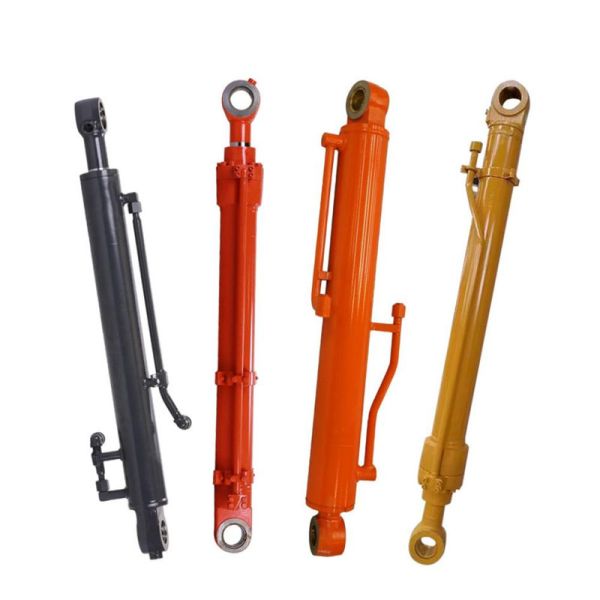

Bulldozer Front Shovel Oil Cylinder
Product description:

A bulldozer front shovel oil cylinder, also known as a front blade hydraulic cylinder, is a crucial component in the hydraulic system of bulldozers and other heavy earthmoving equipment. It is responsible for lifting, lowering, and tilting the front shovel (or blade), enabling the machine to perform efficient digging, grading, pushing, and leveling operations. This high-performance hydraulic cylinder transforms hydraulic energy into linear mechanical force, ensuring stable, powerful, and precise control of the bulldozer’s front attachment.

hydraulic cylinders are actuators that convert hydraulic energy into linear mechanical force. They have a compact structure, high output force, and smooth operation. They are the core components for performing actions such as pushing, pulling, lifting, and pressing in various mechanical and industrial systems, and are widely used in construction machinery, metallurgy, mining, shipping, and other fields.

Parameters:

Pictures:

Structure and Working Principle

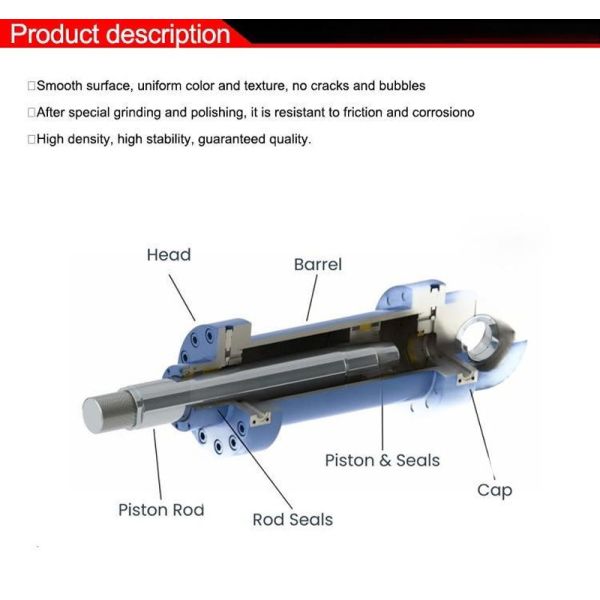

The bulldozer front shovel oil cylinder typically consists of a cylinder barrel, piston, piston rod, sealing system, guide bushings, and end caps. When pressurized hydraulic oil enters the cylinder, it pushes the piston to extend or retract the piston rod. This linear motion drives the front shovel or blade to move up or down, adjusting the working angle according to the operator’s commands.

The cylinder’s design allows it to withstand heavy loads, high pressure, and shock impacts, ensuring reliable performance during intense earthmoving operations. With precise control over blade positioning, the oil cylinder directly contributes to the bulldozer’s productivity, efficiency, and operational safety.

Materials and Manufacturing Process

To achieve high strength and long service life, the cylinder barrel is made of premium-quality alloy steel and undergoes precision honing to ensure smooth internal surfaces. The piston rod is treated with hard chrome plating or QPQ nitriding for superior corrosion resistance, wear protection, and surface hardness.

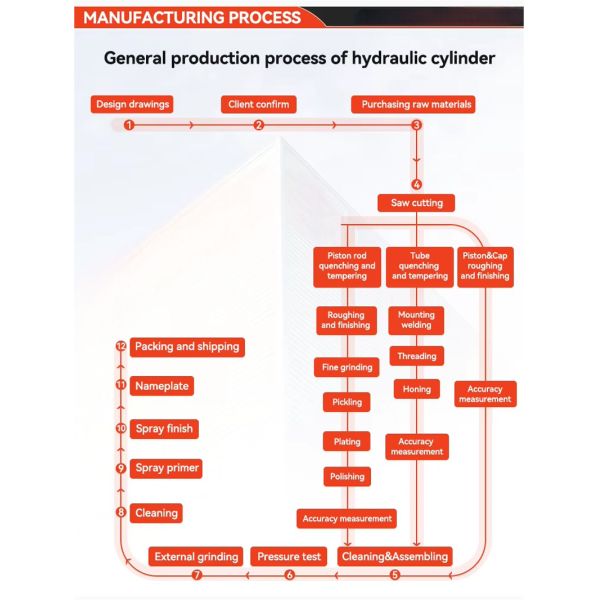

Modern manufacturing technologies — including CNC machining, robotic welding, automatic assembly, and high-frequency heat treatment — are used to produce cylinders that meet strict quality standards. Each component is processed with high precision to maintain dimensional accuracy and excellent mechanical performance under demanding working conditions.

Key Features and Advantages

• High Pressure Resistance: Designed to operate under working pressures of up to 35 MPa or higher, providing strong lifting and pushing force.
• Excellent Sealing System: Equipped with advanced seals from top brands such as NOK, Hallite, or Parker, ensuring zero leakage and reliable performance.
• Outstanding Durability: Enhanced surface treatments and heat-hardened materials provide exceptional resistance to wear, rust, and fatigue.
• Smooth and Stable Operation: Optimized hydraulic design ensures smooth motion, accurate blade control, and reduced vibration.
• Customizable Design: Cylinders can be tailored in terms of bore size, stroke length, mounting type, and connection fittings to match different bulldozer models.
• Easy Maintenance: Modular design with replaceable seals and wear parts makes inspection and servicing simple and cost-effective.

Working principle of hydraulic cylinder:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core executive component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

The front shovel oil cylinder is mainly used in:

• Bulldozers for lifting, tilting, and angling the front blade.
• Crawler and wheel dozers to control blade movement for grading and pushing operations.
• Construction and mining equipment requiring strong, reliable hydraulic actuation.
• Agricultural and land reclamation machinery for earth leveling and soil movement tasks.
• In every application, the bulldozer front shovel oil cylinder delivers consistent force, stability, and precision, ensuring superior machine performance across challenging terrain and working environments.

Quality Control and Testing

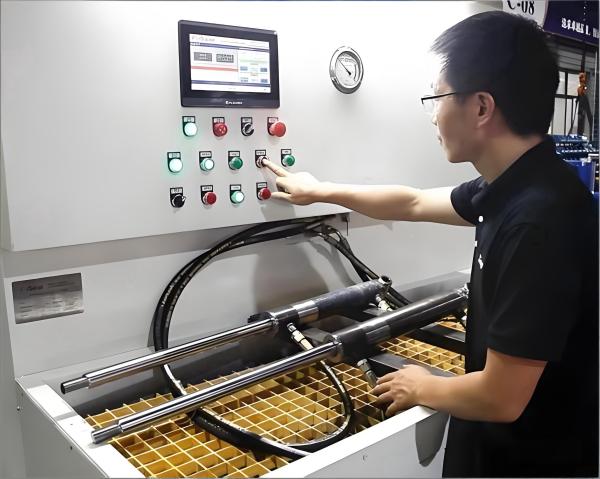

Every cylinder undergoes strict inspection and hydraulic testing before delivery. Quality assurance includes:

• Hydraulic Pressure and leakage testing under rated loads
• Dimensional accuracy verification
• Coating adhesion and corrosion resistance testing
• Fatigue and endurance testing for long-term reliability
• All products comply with ISO, DIN, and CE standards, guaranteeing consistent performance and safety in demanding industrial environments.

Company profile:

Certification:

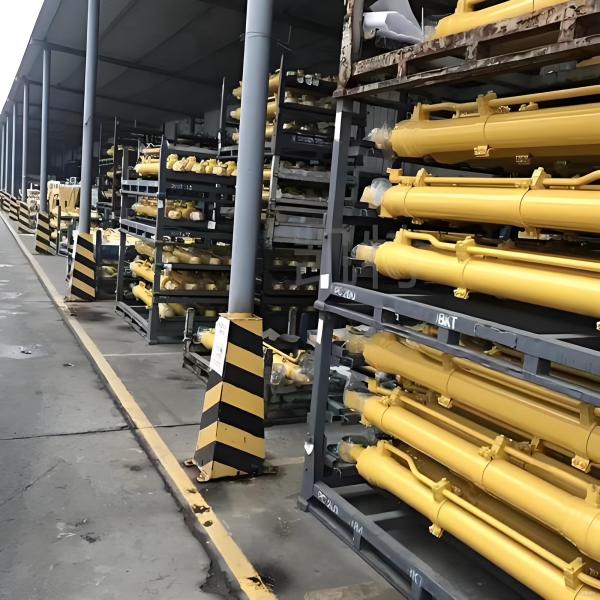

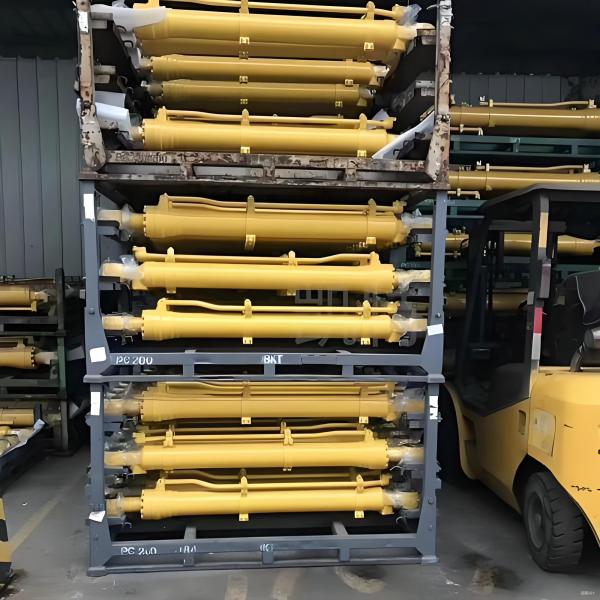

Packaging and Transportation:

Why us?

We focus on the research, development, production and sales of seamless steel pipes, special-shaped steel pipes and hydraulic cylinders. We have a complete production chain and an advanced equipment system, including piercing machines, cold drawing machines, hot rolling machines, high-precision flaw detection and testing equipment. The company has passed multiple authoritative certifications such as ISO9001, API, SGS, CCS, DNV, ABS, CE, RoHS, etc., ensuring that each product complies with international standards. We are committed to providing customers with high-quality, customizable solutions to meet diverse application needs.

Relying on our own built processing base and modern workshops, combined with multiple branches and storage centers across the country, we have achieved sufficient inventory and efficient logistics coordination, significantly shortening the delivery cycle and ensuring the rapid delivery of orders.

We have established a complete service and support system. After the order is signed, the professional after-sales team can provide timely and safe on-site guidance and technical support to ensure that customers are at ease throughout the process from procurement to use.

FAQ:

1. Do you support customized design and production?

Sure. We have a professional engineering team that can conduct customized design and production with special sizes, control systems or OEM according to your requirements.

2. How fast can you deliver?

In stock sizes, it takes 3-5 days. For customized sizes, it takes 30-35 days.

3. What payment methods do you support?

We support TT payment. Generally, 30% to 50% of the payment is made in advance, and the remaining amount is paid before shipment.

4. Can you provide material certification (MTC)?

Yes, we will provide MTC to you after production is completed to ensure that the material quality meets the standards.

5. What is the minimum order quantity?

Generally, we accept trial orders. The minimum order quantity is 1-3 tons, which can be determined according to different products.
