Laboratory Centrifugal Vacuum Concentrator 300rpm - 2000rpm Vacuum Centrifuge Concentrator

Specifications

Max speed :

300-2000rpm

Model Number :

ZLNS-1

Vacuum pump :

Built-in

Temperature range :

Room temperature +5°C to 80°C

Certification :

CE,RoHs,ISO13485

Price :

$1340USD~$1451USD

Warranty :

3 years

MOQ :

1 unit

Payment Terms :

T/T

Ultimate vacuum :

-92 kpa

Brand Name :

HengNuo

Packaging Details :

Cardboard box

Supply Ability :

Have stock

Place of Origin :

Changsha, Hunan, China

Name :

Centrifugal Vacuum Concentrator

Delivery Time :

5-8 work days

Description

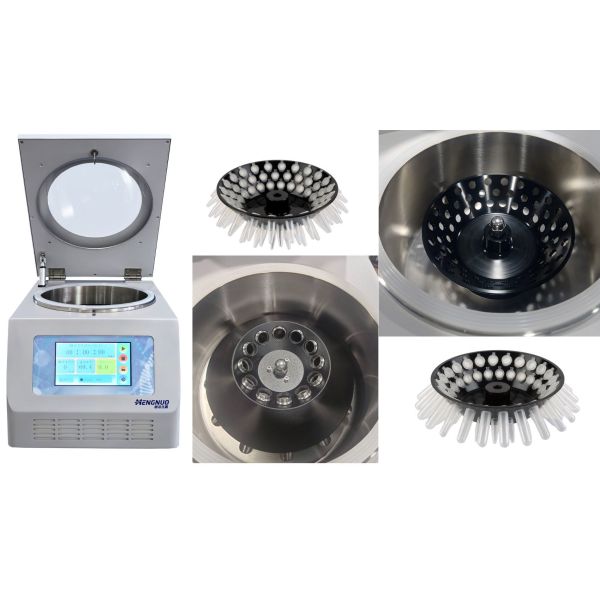

Vacuum Centrifugal Concentrator ZLNS-1 Built-In Pump For Sample Concentration

Product Overview

The ZLNS-1 Laboratory Vacuum Centrifugal Concentrator is an economical solution designed for efficient DNA RNA and protein sample purification.
This compact unit features an integrated pump system, providing reliable performance for various laboratory applications.
The solvent is evaporated by a combination of centrifugal force, heating, and vacuum provided by a built-in vacuum pump, thereby achieving sample concentration.
Built-in vacuum pump system eliminates the need for external equipment
A vacuum pump is used to bring the system into a dry vacuum state, thereby lowering the boiling point of the solvent and accelerating its evaporation rate.

Key Applications

Suitable for concentration of protein, drugs, metabolites and enzymes. Used for solvent removal of DNA, RNA and nucleoside synthetic samples.

DNA RNA sample concentration and purification
Protein sample preparation and purification
Laboratory sample processing and concentration

Main Features

Built-in vacuum pump system
Centrifugal concentration technology
Compact and space-saving design
Cost-effective laboratory solution
Ideal for routine sample preparation
Microcomputer control system, 7-inch LCD touch screen
Delayed vacuum pump start function to avoid sample mixing
Running parameters can be changed at will during operation
Stainless steel corrosion-resistant inner liner, transparent acrylic lid
A highly efficient magnetic drive system protects the airtightness of the cavity
Chemical corrosion resistant plunger pump, standard low vacuum system
A variety of rotor sizes are available for selection, suitable for sample concentration of different capacities
The combined use of cold traps yields even better results

Technical parameters

Model	ZLNS-1	Order number	080649501
Maximum speed	300-2000rpm	Ultimate vacuum	-92kpa
Temperature setting range	room temperature +5°C to 80°C	vacuum pump	built-in
Temperature accuracy	±1°C	Vacuum pump parameters	2L/min
Display method	LCD display	Timing range	1 min-99h
Overall machine noise	≤65dB (A)	Supported power supply	AC 220+22V 50Hz 16A
Net weight	44kg	Dimension	580360330 (mm)

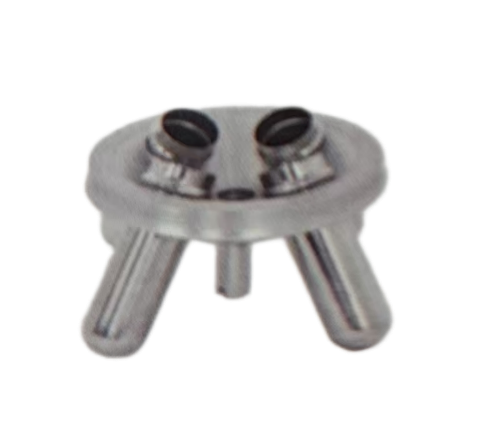

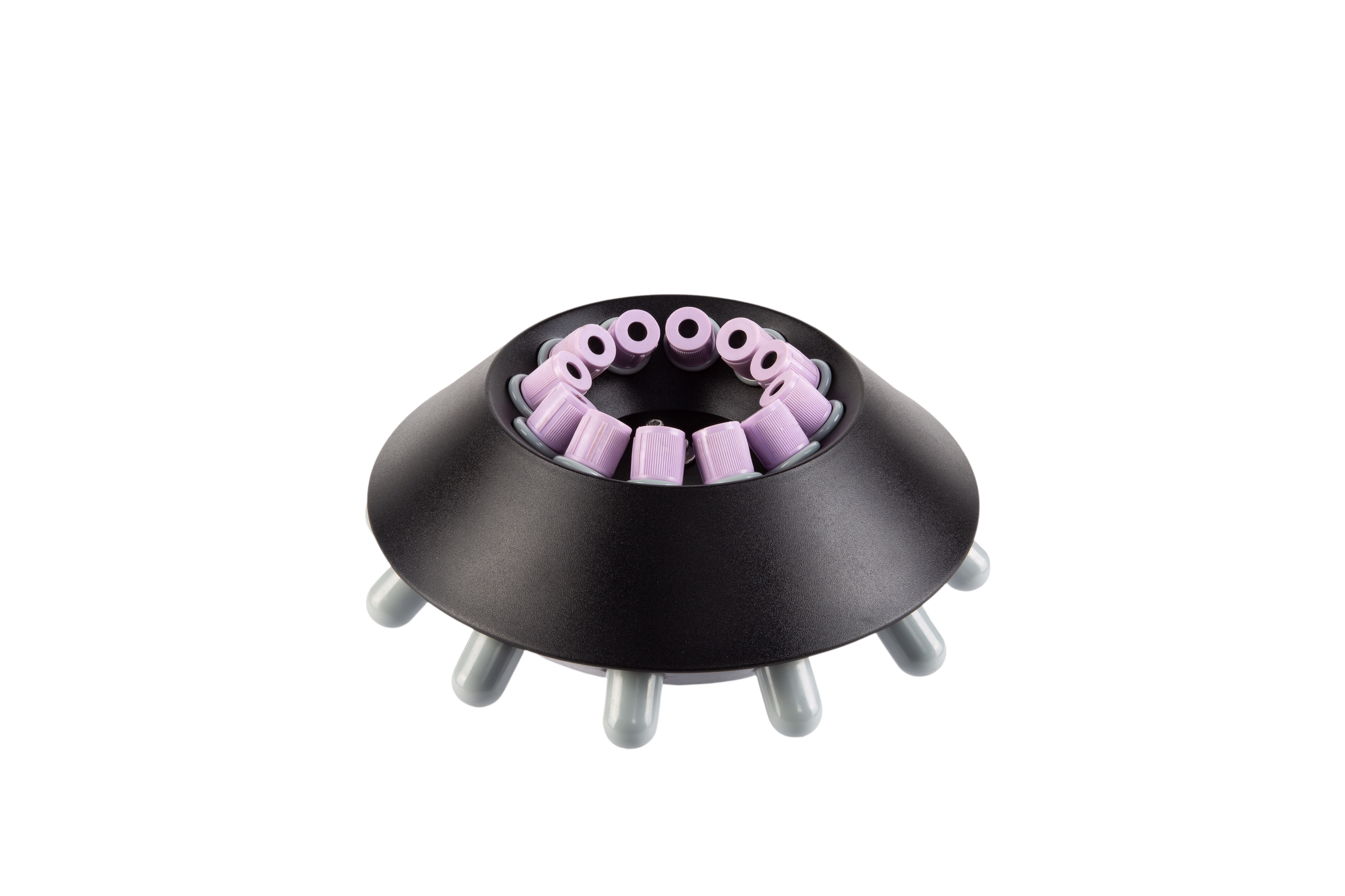

Optional rotor parameters
Product Name	Product Model	Order number	Rotor image

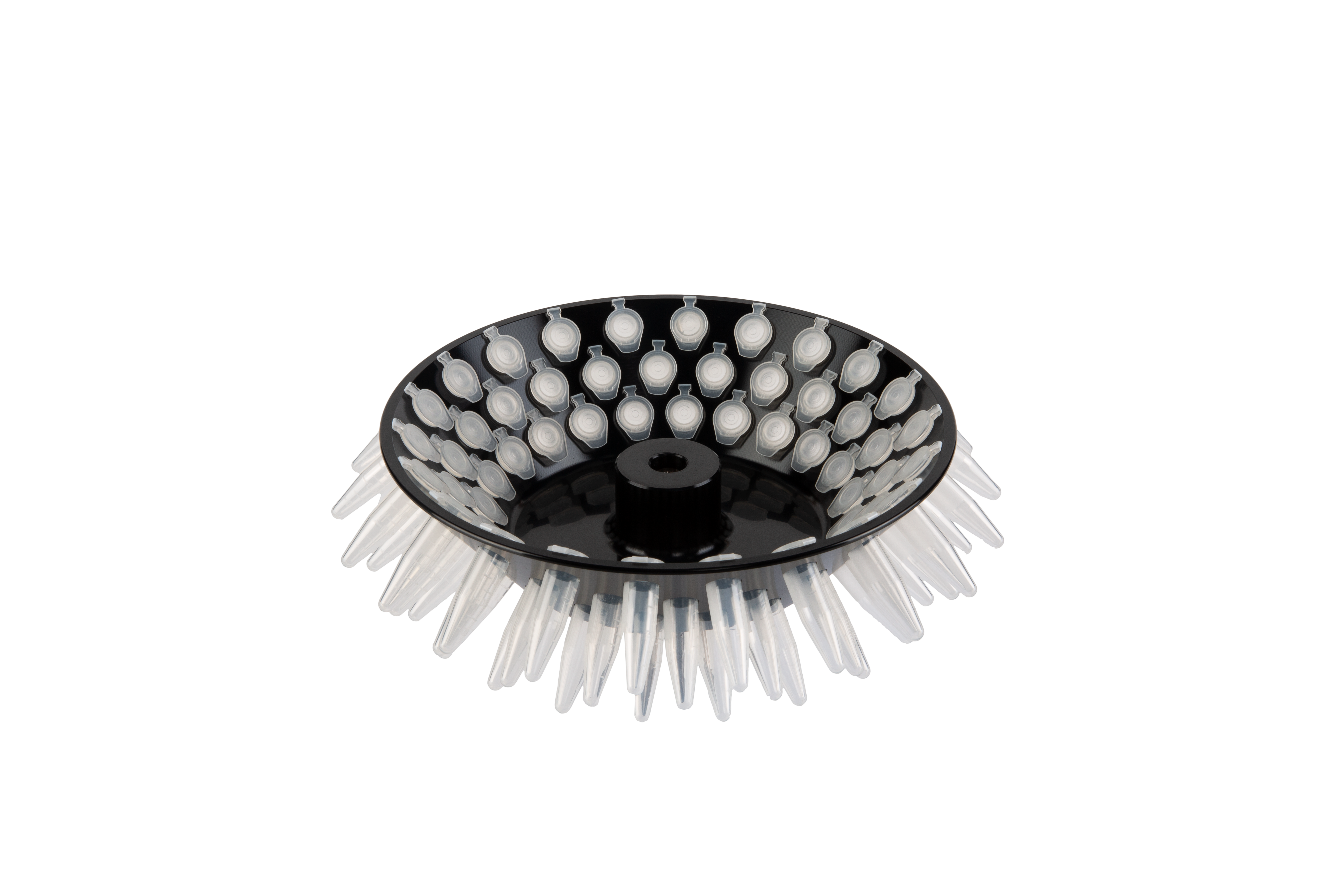

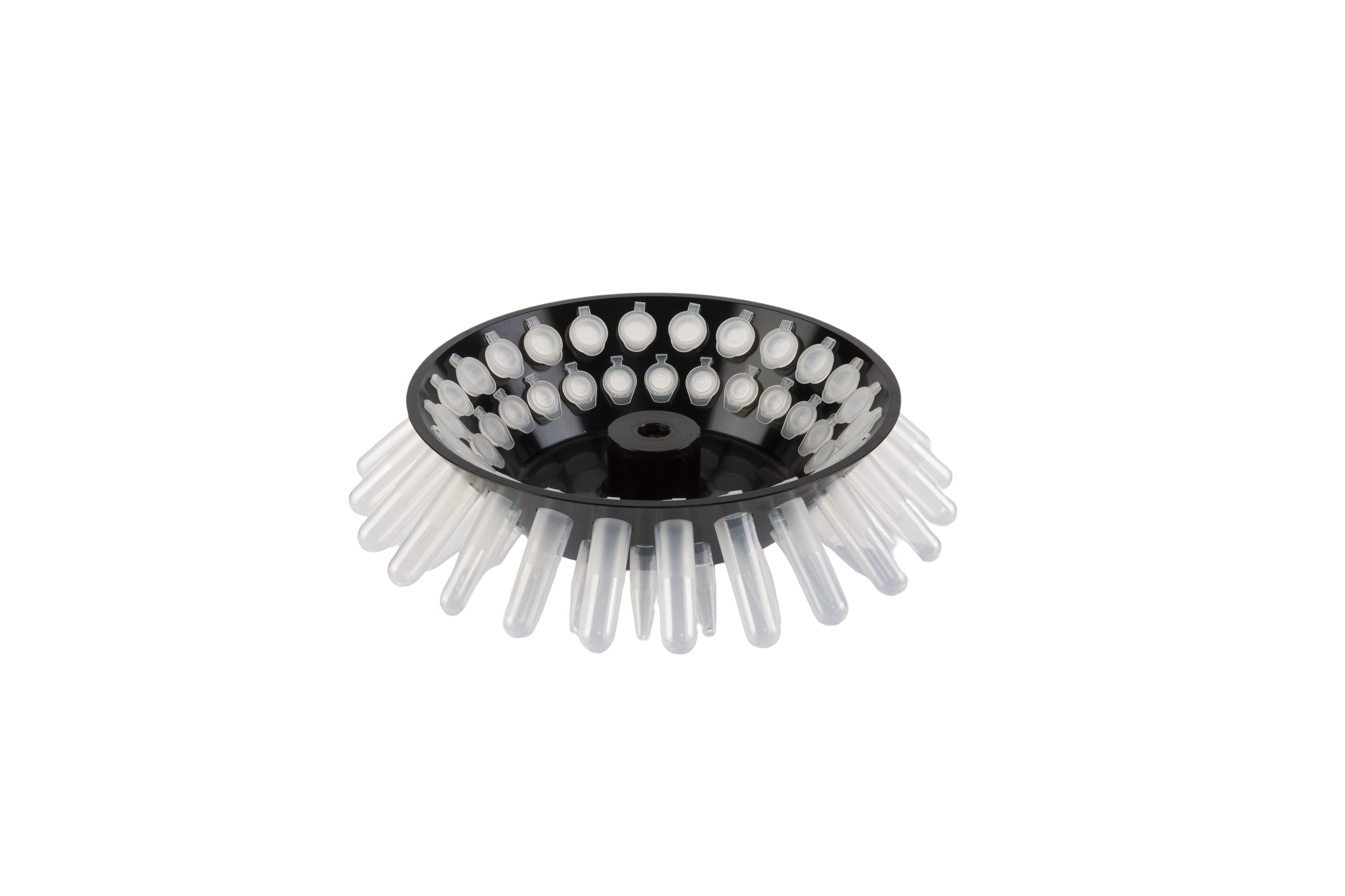

Fixed-angle rotor 1	66x1.5ml	016600024
Fixed-angle rotor 2	24x1.5ml+24x5ml	012402054
Fixed-angle rotor 3	12x10ml	011200104
Fixed-angle rotor 4	4x50ml/4x100ml	010400504

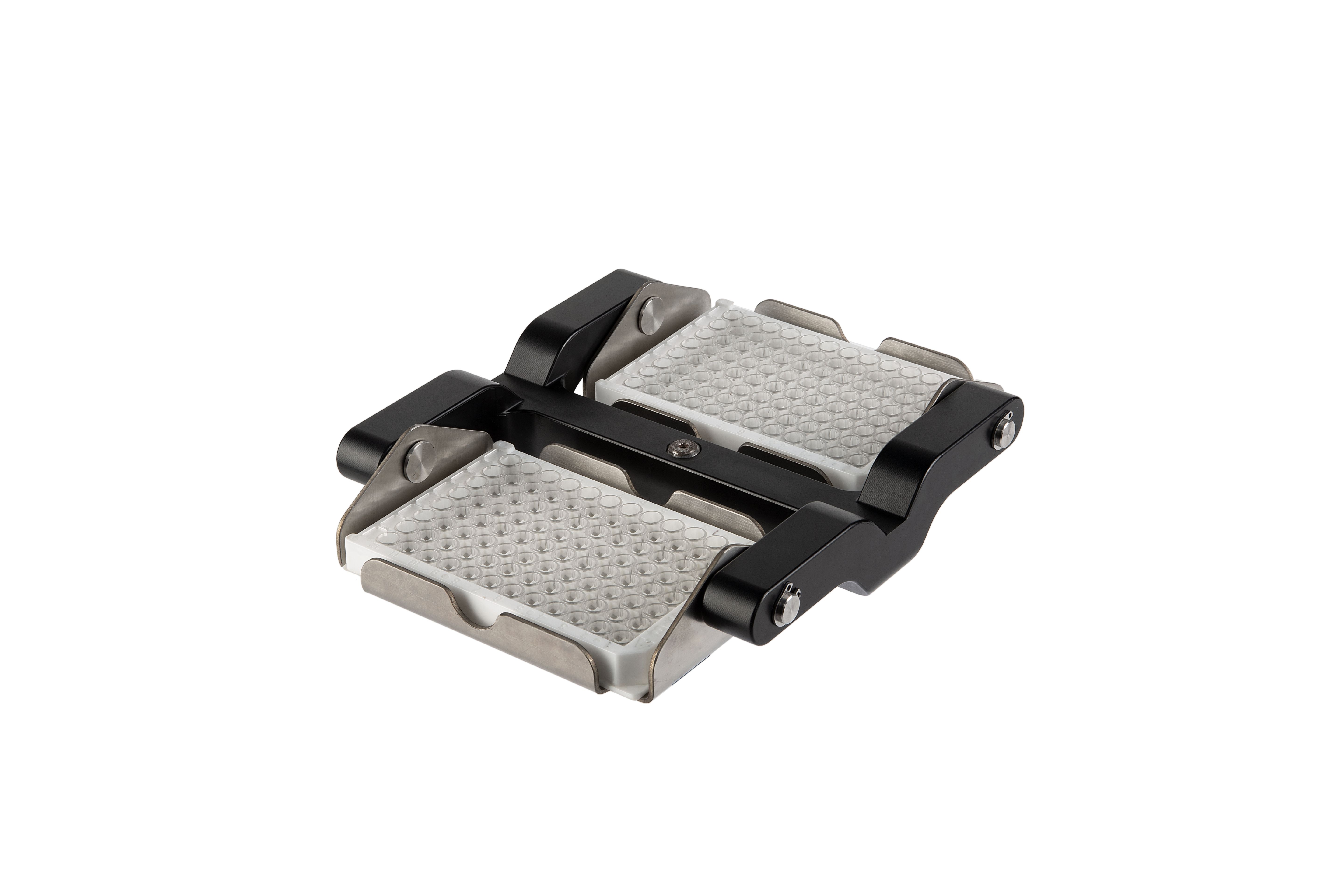

ELISA plate rotor/Microplate rotor 5	2x96-hole plate	020020965

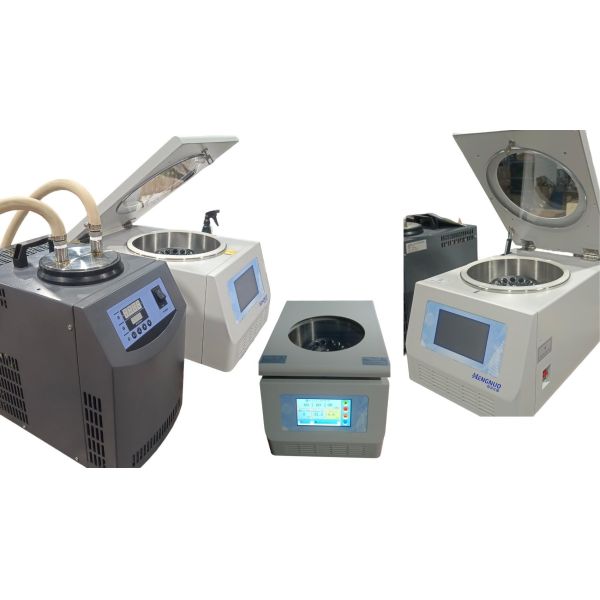

Optional Accessory – Cold Trap

Model	HDLJ-1	Order number	080213221
Cold trap capacity	2L	Cold trap temperature	-50℃
Overall machine noise	≤20dB(A)	Power supply/power	220V/50Hz/0.4kW
Cold trap type and size	200 mm x 120 mm	Net weight	23kg
Dimension	250 x 430 x 360 ( mm)
