8000rpm Blood Bank Centrifuges 15000xg RCF Blood Bank Centrifuge Machine 12 Blood Bags Ultra Capacity
8000rpm Blood Bank Centrifuges 15000xg RCF Blood Bank Centrifuge Machine 12 Blood Bags Ultra Capacity
Specifications
Delivery Time :
5-8 work days
Packaging Details :
Cardboard box
Max RCF :
15000xg
Place of Origin :
Changsha, Hunan, China
Noise Level :
≤65dB(A)
Model Number :
7-72R
Brand Name :
HengNuo
Temperature range :
-20℃--40℃
Max Speed :
8000rpm
Dimensions :
975×860×1180mm
Certification :
CE,RoHs
Temperature accuracy :
±1.0℃
Supply Ability :
Have stock
MOQ :
1 unit
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

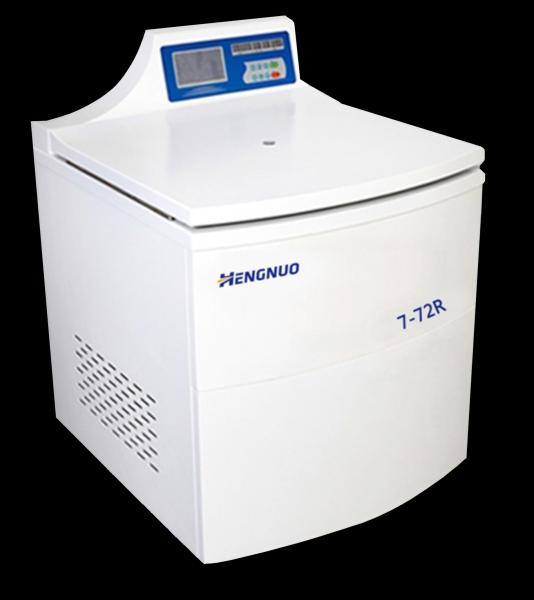

7-72R Floor Refrigerated Centrifuge Blood Bank Centrifuge for Blood Bags
Key Advantages
  • Ultra-large Capacity: Equipped with horizontal rotors, it can hold 12 sets of 400ml/450ml triple/quadruple blood bags in one run. It also supports 6*2400ml centrifuge bottles, realizing high-throughput processing for blood samples and general specimens.
  • Precise Refrigeration System: Adopts imported fluorine-free refrigeration unit with temperature range from -20℃ to 40℃ and ±1℃ temperature accuracy. It keeps constant temperature stably to protect the activity of blood and biological products during long-time operation.
  • Durable Drive Motor: High-torque frequency conversion direct drive motor, carbon-free design with noise ≤65dB. Max speed 8000rpm and max RCF 15000*g deliver consistent and excellent separation results.
  • Intelligent Dual-language Operation: Chinese & English LCD touch screen, 40 user-defined programs available. 9-level acceleration/deceleration modes, parameters can be adjusted in real time while running. Speed and temperature curves are displayed dynamically.
  • Comprehensive Safety Protection: Built-in over-speed, over-temperature, unbalance and electronic interlock protection. Triple protective shell prevents leakage and cross-contamination from broken blood bags.
  • Versatile Rotors: Compatible with fixed-angle rotors and multiple large-volume horizontal rotors, suitable for centrifuge bottles, large combined blood bags and other lab containers.
Applications
  • Core Application: National & regional blood banks, transfusion centers. Ideal for separating whole blood into red blood cells, plasma, platelets and cryoprecipitate with 450ml triple/quadruple blood bags.
  • Biopharmaceuticals: Biopharmaceutical factories and biological product laboratories for large-volume liquid separation and purification.
  • General Labs: Research institutes and testing laboratories for low-temperature centrifugation, sedimentation and purification of bulk samples.
Technical Parameters
Model 7-72R Order Number 08147721
Max Speed 8000rpm Total Power 7500W
Max RCF 15000xg Noise Level ≤65dB(A)
Temperature accuracy ±1.0℃ Temperature range -20℃--40℃
Max capacity 4x2400ml Timer Range 1min-23h59min
Minimum acceleration/deceleration time 168s/168s Centrifugation chamber diameter 700mm
Power Supply AC 220±22V 50Hz 16A Speed Accuracy ±10r/min
Net Weight 310KG Dimensions 975*860*1180mm
Rotors
8000rpm Blood Bank Centrifuges 15000xg RCF Blood Bank Centrifuge Machine 12 Blood Bags Ultra Capacity

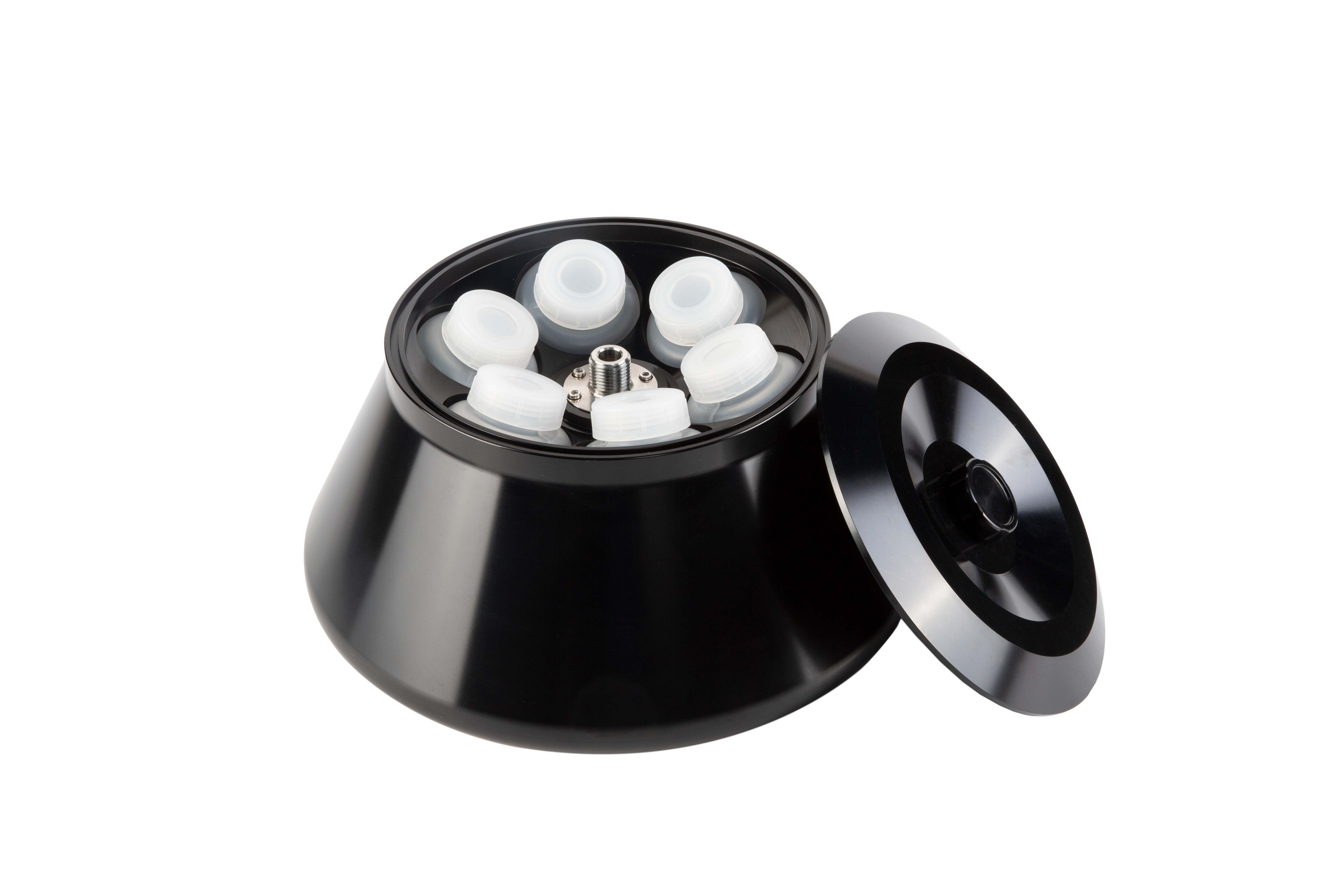

Rotor No.1 (fixed angle rotor)

Capacity: 6*500ml

Max speed: 8000rpm

Max RCF: 11680xg

Order Number: 010605003

8000rpm Blood Bank Centrifuges 15000xg RCF Blood Bank Centrifuge Machine 12 Blood Bags Ultra Capacity

Rotor No.2 (fixed angle rotor)

Capacity: 6*1000ml

Max speed: 8000rpm

Max RCF: 15000xg

Order Number: 010610003

8000rpm Blood Bank Centrifuges 15000xg RCF Blood Bank Centrifuge Machine 12 Blood Bags Ultra Capacity

Rotor No.3 (swing out rotor)

Capacity: 6*2400ml

Max speed: 4200rpm

Max RCF: 5600xg

Order Number: 020624002

8000rpm Blood Bank Centrifuges 15000xg RCF Blood Bank Centrifuge Machine 12 Blood Bags Ultra Capacity

Rotor No.4 (swing out rotor)

Capacity: 6*2x1000ml

Max speed: 84200rpm

Max RCF: 5000xg

Order Number: 021210002
