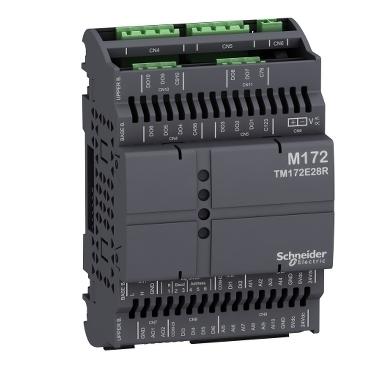

Schneider PLC Controller Modicon M171/M172/M173 TM172E28R
Product Overview

The Schneider Modicon M171/M172/M173 TM172E28R is a programmable controller designed for HVAC water pumping solutions, offering flexible configuration and reliable performance.

Main Specifications
Specification Details
Product Series Modicon M171/M172/M173
Product Type Programmable Controller
Application Type HVAC Water Pumping Solution
Variables Programmable
Total Inputs/Outputs 22
Input/Output Configuration
  • Discrete Inputs: 6
  • Discrete Outputs:
    • 3 Relay Output SPST (with common points)
    • 2 Relay Output SPST (independent common points)
  • Discrete Output Current: 5A (Relay SPST)
  • Analog Inputs:
    • 6 (configurable in pairs)
    • 1 (configurable)
  • Outputs:
    • 1 Voltage/Current (0...10V or 4...20mA)
    • 3 Voltage (0...10V or PWM 10Hz...2kHz)
Communication & Ports
  • 1 CAN Port (Screw Terminal)
  • 1 USB Type C
  • 2 RS485 (Screw Terminals, Modbus Serial Link)
  • 1 Display Port (TTL Connector)
  • 1 Communication Module Port
Detailed I/O Count
  • 6 Digital Inputs
  • 5 Digital Outputs
  • 7 Analog Inputs
  • 4 Analog Outputs
