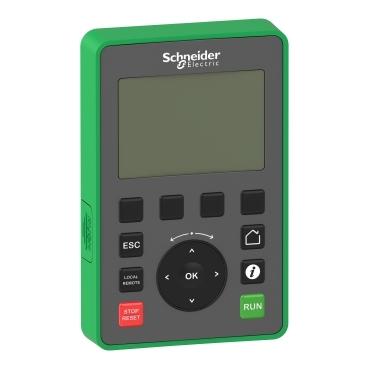

Schneider Electric VW3A111 Graphical Display Terminal 240x160 LCD IP65
Schneider Electric VW3A111 Graphical Display Terminal 240x160 LCD IP65
Specifications
Description
Schneider Electric Graphical Display Terminal VW3A111
Basic Information
  • Brand: Schneider Electric
  • Product Type: Graphical display terminal
  • Scope of Application: Used with Altivar series variable-speed drives, including Altivar Machine ATV340, Altivar Process ATV900, Altivar Process ATV600, and others
Technical Specifications
Protection Class IP65 (dust-proof and water-jet proof)
Display Characteristics Backlit LCD screen (white and red display), 240x160 pixel resolution, 8-line display capability with bar graphs, square graphs, and trend graphs
Language Support 24 integrated languages with capability to add additional languages
Memory 16MB for configuration storage
Operating Temperature Range -15°C to 50°C
Weight Approximately 200 grams
Functional Features
Control and Configuration

Enables control, adjustment, and configuration of Altivar series variable-speed drives, allowing users to set and modify drive parameters.

Data Display

Displays current motor values, input/output values, and process data. Features graphical dashboards including energy consumption monitoring for real-time drive and motor status visualization.

File Exchange

Connects to PCs via Mini USB/USB for file exchange. Supports multi-point mode connection to multiple drives and configuration copying between powered-on drives.

Real-time Clock

Built-in real-time clock for accurate recording of data time stamps.
