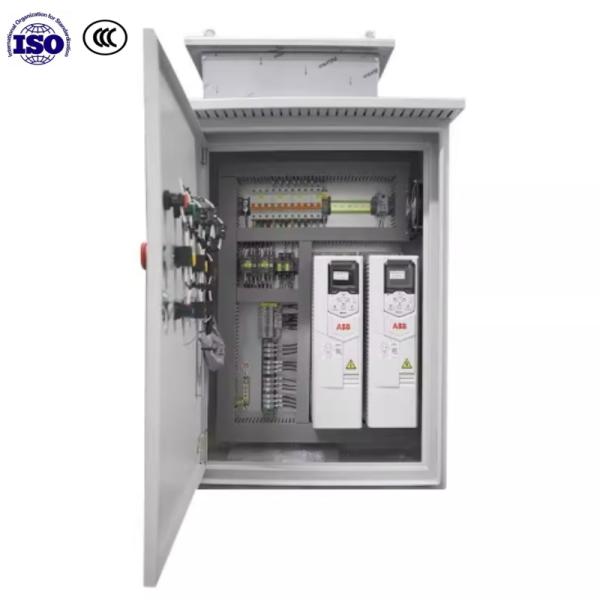

Mild Steel Metal Electrical Cabinet Industrial Commercial VFD Control Enclosure Fireproof
Mild Steel Metal Electrical Cabinet Industrial Commercial VFD Control Enclosure Fireproof
Specifications
Model Number :
Mid Steel Electrical Enclosure JL1561541566
Certification :
ISO9001, 3C
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T,Western Union
Delivery Time :
15 Days
Packaging Details :
Carton
Usage :
Electrical equipment storage/ Industrial/ VFD Control Cabinet
Weight :
Varies based on size
Ventilation :
Yes
Mounting Type :
Wall-mounted，Floor Standing，Pole Mount
Fireproof :
No
Waterproof :
Yes
Certifications :
CE
Shape :
Rectangular
Number Of Shelves :
Adjustable
Number Of Doors :
Single/Double
Size :
Customizable
Material :
Metal
Lock Type :
Key lock
Color :
Grey/Others
Price :
USD28-68889
Description
Mild Steel Electrical Enclosure Industrial Commercial VFD Control Cabinet
Product Attributes
Attribute Value
Usage Electrical equipment storage/ Industrial/ VFD Control Cabinet
Weight Varies based on size
Ventilation Yes
Mounting Type Wall-mounted, Floor Standing, Pole Mount
Fireproof No
Waterproof Yes
Certifications CE
Shape Rectangular
Number Of Shelves Adjustable
Number Of Doors Single/Double
Size Customizable
Material Metal
Lock Type Key lock
Color Grey/Others
Product Description

The Mild Steel Electrical Enclosure is designed for industrial and commercial applications, providing secure housing for electrical components in various environments.

Applications
  • Indoor industrial control systems: Housing low-voltage components like contactors, relays, or PLCs in dry workshops or factories
  • Building electrical distribution: Used as junction boxes or meter cabinets in indoor settings (e.g., basements, utility rooms)
  • General-purpose storage: Enclosing non-critical equipment such as small pumps, fans, or lighting controls in warehouses or commercial facilities
  • Low-humidity environments: Suitable for indoor telecom rooms or office building weak current cabinets
Design Specifications
Type Common Dimensions (H × W × D, mm)
Wall-mounted 330 × 550 × 466 (6U)
612 × 600 × 300 (12U)
600 × 600 × 462 (12U)
914 × 620 × 762 (19U)
Floor-standing 1400 × 600 × 500
1800 × 800 × 600
2000 × 1000 × 600
2200 × 800 × 800
1800 × 1200 × 400
2000 × 1600 × 500
Special Sizes (Converted from Imperial) 508 × 508 × 254 (20in×20in×10in)
762 × 762 × 254 (30in×30in×10in)
IP Rating Specifications
IP Rating Protection Capability Description Application Scenarios Special Requirements for Mild Steel Cabinets
IP20 Protects against ≥12.5mm solids/No water protection Dry indoor environments (electrical rooms, server rooms) Standard steel plate, no special sealing required
IP54 Dustproof + Splash-proof Industrial workshops (light dust/humidity) Door gaps require sealing strips
IP55 Dustproof + Low-pressure water jet protection Outdoor uncovered areas Full weld seams required, surface powder coating
IP65 Complete dustproof + High-pressure water jet protection Harsh environments (ports, mines, etc.) Double sealing structure + Drainage design
IP66 Complete dustproof + Powerful water jet protection Ship decks, petrochemical plants 304 stainless steel hinges + Pressure relief valve
IP67 Complete dustproof + Temporary immersion protection (1m/30min) Underground projects, flood control facilities Fully welded enclosure + Waterproof cable glands
Selection & Installation Recommendations
  • Functional needs: Prioritize heat dissipation for high-power equipment; enhance IP rating for outdoor use to resist dust and water
  • Dimensions: Size based on installation space and internal components. Opt for compact wall-mounted designs for narrow areas or larger floor-standing models for more elements
  • Structure optimization: Ensure cabinet doors open to ≥90° for easy maintenance. Add lifting holes or handles for handling
  • Material selection: Choose mild steel thickness (1.0-2.5mm) based on load and vibration. Consider galvanizing to boost corrosion resistance
  • Surface treatment: Use epoxy powder coating (80-100μm thick, baked at 180-210°C) with non-glare textures
  • EMC considerations: Adopt grounding, shielding, and filtering. Use conductive gaskets for seams
  • Internal layout: Separate high-voltage and low-voltage components to reduce interference. Ensure safe distances for wiring and maintenance
  • Accessories: Select appropriate locks, hinges, gaskets, and handles based on security and environmental requirements
