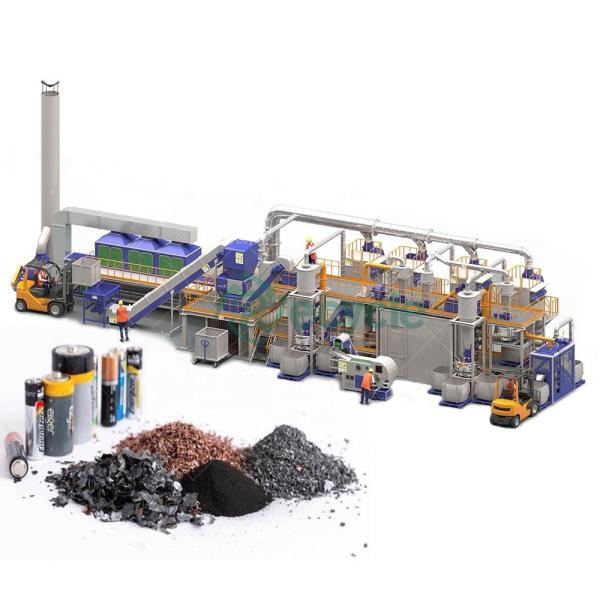

200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
Specifications
Place of Origin :
Other Country
Brand Name :
RECYCLE
Model Number :
RSK-LDC
Certification :
CE
Packaging Details :
Standard Packaging for 2022 New Lithium Ion Battery Recycling Machine with Crushing Capacity 200kg/h for Waste Battery Recycling
Supply Ability :
20 Set/Sets per Month Lithium Ion Battery Recycling Machine
Price :
$20,000.00 - $150,000.00/sets
Product name :
Lithium Ion Battery Recycling Machine
Condition :
New, New
Applicable Industries :
Recyclcing Machine
Showroom Location :
Turkey, Viet Nam, Brazil, Peru, Indonesia, India, Mexico, Spain, Thailand, South Korea, Chile, South Africa, Nigeria, Malaysia
Type :
BATTERY RECYCLE, Old Lithium Ion Battery Separating Production Mobile Battery Recycle
Warranty :
2 years, 12 Months
Power :
As Requirements
Material :
Standard Packaging
Production Capacity :
200kg/h-1000kg/h
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Hot Product 2022
Warranty of core components :
1.5 years
Core Components :
Motor, Engine, Other
Weight (KG) :
14700 kg
Application :
Lithium Battery Recycle
Voltage :
According To Your Country Voltage
Raw Material :
Scrap Lithium ion Battery, Car, Mobile, Phone Batteries
Key Words :
Mobile Battery Recycling Production Line
Final product :
Copper, Aluminum, Black Mass
Port :
Qingdao or any port of China
Description
2022 New Lithium Ion Battery Recycling Machine with Crushing Capacity 200kg/h for Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling

BACKGROUND
Lithium battery mainly consists of shell, positive electrode, negative electrode, electrolyte anddiaphragm. The positive electrode is formed by coating lithium cobaltate powder on two sides ofan aluminum foil current collector through PVDF which plays a bonding role;The negative electrode structure is similar to the positive electrode and consists of carbon powder bonded toboth sides of the copper foil current collector.
At present, the research on the recycling of wastelithium batteries is mainly focused on the
recovery of high-value anode precious metals cobaltand lithium. Copper in the negative electrode of waste lithium battery (content up to 35%) is animportant production raw material widely used.Carbon powder adhered to it can be used asadditives such as plastics and rubber. Based on the structural characteristics of lithium batteries,our company adopts an environmentally-friendly physical
separation process to realize efficientseparation and recovery of waste lithium batteries.
Product Description
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
The pretreatment process of Lithium Batetry Recycling Plant mainly comprises the following steps: after discharging the recovered waste batteries, crushing, magnetic separation, air separation, crushing, gravity separation, screening and other processes are carried out by mechanical equipment.
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling

RAW MATERIALS
The lithium battery recycling plant is used for dismantling and recycling the Soft package battery, cellphone battery,Shell battery,Cylindrical battery etc. Different types of lithium bat-teries have different recycling procedures. Please contact us for detailed configuration.
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling

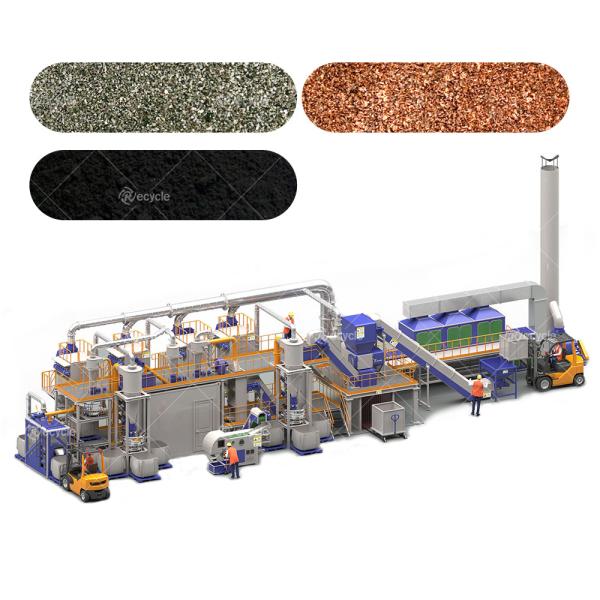

FINAL PRODUCTS

The final products of this plant is Graphite powder, Cobalt acid lithium,Aluminum and copper.
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
Technological Process
Shredder -- Hammer Crusher -- Grinder -- Separation Machine -- Collector--Pulse Purifier -- Classifying Screen -- Magnetic Machine --Gravity Separator -- High-pressure Blower
Shredder: Shredded lithium batteries into smaller pieces.
Hammer crusher: For the secondary crushing of shredded materials.
Grinder: For the grinding of the crushed materials.
Separation Machine: Separate the materials after being ground.
Collector: Collect and release the dust .
Pulse Purifier (Air Cleaner): Clean all the dust produced during the operation of the wholesystem.
Classifying Screen:Screen the materials sorted by the separation machine,and screen out oflarger metal materials.
Magnetic Machine: Separate nickel from the metals.
Gravity Separator:Separate those finer materials got from the screening machine and separatethe metal completely.
High-pressure blower: Keep the whole system in a negative state so as to collect the materialsand purity the air .
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling

Environmentally Friendly Recycling Equipment
The air purification equipment of this production line has a very good performance.There are water spray facility and activated carbon device used to absorb odors andpulse dust collection system for dust adsorption.
Technical Parameters
Model
Capacity
LDC-300
200-300 Kg/H
LDC-500
500 Kg/H
LDC-800
800 Kg/H
LDC-1000
1T/H
LDC-1500
1.5T/H
LDC-2000
2T/H
WORKING PERFORMANCE
Raw Material
Lithium-ion Battery
Final Product
Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder

NOTE:

Working voltage:380±10V(415V ,440V also can be customized);
(If you want more detailed parameters and quotations, please contact us)

TECHNICAL STANDARDS
Feature Item
Indicator Requirments
Recovery Rate of Metallic Aluminum
>98%
Powder Recovery Rate
>98%
Content of Powder In Metal Aluminum
<2%
Content of Metallic Aluminum In Powder
<2%
Other
Contain dust collecter with not pollute
Qualified Rate
99%
Failure Rate
<1%
CMR
≥1.67
Customers Visiting
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
Equipment Worksite
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
200kg/H Lithium Ion Battery Recycling Machine For Waste Battery Recycling
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
