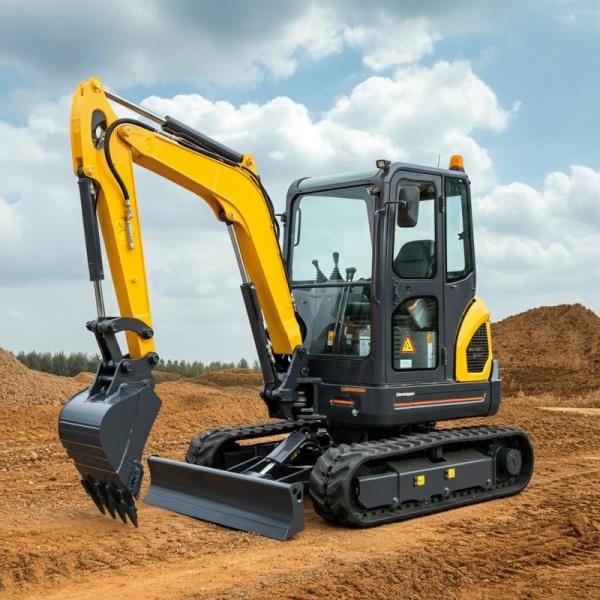

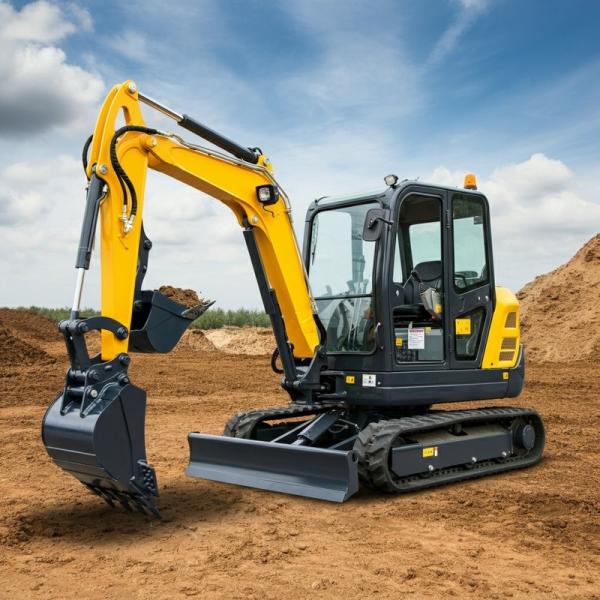

XE55D Power 36.2kw Rated Speed 2100rpm 5 Ton Mini Crawler Excavator
XE55D Power 36.2kw Rated Speed 2100rpm 5 Ton Mini Crawler Excavator
XE55D Power 36.2kw Rated Speed 2100rpm 5 Ton Mini Crawler Excavator
XE55D Power 36.2kw Rated Speed 2100rpm 5 Ton Mini Crawler Excavator
XE55D Power 36.2kw Rated Speed 2100rpm 5 Ton Mini Crawler Excavator
XE55D Power 36.2kw Rated Speed 2100rpm 5 Ton Mini Crawler Excavator
Specifications
Model Number :
XE55D
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units/month
Delivery Time :
7 days
Packaging Details :
nude package
Operating Weight :
5700kg
Warranty :
1 Year
Maximum Digging Height: :
5630mm
Maximum Digging :
3830mm
Rated Speed :
2100rpm
Power(W): :
36.2kw
Dimension(L*W*H) :
5860*1950*2585mm
Maximum torque/s :
210.6/1260N.m
Description

XE55D 5 Ton mini crawler digger excavator Power 36.2kw Rated Speed 2100rpm
* More energy efficient and envionmental potection
Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consump­tion, high operating efficiency, reliability and durability.
* More reliable and durable
Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
* More comfortable and safe
Cab has concise, smooth and elegant appearance, and the rear part of field vision is broader. New type silicon absorber is adopted to greatly reduce the operator' s fatigue due to a long time work and thus improve the working efficiency. Sliding window is added on the right side cab, wind convection will be formed after opening the left and right sliding window, which will also facilitate the communication between the operator and people around both sides of machine.
Product Paramenters

Model
Unit
XE55D
Operating weight(without dozer blade)
Kg
5700
Bucket capacity
m³
0.2
Engine
Engine Model
/
4TNV94L-BVXG
No. of cylinders
/
4
Rated power/speed
kw/rpm
36.2/2200
Maximum torque/speed
N.m
210.6/1260
Displacement
L
3.054
Main performance
Travel speed(H/L)
km/h
4.2/2.2
Rotating speed
r/min
10
Gradeability
°
≤35
Ground pressure
kPa
31
Bucket digging force
kN
48.3
Arm digging force
kN
32.5
Maximum tractive force
kN
50.5
Rated flow of main pump
L/min
149.1
Main safety valve pressure
MPa
24
Travel system pressure
MPa
24
Swing system pressure
MPa
21
Pilot system pressure
MPa
3.5
Oil Capacity
Fuel tank capacity
L
110
Hydraulic tank capacity
L
77
Engine oil capacity
L
10
Appearance size
Overall length
mm
5860
Overall width
mm
1950
Overall height
mm
2585
Width of platform
mm
1780
Track length
mm
1920
Total width of chassis
mm
400
Track gauge
mm
1500
Counterweight clearance
mm
700
ground clearance
mm
385
Working range
Max. digging height
mm
5630
Max. dumping height
mm
3945
Max. digging depth
mm
3830
Max. vertical wall digging depth
mm
2680
Max. digging reach
mm
6130
Min. swing radius
mm
2460
Standard
Length of boom
mm
3000
Length of arm
mm
1600
Bucket capacity
m³
0.2
