Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
Specifications
Brand Name :
Harvest
Model Number :
40ft
Certification :
ISO CCC
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units/month
Delivery Time :
15 days
Packaging Details :
nude package
Size :
13000*2500*1500mm
Max Payload :
60 ton
Container Lock :
12 pieces
AXle Brand :
FUWA
Kingpin :
2"(50mm)or3.5"(90mm) JOST
Tire :
12.00R22.5/315 80R22.5
Main beam: :
material is Q345B steel
Support leg: :
China brand 28Tons (Double speed)
Description

4 axle 60ton Shipping Container Transport flatbed Truck semi trailer

4 axle 60ton Transport flatbed Product Information

4 Axle flatbed semi trailer
Tare weight:7000kg
Payload 55000kg
Overall length:13000mm
Overall width:2500mm
Overall height:1500mm
Chassis:Heavy duty and extra durability designed i beam;opting for high tensile steel Q345,welded by automatic submerged-Arcprocesses.Top flange 14mm,width 140mm;middle flange 8mm;bottom flange 16mm;width 140mm
Axle number:3,Brand:Optional upon choice,capacity:13T
suspension:mechanical suspension or air suspension,
Leaf spring:Leaf spring or air bag
Floor:checkered plate
Tire:11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Wheel rim:8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Kingpin:2"/3.5"bolt-in king pin
Landing gear:JOST brand two-speed,manual operating,heavy duty landing gear
Twist lock:12no.of ISO twist lock for 1*20ft,2*20ft, 1*40ft container
Vehicular applications:container (20ft,40ft..)transporrt
Braking system:WABCO RE6 relay valer;T30/30 Spring brake chamber;40L air tanks
Painting:Complete chassis sand blasting to clean rust,1coat of anticorrosive prime,2coats of final paint
Accessories:One standard tool box.
Spare tire carrier:2spare tire carrier without spare tires

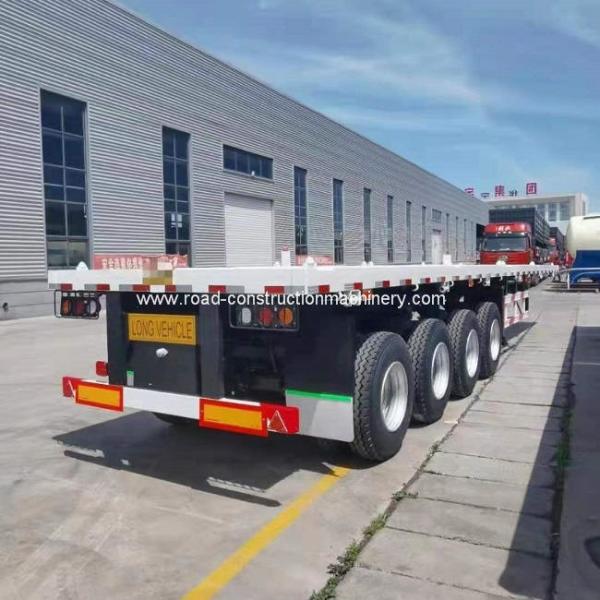

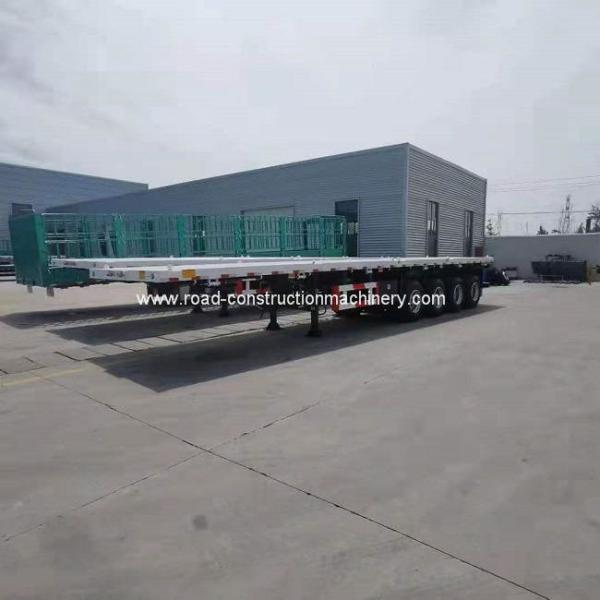

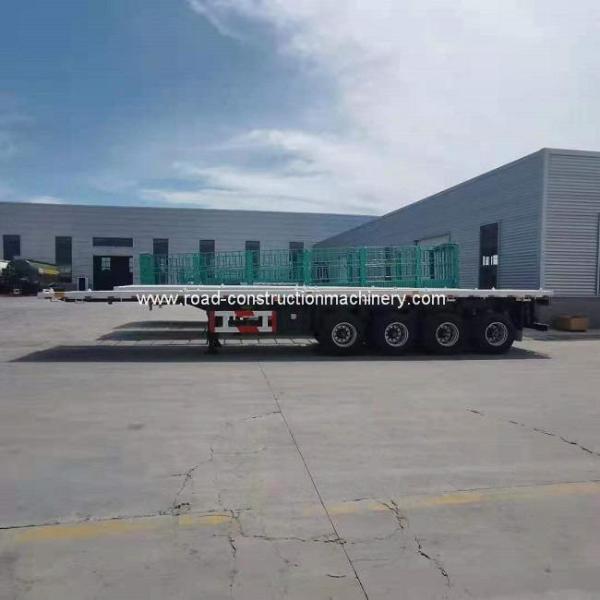

4 axle 60ton Transport flatbed Product picture

Q345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 TireQ345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 TireQ345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 TireQ345B Steel 60 Ton Flatbed Semi Trailer Shipping Container 12.00R22.5 Tire
