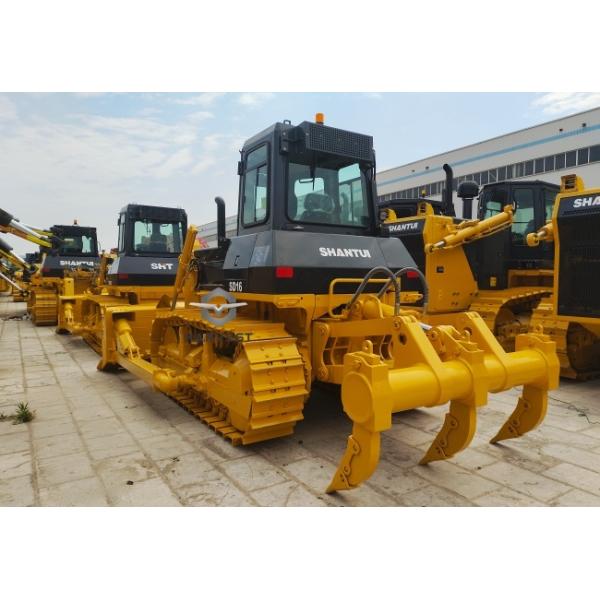

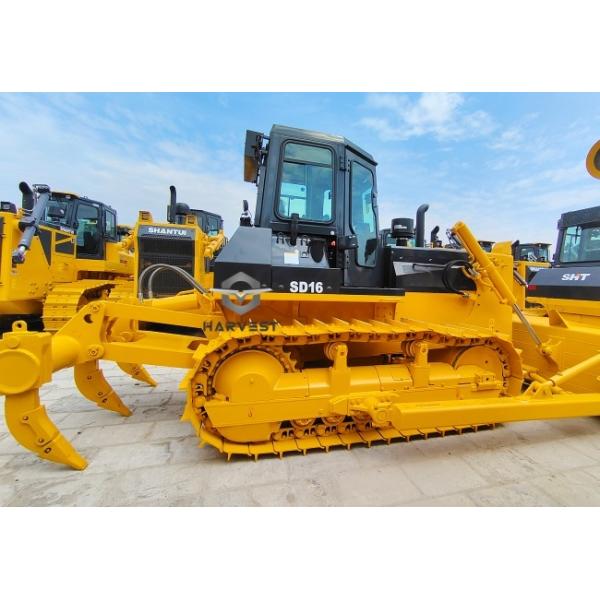

SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper
Specifications
Model Number :
TY230
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 units/month
Delivery Time :
15-20 days
Packaging Details :
nude package
Blade Type :
Straight-tilt blade
Dozing Capacity: :
6.4m³
Engine :
NT855-C280
Fuel Consumption :
218g/kw.h
Track width :
560mm
Track shoes :
38/each side
Description

SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper

►Product Advantages of SD16 Bulldozer
Powerful Scarifying Performance:Equipped with a 3-shank rippers, the SD16 excels at breaking up hard soil, rock, and compacted materials, significantly reducing pre-excavation preparation time and improving overall job site efficiency.

Efficient Dozing with Straight Tilt Blade:The straight tilt blade offers strong pushing force and flexible tilt adjustment. It ensures precise material pushing, leveling, and stacking, adapting to diverse earthmoving needs like site leveling and material transfer.
Robust & Durable Construction:Key components such as the ripper arm, blade structure, and undercarriage are made of high-strength steel. This design resists wear and impact, extending the machine’s service life even in harsh working conditions.
Superior Traction & Stability:The SD16 features a reliable powertrain and optimized weight distribution. It delivers excellent traction on slippery or uneven terrain, preventing slippage and ensuring stable operation during heavy-load work.
Operator-Friendly Design:With an ergonomic cab, intuitive control layout, and effective vibration reduction, the machine reduces operator fatigue during long working hours. It also provides good visibility for safer and more accurate operation.

SD16 160hp Crawler Bulldozer With Shangchai Engine 3-Shank Ripper

Specifications of SD16 Bulldozer

Engine
Model Shangchai SC11CB184G2B1/Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct
Rated power 120kW
Number of cylinders 6—126 x 130 mm (bore x stroke)
Piston displacement 9.726 L
Min. fuel consumption 214 g/kW·h
Maximum torque 765 N·m@1300 rpm
Blade
Blade type
Straight-tilt
Angle
U-Blade
Min.Ground Clearance(mm)
400
400
400

Min.Tuming Radius(m)
4.466
4.513
4.545
Ground Pressure(MPa)
0.072
0.074
0.074
Track Gauge(mm)
1880
1880
1880
Gradeability(°)
30
30
30
Dozing Capacity(m³)
4.5
4.3
5.0
Efficiency(m3/h) 225 225 250
Blade Width(mm) 3388 3970 3556
Blade Height(mm) 1149 1040 1120
Max. drop below dround(mm) 540 540 530
Max. tilt adjustment(mm) 400 - 400
Ripper (Optional)
Max. digging depth of 3-shank ripper(mm) 572
Max. lift above ground(mm) 592
Weight of 3-shank ripper(kg) 1667
