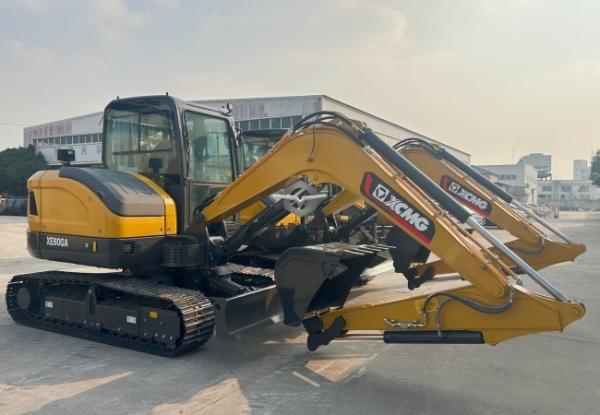

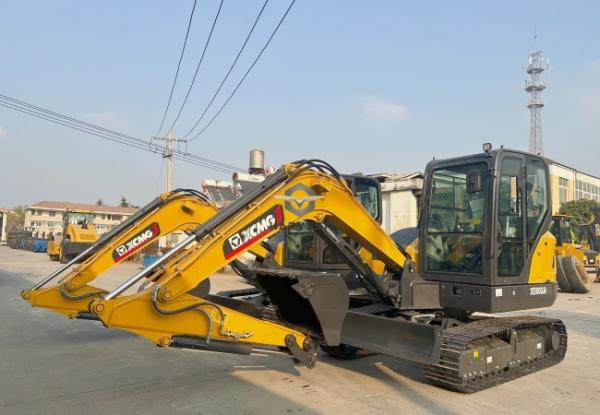

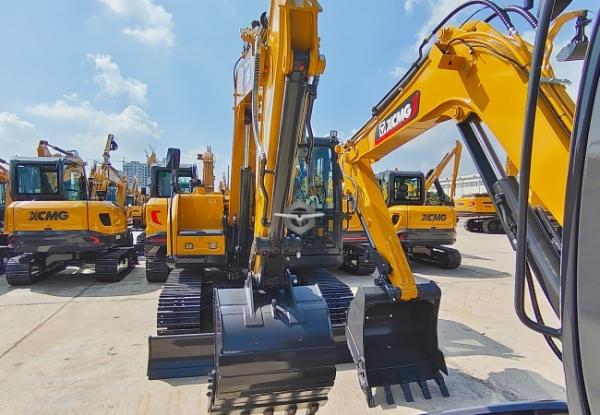

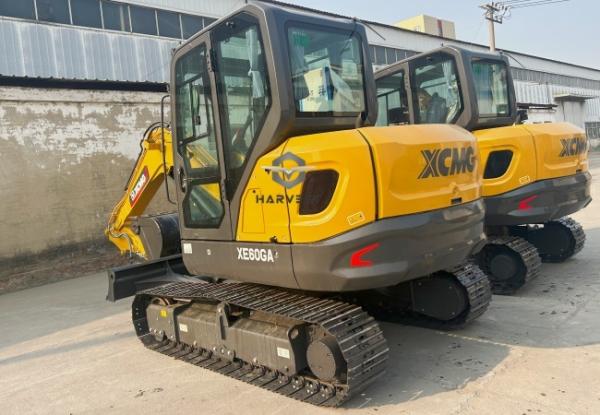

6 Ton Hydraulic Crawler Excavator XE60GA With 0.25m3 Bucket YANMAR 35.9kw Engine

►Product Advantages of 6 ton Hydraulic Crawler Excavator
- Exceptional Fuel Efficiency: Equipped with an advanced energy-saving engine and an optimized hydraulic system, the XE60GA significantly reduces fuel consumption during operation. This not only lowers long-term operating costs for users but also minimizes its environmental footprint, making it suitable for prolonged construction projects.
- Superior Digging Performance: With a powerful digging force and a well-designed bucket structure, the excavator excels in handling various materials, from soil and sand to gravel. Its high digging efficiency ensures fast completion of tasks such as earthmoving, foundation excavation, and landscaping, enhancing overall project productivity.

- Enhanced Operator Comfort & Safety: The cab of the XE60GA is ergonomically designed, featuring a comfortable adjustable seat, intuitive control panels, and excellent sound insulation. Additionally, it is equipped with safety features like a reinforced cab structure, rearview cameras, and emergency stop buttons, providing operators with a secure and fatigue-free working environment.

- Strong Durability & Reliability: Constructed with high-strength steel for key components (such as the boom, arm, and undercarriage), the XE60GA exhibits excellent resistance to wear and impact. Rigorous testing under harsh working conditions ensures its long service life and stable performance, reducing maintenance frequency and downtime.

- Flexible Maneuverability: The crawler chassis of the XE60GA offers strong traction and stable grounding, allowing it to adapt to complex terrains like muddy fields, slopes, and construction sites with uneven surfaces. Its compact size also enables easy operation in narrow spaces, expanding its application scope in urban construction and indoor projects.
Specifications of XE60GA
Operating Weight | 6,050kg |
Bucket Capacity | 0.25m³ |
Engine | Model | YANMAR 4TNV94L |
Rated Power | 35.9kw/2000rpm |
Peak Torque | 200.8N.m/1400rpm |
Displacement | 3.054L |
Main Technical Parameter | Maximum Travel Speed(High/Low) | 4.2/2.4km/h |
Swing Speed | 11rpm |
Max. Gradeability | 35° |
Ground Pressure | 32.5kPa |
Bucket Forces | 48.3kN |
Stick Forces | 32.5kN |
Max. Drawing Force | 50.5kN |
Dimension | Overall Length | 6,010mm |
Overall Width | 2,040mm |
Overall Height | 2,650mm |
Track Length | 2,680mm |
Track Width | 400mm |
Track Wheel Base | 2,135mm |
Counterweight Clearance | 700mm |
Min.Ground Clearance | 385mm |
Tail Swing Radius | 1,700mm |
Dozer Blade Width x Height | 1,980mm x 360mm |
Operating range | Maximum Cutting Height | 5,630mm |
Maximum Dumping Clearance | 3,830mm |
Maximum Digging Depth | 5745mm |
Maximum Vertical Wall Digging Depth | 2,680mm |
Maximum Reach at Ground Level | 6,130mm |
Min.Swing Radius | 2,460mm |
Max. Lift Height above Ground of Dozer | 390mm |
Max. Cutting Depth below Ground of Dozer | 560mm |
