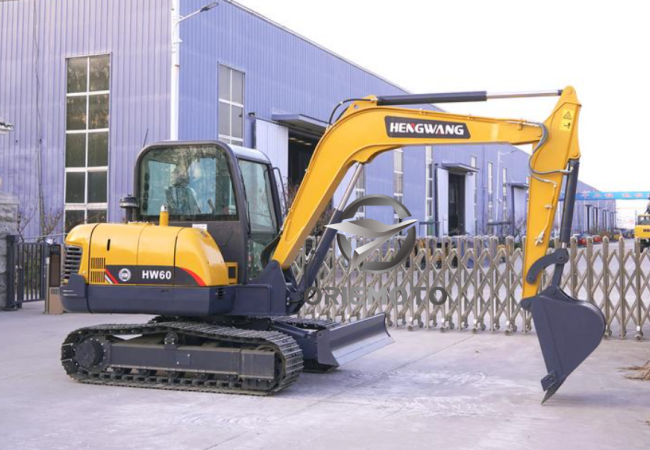

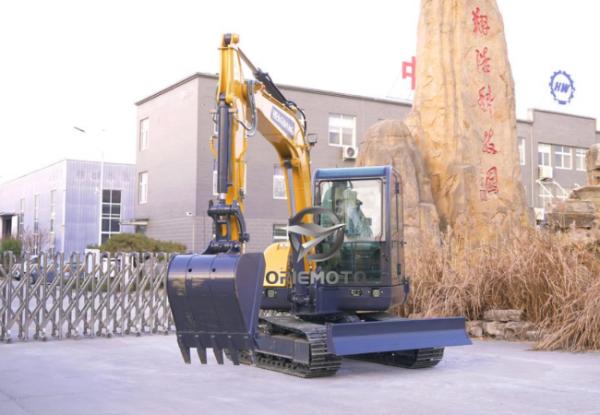

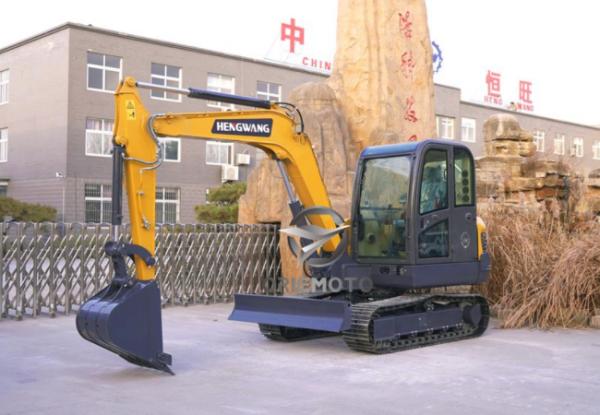

6 Ton Hydraulic Crawler Excavator HW-60 With 0.25m3 Bucket YANMAR 36.2kW Engine For Sale

►Product Advantages of 6 ton Hydraulic Crawler Excavator
- Exceptional Fuel Efficiency: Equipped with an advanced energy-saving engine and an optimized hydraulic system, the HW-60 excavator significantly reduces fuel consumption during operation. This not only lowers long-term operating costs for users but also minimizes its environmental footprint, making it suitable for prolonged construction projects.
- Superior Digging Performance: With a powerful digging force and a well-designed bucket structure, the excavator excels in handling various materials, from soil and sand to gravel. Its high digging efficiency ensures fast completion of tasks such as earthmoving, foundation excavation, and landscaping, enhancing overall project productivity.

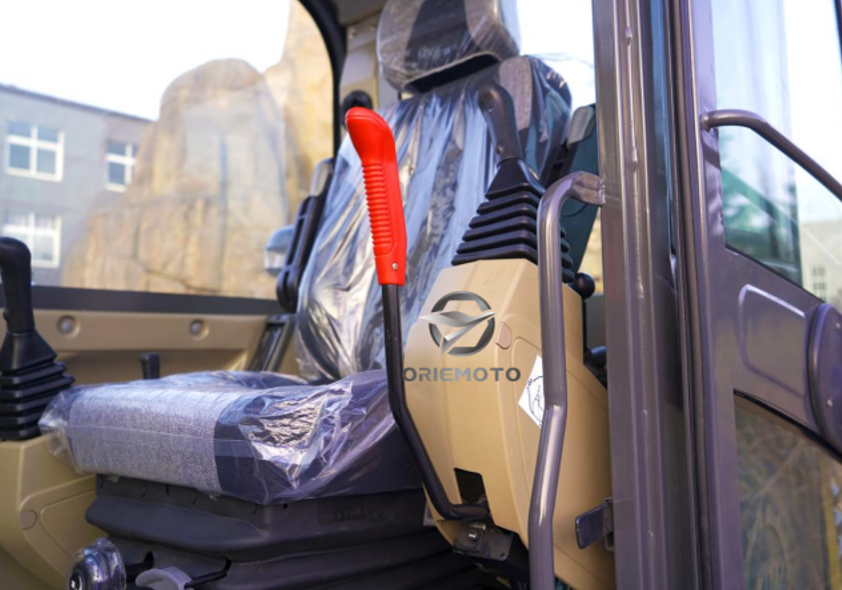

- Enhanced Operator Comfort & Safety: The cab of the HW60 excavator is ergonomically designed, featuring a comfortable adjustable seat, intuitive control panels, and excellent sound insulation. Additionally, it is equipped with safety features like a reinforced cab structure, rearview cameras, and emergency stop buttons, providing operators with a secure and fatigue-free working environment.

- Strong Durability & Reliability: Constructed with high-strength steel for key components (such as the boom, arm, and undercarriage), the HW-60 excavator exhibits excellent resistance to wear and impact. Rigorous testing under harsh working conditions ensures its long service life and stable performance, reducing maintenance frequency and downtime.
- Flexible Maneuverability: The crawler chassis of the XE60GA offers strong traction and stable grounding, allowing it to adapt to complex terrains like muddy fields, slopes, and construction sites with uneven surfaces. Its compact size also enables easy operation in narrow spaces, expanding its application scope in urban construction and indoor projects.

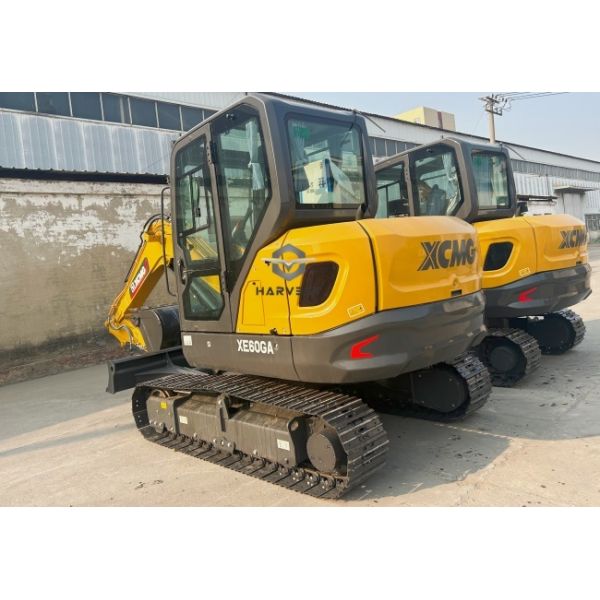

Specifications of XE60GA
| Operating Weight | 5960 kg |
| Bucket Capacity | 0.25 m³ |
| Engine | Model | YANMAR 4TNV94L |
| Rated Power | 36.2 kw/2100 rpm |
| Peak Torque | 210 N.m/1200 rpm |
| Displacement | 3.05 L |
Main Technical Parameter | Maximum Travel Speed(High/Low) | 4.1/2.5 Km/h |
| Gradeability | 35°/70% |
| Max. Drawbar Pull | 47.5 kN |
| Swing Speed | 10.1 rpm |
| Swing Torque | 15647 N.m |
| Dimensions | Boom | 3000 mm |
| Arm | 1600 mm |
| Shipping Length | 6010 mm |
| Shipping Height-Top of Boom | 2170 mm |
| Track Gauge | 1600 mm |
| Track Length | 1600 mm |
| Overall Width of Upper Structure | 1890 mm |
| Tail Swing Radius | 1700 mm |
| Counterweight Ground Clearance | 720 mm |
| Track Shoe Width | 400 mm |
Working Range | Max. Digging Reach | 6140 mm |
| Max. Digging Reach on Ground | 3100 mm |
| Max.Digging Depth | 3780 mm |
| Max. Vertical Wall Digging Depth | 3100 mm |
| Max. Dumping Height | 4120 mm |
| Bucket Digging Force (ISO) | 44.2 kN |
| Arm Digging Force (ISO) | 32.1kN |
| Bucket Tip Radius | 890 mm |
