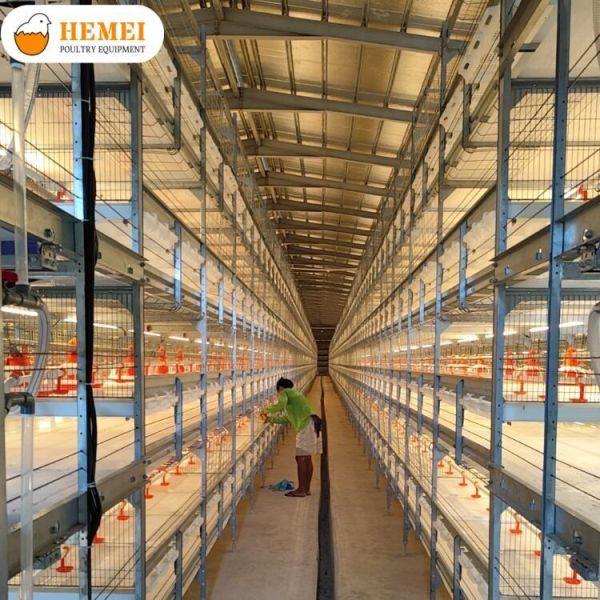

H Type Multi Tier Automatic Bird Harvesting Broiler Chicken Cage Equipment
SPECIFICATION

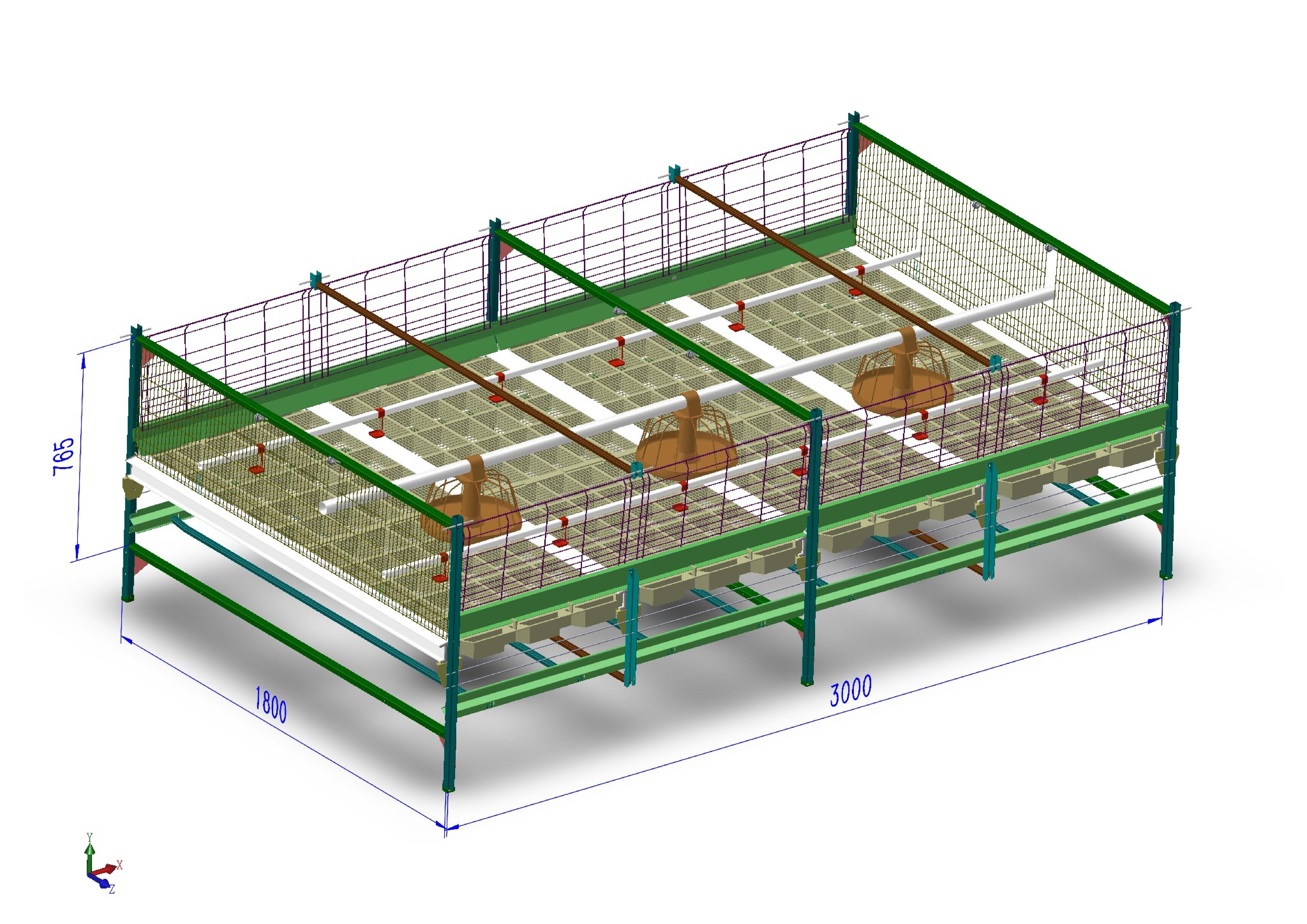

Compartment size drawing of broiler chicken cage

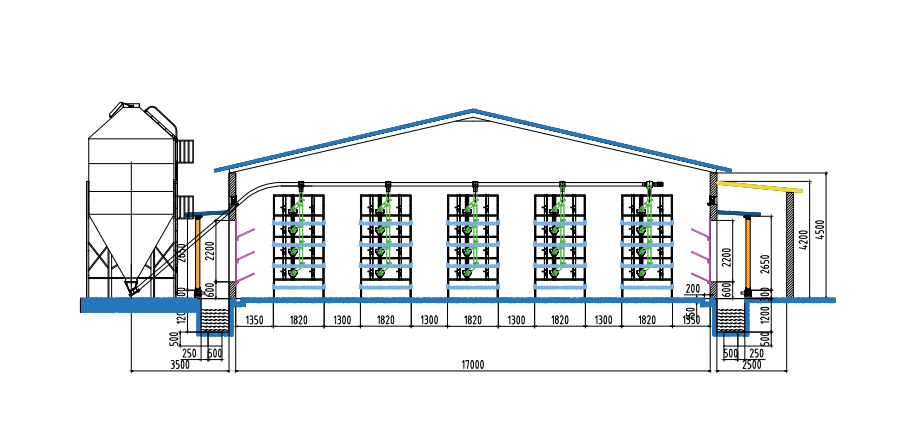

Multi tier H type broiler chicken cage height drawing
COMMON DESIGNS
| Common Designs (max weight according to 1.8kg) | ||||||
| Capacity | House size | Tiers | Rows | Sets/row | Total Sets | Birds/set |
| 60,000 | 84m*14m*4.5m | 4 | 4 | 25 | 100 | 600 |
| 81,000 | 90m*17m*4.5m | 4 | 5 | 27 | 135 | 600 |
| 84,000 | 93m*17m*4.5m | 4 | 5 | 28 | 140 | 600 |
| 90,000 | 100m*17m*4.5m | 4 | 5 | 30 | 150 | 600 |
| 100,800 | 93m*19.5m*4.5m | 4 | 6 | 28 | 168 | 600 |
| 118,800 | 108m*19.5m*4.5m | 4 | 6 | 33 | 198 | 600 |
Note: The number is calculated based on broiler weight at slaughter is 1.8KG.The capacity need be adjusted according to the max broiler weight.

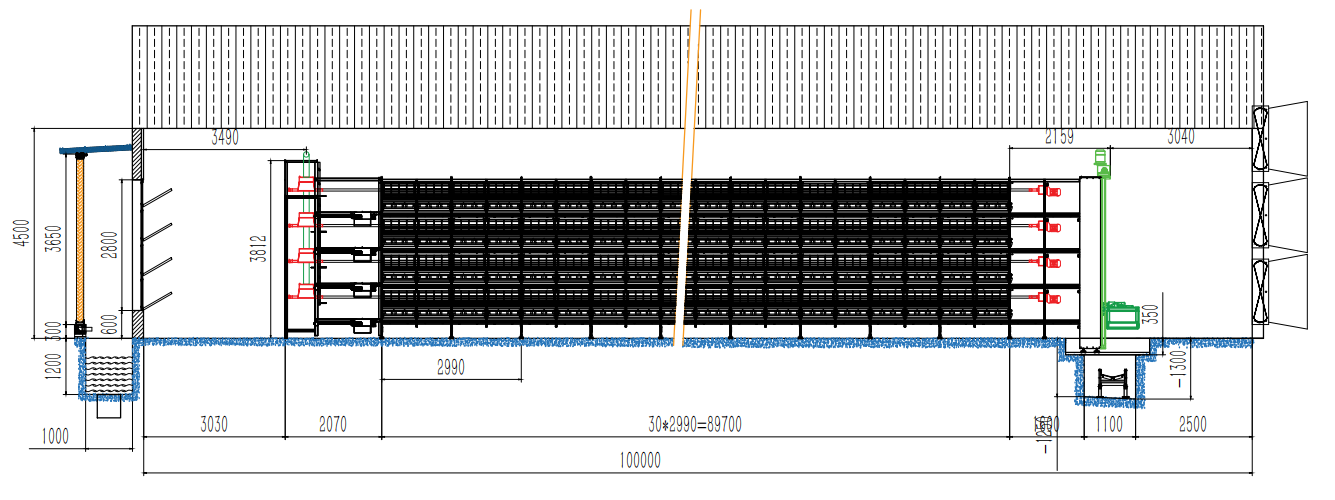

LAYOUT DRAWING OF 90,000 BIRDS

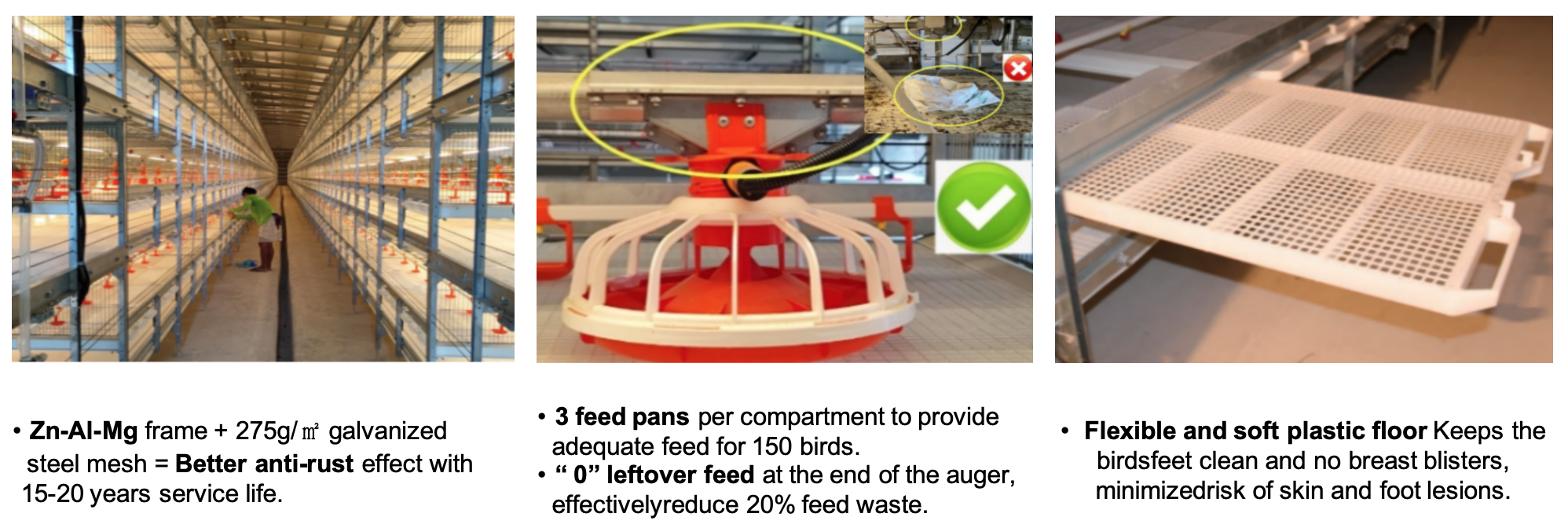

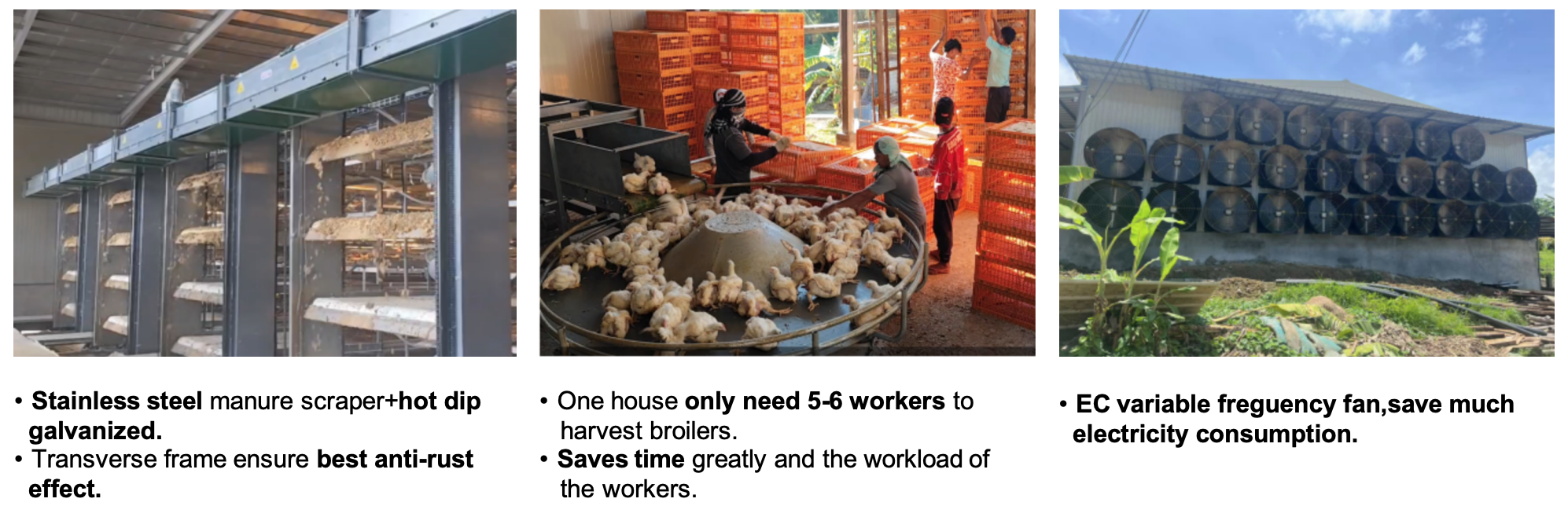

PRODUCT DETAILS
