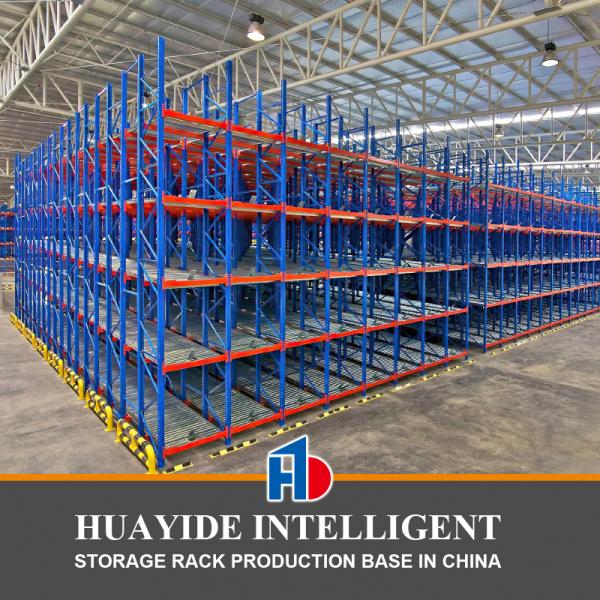

Gravity flow pallet rack

—

Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out Solution) is required and it is also popular. When pallets need to be moved quickly from one area to another, without the assistance of lift trucks.
1. Reduced warehouse cost; Easy, efficient goods loading and unloading;
2. First In First Out (FIFO) pallet goods storage;
3. Heavy duty long life construction;
4. Reduced aisie space by 60-70%;
5. Increased warehouse utilization and space savings;
6. Reduced forklift damage and pallet or carton flows to the operator or unloading area.

Gravity Pallet Racking · Made In China

Product Features

—

First - in - first - out
Goods are stored from the high - end and slide to the low - end for pickup, following the first - in - first - out order. This is suitable for goods with a shelf - life requirement, effectively ensuring the freshness and quality of the goods

High storage density Safe and reliable
A damper is installed on the slideway to control the sliding speed of the goods within a safe range. A separator is installed at the shipping end to facilitate the removal of goods by handling machinery. Meanwhile, a buffer device is installed at the lowest part of the ramp to prevent the goods from tipping over due to excessive impact.

High storage density

Safe and reliable
A damper is installed on the slideway to control the sliding speed of the goods within a safe range. A separator is installed at the shipping end to facilitate the removal of goods by handling machinery. Meanwhile, a buffer device is installed at the lowest part of the ramp to prevent the goods from tipping over due to excessive impact.

Gravity Pallet Racking · Made In China

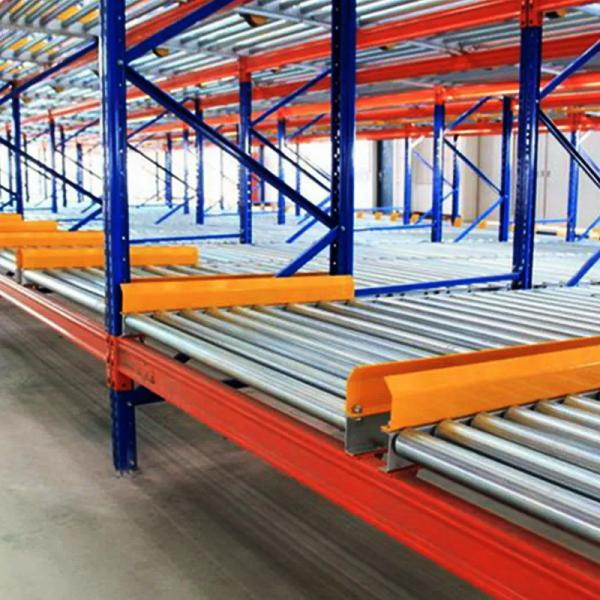

Gravity flow pallet rack components

—

Gravity Pallet Racking · Made In China

Product information

—

Gravity Pallet Racking · Made In China

Working Principle

—

The rack working principle as following.

1. The higher end is equipped with guide rail.
2. Pallet is placed on the higher end and flow down under the function of its gravity.
3. Guide rail make the pallet flow in the right direction.
4. Damping systems are equipped along the roller line to make the pallet flow down with speed around 200mm per second.
5. Separator is placed on the lower end with its position between the first pallet and the second one.
6. When first pallet reaches the lowest end, separator start work and prevents the second pallet from flowing down. After the first pallet is picked up, the separator release, and the second pallet takes the pick-up position.

Gravity Pallet Racking · Made In China

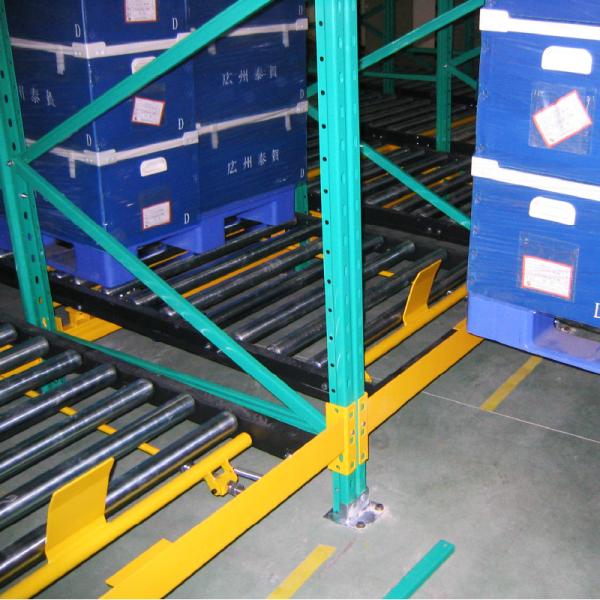

Project Show

—
