C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack
Specifications
Brand Name :
HuaYide
Model Number :
Steel Post Pallet Rack
Certification :
ISO&CE
Place of Origin :
China
MOQ :
5000KGS
Price :
can be negotiable
Payment Terms :
L/C, T/T
Supply Ability :
900000KGS Per Month
Delivery Time :
10-20 working days
Packaging Details :
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack
Product name :
Metal Stackable Post Pallet
Usage :
Warehouse logistics
Material :
Steel Q235
Color :
Customized
Weight :
3-59kg
Feet height :
100-110mm
Surface finish :
Galvanized / powder coated
Stackability :
4 high
Application :
Handling, transport, storage, industrial
Lifespan :
Up to 3 to 5 years against proper handling
Description

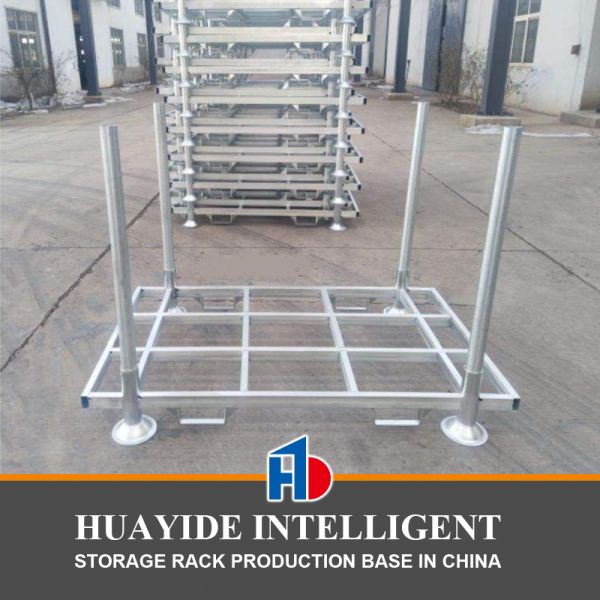

Steel Post Pallet Rack

——

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Collapsible industry foldable post pallet steel pipe warehouse pallet stacking racking

—

Post pallets are alternatives to traditional Euro pallets or Euro pallet cages. Unlike traditional pallets, the manurack is a type of pallet that features four detachable posts at each corner and four cup feets, providing enhanced durability and protection during storage and transportation.

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Single Pallet Post Pallet:Alternatives to traditional euro pallets or euro pallet cages

Removable Posts:Can be disassembled with the base units stacked and the posts resting on top

Available Forklift Guide Design:It's an option to move the load safely. It can also be installed on the back side.

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Stacking Tubes Standard Heights:1000, 1200, 1500, 2000 mm heights plus custom sizes for optimal storage efficiency and flexibility.

Possibility of Outdoor Storage:Hot-dip galvanized steel resists rust, moisture, and UV, enabling safe outdoor storage and freeing indoor space.

Versatility:Accommodate various load types, including irregularly shaped or oversized items that might not fit well in stillages



Specification

—

Various Sizes for Your Needs
We offer a wide selection of standard Manurack sizes to fit common pallet and warehouse layouts, ensuring quick deployment and compatibility. If your operation requires specific dimensions, we also support full customization—tailoring height, width, and post design to match your exact storage system or workflow needs.

Model NO.
Outer Dimensions
Structure Features
Stackablity
Loading Capacity
Finish
Load in 1x40HQ
LxWxH mm
High
kg
Sets
01
Base
1545x1180x310
Single Pallet Manurack
4
1500
Base: Zinc/ Hot-dip galvanized/Powder Coat
Post: Hot-dip galvanized
260
Post
1200
02
Base
2025x1180x310
Double Pallet Manurack with Forklift Guide
4
2000
180
Post
1200
03
Base
1120x1120x310
One Set = 2 bases + 4 posts, working with Jumbo Bag
4
1200
170
Post
1200

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

More types of carpet roll storage rack to meet your specific needs and support OEM, ODM.

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Stackable storage pallet

Base: 1395x1060x310 mm / Post: 1200x60x2.5 mm / Loading Capacity: 1500 kg / Load in 1x40'HQ: 250 sets / Stackability:4 high

Features

1. Great for a variety of items in a variety of sizes.
2. A robust storage system that is convenient and flexible.
3. Easily stackable when not in use.

4. Saving at least 50% warehouse space and 30% labor force for you.

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Manurack

Base: 1875x1060x310 mm / Post: 1200x60x2.5 mm / Loading Capacity: 2000 kg / Load in 1x40'HQ: 150 sets / Stackability:4 high

Design: forklift access

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet rack for Textile

Dim.: 1500x1100x900 mm / Loading Capacity: 1100 kg / Load in 1x40'HQ: 320stes / Max. Stacked: 4 sets(open) / Max. Stacked: 20 sets (closed)

Design: powder coated (finish)

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet converter

Base: 1545x1050x310 mm / Post: 1510x60x2.5 mm / Loading Capacity: 1000 kg / Load in 1x40'HQ: 247 sets / Stackability:4 high

Design: steel plate

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Nestainer

Dim: 1300x1200x1200 mm / Loading Capacity: 1000 kg / Load in 1x40'HQ: 160 sets / Stackability:4 high

Steel angle stability design for earthquake-prone areas

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Big bag racks

Base: 950x950x310 mm / Post: 1200x60x2.5 mm / Loading Capacity: 1000 kg / Load in 1x40'HQ: 160 sets / Stackability:4 high

Design: For big bag

Post Pallet Stacking rack · Warehouse Storage Rack · Made In China

Product Details

—

The pallet racks are available in multiple heights. The carrying capacity varies from 1500 to 2000 kg per mobile rac

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

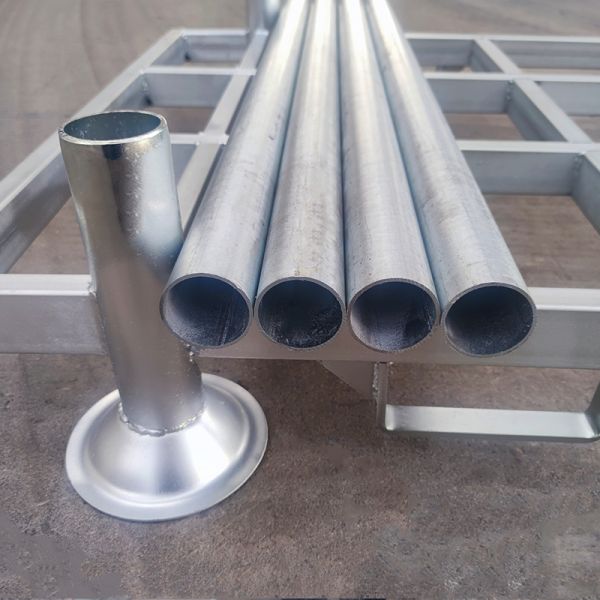

Removable PostsFully folded:save your space when not in use

Cup Feet:Easy and stable stacking

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Stackable:Effective use of vertical space to saving costs
Post heights 1.5m Max.Stacked: 5 high,

Post heights 1.8m Max.Stacked: 4 high,

Post heights 2.1m Max.Stacked: 3 high,

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet Stacking rack · Warehouse Storage Rack · Made In China

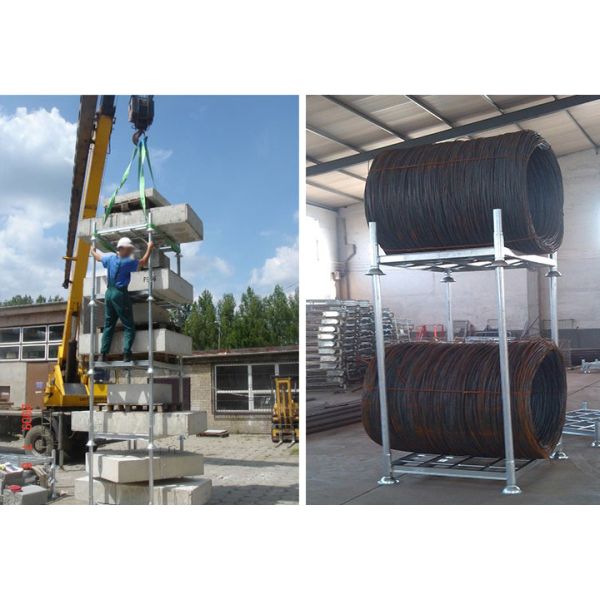

CASE

—

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet Stacking rack · Warehouse Storage Rack · Made In China

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet Stacking rack · Warehouse Storage Rack · Made In China




Ensure the quality of Huayide racking products

—

1

The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2

The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3

Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4

Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

C06：Detachable Warehouse Storage Hot Dip Galvanized Steel Large Stackable Metal Steel Post Pallet Rack

Pallet Stacking rack · Warehouse Storage Rack · Made In China
