600mm Load Center Heavy Lift Forklift With Customized Design And Front Or Rear Wheel Steering Type
600mm Load Center Heavy Lift Forklift With Customized Design And Front Or Rear Wheel Steering Type
Specifications
Brand Name :
SLD
Place of Origin :
China
Certification :
ISO, CE
MOQ :
1 unit
Price :
Negotiation
Packaging Details :
40FR containers
Delivery Time :
30 working days
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Fork Length :
1800mm
Steering Type :
Front Or Rear Wheel
OEM :
Customized
Transmission :
Hydraulic
Tilt Angle :
45-90 Degrees
Color :
Orange Red,customized
Load Center :
600mm
Warranty :
1-2 Years
Description

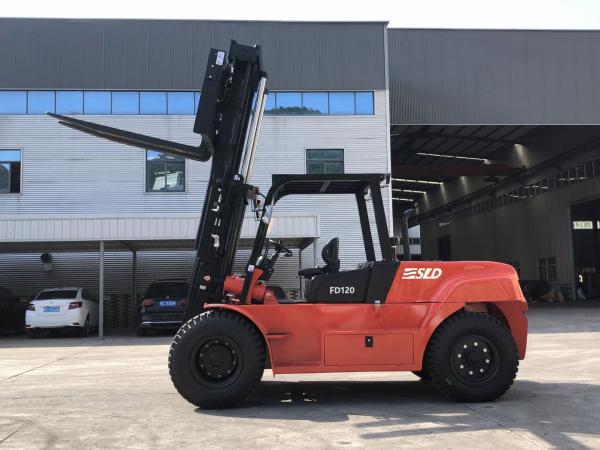

600 mm Load Center Heavy-Lift Forklift
Custom-Built Design • Front or Rear Wheel Steering • 5–25 t Capacity
Meta Title: 600 mm Load Center Heavy-Lift Forklift | Custom Design | Front/Rear Steering
Meta Description: Need brute strength in a tight footprint? Our 600 mm load-center forklift lifts 5–25 t, offers front or rear wheel steering, and is custom-built to your exact aisle width, mast height and engine choice. Get pricing in 24 h.
  1. Product Snapshot
    If your loads are dense, compact, and heavy, a standard 500 or 600 mm load-center rating is essential. Our HL-600-C series starts at 5 t and scales to 25 t—all engineered around a 600 mm load center for maximum stability. Add electro-hydraulic front or rear wheel steering plus fully customizable masts, counterweights, attachments and powertrains, and you get a forklift that slots perfectly into your current workflow without expensive facility changes.
  1. Why Choose the HL-600-C?
Feature Google-Rich Benefit
600 mm Load Center Higher residual capacity (up to 30 % more than 500 mm designs), ideal for compact coils, dies, or machinery.
Front or Rear Wheel Steering Flip a switch: front-steer for 20 km/h travel stability, rear-steer for 2.2 m turning radius in narrow aisles.
Custom Build Program Choose mast height (2–7 m), engine (diesel, LPG, electric), tires, cabin level, and attachments—built in 4 weeks.
Modular Counterweight Bolt-on plates mean you can up-rate capacity later without buying a new chassis.
Heavy-Duty Mast & Carriage 45 mm thick C-profile rails, oversized rollers, and 20 000 h fatigue-tested welds.
  1. Specifications (Schema-Marked Table)
Specification HL-600-C-5 HL-600-C-12 HL-600-C-25
Rated Capacity @ 600 mm LC 5 000 kg 12 000 kg 25 000 kg
Engine Choices Kubota V3307 DI-T 55 kW Cummins QSB4.5 97 kW Cummins QSL9 221 kW
Steering Type Electro-hydraulic Front or Rear wheel (in-cab toggle)
Mast Lift Height 2 000–7 000 mm (duplex, triplex, quad)
Travel Speed 0–20 km/h (laden/unladen)
Turning Radius 2.2 m (rear-steer) / 3.4 m (front-steer)
Overall Width 1 100 mm (fits ISO containers)
Ground Clearance 350 mm (all-terrain package available)
Operating Weight 7 800 kg 15 400 kg 29 100 kg
  1. Typical Applications
• Steel Coil & Die Handling – 600 mm load center maximizes residual capacity for dense coils.
• Machinery Manufacturing – rear-steer mode navigates narrow assembly lines.
• Port & Intermodal Yards – front-steer mode for 20 km/h sprint between stacks.
• High-Density Warehouses – custom narrow chassis fits 1.4 m aisles without double handling.
