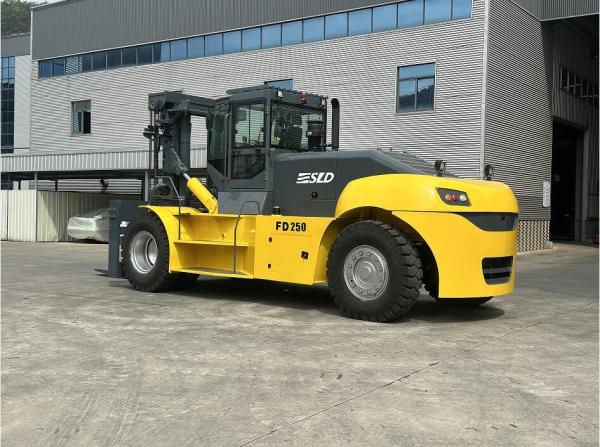

Top- Container Forklift with Yuchai Or CUMMINS Engine and 1800mm Fork Length
Top- Container Forklift with Yuchai Or CUMMINS Engine and 1800mm Fork Length
Specifications
Brand Name :
SLD
Place of Origin :
China
Certification :
ISO, CE
MOQ :
1 unit
Price :
Negotiation
Packaging Details :
40FR containers
Delivery Time :
30 working days
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Mast Lifting Height :
3000mm
Fork Length :
1800mm
Tilt Angle :
45-90 Degrees
OEM :
Customized
Transmission :
Hydraulic
Warranty :
1-2 Years
Steering Type :
Front Or Rear Wheel
Color :
Orange Red,customized
Description
Top-Container Forklift | Yuchai or CUMMINS Engine | 1800 mm Fork Length
Meta Title: Top-Container Forklift 1800 mm Forks – Yuchai/CUMMINS Engine | Heavy-Duty
Meta Description: Move 20′–40′ containers fast with our top-container forklift. 1800 mm fork length, Yuchai or CUMMINS Tier-V engine, 10–45 t capacity, global parts support. Get a quote today.
  1. Product Snapshot
    Engineered for ports, rail yards, and intermodal hubs, the TC-1800 series is the ultimate top-container handler. Dual 1800 mm forged forks slide under 20′ or 40′ ISO containers, while a Yuchai YC6J or Cummins QSB/QSC engine delivers Tier-V power and reliability. Lift 10–45 t, stack three high, and travel at 25 km/h—all without a spreader.
  1. Key Advantages (SEO-Friendly Bullets)
• 1800 mm Fork Length – full contact under 40-ft container pockets, no fork extensions needed.
• Engine Choice – genuine Yuchai 6.7 L (129 kW) or Cummins QSB/QSC (164–221 kW), EPA/EU Stage-V.
• 10–45 t Capacity Range – modular counterweight packages for 20′, 40′, or twin-lift operations.
• Top-Lift Mast – 4-stage top-lift design stacks 3 high (9 m) while keeping overall height <4.2 m for road transport.
• 25 km/h Travel Speed – hydrostatic drive for smooth acceleration and braking.
• All-Terrain Base – 800 mm solid pneumatic tires, 450 mm ground clearance, wet-disc brakes.
  1. Specifications (Schema-Marked Table)
Specification TC-1800-20 TC-1800-35 TC-1800-45
Rated Capacity 20 t @ 1200 mm LC 35 t @ 1200 mm LC 45 t @ 1200 mm LC
Engine Yuchai YC6J 129 kW Cummins QSC 164 kW Cummins QSL9 221 kW
Fork Length 1 800 mm (2 200 mm optional)
Lift Height 9 m (3-high stacking)
Travel Speed 0–25 km/h laden/unladen
Gradeability 35 % laden
Turning Radius 4.8 m (front-steer)
Overall Width 2 800 mm (fits 3.2 m lanes)
Operating Weight 28 000 kg 38 000 kg 45 000 kg
  1. Ideal Use Cases
• Sea Ports & ICDs – top-lift 20′–40′ containers from trailer to stack in one motion.
• Rail Terminals – unload boxcars and position containers on chassis.
• Heavy-Duty Warehousing – handle oversized machinery or bulk bins with 1800 mm forks.
• Military & Emergency Logistics – rapid deployment of 20-ft shelters or fuel tanks.
