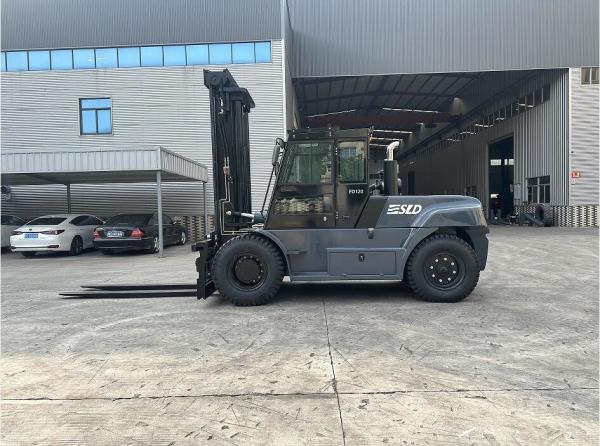

3000mm Mast Lifting Height Heavy Lift Forklift for Heavy Duty Lifting Tilt Angle of 45-90 Degrees and Speed up to 20 Km/h
3000mm Mast Lifting Height Heavy Lift Forklift for Heavy Duty Lifting Tilt Angle of 45-90 Degrees and Speed up to 20 Km/h
Specifications
Brand Name :
SLD
Place of Origin :
China
Certification :
ISO, CE
MOQ :
1 unit
Price :
Negotiation
Packaging Details :
40FR containers
Delivery Time :
30 working days
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Fork Length :
1800mm
Warranty :
1-2 Years
Load Center :
600mm
Rated Load :
15000kgs
Attachments :
Fork, Roll Prong, Tire Prong
Steering Type :
Front Or Rear Wheel
Options :
Side Shift, Fork Positioner
OEM :
Customized
Description
3000 mm Mast Heavy-Lift Forklift
45–90° Fork Tilt • 20 km/h Top Speed • 10–25 t Capacity
Meta Title: 3000 mm Mast Heavy-Lift Forklift 45-90° Tilt | 20 km/h | Heavy-Duty
Meta Description: Lift 10–25 t loads to 3000 mm, tilt 45–90° for safe dumping, and travel up to 20 km/h. Rugged hydrostatic drive, Tier-V engines, global parts support.
  1. Product Overview
    When your operation demands high reach, extreme tilt, and rapid cycle times, the HL-3000-T90 heavy-lift forklift delivers. A 3000 mm duplex/triplex mast pairs with a hydraulic 45–90° tilting carriage to dump bins, coils, or casting molds effortlessly. Coupled with 20 km/h travel speed, this machine slashes loading times in steel mills, foundries, and high-volume warehouses.
  1. Core Advantages (Google-Friendly Bullets)
• 3000 mm Lift Height – full free-lift mast clears 4-high racking without roof collision.
• 45–90° Fork Tilt – gravity dump eliminates manual shoveling, reducing labor by 30 %.
• Speed up to 20 km/h – closed-loop hydrostatic drive for stepless acceleration and controlled deceleration.
• 10–25 t Modular Capacity – choose rating to match axle limits; counterweight bolt-on packages available.
• Tier-V Engine Options – Yuchai YC6J or Cummins QSB6.7 meet EPA & EU Stage-V.
• All-Terrain Base – 600 mm solid pneumatic tires, 380 mm ground clearance, sealed wet-disc brakes.
  1. Detailed Specifications (Schema Table)
Parameter HL-3000-T90-10 HL-3000-T90-16 HL-3000-T90-25
Rated Capacity 10 000 kg @ 600 mm LC 16 000 kg @ 600 mm LC 25 000 kg @ 600 mm LC
Max. Lift Height 3000 mm (duplex) / 4800 mm (triplex)
Fork Tilt Range 45–90° forward (rear tilt 12°)
Travel Speed 0–20 km/h laden/unladen
Engine Yuchai YC6J 129 kW Cummins QSB6.7 164 kW Cummins QSL9 221 kW
Transmission Rexroth A4VG 180 cc hydrostatic
Gradeability 35 % laden 32 % laden 30 % laden
Turning Radius 3.2 m 3.5 m 3.9 m
Overall Width 1 220 mm (fits ISO containers)
Operating Weight 14 800 kg 21 200 kg 32 500 kg
  1. Ideal Applications
• Foundries & Steel Mills – tilt ladles or coils 90° for safe pouring or stacking.
• Recycling & Waste – dump bulky scrap bins directly into shredders.
• Precast Concrete – handle tilt tables and large molds without extra rigging.
• High-Bay Warehousing – 3000 mm lift accesses 4-high racks while 20 km/h speed delivers fast dock cycles.
