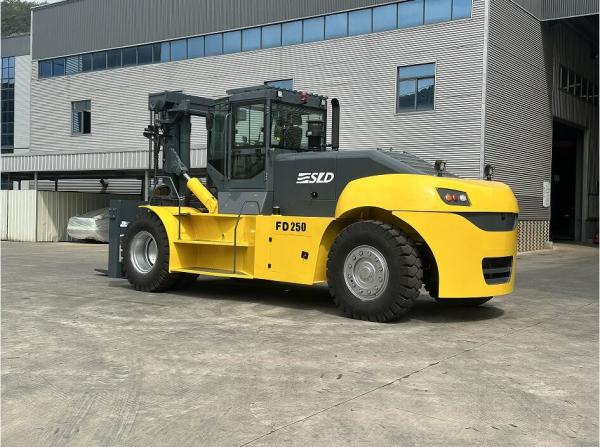

600mm Load Center Container Forklift For Flexible Loading Options
600mm Load Center Container Forklift For Flexible Loading Options
Specifications
Brand Name :
SLD
Place of Origin :
China
Certification :
ISO, CE
MOQ :
1 unit
Price :
Negotiation
Packaging Details :
40FR containers
Delivery Time :
30 working days
Payment Terms :
L/C, T/T
Supply Ability :
100 units per month
Fork Length :
1800mm
Tilt Angle :
45-90 Degrees
Warranty :
1-2 Years
Speed :
0-20 Km/h
Transmission :
Hydraulic
Engine :
Yuchai Or CUMMINS
Attachments :
Fork, Roll Prong, Tire Prong
OEM :
Customized
Description

Product Introduction

Our 600mm Load Center Container Forklift is designed to provide flexible and efficient loading solutions for your container - handling needs. With its optimal load center and powerful performance, this forklift ensures stability and precision during lifting and transporting operations.
Whether you're working in ports, container terminals, warehouses, or logistics centers, this machine offers the versatility and reliability required for high - efficiency material handling.

Key Features

  • Optimal 600mm Load Center: The 600mm load center ensures excellent balance and stability when handling containers, reducing the risk of tipping and improving operational safety.
  • Flexible Loading Options: The forklift can accommodate various container sizes and types, making it adaptable to different loading and unloading scenarios.
  • Robust Construction: Built with high - quality materials and components to withstand heavy - duty operations and ensure long - term reliability.
  • Powerful Engine: Equipped with a high - torque engine that delivers strong performance and efficient fuel consumption.
  • Ergonomic Operator Cabin: The comfortable cabin offers excellent visibility of the work area and easy - to - reach controls, reducing operator fatigue during long shifts.
  • Advanced Safety Features: Multiple safety sensors and alarms monitor the machine's status and surroundings. Emergency stop functions and a stable counterweight design provide extra protection for the operator.
Parameters: Vehicle configuration FD150
Performance Rated load 15000
Load center 600
Mast tilt angle (front/rear) º 6/12
Overall dimensions Length mm 6635
Width mm 2230
Height mm 3050
Mast lifting height mm 3000
Fork size (L*W*H) mm 1800X200X90
Min. turning radius mm 4800
Max. travel speed (with load) Km/h 22
Lifting speed (with load) mm/s 220
Gradeability (with load) % 20
Weight Kg 18000
Tyre Front 4X12.00-20/20PR
Rear 2X12.00-20/18PR
Wheel tread Front mm 1740
Rear mm 1900
Wheelbase mm 3300
Min. ground clearance mm 270
Engine Model YC6J175-T302
Rated power KW 129
Max. torque N.m 710

Applications

  • Port Operations: Efficiently load and unload containers from ships and transport them within the port area.
  • Container Terminals: Stack and manage containers with precision, optimizing storage space and workflow.
  • Warehousing Operations: Handle large - scale inventory and palletized goods in warehouses. Ideal for moving containers within storage facilities.
  • Logistics Centers: Facilitate smooth material flow by transporting containers between storage areas and loading docks.
  • Industrial Facilities: Move containers within manufacturing plants or industrial sites for storage or transportation.
