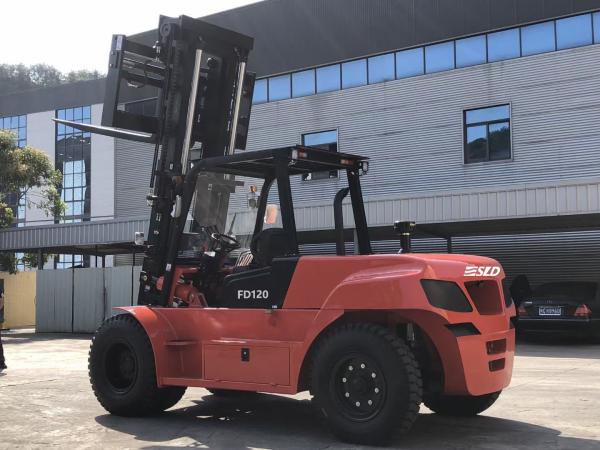

Product Introduction

Key Features

• Exceptional Load Handling Capability:
  • The forklift is designed to handle heavy loads with stability and precision, thanks to its robust construction and advanced weight - distribution system.
  • The 600mm load center ensures optimal balance and control during lifting and transporting tasks.
• Dual Steering Options:
  • Front - Wheel Steering: Provides excellent stability and traction, making it ideal for heavy - load handling on various terrains. It ensures precise control during lifting and transportation.
  • Rear - Wheel Steering: Enhances maneuverability in tight spaces, allowing for easier navigation around corners and in crowded work areas. This steering option offers greater flexibility in confined environments.
• Powerful Engine:
  • Equipped with a high - torque engine that delivers strong power output and reliable performance even under heavy - duty conditions.
  • The engine is optimized for efficient fuel consumption without compromising on power.
• Ergonomic Operator Cabin:
  • The spacious and comfortable cabin offers excellent visibility of the work area and easy - to - reach controls, reducing operator fatigue during long shifts.
  • Adjustable seats and controls ensure a customized operating position for different operators.
• Advanced Safety Features:
  • Multiple safety sensors and alarms monitor the machine's status and surroundings to ensure safe operation.
  • Emergency stop functions and a stable mast structure provide extra protection for the operator.

• Durable Construction:

  Technical Parameters:

  Parameters: Vehicle configuration FD150 Performance Rated load 15000 Load center 600 Mast tilt angle (front/rear) º 6/12 Overall dimensions Length mm 7200 Width mm 2550 Height mm 3460 Mast lifting height mm 3000 Fork size (L*W*H) mm 1800X200X90 Min. turning radius mm 5050 Max. travel speed (with load) Km/h 22 Lifting speed (with load) mm/s 240 Gradeability (with load) % 20 Weight Kg 17000 Tyre Front 4X12.00-24/20PR Rear 2X12.00-20/18PR Wheel tread Front mm 1850 Rear mm 2130 Wheelbase mm 3600 Min. ground clearance mm 270 Engine Model YC6J175-T302 Rated power KW 129 Max. torque N.m 710

  • Built with high - quality materials and components to withstand the rigors of heavy - duty operations.
  • The forklift undergoes rigorous testing to ensure durability and long - term reliability.

Applications

• Manufacturing Facilities: Handle heavy raw materials and finished products within factories, ensuring efficient material flow.
• Warehousing Operations: Lift and transport large - scale inventory and palletized goods in warehouses.
• Construction Sites: Move construction equipment and materials around busy construction sites.
• Logistics Centers: Load and unload heavy cargo from trucks and containers in distribution centers.
• Industrial Plants: Manage heavy machinery and equipment within industrial plants.
