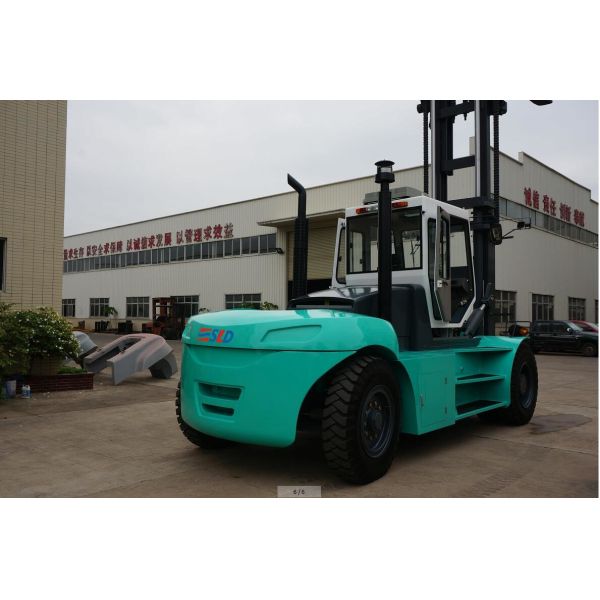

FD250 25 Ton Diesel Heavy Duty Forklift Truck Engine 4.0g Mast Container Handling
FD250 25 Ton Diesel Heavy Duty Forklift Truck Engine 4.0g Mast Container Handling
Specifications
Certification :
CE, ISO 9001:2015
Warranty :
12 Months or 2000 Hours
Color :
Customizable (Orange/Yellow/Red)
Supply Ability :
2,000 Units per Year
Place of Origin :
Fujian, China
Model Number :
FD250
Rated Load Capacity :
25000 kg (25 tons)
Transmission Type :
Hydraulic Power Shift
Price :
USD 28,000 - 120,000 / Unit
Mast Height :
4000 mm
Mast Type :
2-Stage Mast
MOQ :
1 Unit
Brand Name :
SLD
Delivery Time :
25-35 working days after deposit
Steering Type :
Full Hydraulic Steering
Fuel Type :
Diesel
Payment Terms :
T/T, L/C
Packaging Details :
Standard export packaging with anti-rust treatment, container/RORO shipping
Description
FD250 25 Ton Diesel Heavy Duty Forklift Truck Engine 4.0g Mast Container Handling
Product Overview

The FD250 is a 25-ton heavy-duty diesel forklift truck engineered for demanding steel coil handling and transport in steel mill operations. Powered by a reliable turbocharged diesel engine, this forklift delivers exceptional power and fuel efficiency. The 2-stage mast offers a maximum lifting height of 4000mm (4.0m), making it ideal for stacking heavy containers, steel coils, and industrial equipment. Equipped with roll prong attachment for safe and efficient steel coil lifting and stacking.

Key Features
  • Turbocharged Diesel Engine: 6-cylinder 4-stroke design with powerful torque reserve, low fuel consumption, meets National III / Euro III emission standards
  • Hydraulic Power Shift Transmission: Imported technology electric-control hydraulic transmission with torque converter for smooth operation under heavy loads
  • Strengthened Heavy-Duty Drive Axle: Enlarged bearings, gears, and hub design with reliable quality for continuous heavy-load operation
  • Full Hydraulic Steering System: Reinforced steering axle with small turning radius for excellent maneuverability in confined spaces
  • Enhanced Cooling System: Optimized intake and exhaust cooling extends engine service life in high-temperature conditions
  • Wide-View Mast Design: Low-position instrument panel and wide-view mast provide optimal operator visibility
  • Ergonomic Operator Cabin: Full cabin with A/C, adjustable suspension seat, FOPS/ROPS certified safety protection
  • Dual Front Wheels: Enhanced stability and load distribution for heavy container handling (applicable to 20T+ models)
Technical Specifications
Parameter Specification
Model FD250
Power Type Diesel
Rated Load Capacity 25,000 kg
Load Center 600 mm
Lift Height 4000 mm
Mast Type 2-Stage Mast
Mast Tilt Angle (F/R) 6°/12°
Engine Model
Transmission Hydraulic Power Shift
Steering Full Hydraulic Steering
Overall Length ~8000 mm
Overall Width ~2425 mm
Overall Height ~3300 mm
Turning Radius ~4750 mm
Fork Size (LxWxT) 1800x200x90 mm
Service Weight ~33000 kg
Manufacturer Profile

SLD (Xiamen Sealand Development Co., Ltd) is a professional manufacturer of heavy-duty material handling equipment in Quanzhou, Fujian, China since 2007. Our 50,000 sqm factory is equipped with CNC machining centers, robotic welding lines, and comprehensive testing facilities including load testing platforms up to 50 tons. Annual production capacity exceeds 2,000 units. We export to 60+ countries across Southeast Asia, Middle East, Africa, South America, and Eastern Europe. ISO 9001:2015 certified quality management system ensures every forklift meets international standards before shipment.

Applications
  • Port & Terminal: Loading and unloading shipping containers from vessels and stacking in container yards
  • Steel Mills & Factories: Transporting steel coils, plates, pipes, and heavy raw materials
  • Logistics Yards: Moving oversized cargo, machinery, and construction equipment
  • Construction Sites: Handling prefabricated concrete elements, steel structures, and building materials
  • Shipyards: Moving heavy marine components and equipment
  • Warehouses: High-stack storage of heavy palletized goods
Frequently Asked Questions
Q1: What engine options are available?
A: We offer , Weichai, and Yuchai turbocharged diesel engines. Please specify your preference when ordering.
Q2: Can the mast height be customized?
A: Yes, we can customize mast lifting height from 3000mm to 8000mm depending on your stacking requirements.
Q3: What attachments can be fitted?
A: Side shift, fork positioner, roll prong, bale clamp, paper roll clamp, ram fork, and container spreader attachments are all available.
Q4: What is the warranty period?
A: 12 months or 2,000 operating hours (whichever comes first) for the main structure and powertrain. Consumable parts excluded.
Q5: Do you provide spare parts and after-sales support?
A: Yes, we maintain a comprehensive spare parts inventory and offer online technical support, on-site service, and operator training.
Q6: What certifications do your forklifts have?
A: Our forklifts are CE and ISO 9001:2015 certified. Additional certifications available upon request.
Q7: What are the payment and delivery terms?
A: T/T 30% deposit, 70% before shipment. Delivery time is 25-35 working days after deposit. We ship via container vessel or RORO.
