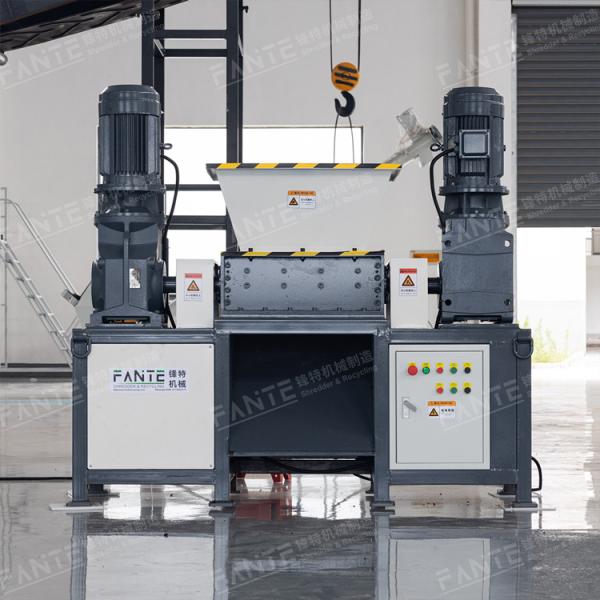

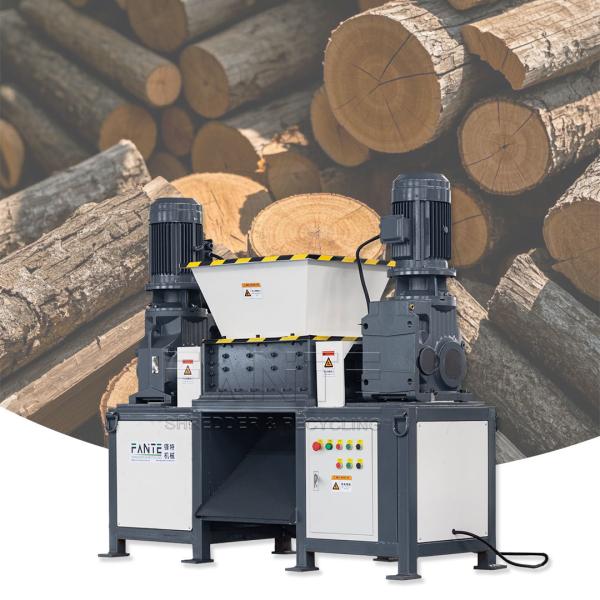

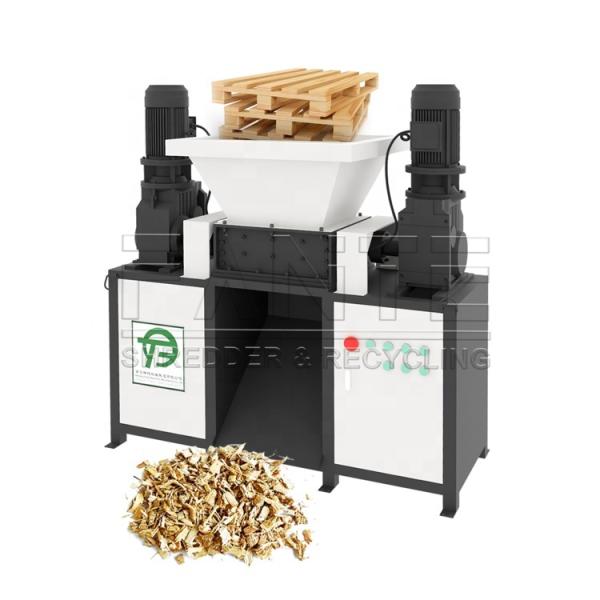

FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
Specifications
Place of Origin :
Jiangsu, China
plastic type :
PVC, PET, ABS, PP/PE, PE, PP, PC
Brand Name :
Fante
use :
Waste Plastic Shredder
shaft design :
Double
voltage :
380V/50V/3V or customized
dimension(l*w*h) :
See technical parameter
power (kw) :
3
weight (t) :
0.5
warranty :
1 Year
key selling points :
High Productivity
machinery test report :
Not Available
video outgoing-inspection :
Provided
core components :
Bearing, motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Other
Marketing Type :
Ordinary Product
Color :
Client's Requirements
Blades material :
9CrSi/D2/SKD-11/ Customized
Final product :
1-10 cm
Key Selling Points :
Sustainable
Application :
Recycle Waste Plastic Wooden Waste
Usage :
plastic/wood/rubber/paper/metal/Wooden Waste and etc.
Crushing material :
Types Waste Plastic
Other name :
Double Shaft Plastic shredder
After-sales Service Provided :
Video technical support
Description
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
Introducing our compact industrial shredder - the ultimate solution for solid waste management. Our factory specializes in manufacturing high-quality shredders and providing comprehensive one-stop solutions for solid waste disposal. Designed to handle heavy-duty shredding tasks, our small-sized industrial shredder excels in shredding a wide range of materials, including plastic, metal, wood, rubber, and more. Its robust construction and advanced cutting mechanism ensure efficient and reliable shredding, effectively reducing the volume of waste and facilitating proper disposal. Our compact industrial shredder offers exceptional performance and versatility. It features customizable shredding settings, allowing you to adjust the shredding capacity and speed to meet your specific requirements. With its high throughput and continuous operation, it guarantees efficient waste processing, saving you time, effort, and resources. Safety is our top priority. Our small industrial shredder is equipped with advanced safety features, including emergency stop systems, overload protection, and user-friendly controls. You can operate the shredder with confidence, knowing that safety is always paramount. We take pride in the durability and reliability of our products. Each industrial shredder is crafted with precision using premium-grade materials and cutting-edge technology. Rigorous quality control measures are implemented throughout the manufacturing process to ensure that our shredders meet and exceed industry standards. Embrace sustainable waste management practices with our small industrial shredder. By reducing waste volume and promoting recycling, it helps minimize environmental impact and contributes to a greener future. Partner with us today to explore our range of small industrial shredders and discover the perfect one for your waste disposal needs. Experience the efficiency, performance, and value that our shredders bring to your solid waste management operations.
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
Model
FTS-300
FTS-400
FT2S-400
FTS-500
FT2S-500
Motor
3KW-4,1Set
4KW-4,1Set
4KW-4,2Set
7.5KW-4,1Set
7.5KW-4,2Set
Reducer
JKA-77,1 Set
JKA-87,1 Set
JKA-87,2 Sets
JKA-97,1 Sets
JKA-97,2 Sets
Input speed
16 Rpm
17Rpm
17Rpm
15RPM
15Rpm
Input Torque
1696
2176
3952
4574
8255
Shaft Diameter
⌀60
⌀60
⌀60
⌀70
⌀70
Blade Size
⌀180*12
⌀180*15
⌀180*15
⌀200*20
⌀180*12
Number of blade
25
26
26
25
25
Feed Port size
500*500*300
500*600*300
500*600*300
600*700*400
600*700*400
Dimension
1050*600*1400
1160*600*1450
1540*600*1450
1350*600*1500
1840*650*1450
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards

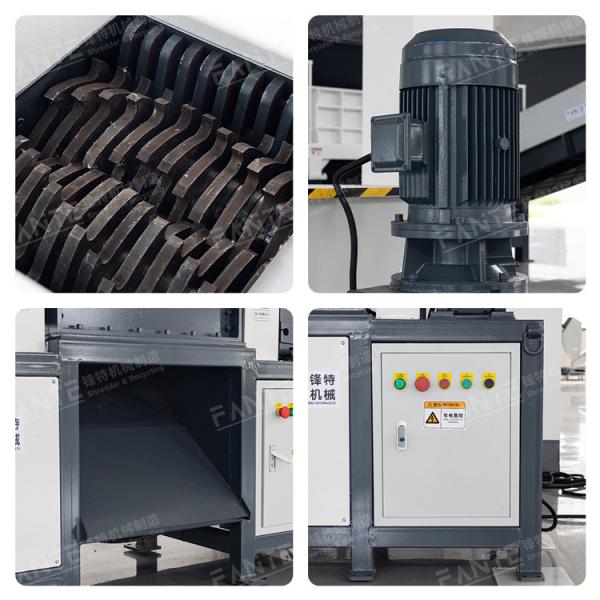

01.Chamber
The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards

02.Shaft and Blade
It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards

03.Electrical machinery
The shredder motor adopts a full copper core motor to reduce energy consumption and have a longer service life.
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards

04.Transmission components
The drive components of the shredder are connected by couplings to reduce vibration, protect the spindle and reducer, and do not damage force.
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
FANTE Dual Shaft Shredder Machine for Wooden Waste Including Furniture Offcuts Logs Scrap Veneer and Wooden Boards
