Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Fante
video outgoing-inspection :
Not Available
machinery test report :
Provided
core components :
PLC, Engine, Bearing, Gearbox, motor, Gear
Model Number :
FTHS-T 1000
voltage :
380V/50HZ
dimension(l*w*h) :
3250*1380*2300mm
warranty :
1 Year
key selling points :
Automatic
weight (kg) :
1000
Power :
45
Name :
Tire Shredder Machine
Color :
Client's Requirements
Raw material :
Waste Tyre Waste Plastic
Product name :
Waste Rubber Recycling Line
Function :
Recycling Shredding Waste Tires
Advantage :
High Producing Efficiency
Other name :
Double Shaft Tire Shredder
Type :
Rubber Cutting Machine
Capacity :
1-10 T/h
Usage :
Rubber Shredding Waste Plastic Shredding
Description
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale

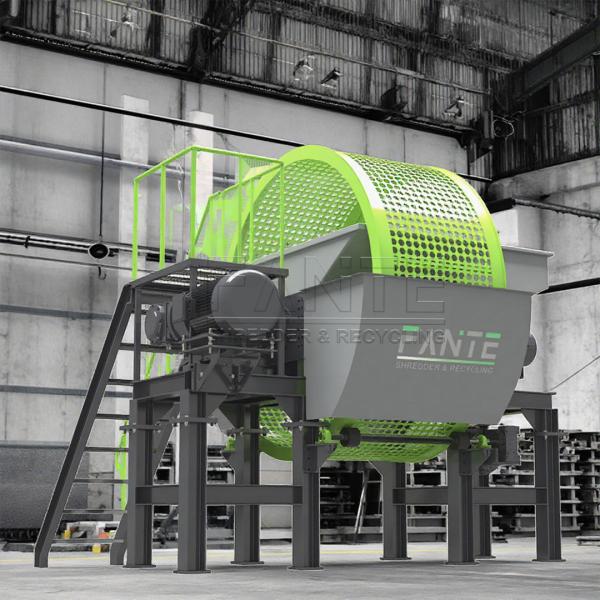

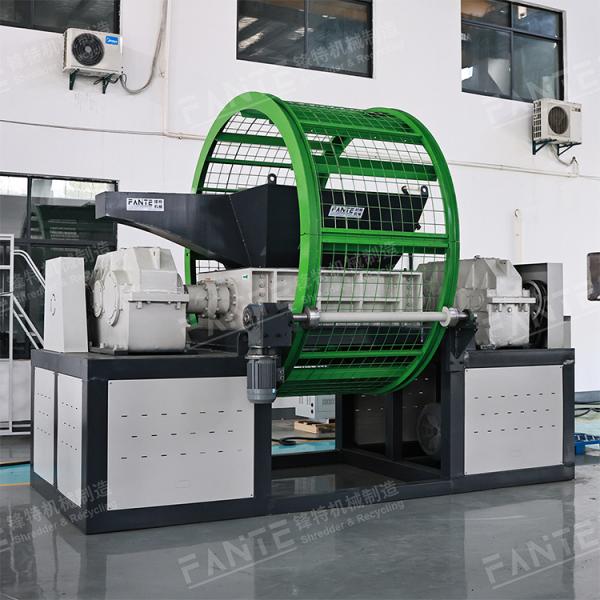

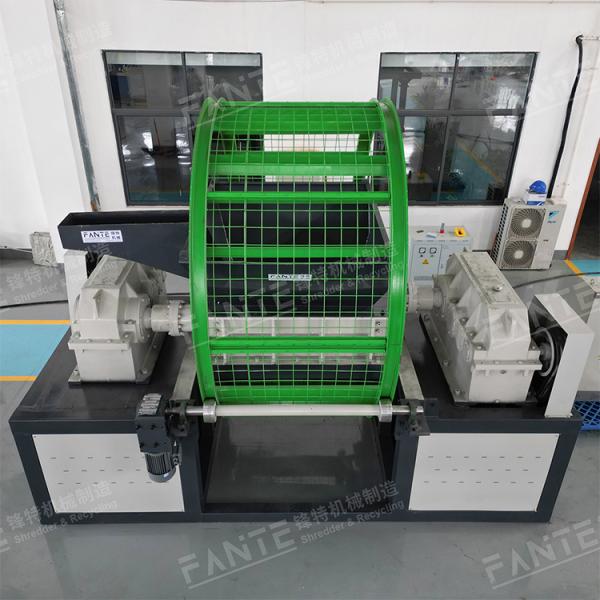

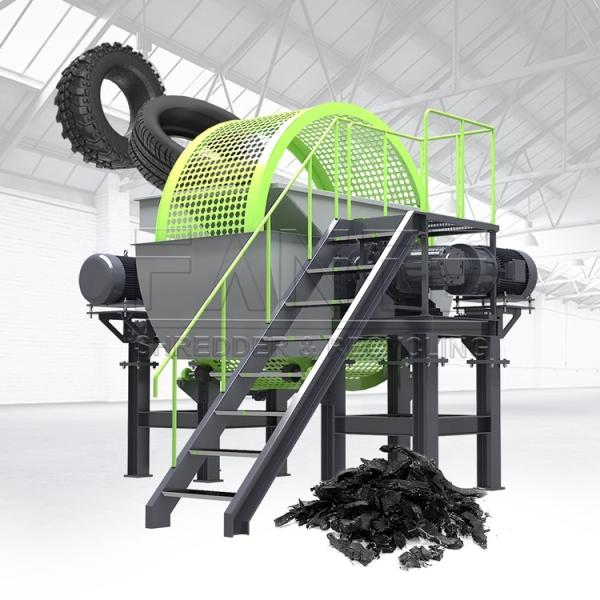

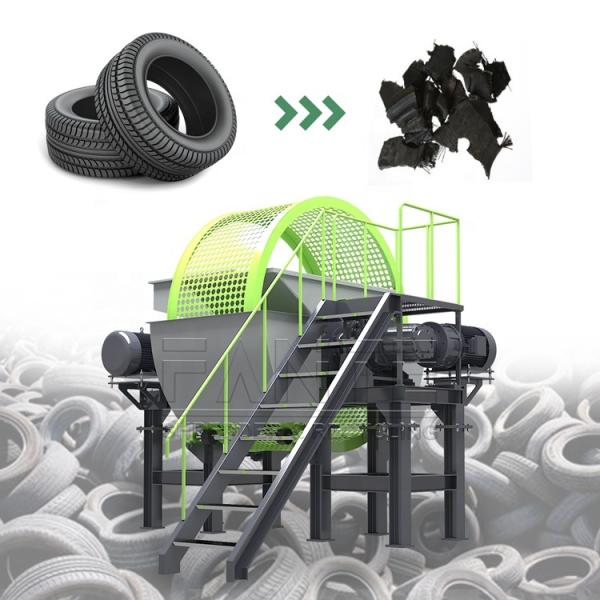

The tire shredder is mainly used for pre shredding waste tires in the tire line. After passing through a sieve, appropriate sized tire fragments are screened and processed in the next step. Suitable for different types of waste tires, we can provide you with the best solution according to your different tires.

Materials: The whole machine is made of the best material, the body is welded with all steel, and the main shaft of the blade is
made of imported high-strength alloy, which has high strength and higher wear resistance.

Features: It is not easy to deform, has stronger bearing capacity, longer service life, is stable and durable, and has low speed.
It uses a hard tooth gearbox transmission system as the transmission structure, with large output torque, stable operation, and
higher efficiency. And it has low noise and energy consumption. It can be operated 24 hours a day.

Process: The integrated case is processed and processed by high-precision machine tools, with high mechanical strength and
accuracy. Advanced simulation software shall be used to ensure the mechanical structure of integral or combined blade, so as to
avoid fracture and disassembly

Function: It can handle a variety of different materials. No matter whether the feed is large pieces of hard plastic or heavy
tires, the machine can easily cut them into small pieces. And the crushing particle size is controllable, and the material
compatibility is wide.
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale
◼︎ Crusher body The main body of the equipment is welded with wear-resistant steel plates to eliminate stress and processed as a whole, ensuring the stability of the equipment under long-term heavy loads. ◼︎ Moving knife/fixed knife The material of the moving blade is made of special alloy tool steel forged and processed by machine, with multiple heat treatments and low-temperature freezing heat treatment techniques. The overall toughness and hardness are consistent and can be repeatedly repaired for use, ensuring cutting performance and service life. The fixed tool adopts a hook type installation, optimizing the tool replacement function, making tool maintenance and replacement more convenient. ◼︎ Bearings/Seals The bearing seat adopts a split and detachable type, which can quickly remove components such as moving knives, fixed knives, bearings, etc. It is easy to maintain and replace cutting tools, and the sealing structure effectively blocks the contact between broken objects and grease. When handling liquid materials, it can also protect bearings and gears.
◼︎ Knife shaft Using heavy-duty steel for processing and refining, and more reasonably cooperating with cutting tools to provide powerful cutting power.
Model
FTHS-T-800
FTHS-T-1000
FTHS-T-1200
FTHS-T-1300
Voltage
as per request
Cutting Chamber L*W(mm)
804*680
1004*680
1204*920
1304*920
Blade Diameter（mm）
450



Equipment Dimensions
L*W*H(mm)
3350*3010*3050
3800*3010*3100
5010*3010*4100
5120*3010*4100
Equipment Weight(kg)
5700
7000
16500
18500
Hopper Opening
L*W*H(mm)
1150*1300*800
1300*1400*700
1850*1650*900
2050*1650*1000
Final Product(mm)
50
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale

01.Chamber
The chamber is processed as a whole, with small error, high accuracy, and reduced vibration and strain. Arc baffles are installed on both sides of the case to ensure smooth discharge and improve output.
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale

02.Shaft and Blade
It is made by multiple heat treatment and low temperature freezing heat treatment processes, with good overall toughness and hardness, ensuring cutting performance and service life. The fixed tool is installed by hook to optimize the tool replacement efficiency.
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale

03.Bearing seal
The bearing pedestal adopts the method of assembling and disassem-bling, which is convenient to remove the moving knife, fixed knife, bearing and other parts, easy to maintain and replace the tool, and the sealing structure is used to block the broken material, grease, liquid material, and protect the bearing and gear, etc. Self-aligning roller bearing is adopted.
Double Shaft Shredder Machine Used Tyre Metal Wood Paper Plastic Shredder Machine for Sale

04.PLC
PLC is programmed independently and equipped with start, stop, forward, reverse and overload protection functions. The overall automation ensures safety and stability and saves labor costs.
