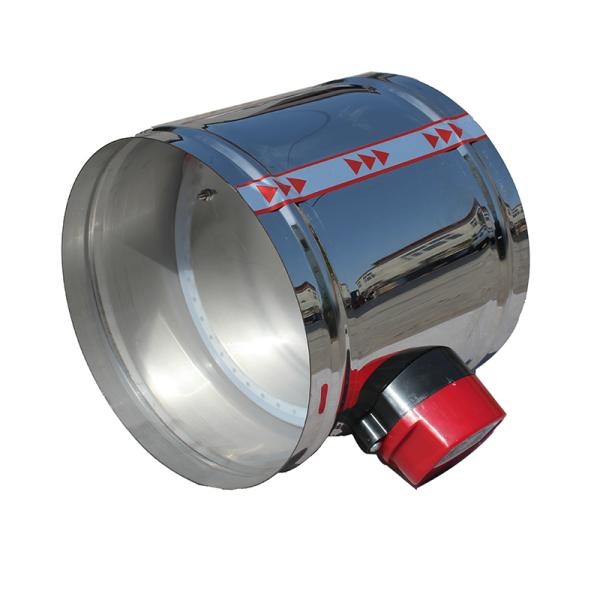

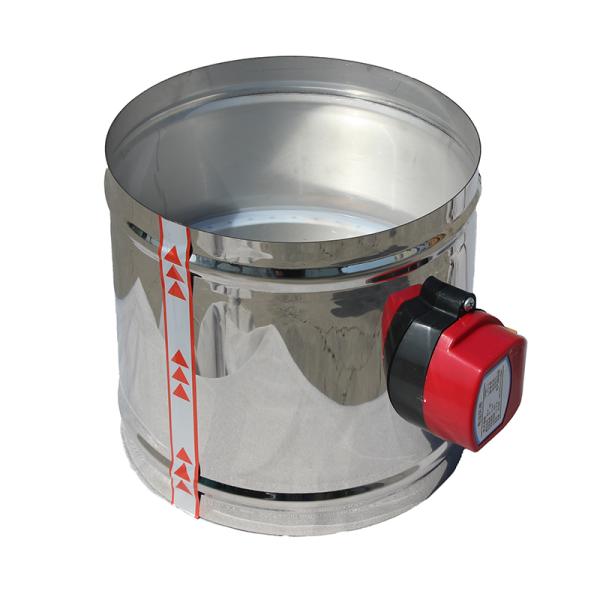

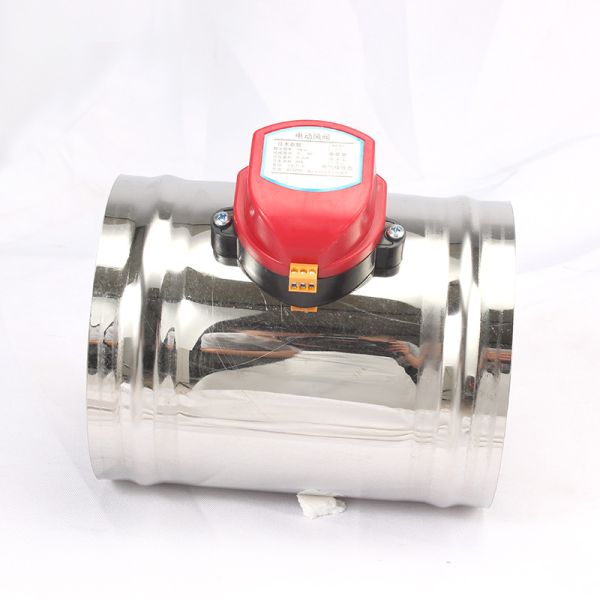

Electric HVAC Damper 51-400mm for Air Ducts
Electric HVAC Damper 51-400mm for Air Ducts
Electric HVAC Damper 51-400mm for Air Ducts
Electric HVAC Damper 51-400mm for Air Ducts
Specifications
Brand Name :
WD
Model Number :
Air Damper
Certification :
ISO
Place of Origin :
China
MOQ :
50 pieces
Price :
USD 3.5-6.8/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
15-20 days
Packaging Details :
wooden case
Product name :
HVAC Damper
diameter: :
51-400mm
height :
150mm,190mm
Type :
Electric Air Damper
Description

Airflow Adjustment Controller HVAC Damper for Air Conditioning Ducts

Description:
An air damper is a complex mechanism with many moving elements. Their main components are the blades, which adjust their position to control airflow. In addition, dampers include frames, linkages, axles, bearings, seals, blade pins, actuating motors, flanging, jackshafts, and sleeves, among other components.

Electric Air Damper Specifications:

Commodity Outer Diameter Height Flange width Remark
Electric Air Damper 51mm 150mm 25mm silicone seal
Electric Air Damper 63mm 150mm 25mm silicone seal
Electric Air Damper 75mm 150mm 25mm silicone seal
Electric Air Damper 80mm 150mm 25mm silicone seal
Electric Air Damper 100mm 150mm 25mm silicone seal
Electric Air Damper 125mm 190mm 25mm silicone seal
Electric Air Damper 150mm 190mm 25mm silicone seal
Electric Air Damper 200mm 190mm 30mm silicone seal
Electric Air Damper 250mm 240mm 30mm silicone seal
Electric Air Damper 300mm 290mm 30mm silicone seal
Electric Air Damper 350mm 340mm 30mm silicone seal
Electric Air Damper 400mm 390mm 30mm silicone seal


Electric Air Damper Feature:
Can be equipped with a temperature controller, can be used with a series of thermostats, automatic switch, so that the controlled environment is effectively controlled, so that energy-saving comfort and no noise.
Both the valve opening and the valve closing need to be energized, and the actuator will automatically shut off after completing an action.
An action time is about 10 seconds.
This damper is suitable for controlling the air volume from full flow to shut off
The damper is constructed with polished stainless steel and come with aluminum valve plate
It can work with thermostat, open and close automatically.

Electric HVAC Damper 51-400mm for Air Ducts
Electric HVAC Damper 51-400mm for Air Ducts
