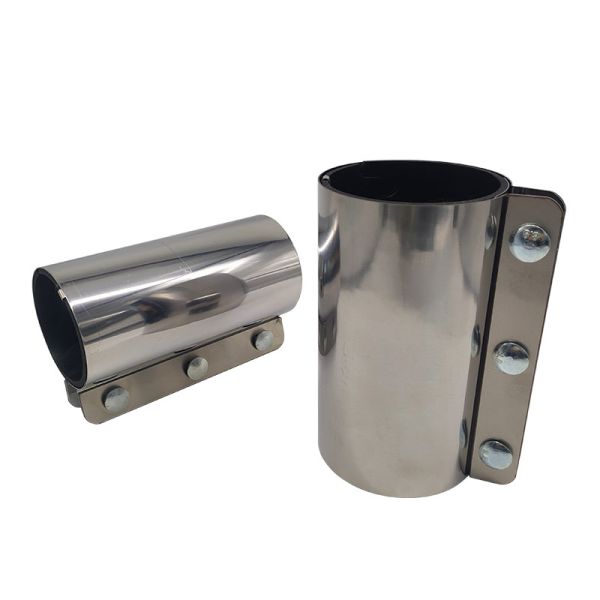

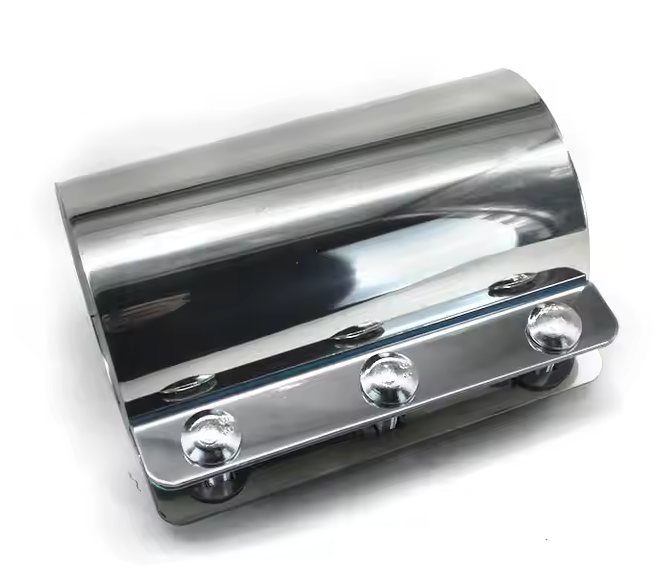

Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling
Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling
Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling
Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling
Specifications
Brand Name :
RM
Model Number :
WD-A2601
Place of Origin :
CHINA
MOQ :
500 piece
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
5000 per month
Delivery Time :
7-25day
Packaging Details :
The size of our wooden box is 110cm*110cm*110cm we will carefully give our packaging suggestion or packing according to your requirement.
Shell Material :
0.6mm Stainless steel 430
Conductive strip material :
0.3mm Stainless steel 304
Transport :
Air, ocean
Keywords :
Pipe coupling
Gasket Material :
SBR/Silicone/NBR
Length :
100mm/130mm/150mm/200mm or 250mm
ID size :
38/42/48/50/63/76/89/101.6/108/114/127/152/202mm....
Application :
Supply pipeline accessories
Number of bolts: :
2/3/4/5 set
Selection of lining material :
As per customer’s choice
Description

Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling

Product Overview:
The pipe coupling is supplied as standard with a black SBR gasket (-30º / +80º C), 3 set M8 bolts (galvanized) and a conductivity strip (AISI 304L). The outside skin of the coupling is made of stainless steel 430
Product for low pressure to high pressure and enabled compatibility for low density and high density pneumatic transfer, pressure transfer and suction transfer.
According to the application environment and cost control, stainless steel 304/430 or 201 materials can be selected, with lining materials including SBR/NBR/silicone gaskets

Product parament:

Product name Pipe coupling
Body material SUS430
Gasket Material SBR/NBR/Silicone gasket
Black SBR Temp. Range -30℃ ~ +80℃
Conductivity Strip Material SUS 304
Clamp plate material iron
Length 100mm/130mm/150mm/200mm/250mm
Customized OEM

Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling

Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling

Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling

Whatsapp: 0086 18931182030

Industrial Central Vacuum System FDA Authentication White NBR Gasket Pipe Coupling

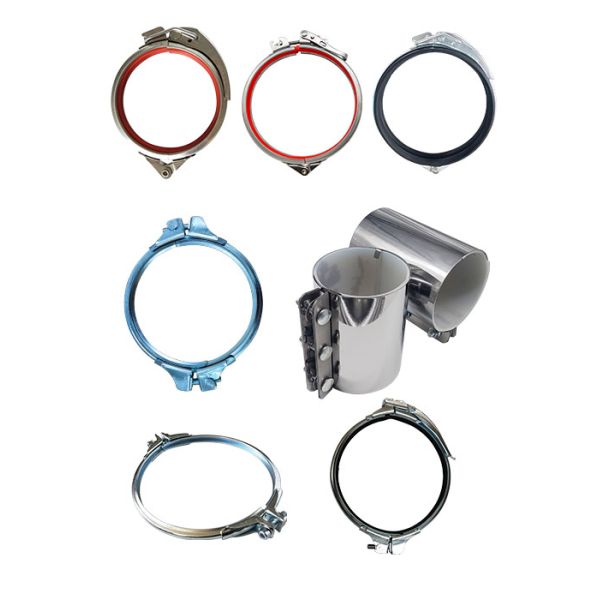

Why Choose Our Duct Clamps?
Compared with traditional duct fasteners, our Quick Release Rapid Lock Clips combine efficiency, durability and versatility in one product. The 304 stainless steel construction eliminates the need for frequent replacement due to rust and corrosion, reducing your long-term maintenance costs. The modular design and wide size range make it a one-stop solution for all your duct connection needs. Trusted by professional installers and engineering companies in over 50 countries, our product is the top choice for high-quality duct fastening solutions.
