Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Specifications
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Payment Terms :
T/T
Voltage Rating :
500V
Product Name :
Heavy Duty Rectangular Connector
MOQ :
5pcs/30pcs/50pcs
Wire Connection :
Crimping Terminal
Protection Grade :
IP65
Pollution Degree :
3
OEM :
Provided
Model Number :
HE-048-MC/HE-048-FC
Brand Name :
ZJHK
Housings :
H48B
Contact Material :
Copper Alloy with Silver Plated
Price :
$6.4/$6/$5.6
Delivery Time :
5~7 work days
Gender :
Male/Female
Place of Origin :
China
Description

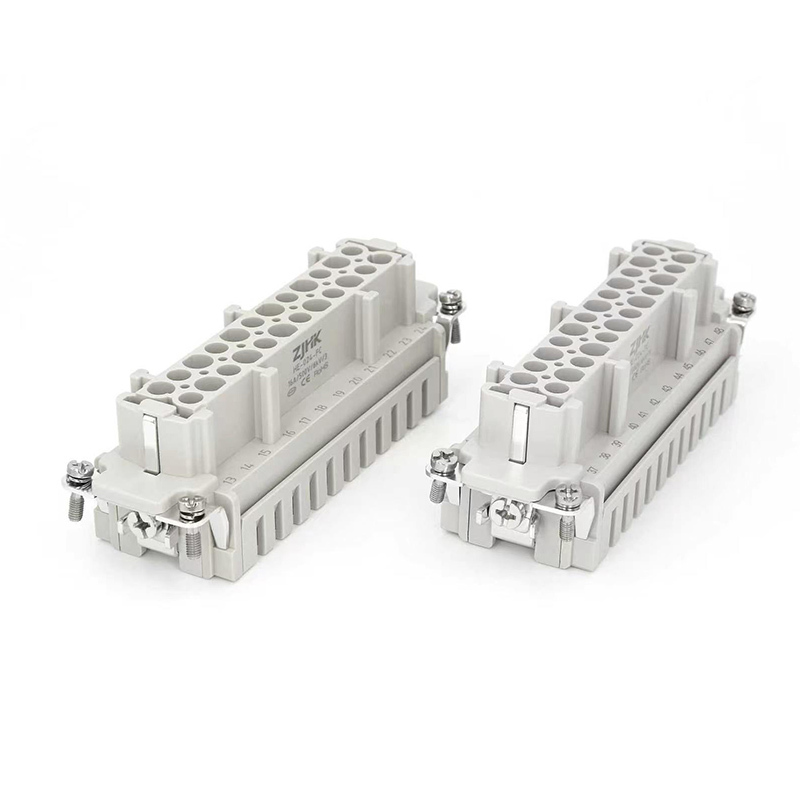

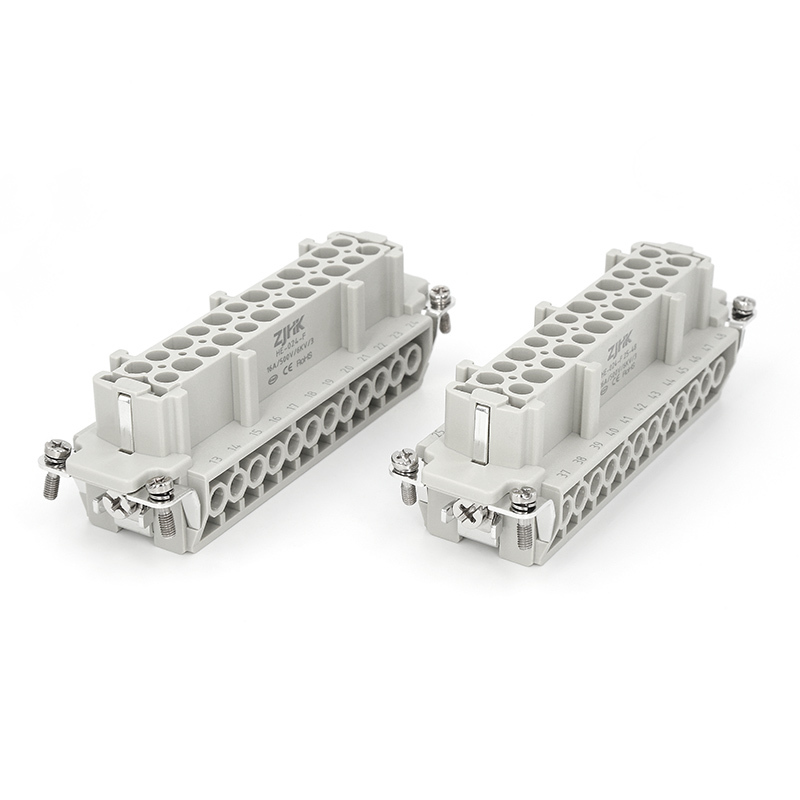

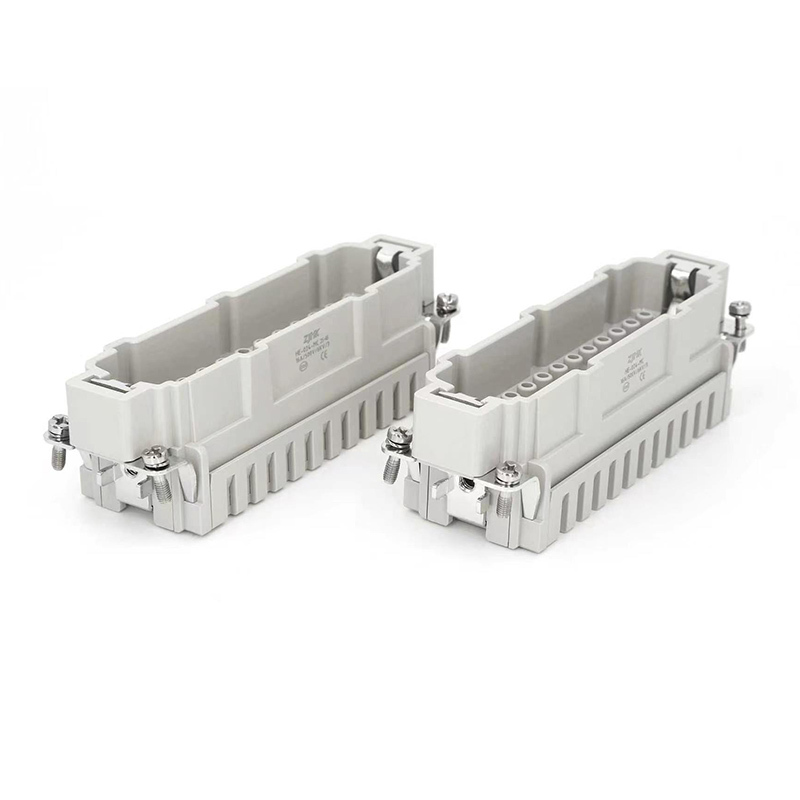

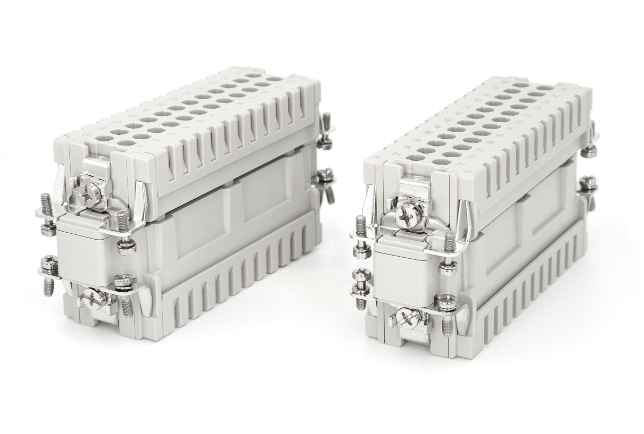

Crimp Terminal 48-Position Standard Connectors
Crimp Terminal 48pos Standard Connectors HE-048-MC is the standard insert designed for widespread use in transportation, aviation, automation, and hot runner industries. This 48-pin connector features crimping termination and is constructed from polycarbonate material, offering exceptional impact resistance, weather durability, low water absorption, excellent processability, and high self-extinguishing properties. Engineered to maintain stable connections in demanding environmental conditions.
Product Specifications
Termination Method Crimping Termination
Model HE-024-MC(1-24)
HE-024-MC(25-48)
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree Ⅲ
Rated Voltage (UL/CSA) 600V
Insulation Resistance ≥10¹⁰Ω
Material Polycarbonate
Temperature Range -40℃ to +125℃
Flammability (UL94) V0
Mechanical Life (Mating Cycles) ≥500
Pin Material Copper Alloy
Pin Surface Hard-gold Plated
Hard-silver Plated
Contact Resistance ≤1mΩ
Technical Drawings

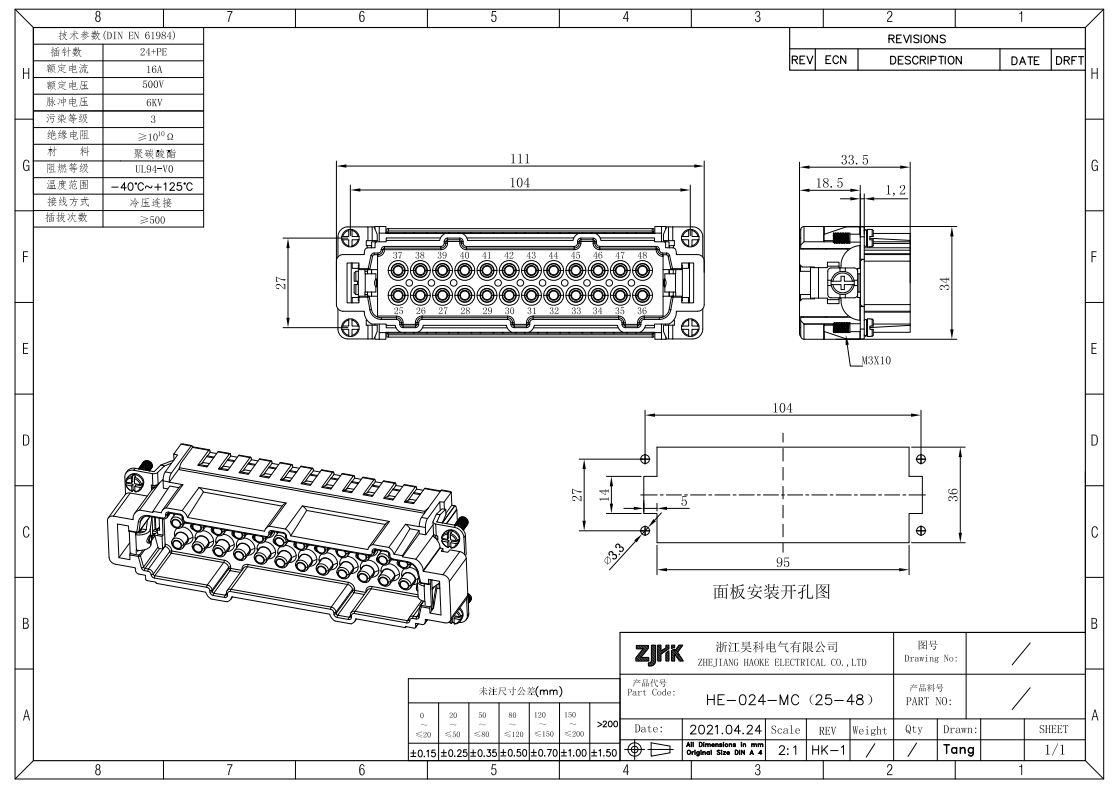

HE-024-MC(25~48)
Crimp Terminal 48pos Standard Connectors

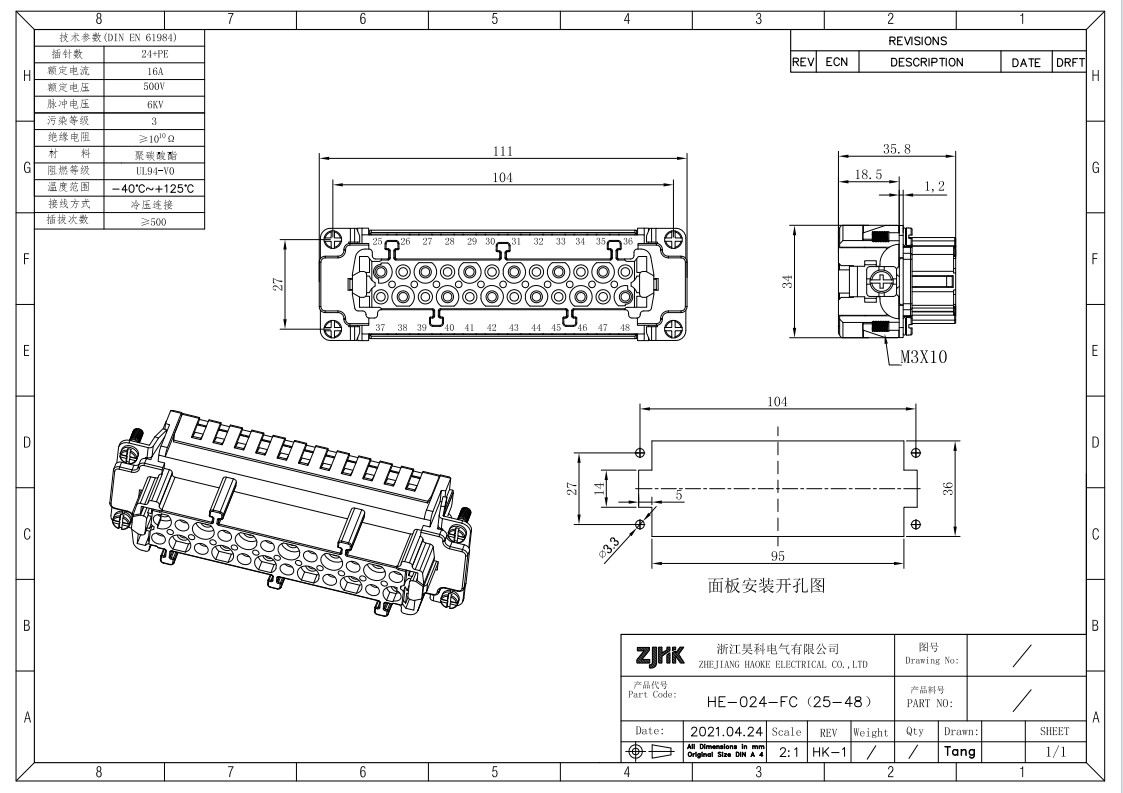

HE-024-FC(25~48)
Crimp Terminal 48pos Standard Connectors

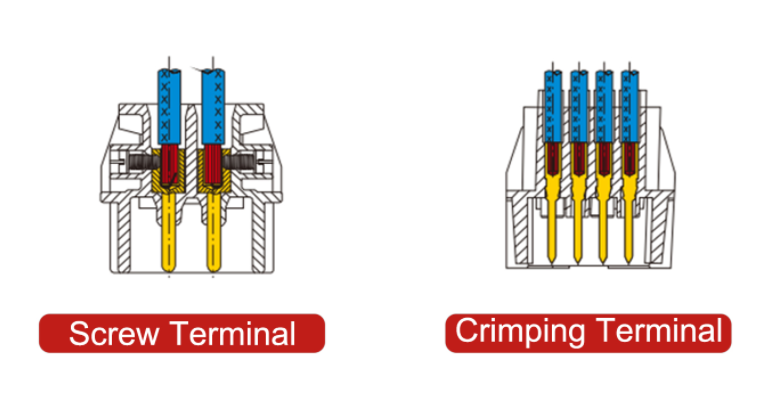

Termination Methods Comparison
Crimp Terminal 48pos Standard Connectors
Screw Terminations: Require only basic tools like screwdrivers, offer simple operation, allow for rewiring and are non-permanent, suitable for large-diameter conductors.
Crimp Terminations: Require specialized ferrule pliers, need technical expertise for proper installation, create permanent connections that cannot be removed, ideal for harsh environmental conditions.
Crimping Contacts
Crimp Terminal 48pos Standard Connectors
Copper alloy, silver plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Crimp Terminal 48pos Standard Connectors
Copper alloy, silver plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Crimp Terminal 48pos Standard Connectors
Copper alloy, silver plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Crimp Terminal 48pos Standard Connectors
Copper alloy, silver plated
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Hoods and Housings
Crimp Terminal 48pos Standard Connectors
Position: Side entry
Protection: IP65
Thread: M32/M40/M50/PG29/PG36/PG42
Crimp Terminal 48pos Standard Connectors
Position: Top entry
Protection: IP65
Thread: M32/M40/M50/PG29/PG36/PG42
Crimp Terminal 48pos Standard Connectors
Position: Surface mounting
Protection: IP65
Feature: One lever operation
Crimp Terminal 48pos Standard Connectors
Position: Bulkhead mounting
Protection: IP65
Feature: One lever operation

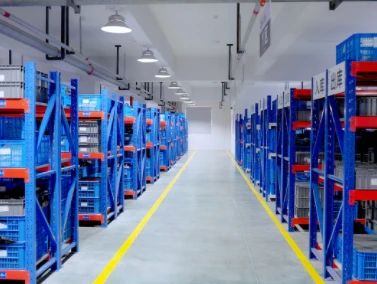

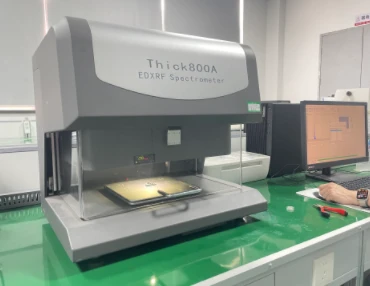

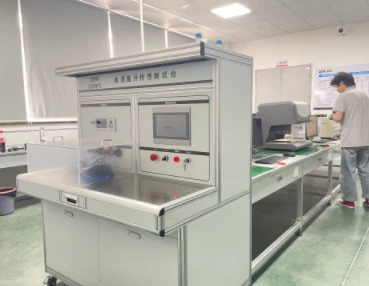

Manufacturing Facility
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Crimp Terminal 48pos Standard Connectors
Frequently Asked Questions
Do you have your own factory, or do you source them from suppliers?
Yes, we operate our own manufacturing facility spanning nearly 10,000 square meters in Wenzhou City, Zhejiang Province, China.
What's your advantage compared with Harting, ILME, TE (SIBAS)?
Our heavy-duty connectors provide perfect compatibility with Harting, ILME, and TE (SIBAS) systems. Most clients who previously used these brands have switched to our products after testing. Additionally, we offer more cost-effective pricing compared to Harting while maintaining equivalent performance and reliability.
