Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Cable To Cable 3A Series Housings
Specifications
Model Number :
H3A-CCT-1L
Cable Entry :
Cable to cable
MOQ :
5
Delivery Time :
5-7 work days
Lever Type :
Lever
Degree of Protection :
IP65
Payment Terms :
T/T,D/P,L/C
Limiting Temperature :
-40...+125℃
Brand Name :
ZJHK
Size :
3A
Packaging Details :
Standard Packaging
Price :
$2
Hoods Seal :
NBR
Supply Ability :
300 pcs within 7 Days
Flammablity acc. To UL 94 :
V0
Certification :
UL,CQC,CE,UKCA,SGS,EAC,RoHS
Material :
Mental galvanized/nickel plating
Place of Origin :
China
Colour :
Grey
Description
Cable To Cable 3A Series Housings
H3A-CCT-1L is a flying wire metal housing designed for Heavy-Duty Connector Series A, rated 3A. Featuring a dual-outlet design, it supports flexible wiring configurations. Its robust construction and reliable protection make it suitable for industrial automation, machinery, power systems, and other demanding applications.
Cable To Cable 3A Series Housings

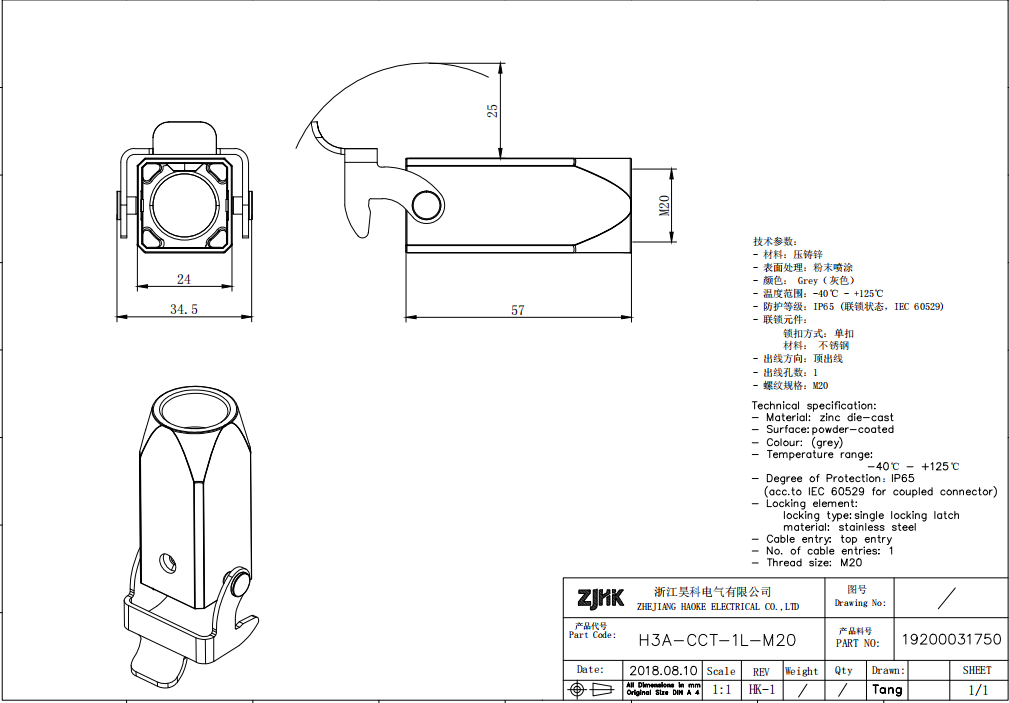

Technical Specifications

Cable To Cable 3A Series Housings

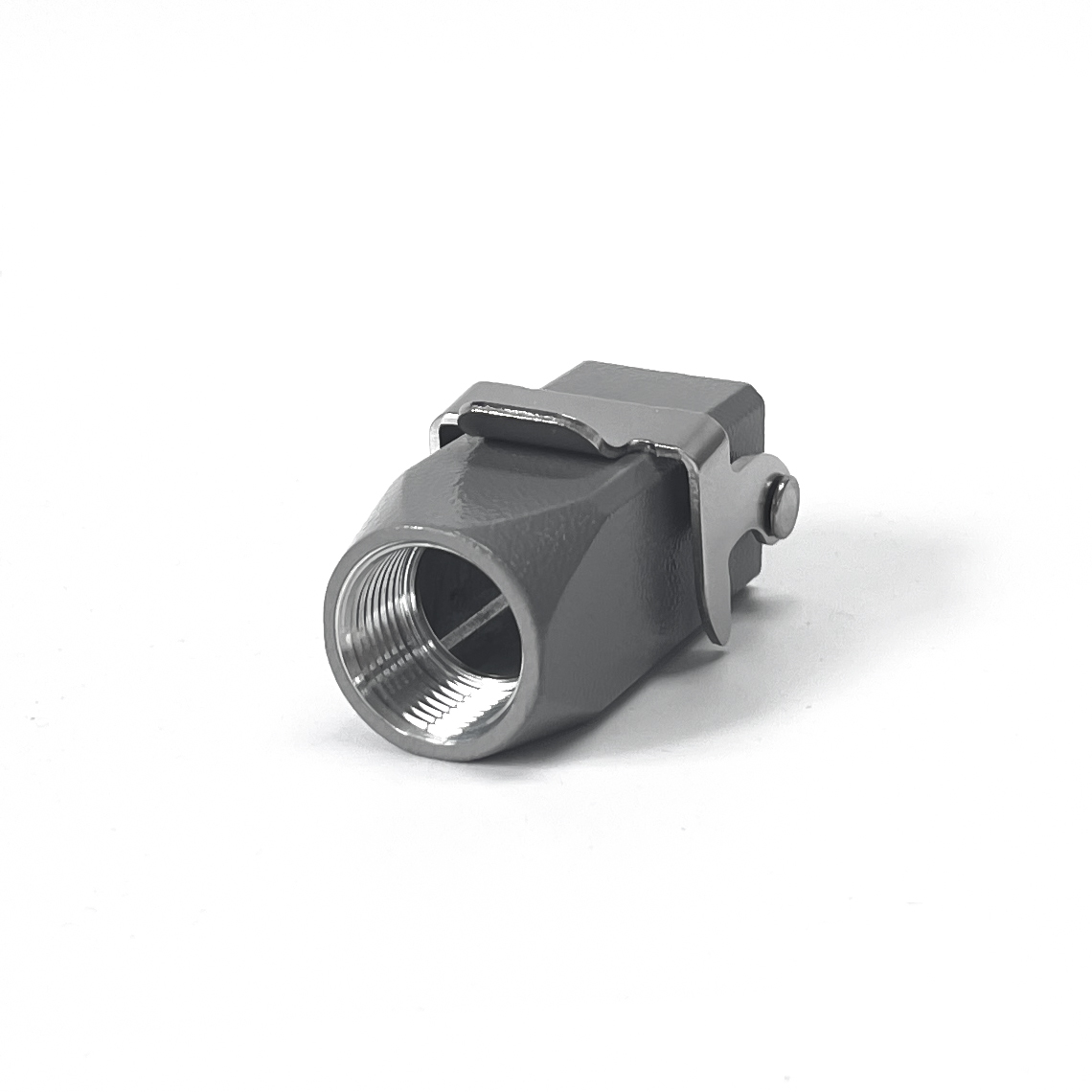

Made from durable zinc die-cast material with a grey powder-coated finish, this housing offers reliable protection in demanding industrial environments.
  • Operating temperature range: -40°C to +125°C
  • IP65 protection rating when coupled
  • Stainless-steel single locking latch for secure connection
  • Top cable entry supports one cable with M20, PG11, or PG13.5 thread options
Quality Assurance & Testing
Cable To Cable 3A Series Housings

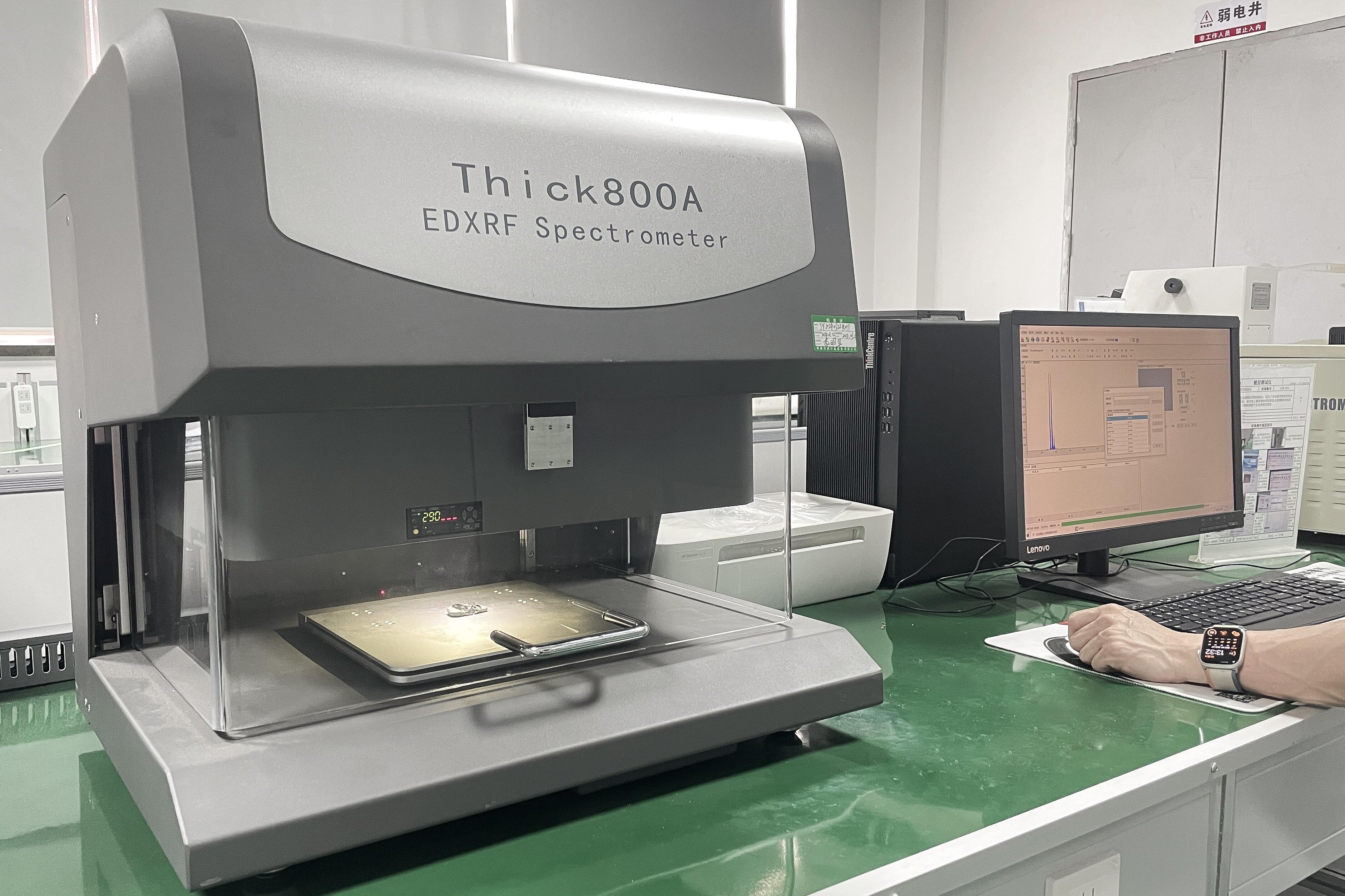

EDXRF spectrometers provide rapid, non-destructive elemental analysis for various materials. They are widely used for quality control and material verification, delivering accurate compositional measurements and impurity detection. The system supports environmental compliance testing such as RoHS certification, and can analyze plastic components, copper contacts, and metal oxide content in our products, ensuring that raw materials meet environmental protection and quality standards.

Automated Manufacturing Process

Cable To Cable 3A Series Housings

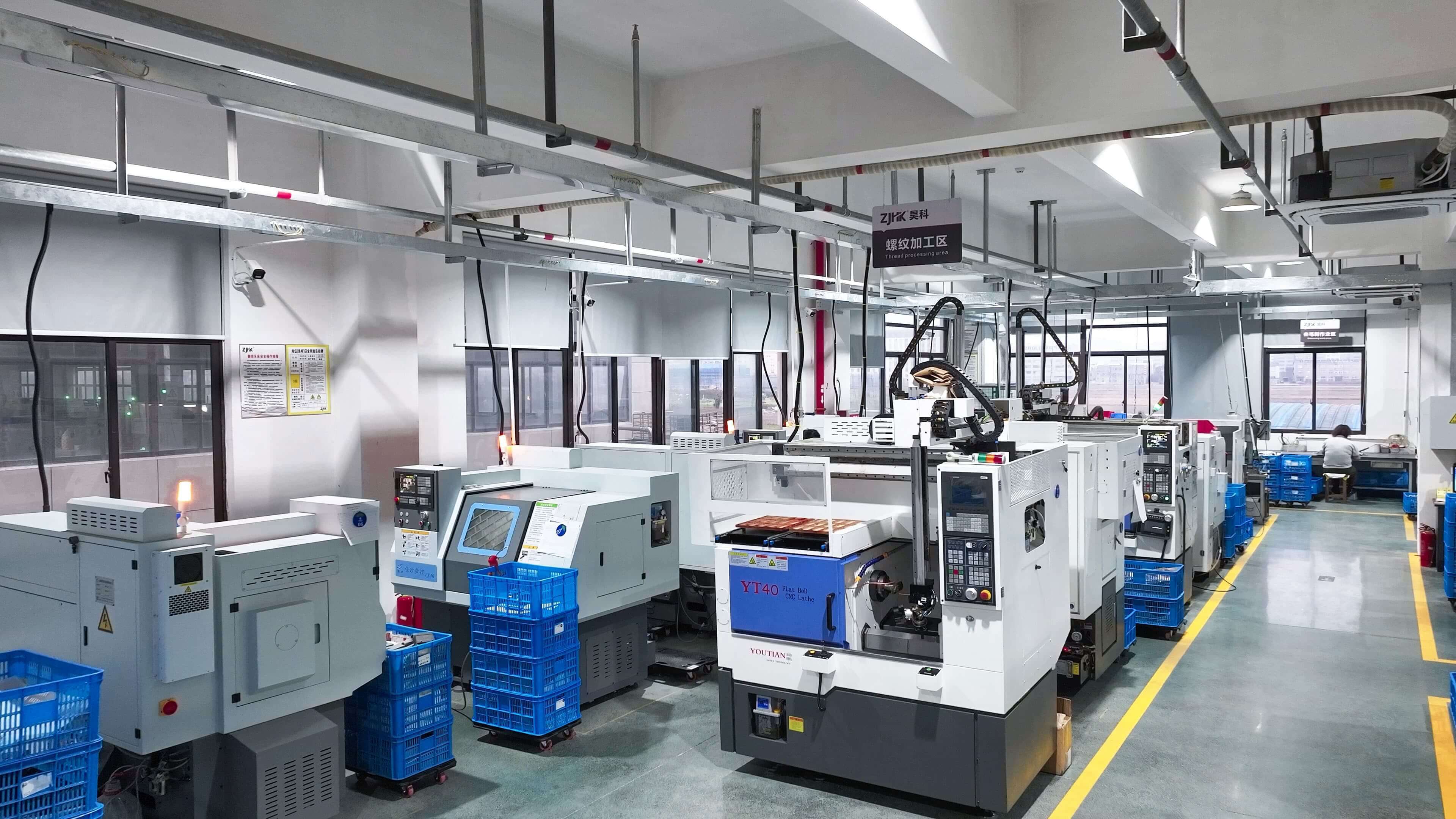

Our heavy-duty connector production integrates an automatic core assembly line, manufacturing from the inside out. First, silver-plated contact pins are automatically assembled for reliable electrical connections. Next, dual-row screws are installed via automation, followed by the precise assembly of surrounding copper components. The process delivers fully integrated, high-precision connectors with consistent quality and superior performance.

Manufacturer Profile

Cable To Cable 3A Series Housings
Zhejiang Haoke Electric Co., Ltd. (HAOKE) has secured a front-runner position in the heavy-duty connector arena by integrating the entire value chain-from raw-material smelting to finished-module delivery. Our HA, HE and derivative families offer thousands of mating combinations that serve rail, wind, automation and other demanding segments. Backed by UL, EAC, UKCA, CE, CQC, RoHS, ISO9001 and CQC certifications, Haoke empowers customers to clear worldwide regulatory hurdles with a single part-number solution.

Trusted Partner for Global Industry Leaders

Cable To Cable 3A Series Housings
We have built partnerships with many large enterprises, helping ensure the reliable and continuous operation of their equipment. Our customers include internationally recognized companies such as BMW, Hyundai, and YUDO, as well as leading brands like CHNT, DELIXI, Huawei, and BYD.If you are considering reliable alternatives to established brands such as Harting, Weidmüller, or TE Connectivity, we are a competitive and trustworthy choice worth your consideration.
