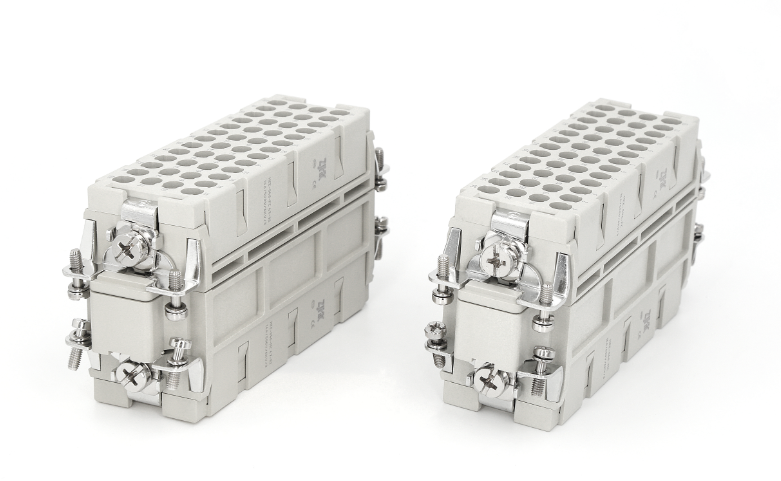

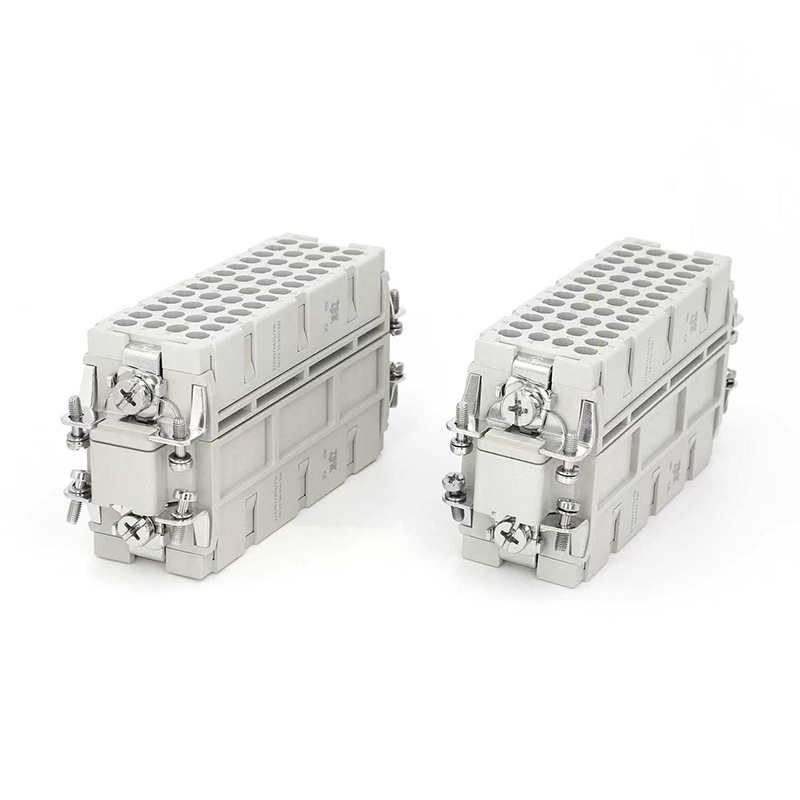

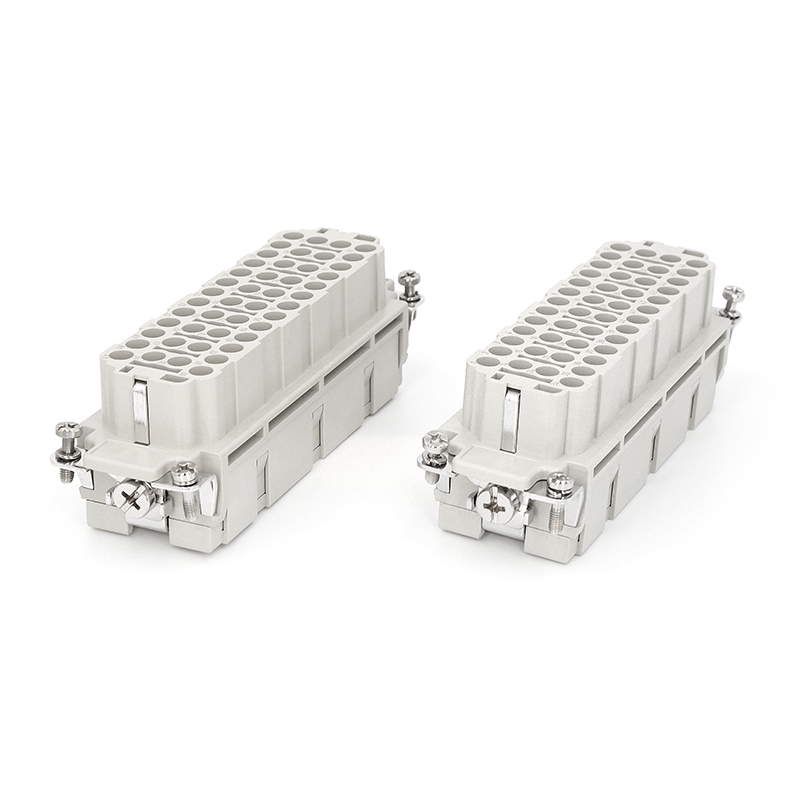

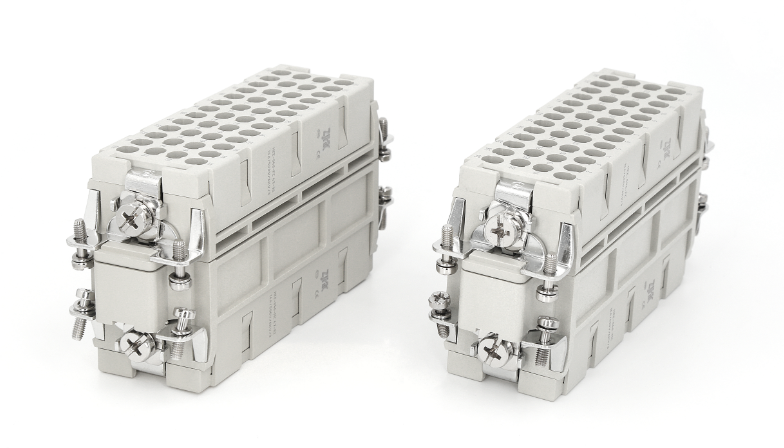

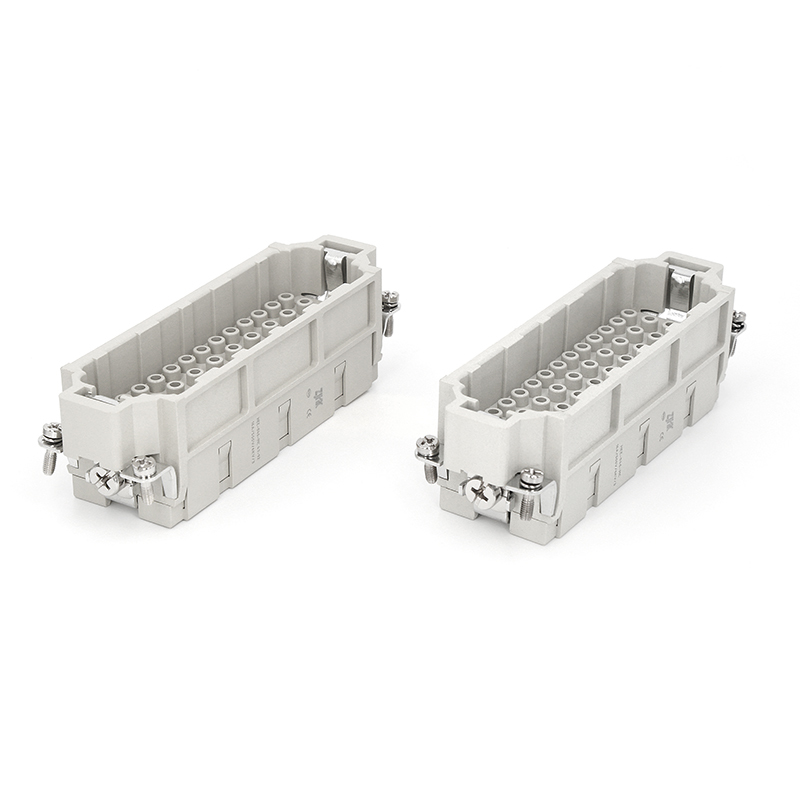

Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Specifications
Payment Terms :
T/T
OEM :
Provided
Gender :
Male/Female
Package :
Indivisual Packing in Box
Model Number :
HEE-092-MC/HEE-092-FC
MOQ :
5pcs/30pcs/50pcs
Temperature Range :
-40℃...+125℃
Matching Housings :
H48B
Price :
$8/$7.5/$7
Inserts :
Polycarbonate
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Delivery Time :
5~7 work days
Degree Of Protection :
IP65
Brand Name :
ZJHK
Voltage Rating :
500V
Place of Origin :
China
Description
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert

The HEE-092-MC and HEE-092-FC are high-density inserts developed for heavy-duty connector systems where a large number of circuits need to be handled in a limited space. The MC and FC versions are designed as matching male and female inserts, providing a practical solution for complex industrial wiring.

Technical Specifications
Specifications DIN EN 60 664
Connection Type Crimp
Number of Contacts 46×2
Rated Current 16A
Rated Voltage 500V
Model Part Number
HEE-046-MC(1~46) 09320463001
HEE-046-MC(47~92) 09320463011
HEE-046-FC(1~46) 09320463101
HEE-046-FC(47~92) 09320463111
Product Drawings
HEE-046-MC(47~92)
Crimping 92Pos High Density Insert

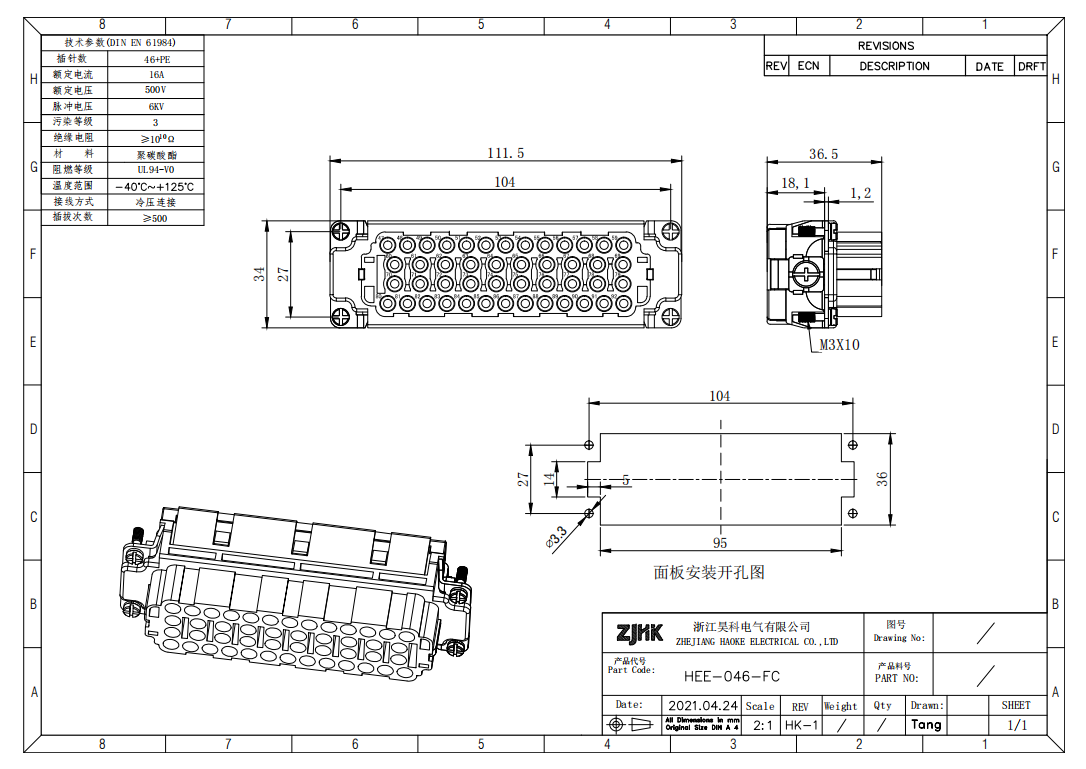

HEE-046-FC(47~92)
Crimping 92Pos High Density Insert
Product Overview
Crimping 92Pos High Density Insert

With 92 contacts, this series is suitable for equipment with demanding signal and control wiring requirements. Its high-contact configuration helps bring more circuits together in a single connector, reducing the need for multiple separate connection points and keeping the overall wiring arrangement more compact. The inserts can be paired with suitable heavy-duty housings and are suitable for industrial automation, control cabinets, machinery, production equipment, and other applications requiring high-density connections.

Matching Contacts
Crimping 92Pos High Density Insert
Copper alloy with silver plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Male
Crimping 92Pos High Density Insert
Copper alloy with silver plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Female
Crimping 92Pos High Density Insert
Copper alloy with gold plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Male
Crimping 92Pos High Density Insert
Copper alloy with gold plated
Rated Current: 16A
Wire Gauge: 0.14~4mm²
Gender: Female
Factory and Equipment
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert
Delivery and Packaging
Crimping 92Pos High Density Insert
Crimping 92Pos High Density Insert

ZJHK offers flexible shipping options to meet different order requirements, including international express, air freight, and sea freight. We keep production and order handling efficient, and standard orders can normally be prepared for shipment within 10 days after order confirmation, helping customers keep their projects on schedule.

Every ZJHK product is checked before packing and then placed in a protective bag or inner package to reduce the risk of scratches, dust, and damage during transportation. The products are finally packed into strong export cartons, with the packaging arranged to make better use of space while keeping the goods secure throughout the delivery process.
