H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover
Specifications
Model Number :
H10A-BK-1L-CV
Housing Mounting :
Surface Mounting
MOQ :
5
Delivery Time :
5-7 work days
Locking Mechanism :
1 Lever
Flammability acc.to UL 94 :
V0
Payment Terms :
T/T,D/P,L/C
Material of Seal :
NBR
Brand Name :
ZJHK
Type :
Housing
Packaging Details :
Standard Packaging
Degree of protection :
IP65
Price :
4.25
Lever Type :
Galvanized iron
Supply Ability :
300 pcs within 7 Days
Limiting Temperature :
-40...+125℃
Size :
10A
Certification :
UL,CQC,CE,UKCA,SGS,EAC,RoHS
Material :
Zinc Die-Cast
Place of Origin :
China
Color :
Grey
Description
H10A Series Bulkhead Mounting Housings With Cover
H10A Bulkhead Mounting Housings With Cover
H10A Series Bulkhead Mounting Housings With Cover

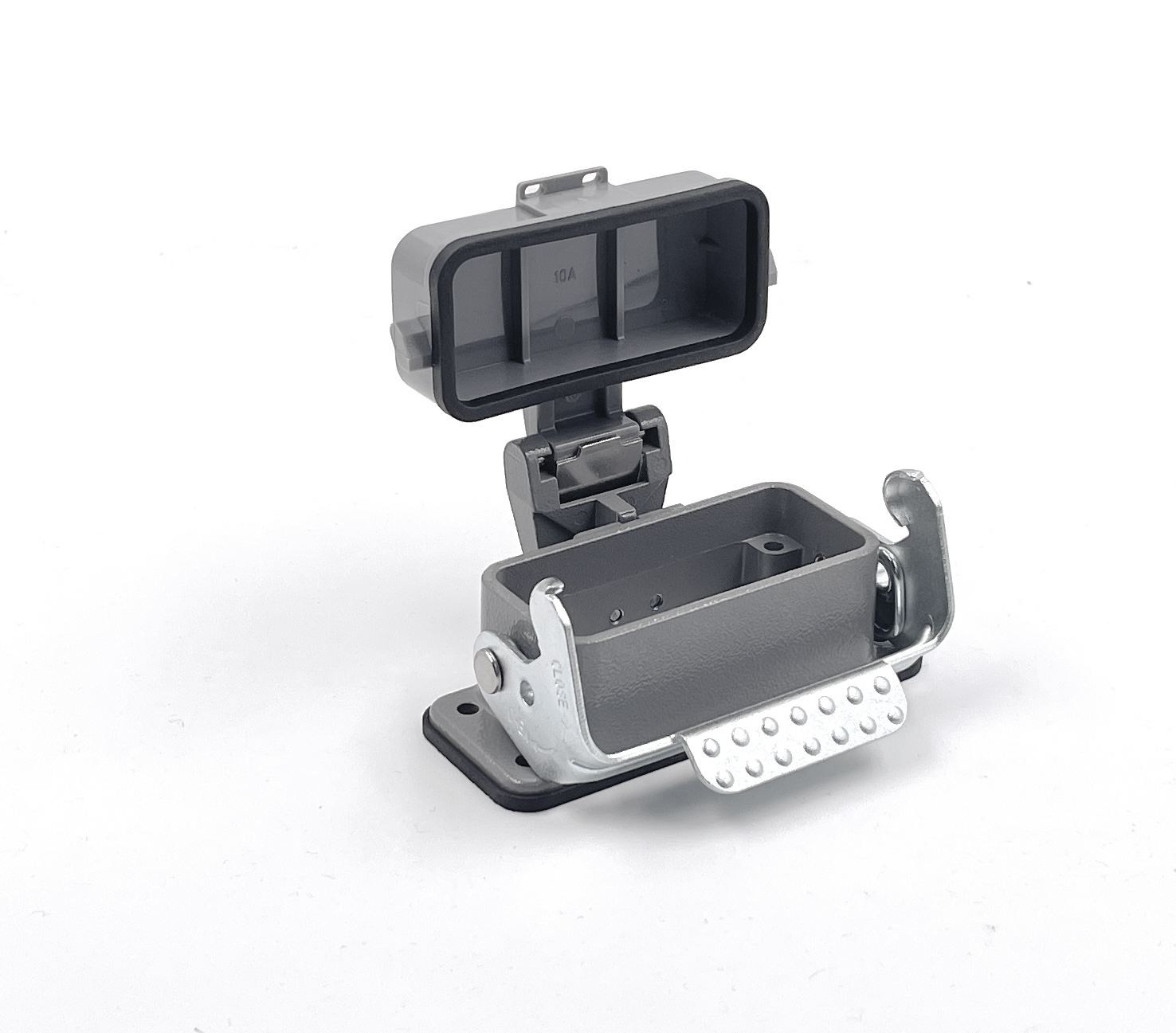

The H10A-BK-1L-CV is a bulkhead mounting in the ZJHK 10A series, designed for panel mounting and through-wall connections. Made of corrosion-resistant cast aluminum alloy, it provides IP65 protection and reliable performance in harsh environments. The rear cable entry simplifies wiring between internal and external equipment.

Technical Drawings

H10A Series Bulkhead Mounting Housings With Cover

The 10A bulkhead mounting housing is made of durable zinc die-cast material with a grey finish. It features a galvanized iron lever locking mechanism, NBR seal, and IP65 protection. With UL 94 V-0 flammability rating and a temperature range of -40°C to +125°C, it is suitable for demanding industrial applications.

Precision Manufacturing for Superior Connector Performance
H10A Series Bulkhead Mounting Housings With Cover
Our production facility features dozens of advanced automated injection molding machines with precision tolerances of ±0.01mm, ensuring consistent product accuracy and stability. The insert housing utilizes integrated die-casting technology to maintain structural integrity and dimensional precision. This manufacturing excellence guarantees reliable component fit and long-term durability, enabling our heavy-duty connectors to perform flawlessly in the most demanding industrial environments.

Company Profile

H10A Series Bulkhead Mounting Housings With Cover

Zhejiang Haoke Electric Co., Ltd. (HAOKE) has secured a front-runner position in the heavy-duty connector arena by integrating the entire value chain-from raw-material smelting to finished-module delivery. Our HA, HE and derivative families offer thousands of mating combinations that serve rail, wind, automation and other demanding segments. Backed by UL, EAC, UKCA, CE, CQC, RoHS, ISO9001 and CQC certifications, Haoke empowers customers to clear worldwide regulatory hurdles with a single part-number solution.

Trusted Partner for Global Industry Leaders
H10A Series Bulkhead Mounting Housings With CoverWe serve leading global and local brands, including BMW, Hyundai, YUDO, CHNT, DELIXI, Huawei, and BYD, supporting reliable equipment operation worldwide. As a trusted alternative to established brands such as Harting, Weidmuller, and TE Connectivity, we offer dependable quality, competitive pricing, and responsive service.
