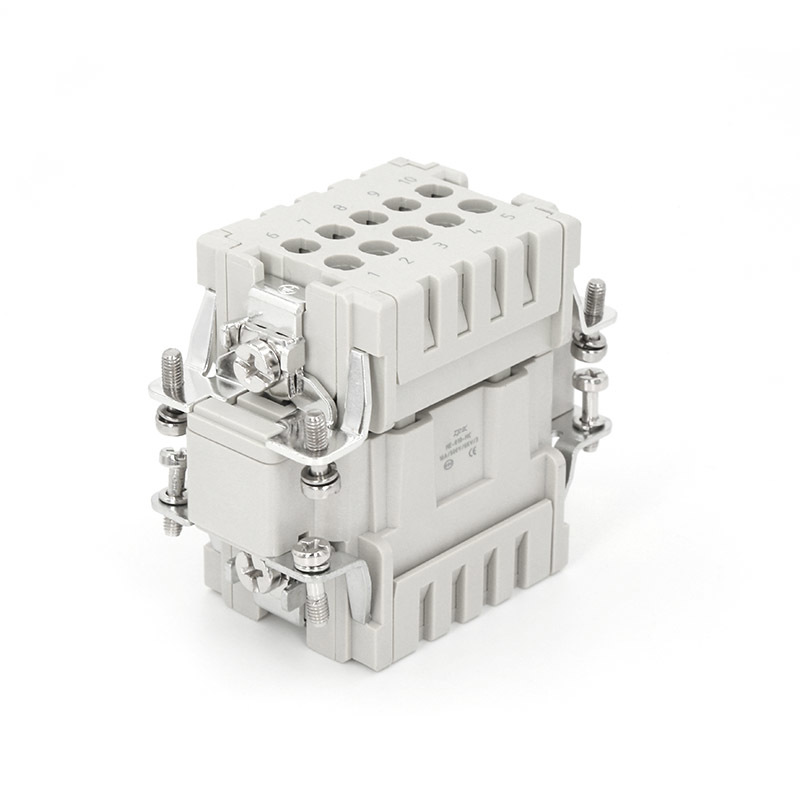

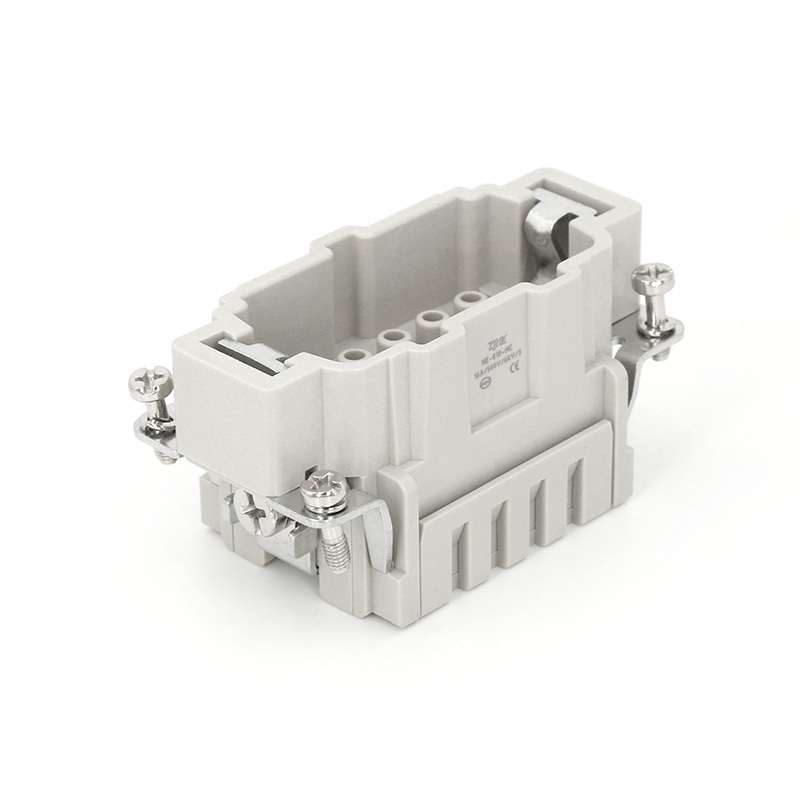

Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Specifications
Gender :
Male/Female
Number Of Contacts :
10
Application :
Industrial Automation, Machinery, Robotics
Protection :
IP65
Model Number :
HA-010-MC/HA-010-FC
Voltage :
500V
MOQ :
5pcs/30pcs/50pcs
Product Name :
Heavy Duty Connector
Delivery Time :
5~7 work days
Place of Origin :
China
Connection Method :
Crimping
Brand Name :
ZJHK
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Price :
$2.4/$2.25/$2.1
Current Rating :
16A
Payment Terms :
T/T
Description
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector Crimp 10 Contacts Narrow Heavy Duty Connector
The HA-010 is one of three cable installation options within the HA series. Utilizing a crimping terminal connection method, it offers superior resilience against harsh conditions—including intense vibration, shock, high temperatures, and corrosion—making it the optimal choice for demanding applications.
Technical Parameters
SpecificationsDIN EN 60 664/DIN EN 61 984
Number of contacts10
Rated Current16A
Rated Voltage250V
Rated Impulse Voltage4kV
Pollution Degree3
Pollution Degree2 Also16A 230/400V 4kV 2
Rated Voltage Acc.to UL Csa600V
Insulation Resistance≥1010Ω
MaterialPolycarbonate
Product Drawings
HA-010-MC
Crimp 10 Contacts Narrow Heavy Duty Connector
HA-010-FC
Crimp 10 Contacts Narrow Heavy Duty Connector
Matching Crimp Contacts
Crimp 10 Contacts Narrow Heavy Duty Connector
Silver plated 16A crimping male contacts
Crimp 10 Contacts Narrow Heavy Duty Connector
Silver plated 16A crimping female contacts
Crimp 10 Contacts Narrow Heavy Duty Connector
Gold plated 16A crimping male contacts
Crimp 10 Contacts Narrow Heavy Duty Connector
Gold plated 16A crimping female contacts
Professional Testing Equipment
Crimp 10 Contacts Narrow Heavy Duty Connector
DC Temperature Rise Test
This test monitors conductor temperature under load to determine safe current capacity. As current increases, resistive heating causes temperature rise, reducing ampacity. The evaluation considers conductor size, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
Crimp 10 Contacts Narrow Heavy Duty Connector
Energy Dispersive X-ray Fluorescence Spectrometer
EDXRF Spectrometer is widely used for environmental protection testing, material analysis of plastic components, and measurement of copper/rust content. In environmental applications, it enables rapid and accurate detection of heavy metals (e.g., lead, cadmium, mercury) in soil, water, and air pollutants, ensuring effective environmental monitoring and compliance with safety regulations.
High Performance Features
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Crimp 10 Contacts Narrow Heavy Duty Connector
Company Profile
Zhejiang Haoke Electric Co. Ltd.
Crimp 10 Contacts Narrow Heavy Duty Connector
HAOKE ELECTRIC Co., Ltd. engineers reliable and innovative connector solutions for global industries. With modern manufacturing capabilities and international certifications (UL, CQC, CE, UKCA, EAC), we partner with leading companies to provide customized, intelligent connection technologies that foster mutual growth.
