16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector
Specifications
Delivery Time :
5~7 work days
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Order Number :
09200042612 & 09200042812
Current :
16A, 500V
OEM :
Provided
Package :
Indivisual Packing in Box
MOQ :
5pcs/30pcs/50pcs
Rated Voltage :
250V
Price :
$3.73/$3.5/$3.27
Housing Size :
29.5*80(mm)
Model Number :
HA-016-M/HA-016-F
Place of Origin :
China
Payment Terms :
T/T
Contacts Nos :
16
Brand Name :
ZJHK
Description
16-Position Slim Screw Heavy Duty Connector
16Pos. Slim Screw Heavy Duty Connector 16Pos. Slim Screw Heavy Duty Connector

The HA-016 series features a space-saving design with 16 tightly arranged contacts and side-mounted grounding. These connectors utilize silver-plated pins for optimal conductivity and are available in unbranded versions for broad compatibility. This compact solution maximizes space efficiency without compromising operational reliability.

Technical Specifications
Specification Value
Standards Compliance DIN EN 60 664/DIN EN 61 984
Number of Contacts 16
Rated Current 16A
Rated Voltage 250V
Rated Impulse Voltage 4kV
Pollution Degree 3
Rated Voltage (UL/CSA) 600V
Insulation Resistance ≥10¹⁰Ω
Material Polycarbonate
Product Drawings
HA-016-M (Male Connector)
16Pos. Slim Screw Heavy Duty Connector

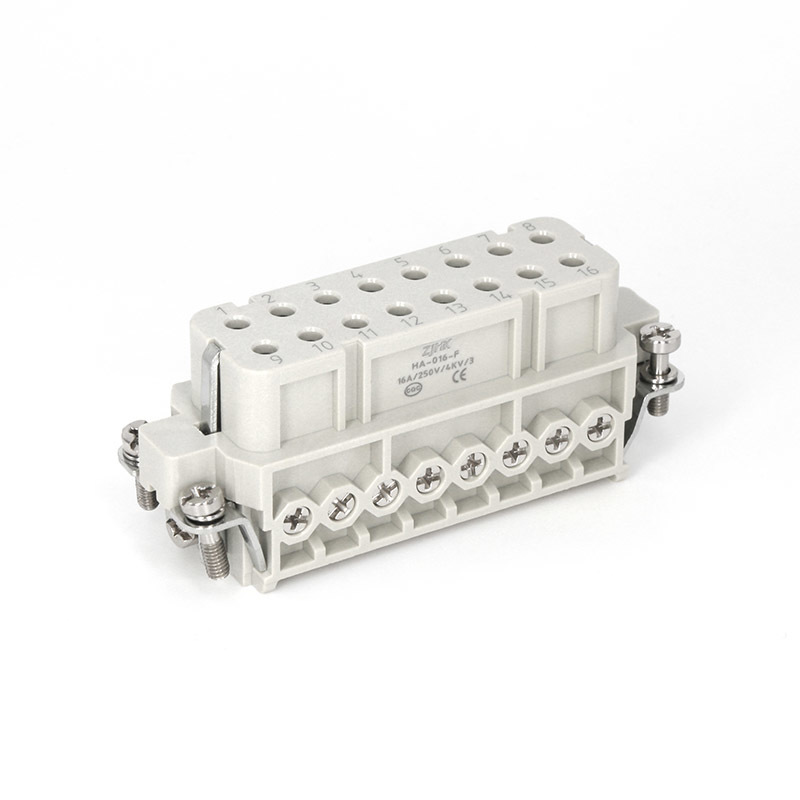

HA-016-F (Female Connector)
16Pos. Slim Screw Heavy Duty Connector
Application Fields
16Pos. Slim Screw Heavy Duty Connector 16Pos. Slim Screw Heavy Duty Connector

Our products are extensively utilized in various industrial applications including precision hot runners, automated robots, and heavy-duty construction machinery. The highly compact design of the HA series enables efficient current and signal transmission within significantly reduced space, enhancing performance while optimizing system integration.

Product Advantages
16Pos. Slim Screw Heavy Duty Connector
  • Manufactured in compliance with industry-standard specifications
  • Customized solutions tailored to specific requirements
  • Compatible with leading brands including Harting, ILME, and TE Connectivity
  • Internationally recognized certifications: UL, EAC, UKCA, RoHS, and ISO 9001
  • Superior quality and global compliance assurance
Authorized Certifications
16Pos. Slim Screw Heavy Duty Connector
UL CERTIFICATION
16Pos. Slim Screw Heavy Duty Connector
VERIFICATION OF LVD COMPLIANCE
16Pos. Slim Screw Heavy Duty Connector
CE AND UKCA
Frequently Asked Questions
How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
Does it support hybrid transmission (power + signal + data)?
Yes, we have a framework structure and can carry out modular design for hybrid transmission.
What is the maximum supported wire diameter and cross-sectional area?
The maximum supported wire diameter can reach 44mm, with options including PG48 and M63 connectors.
Does it support hot plugging?
Yes, we can provide levers made of plastic to avoid high temperature during hot plugging operations.
