Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector
Specifications
Payment Terms :
T/T
HA-004-FS :
09200042733
Durability :
500 cycles
Brand Name :
ZJHK
Delivery Time :
5~7 work days
Color :
White
Voltage Rating :
500V
Model Number :
HA-004-MS/HA-004-FS
HA-004-MS :
09200042633
OEM :
Provided
Place of Origin :
China
MOQ :
5pcs/30pcs/50pcs
Price :
$3.2/$3/$2.8
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Number Of Contact :
4+PE
Connection Type :
Cage-clamp
Description

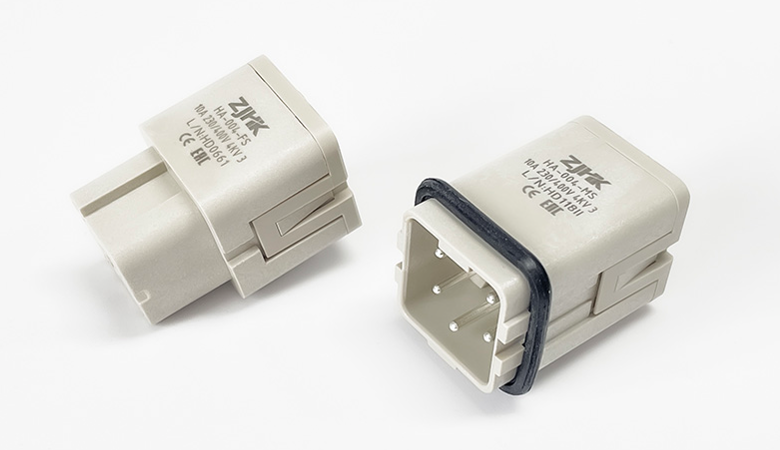

Compact 4-Contacts Cage-Clamp Heavy Duty Connector
Compact 4Contacts Cage-clamp Heavy Duty Connector Compact 4Contacts Cage-clamp Heavy Duty Connector
This series enables the connection of four conductors within a minimized footprint. Designed for tool-free, plug-and-play operation, it incorporates four contact modules: three for current-carrying and one for grounding. Fully compatible with Harting 3A series, the product significantly enhances installation flexibility and is suited for a wide range of industrial applications.
Specifications
SpecificationsDIN EN 60 664/DIN EN 61 984
Number of contacts4
Connection MethodCage-clamp
Rated Current10A
Rated Voltage Conductor-ground230V
Rated Impulse Voltage4kV
Pollution Degree3
Rated Voltage Acc.to UL Csa600V
Insulation Resistance≥10¹⁰Ω
MaterialPolycarbonate

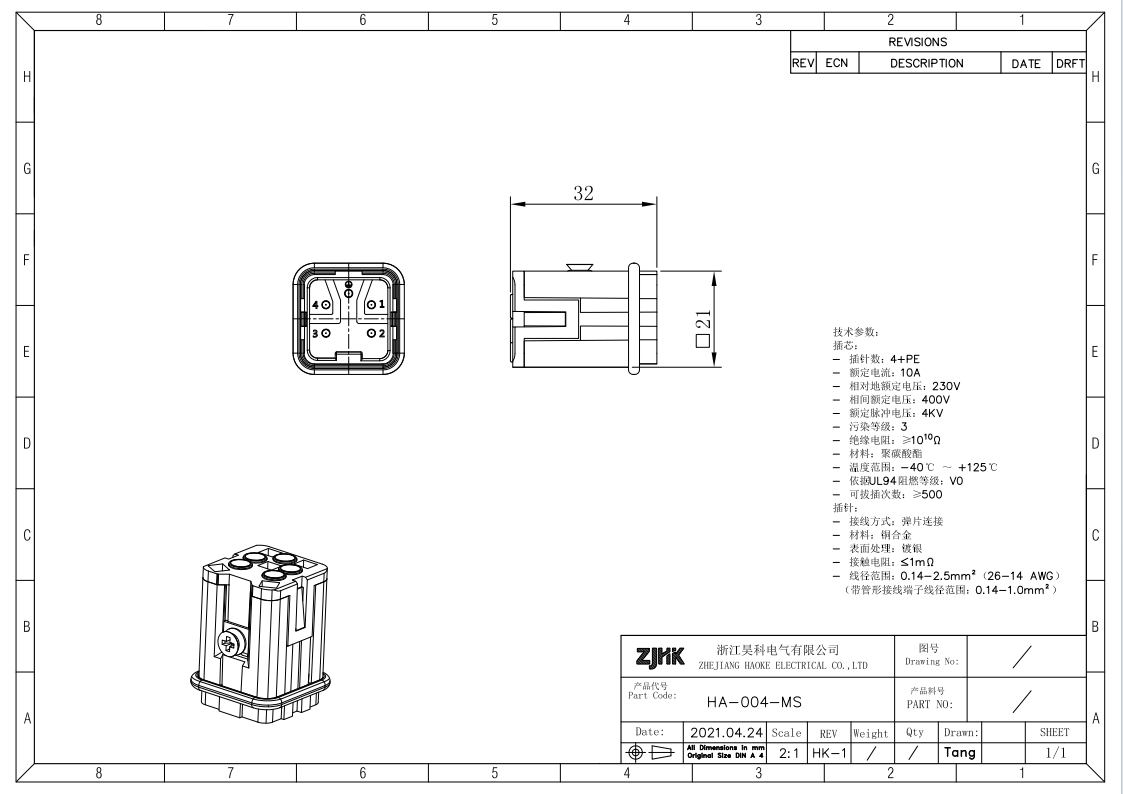

Product Drawings

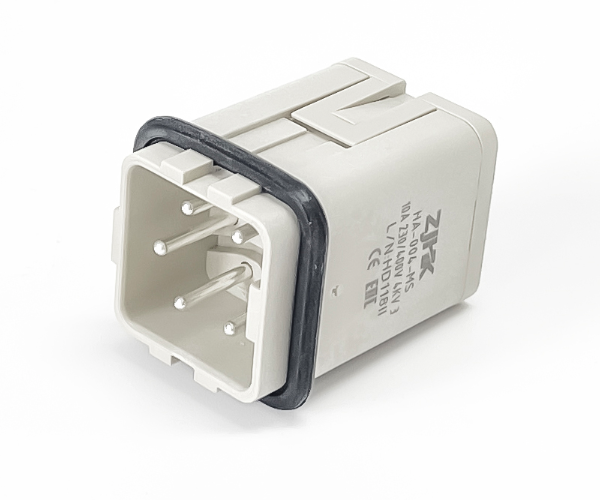

HA-004-MS
Compact 4Contacts Cage-clamp Heavy Duty Connector

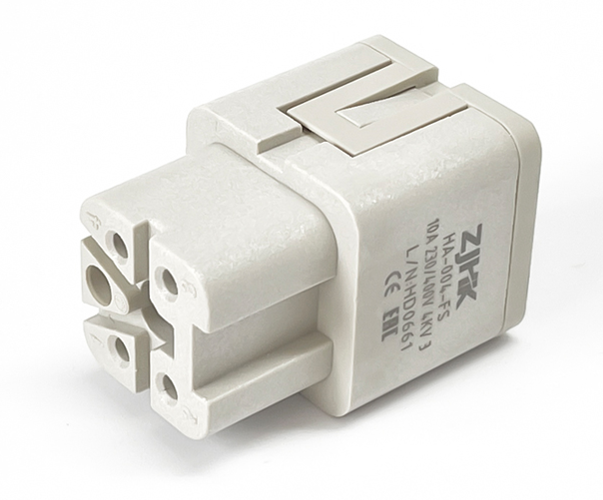

HA-004-FS
Compact 4Contacts Cage-clamp Heavy Duty Connector
Product Overview
Compact 4Contacts Cage-clamp Heavy Duty Connector
This 4-pin series male ferlet is matched with the female ferlet of the same type. The male ferlet features a sealing ring at the bottom for easy identification and distinction from the female ferlet.

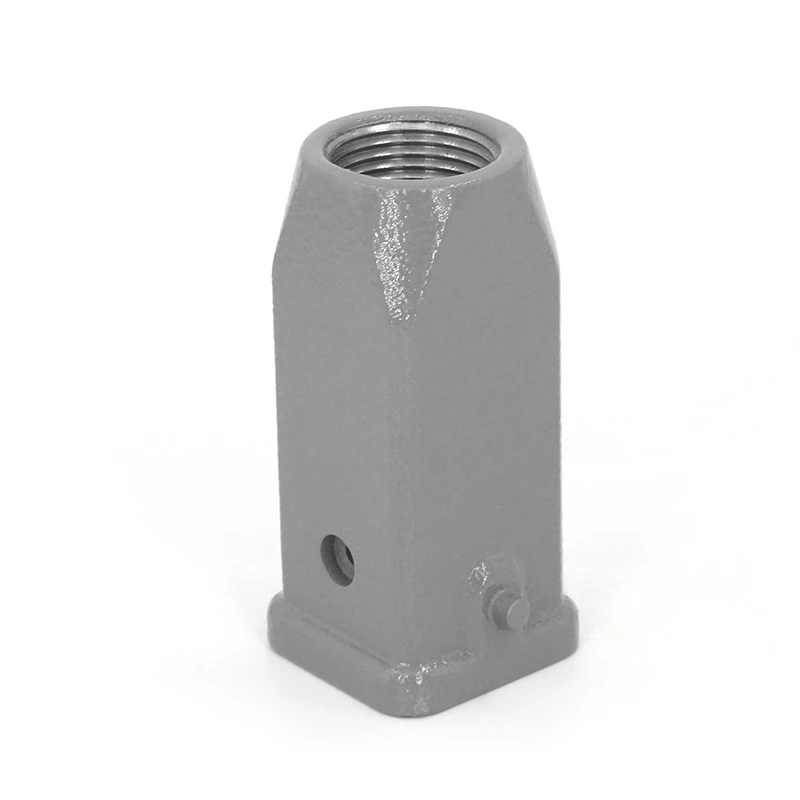

Protective Hoods & Housings
Compact 4Contacts Cage-clamp Heavy Duty Connector
H3A-TE-2B
Compact 4Contacts Cage-clamp Heavy Duty Connector
H3A-BK-1L
Energy Dispersive X-ray Fluorescence Spectrometer
Compact 4Contacts Cage-clamp Heavy Duty Connector
EDXRF spectrometers provide non-destructive, rapid, and accurate multi-element analysis from sodium (Na) to uranium (U), supporting solid, powder, and liquid samples. Essential for quality control and R&D, they enable precise composition measurement, impurity identification, and compliance verification, offering reliable data for material development and process optimization.
  • Multi-element analysis from Na to U
  • Non-destructive testing method
  • Rapid and accurate results
  • Supports solid, powder, and liquid samples
  • Ideal for quality control and R&D applications
Company Profile
Compact 4Contacts Cage-clamp Heavy Duty Connector
Zhejiang Haoke Electric Co. Ltd.
ZJHK - Your Trusted Partner in High-Quality Connectivity Solutions. As a leading professional manufacturer of premium electrical connectors, Haoke Electrical is committed to delivering reliable, innovative, and customized connection solutions for diverse industrial applications. With a highly skilled R&D team and state-of-the-art manufacturing facilities, we ensure superior product performance, durability, and compliance with global industry standards.
