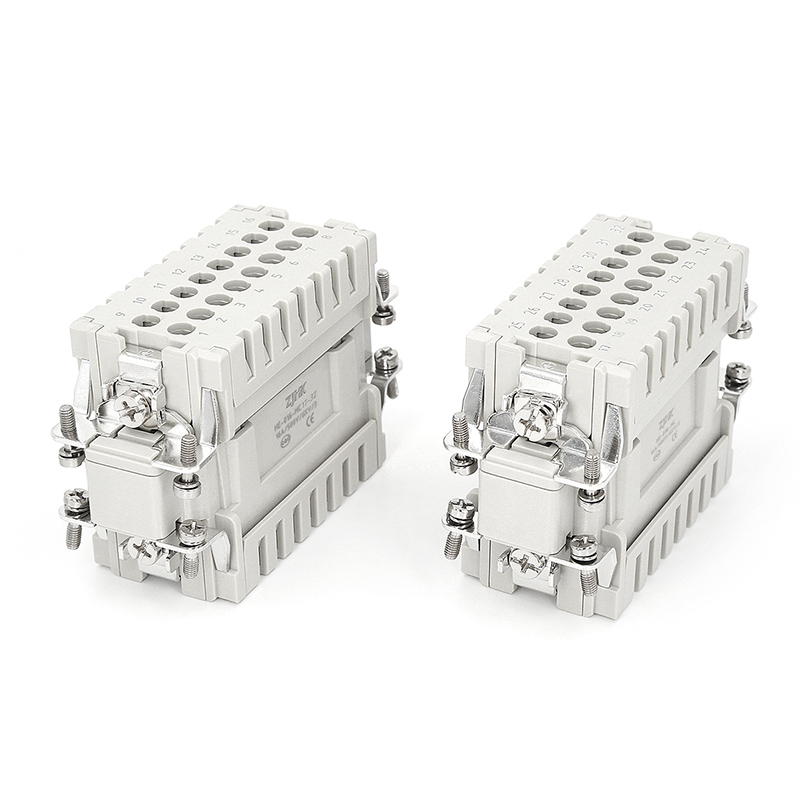

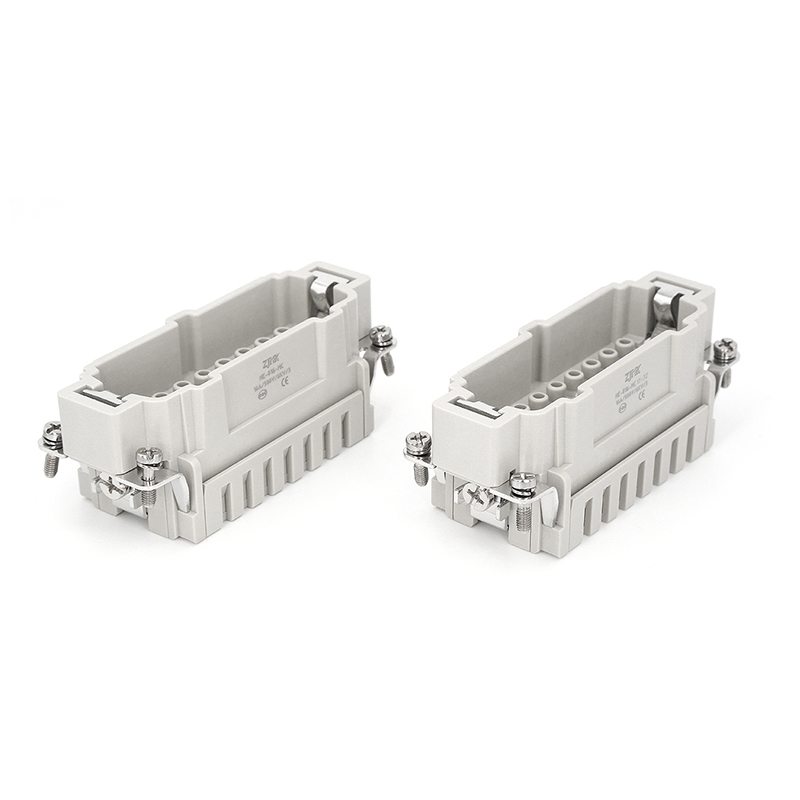

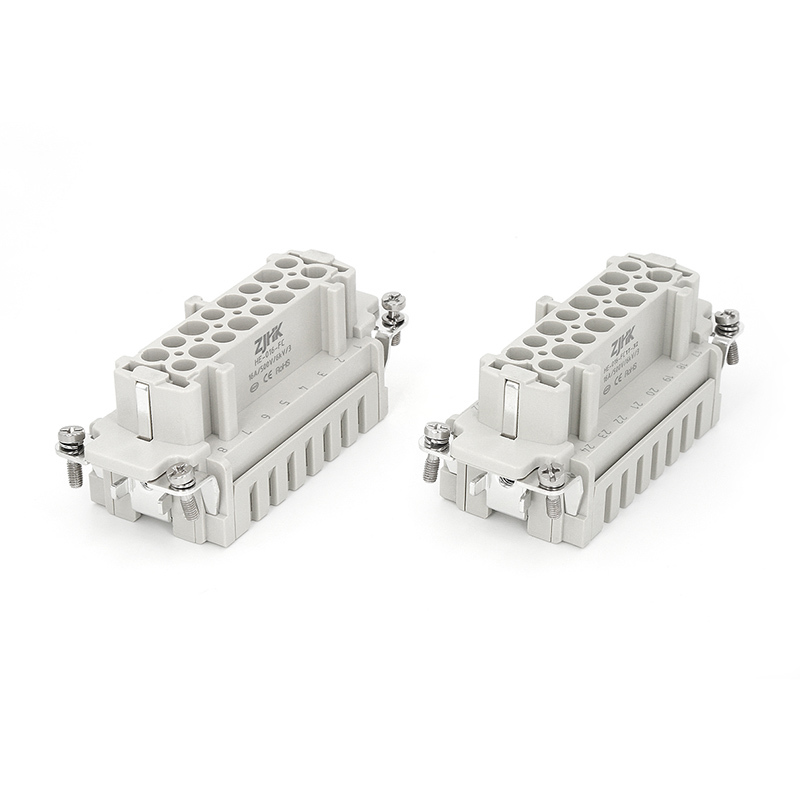

32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
Specifications
Connector Type :
Rectangular
Payment Terms :
T/T
Operating Temperature :
-40~+125℃
Delivery Time :
5~7 work days
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Brand Name :
ZJHK
Price :
$5.87/$5.5/$5.13
Place of Origin :
China
Matching Housing :
32B
Model Number :
HE-032-MC/HE-032-FC
Contacts Number :
32(16*2)
MOQ :
5pcs/30pcs/50pcs
Rated Voltage :
500V
Current Rating :
16A per contact
Wire Connection :
Crimping Terminal
Description

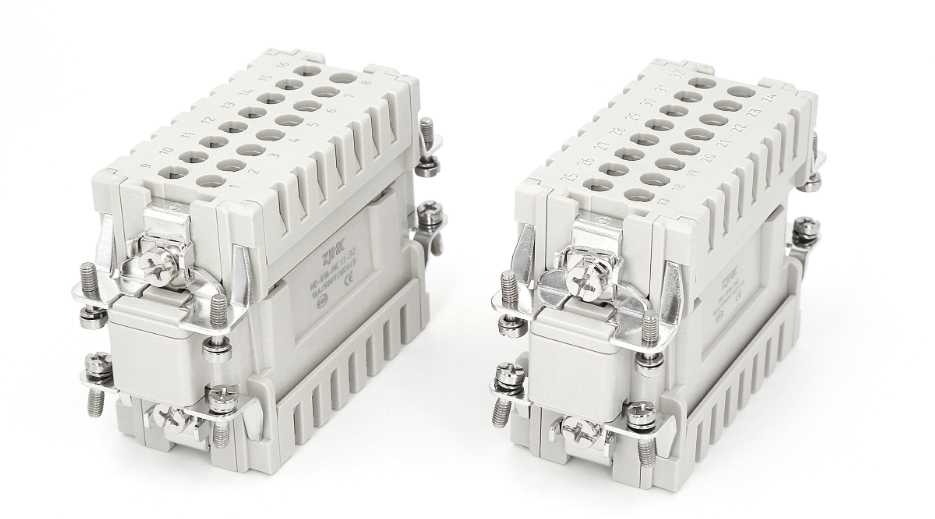

32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector

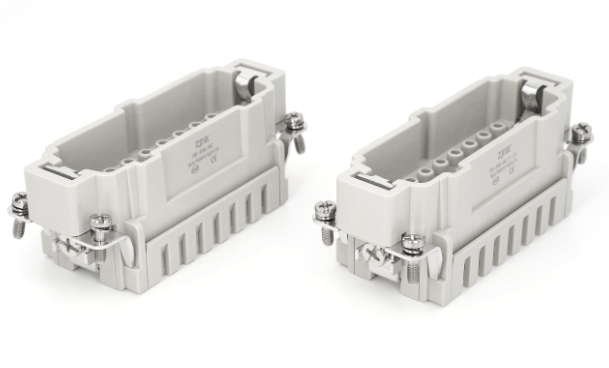

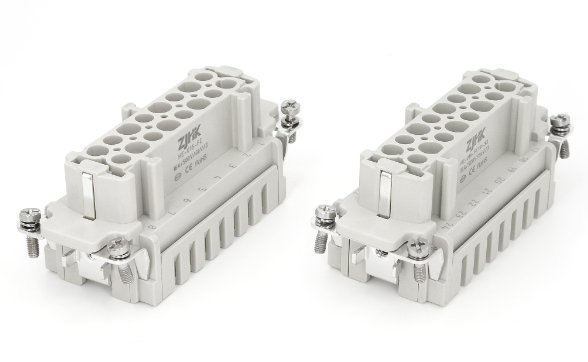

These male and female inserts from the HE series feature a 16A rated current and sixteen contact positions. Constructed from durable polycarbonate material, these ferrules are widely utilized across multiple industrial applications. Cold pressing installation requires ordering according to specific wire gauge specifications.

Technical Parameters
Parameter Specification
Termination method Crimping
Gender Male and Female
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree 3
Rated Voltage (UL/CSA) 600V
Insulation Resistance ≥10¹⁰Ω
Material Polycarbonate
Limiting Temperature -40℃ to +125℃
Flammability (UL94) V0
Mechanical Working Life ≥500 mating cycles
Contact Material Copper Alloy
Contact Surface Hard-gold Plated / Hard-silver Plated
Contact Resistance ≤1mΩ
Wire Gauge 0.14-4.0mm²
AWG 26-12
Stripping Length 7.5mm

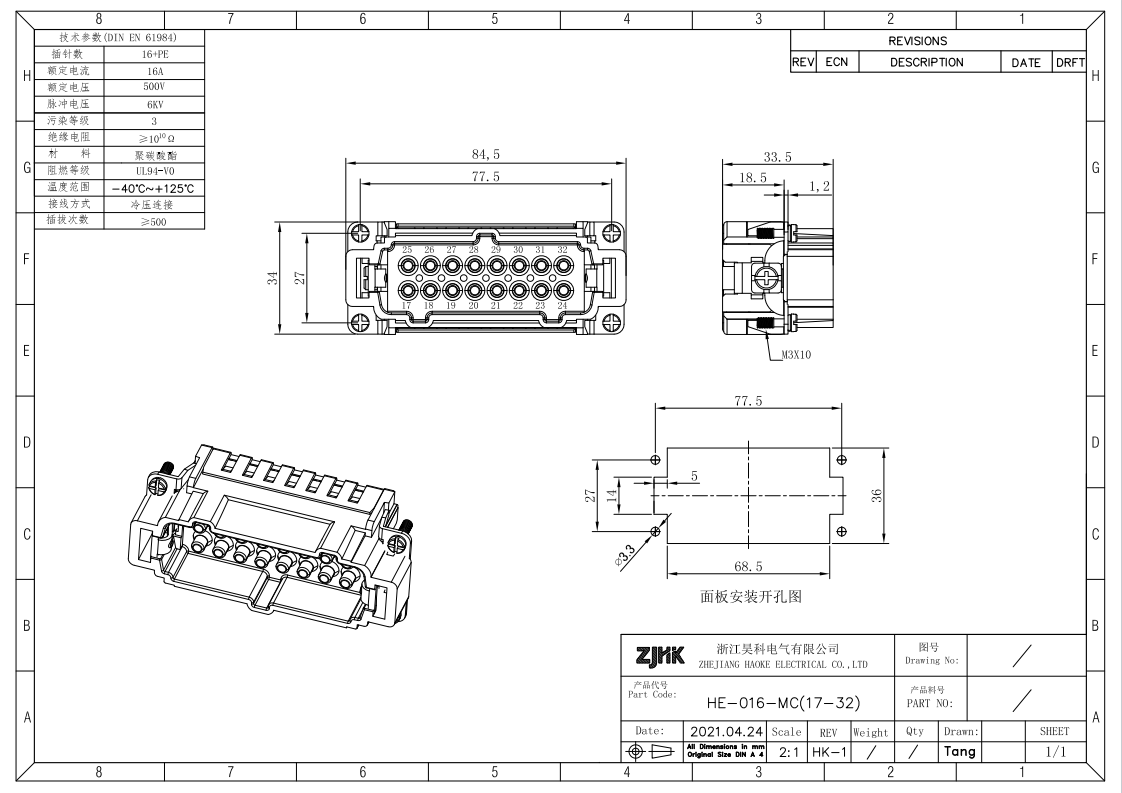

Product Drawings

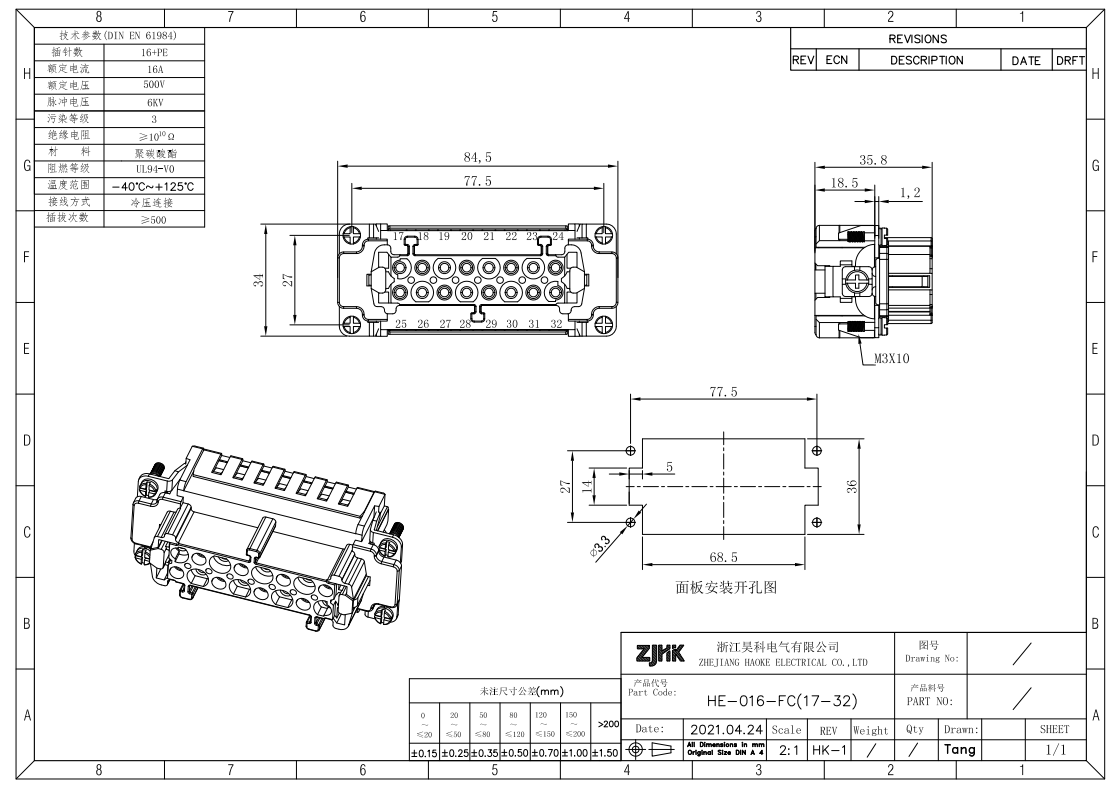

HE-016-FC(17~32)
32Pin Heavy Duty Cold Pressed Connector
HE-016-MC(17~32)
32Pin Heavy Duty Cold Pressed Connector
Product Overview
32Pin Heavy Duty Cold Pressed Connector

The HE-032-M/F series features screw terminals, while the HE-032-MC/FC series utilizes cold press connections. For crimping connection applications, additional cold press pins must be ordered separately. Various crimping contact options are available to accommodate different installation requirements.

Crimping Contacts
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector

CESF and CEGF crimping contacts are compatible with HE-016-FC connectors, featuring a 16A rated current. Constructed from copper with gold or silver plating options, these cold-pressed pins accommodate wire gauges from 0.14-0.37mm². Select appropriate contacts based on your specific wire specifications.

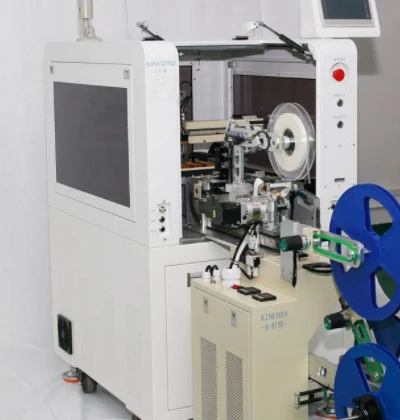

Quality Assurance Equipment
32Pin Heavy Duty Cold Pressed Connector

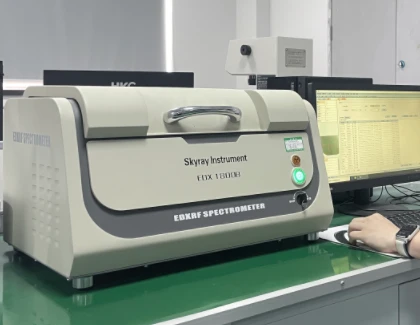

Skyray Instrument
32Pin Heavy Duty Cold Pressed Connector

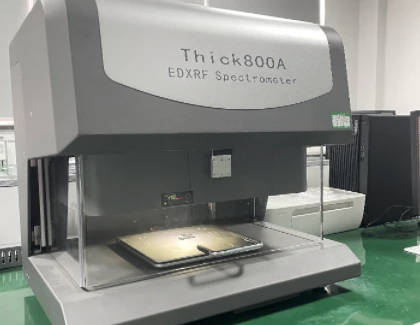

EDXRF Spectrometer
32Pin Heavy Duty Cold Pressed Connector

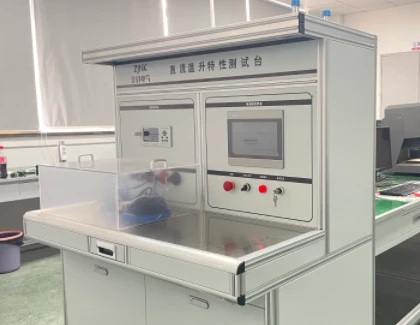

DC Temperature Test Bed

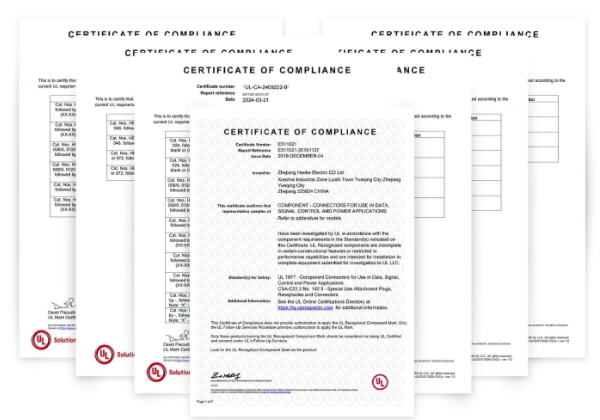

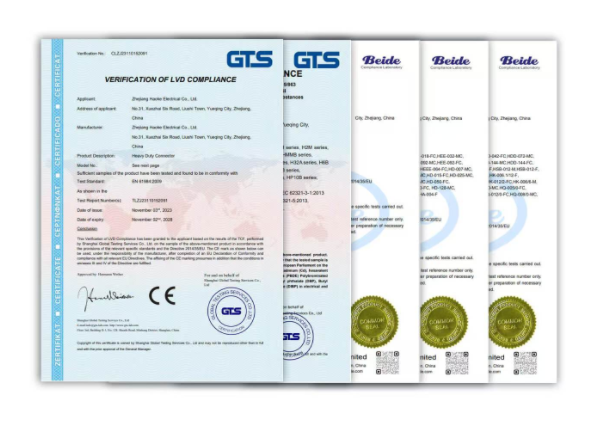

Certifications & Compliance
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector
32Pin Heavy Duty Cold Pressed Connector

Our manufacturing facilities maintain ISO9001, ISO14001, and ISO45001 certifications, while our products carry UL, CE, CQC, EAC, UKCA, RoHS, and other internationally recognized marks. These credentials facilitate market access across North America, Europe, the EAEU region, and China, supporting exports to 83 countries worldwide. Our certifications ensure simplified customs clearance, project approvals, and demonstrate our commitment to quality and reliability.

Application Scenarios
32Pin Heavy Duty Cold Pressed Connector
Rail Transit
32Pin Heavy Duty Cold Pressed Connector
Industrial Automation
32Pin Heavy Duty Cold Pressed Connector
Semiconductor Equipment
32Pin Heavy Duty Cold Pressed Connector
Construction Machinery
Company Profile
32Pin Heavy Duty Cold Pressed Connector

Zhejiang Haoke Electric Co. Ltd. has specialized in the research, development, design, manufacturing, sales, and after-sales support of heavy-duty connectors for over 13 years. Our advanced production facilities and professional manufacturing team deliver superior quality products across multiple series including HA, HE, HEE, HD, HDD, HK, HSB, and HM.

Our strategic vision aims to establish our brand as a globally recognized representation of "Made in China" quality by 2028, serving industrial markets worldwide with reliable electrical connection solutions.
