10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector
Specifications
Product name :
Heavy Duty Connector
Rated Current :
16A
Brand Name :
ZJHK
Place of Origin :
China
Operating Temperature :
-40~+125℃
Rated Voltage :
500V
Model Number :
HE-010-M/HE-010-F
Connector Type :
Standard Connector
Price :
$3.2/$3.0/$2.8
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
MOQ :
5pcs/30pcs/50pcs
Contact material :
Copper Alloy
Payment Terms :
T/T
Delivery Time :
5~7 work days
Order Number :
09330102601/09330102701
Number of contacts :
10
Description
10pins Screw Termination Heavy Duty Connector
10pins Screw Termination Heavy Duty Connector 10pins Screw Termination Heavy Duty Connector

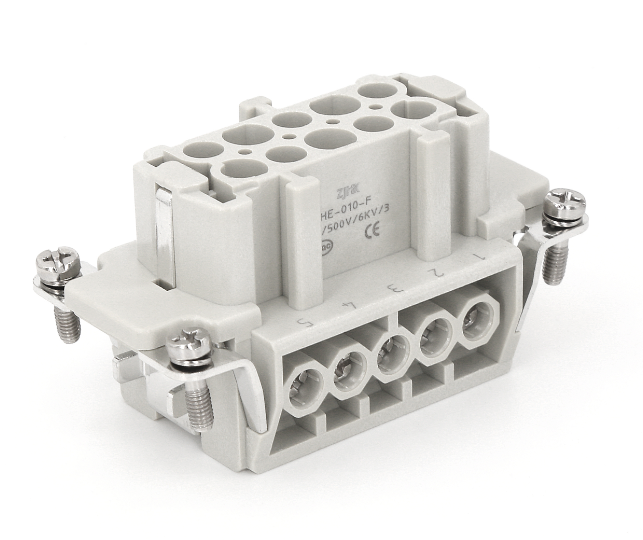

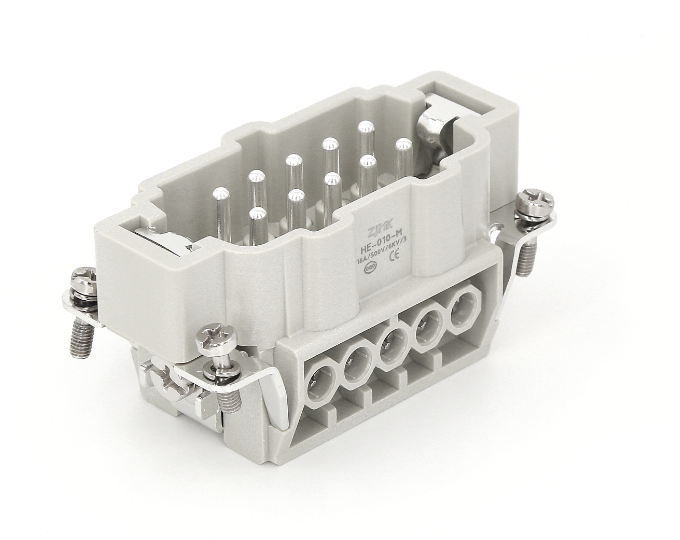

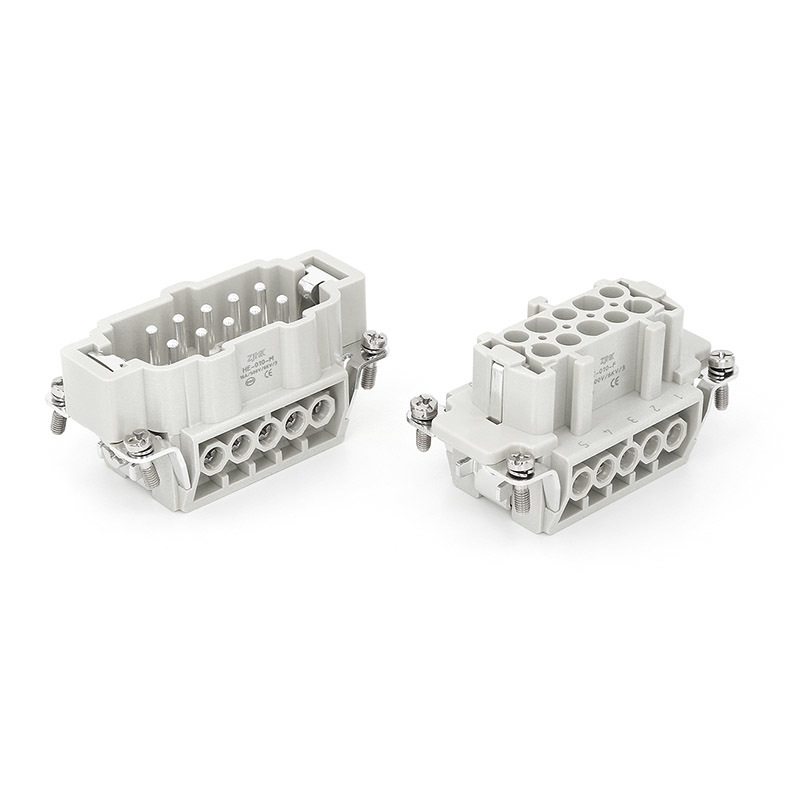

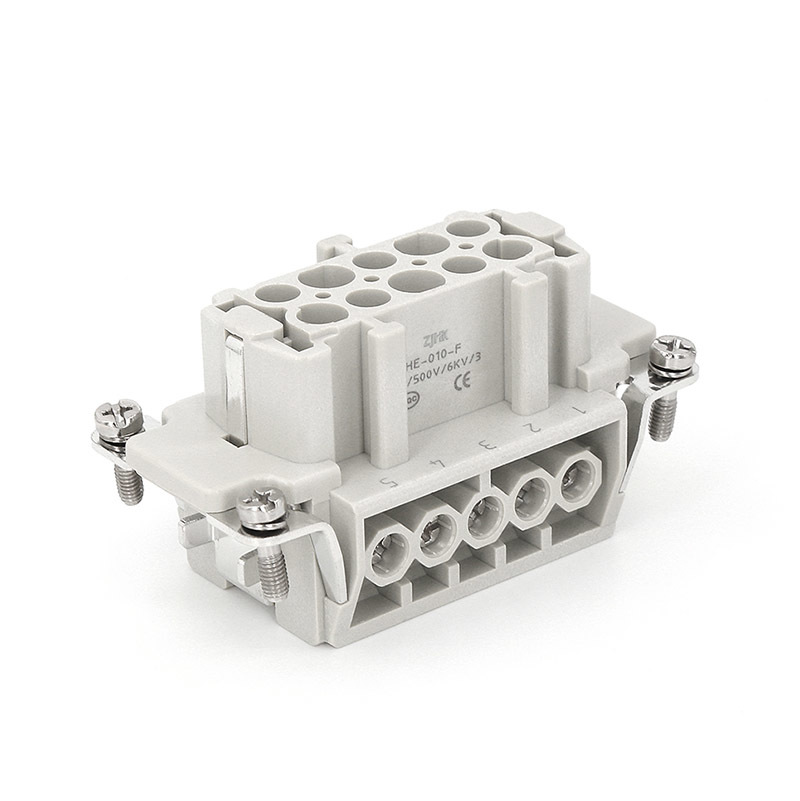

The HE-010-M (male) and HE-010-F (female) are 10-pin screw-connector connectors from the HE series, compatible with H10B housing sizes. The screw-connection method offers a very secure connection, suitable for high-current or long-term power applications. It supports wire widths from 0.14-4.0 mm², a stripping length of 7 mm, a tightening torque of 0.5 Nm, and is simple and straightforward to operate. These 10-pin connectors are widely used in industrial automation, control cabinets, and power equipment. The male and female connectors can be used together to meet the signal or power transmission needs of multiple lines.
Product Specifications
Specifications DIN EN 60 664
Specifications DIN EN 61 984
Numbers of poles 10
Terminal Way Screwing Termination
Gender Male/Female
Model HE-006-M/HE-006-F
Current 16 Ampere
Rated Voltage 500V
Impulse Voltage 6kV
Insulation Resistance ≥1010Ω
Material Polycarbonate
Working Temperature -40℃...+125℃
Flammability Acc.to UL94 V0
Product Drawings

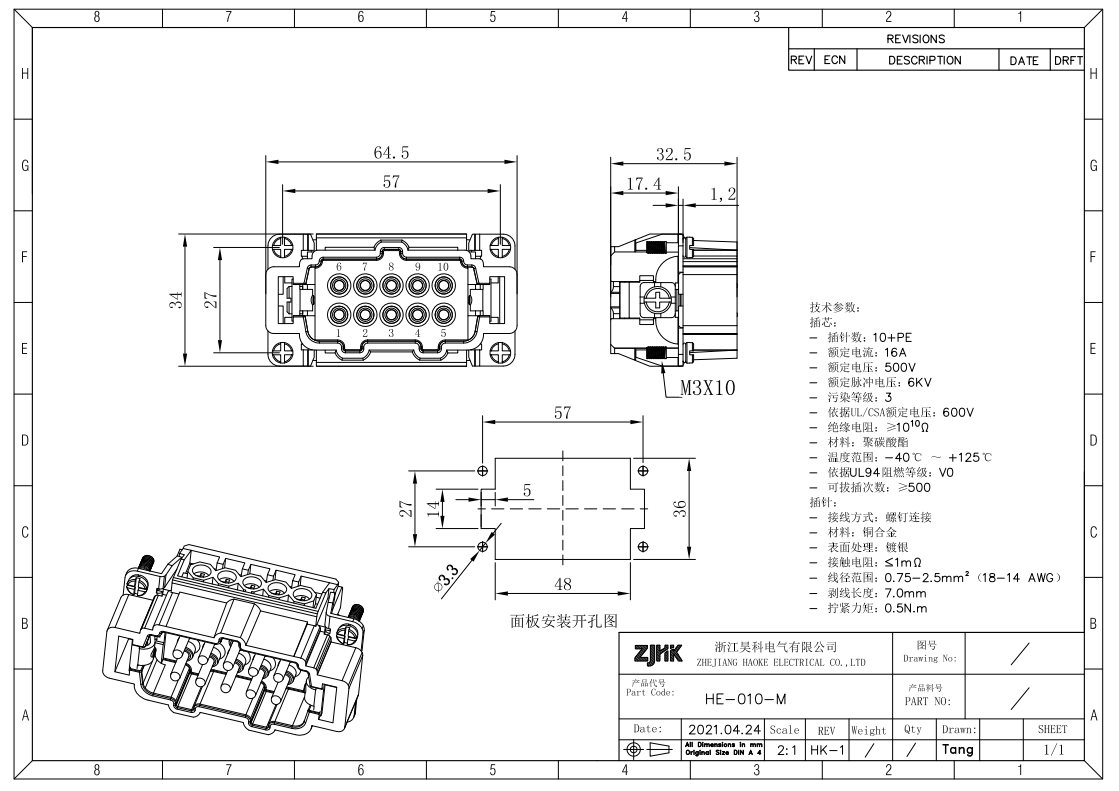

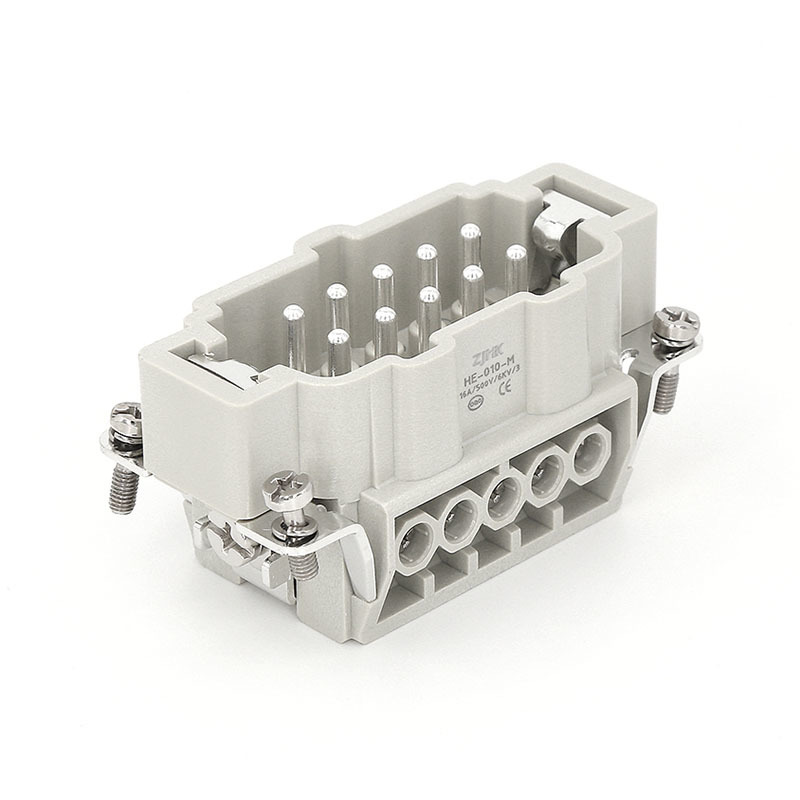

HE-010-M
10pins Screw Termination Heavy Duty Connector

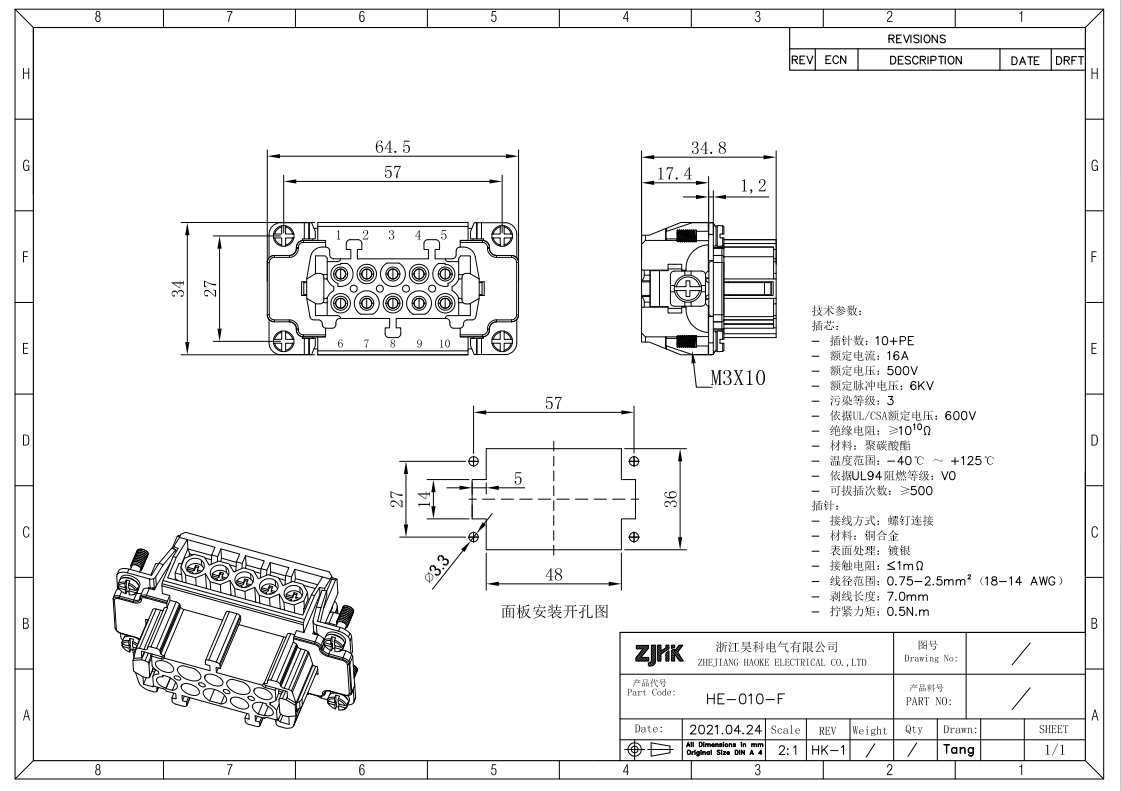

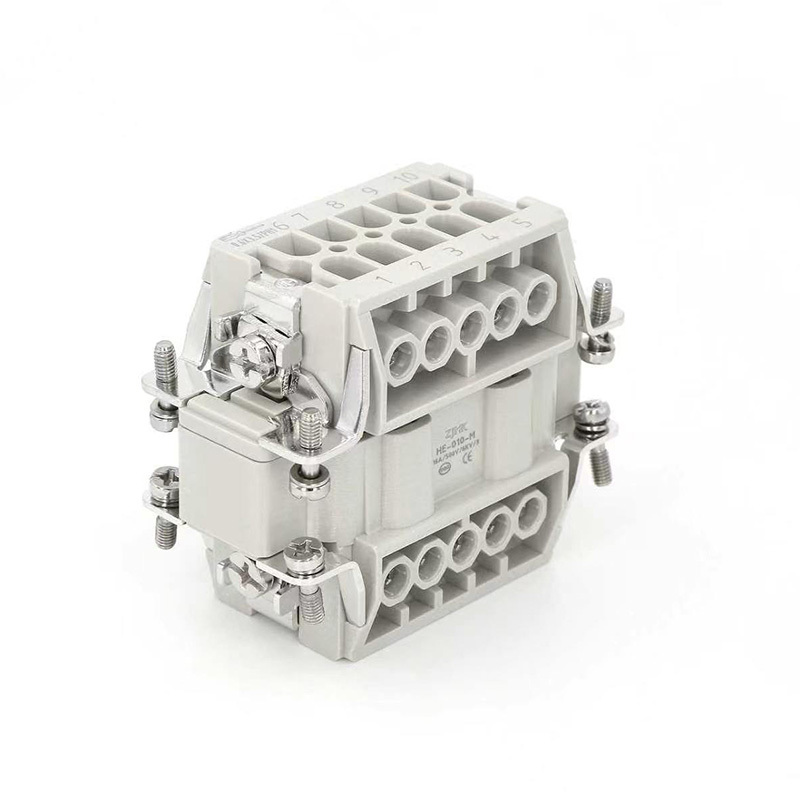

HE-010-F
10pins Screw Termination Heavy Duty Connector
Compatible Hoods and Housings
10pins Screw Termination Heavy Duty Connector

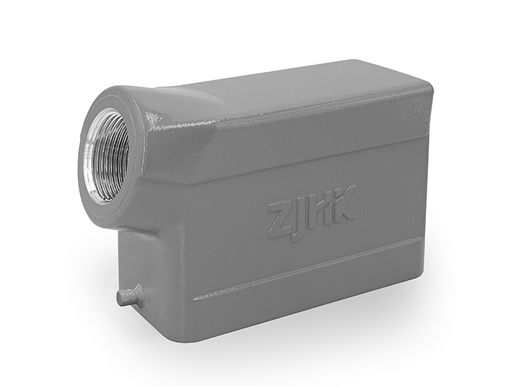

H10B-BK-1L
Degree of protection: IP65
Hood, side entry
10pins Screw Termination Heavy Duty Connector

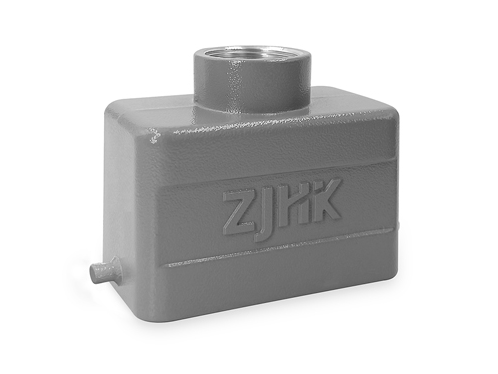

H10B-SF-1L
Degree of protection: IP65
Hood, top entry
10pins Screw Termination Heavy Duty Connector

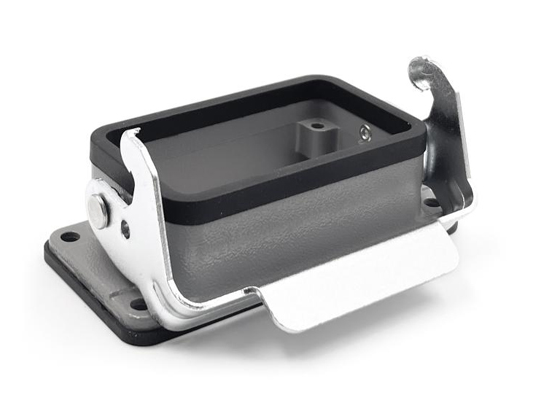

H10B-TE-2B
Degree of protection: IP65
Housing, bulkhead mounting
10pins Screw Termination Heavy Duty Connector

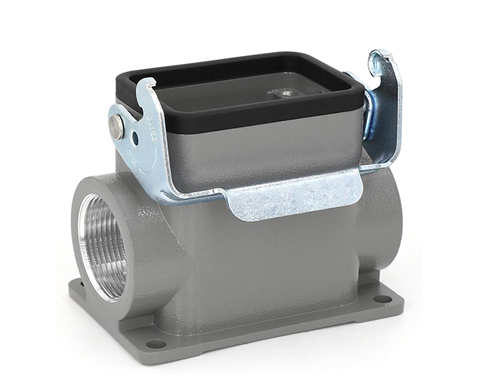

H10B-SE-2B
Degree of protection: IP65
Housing, surface mounting
Applications Scenarios
Power Energy System
10pins Screw Termination Heavy Duty Connector
In the wave of global energy structure transformation towards green and low-carbon, the new energy industry is booming at an unprecedented speed. The technology in wind power, photovoltaics, energy storage, new energy vehicles and other sub-sectors continues to break through, and the installed capacity and market scale continue to expand. New energy equipment and systems are often in complex and harsh working environments, so they place extremely high demands on the reliability, stability and safety of electrical connections. With its excellent performance, heavy-duty connectors play a vital role in the field of new energy, becoming a key component to ensure the efficient operation of various new energy equipment, and providing solid connection support for the efficient use of green energy and sustainable development.
