6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
6 Pos Heavy Duty Connector Cage Clamp Terminal
Specifications
Delivery Time :
5~7 work days
Package :
Indivisual Packing in Box
Model Number :
HE-006-MS/HE-006-FS
Product Name :
Heavy Duty Connector
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Durability :
500 Times cycles
MOQ :
5pcs/30pcs/50pcs
Connection Type :
Cage-clamp
Payment Terms :
T/T
Protection Grade :
IP65
Price :
$3.47/$3.25/$3.03
Operating Temperaturerange :
-40°C to +125°C
Place of Origin :
China
Matching Housing Size :
6B Series
Brand Name :
ZJHK
Rated Current :
16A
Description
6 Pos Heavy Duty Connector Cage Clamp Terminal

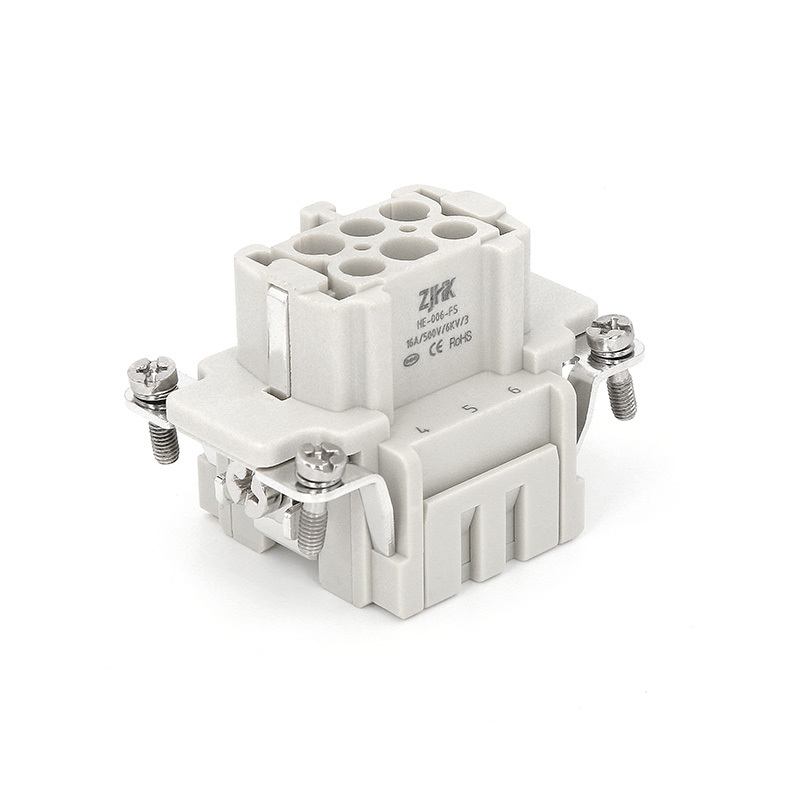

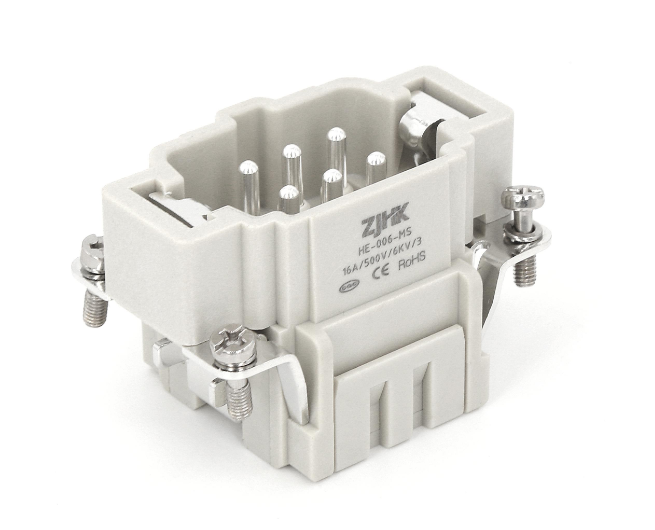

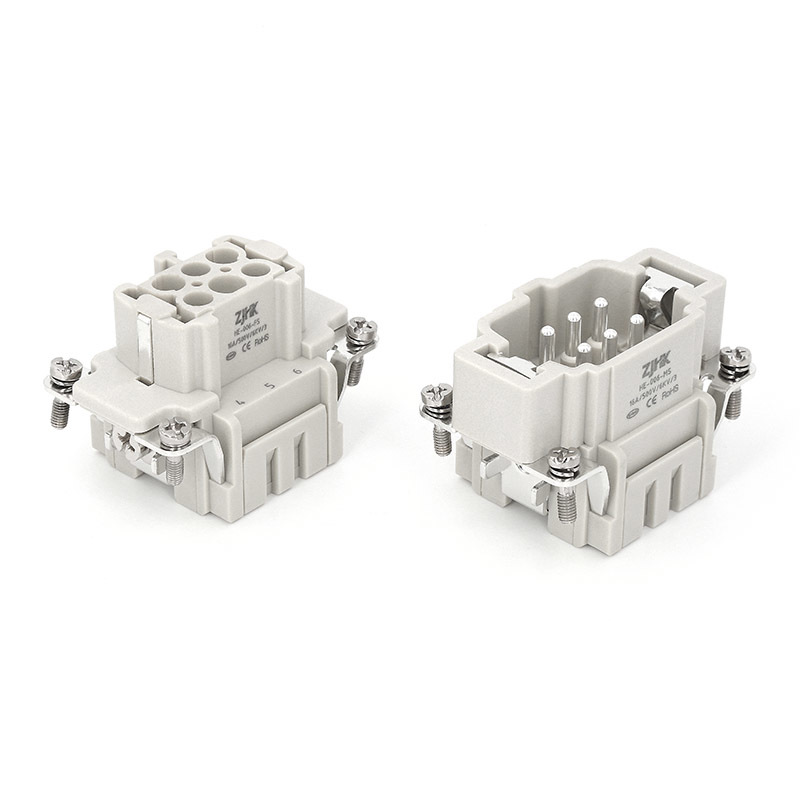

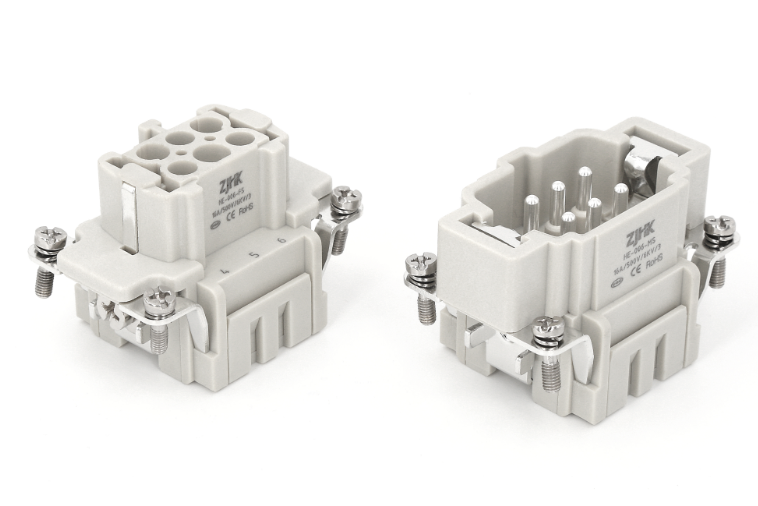

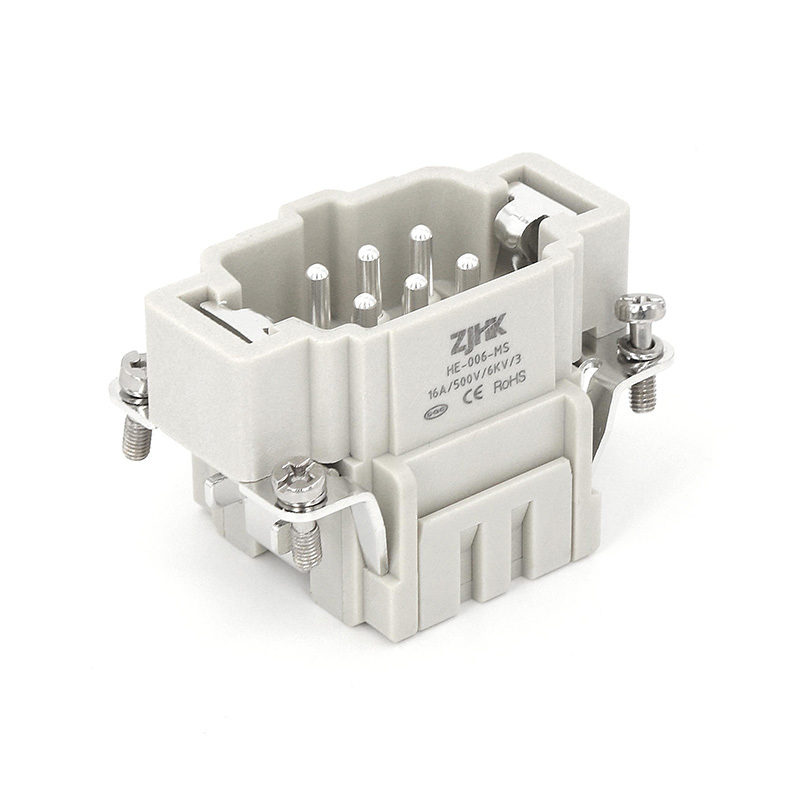

HE-006-MS (male connector) and HE-006-FS (female connector) are 6-pin spring-loaded connectors from Haoke's HE series, designed to be used together. The spring-loaded connection method offers exceptional wiring convenience - after stripping the wire, simply insert it directly to complete the connection without requiring a screwdriver. This feature is particularly beneficial for cabinet installation environments with limited space.
6 Pos Heavy Duty Connector Cage Clamp Terminal 6 Pos Heavy Duty Connector Cage Clamp Terminal
Product Specifications
Termination method Cage-clamp
Gender Male/Female
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree Ⅲ
Rated Voltage Acc.to UL Csa 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Limiting Temperature -40℃...+125℃
Flammability Acc.to UL94 V0
Mechanical Working Life-mating Cycles ≥500

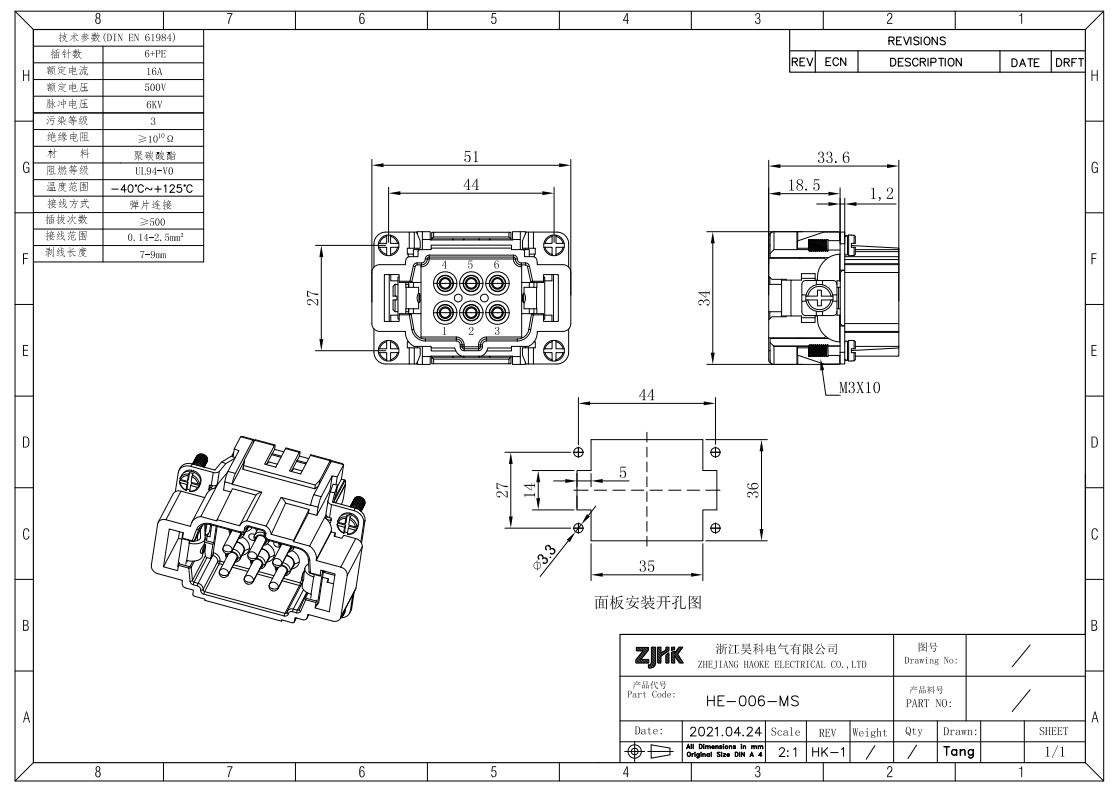

Product Drawings
HE-006-MS
6 Pos Heavy Duty Connector Cage Clamp Terminal

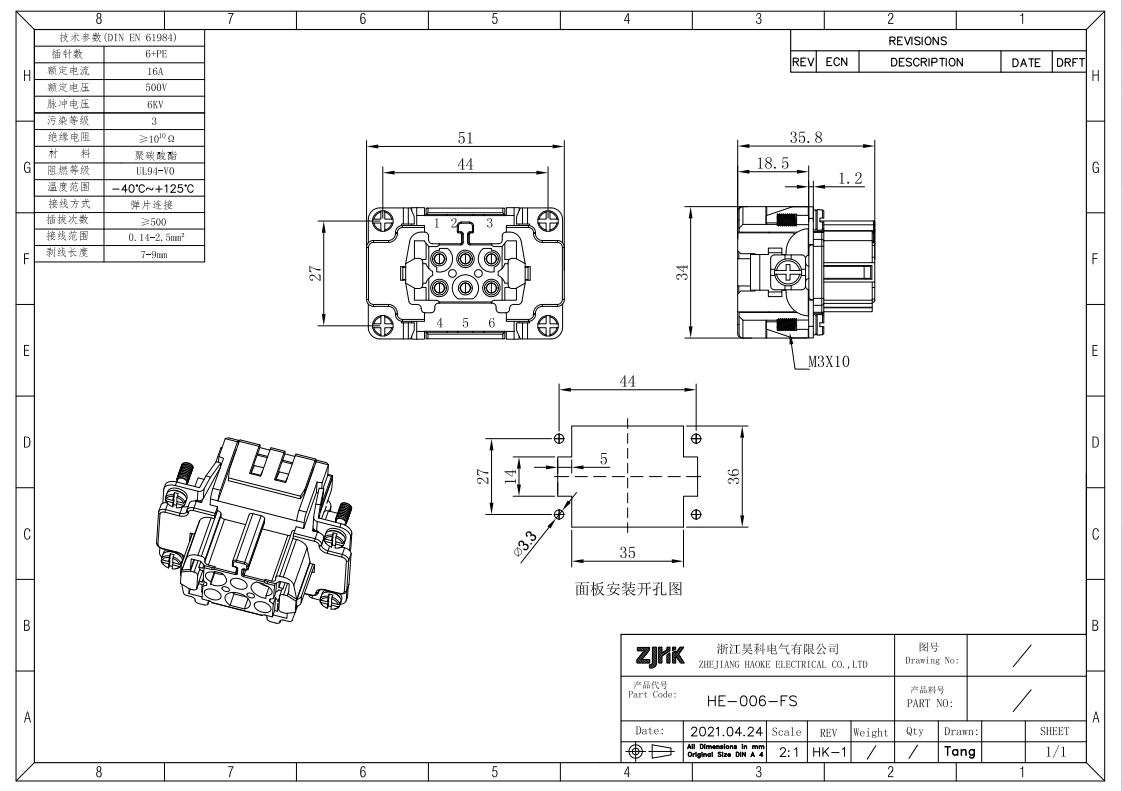

HE-006-FS
6 Pos Heavy Duty Connector Cage Clamp Terminal
Cage Clamp Termination Advantages
  • Extremely convenient wiring operation - insert stripped wire directly without screwdriver
  • Ideal for cabinet installation environments with limited space
  • Significantly improves assembly efficiency
  • Elastic structure maintains stable contact force over long periods
  • Effectively resists vibrations during equipment operation
  • Prevents poor contact problems caused by loosening of traditional screw terminals
  • Maintenance-free design reduces later maintenance costs
  • Balances installation convenience with long-term reliability

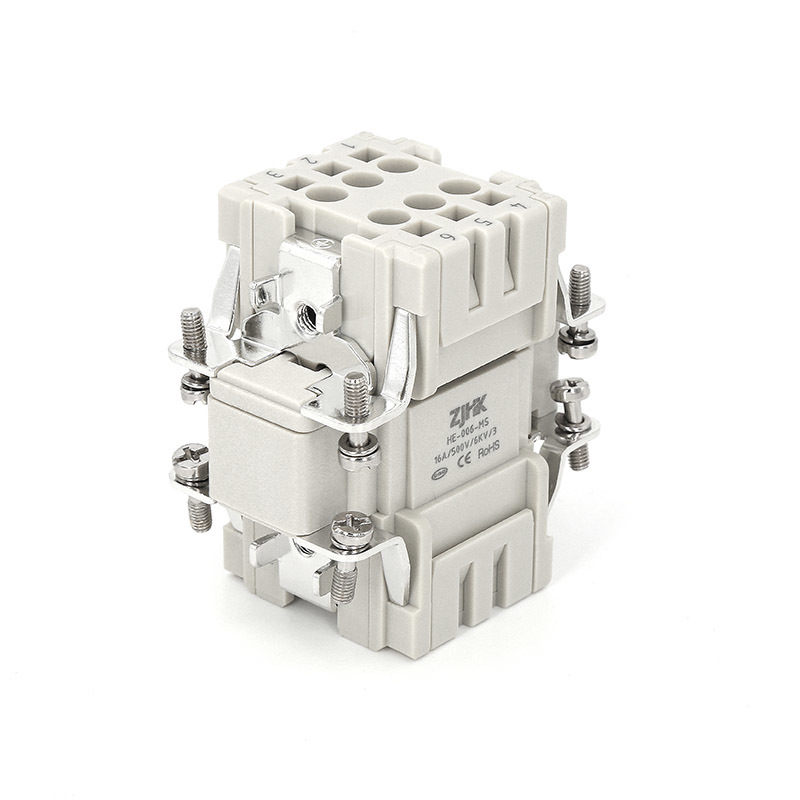

Product Overview
6 Pos Heavy Duty Connector Cage Clamp Terminal

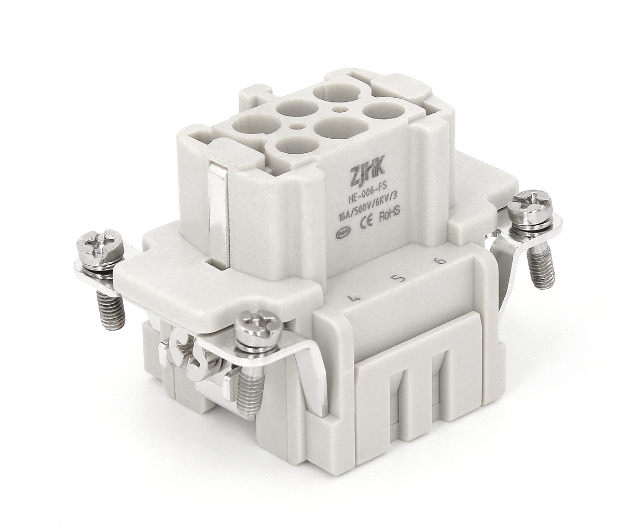

The light gray plastic casing provides insulation protection, ensures adaptability, and facilitates installation fixation. The metal screws on the side are used for assembly and fastening purposes. After crimping the cable and pin using the appropriate tool, insert it directly into the hole at the bottom of the ferrule, where the internal mechanism securely locks the pin in place.

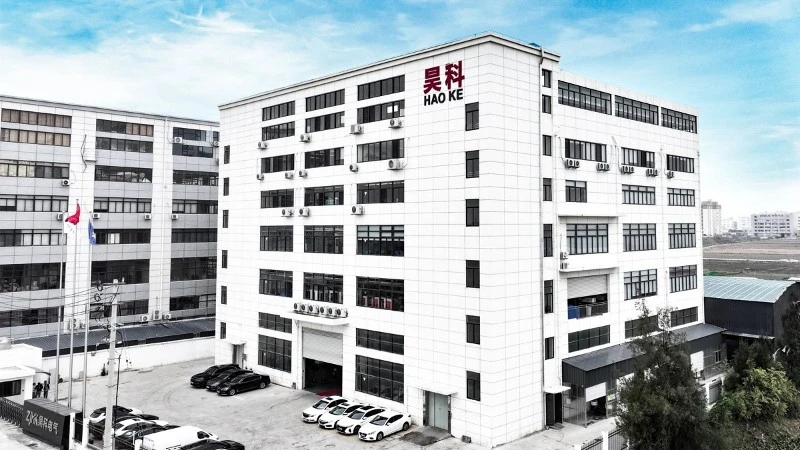

Company Profile
6 Pos Heavy Duty Connector Cage Clamp Terminal
We are a private enterprise dedicated to the research and development, design, manufacturing, sales, and after-sales service of heavy-duty connectors, with a registered capital of 10 million yuan.
Since its establishment, the company has developed rapidly with its excellent talent team, strong technical capabilities, and comprehensive after-sales service. We have successively launched HA, HE, HEE, HD, HDD, HSB, HK, HQ and other series of products, with thousands of combinations to meet the electrical or signal connection needs of different fields and applications.
Our products are widely used in industrial automation, hot runner molds, rail transportation, equipment manufacturing, industrial system connections, and information and control fields.
