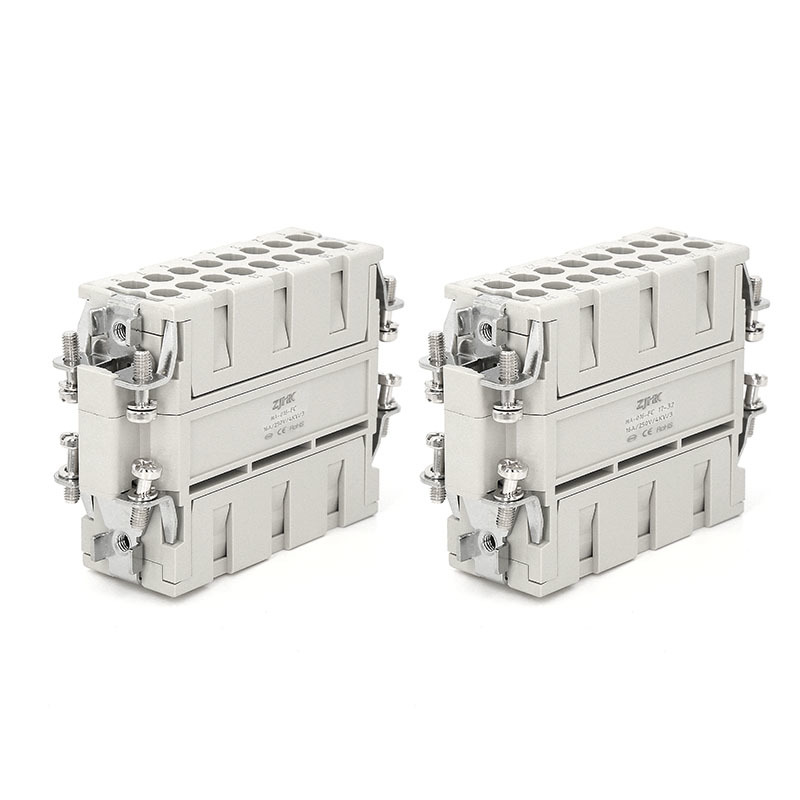

Crimping 32pins A Series Connector
Crimping 32pins A Series Connector
Crimping 32pins A Series Connector
Crimping 32pins A Series Connector
Crimping 32pins A Series Connector
Crimping 32pins A Series Connector
Specifications
Color :
Grey
Brand Name :
ZJHK
Payment Terms :
T/T
Matching Housings :
32A Series
Place of Origin :
China
Delivery Time :
5~7 work days
Application Contact :
FAF Contact – F300；F110
Rated Voltage :
250V
Oem :
Provided
Model Number :
HA-032-MC/HA-032-FC
Mountingtype :
Panel Mount / Cable Mount
Lockingmechanism :
Latch Lock
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Current Rating :
16A
MOQ :
5pcs/30pcs/50pcs
Price :
$5.33/$5/$4.67
Number of contacts :
32
Description

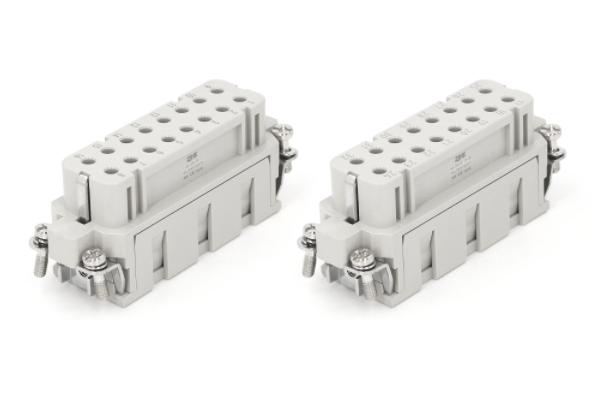

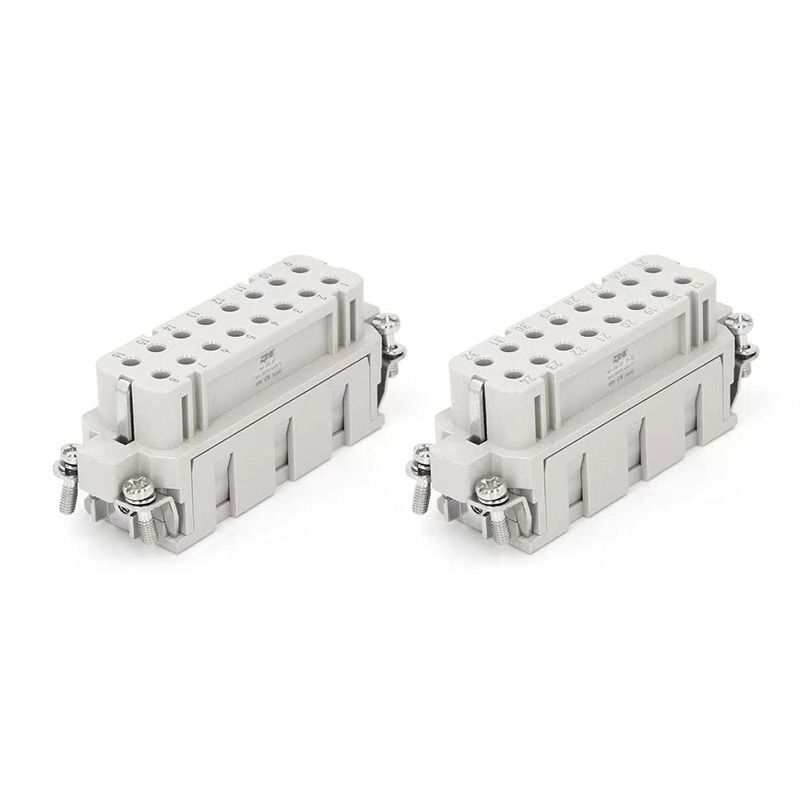

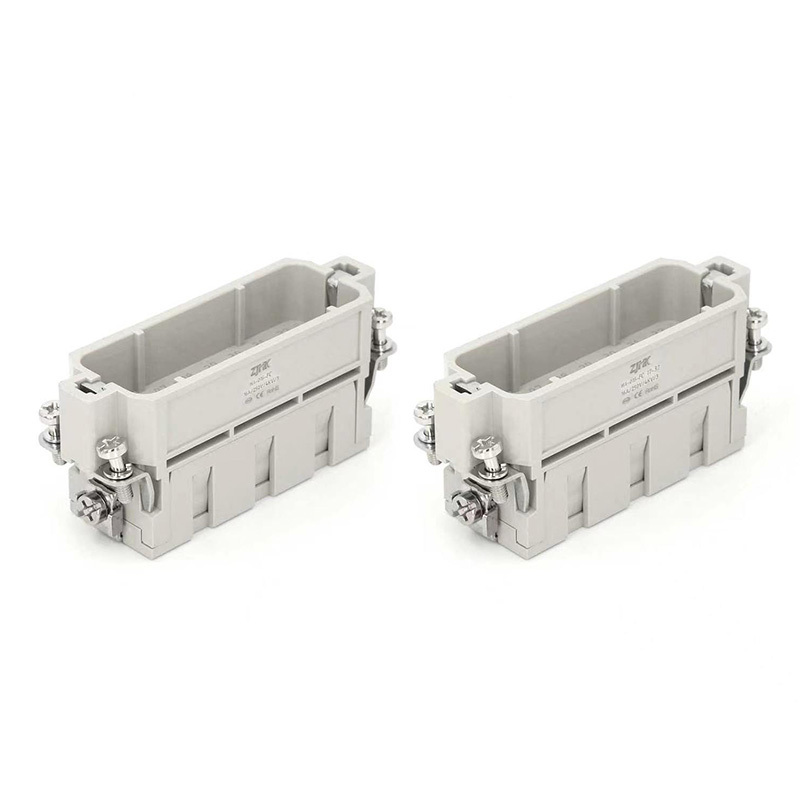

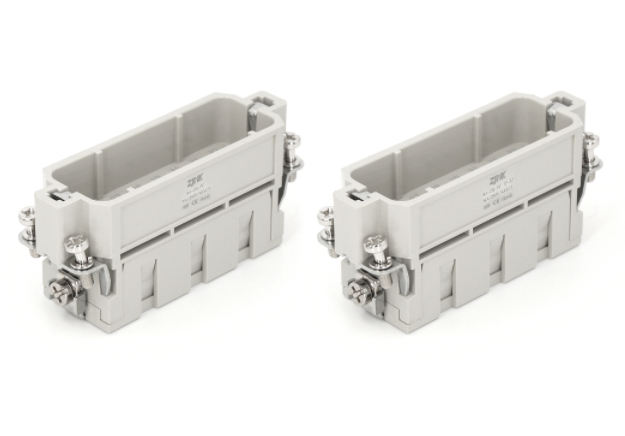

Crimping 32pins A Series Connector
Crimping 32pins A Series Connector Crimping 32pins A Series Connector
The HA-032, one of three wiring options in the HA series, employs a crimp terminal connection. It delivers robust performance in harsh environments, resisting extreme vibration, shock, temperature, and corrosion for demanding applications. This clamp secures a robust electrical connection through cold pressing. Its exceptional resistance to vibration and shock maximizes both the heavy-duty connector's lifespan and overall system reliability.
Technical Parameters
Specifications DIN EN 60 664/DIN EN 61 984
Number of contacts 32
Rated Current 16A
Rated Voltage 250V
Rated Impulse Voltage 4kV
Contacts
Material Copper Alloy
Surface Hard-silver/Hard-gold Plated
Contact Resistance ≤1mΩ
Wire Gauge 0.14-4.0mm²
AWG 26-12
Products Drawings

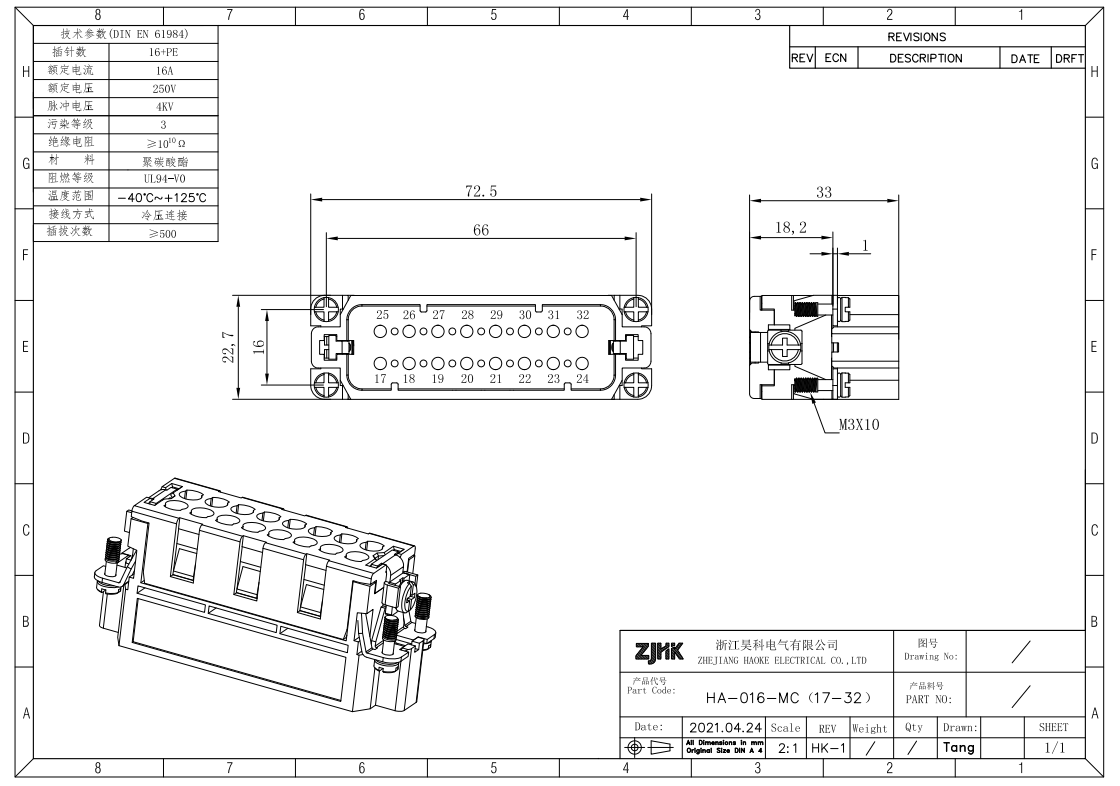

HA-016-MC(17~32)
Crimping 32pins A Series Connector

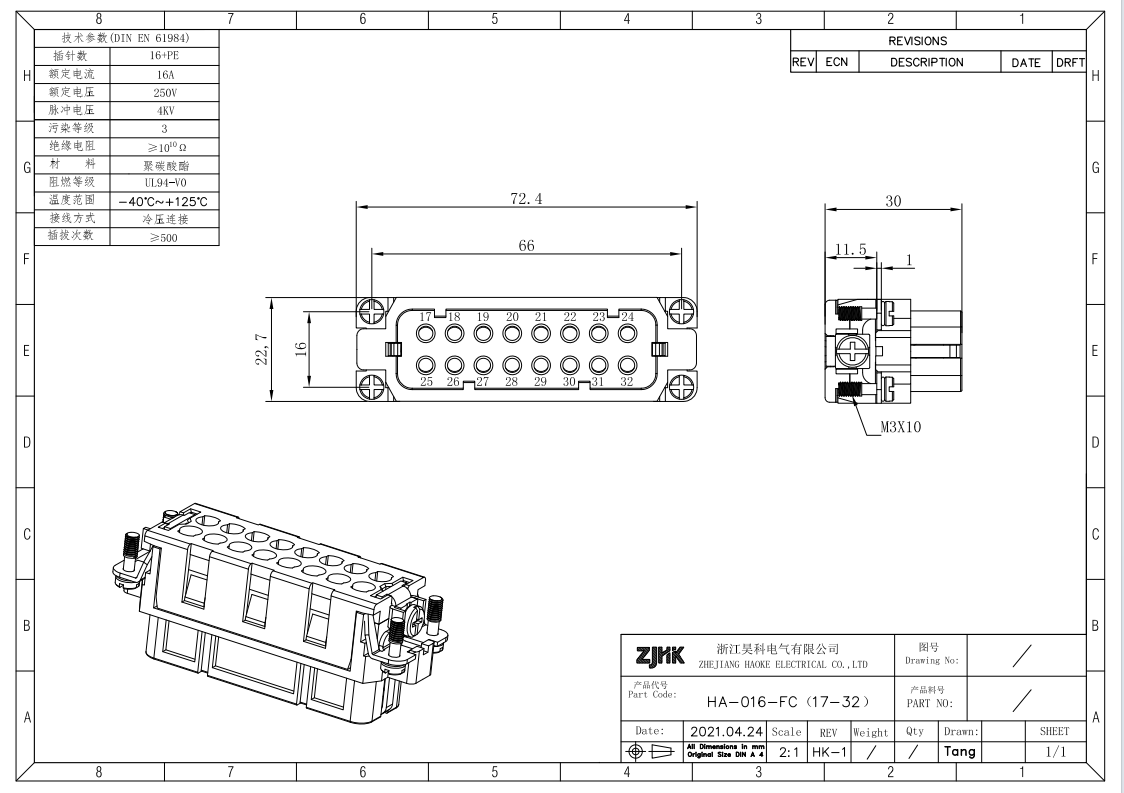

HA-016-FC(17~32)
Crimping 32pins A Series Connector
Compatible Contacts
Crimping 32pins A Series Connector
Silver Plated 16A Male Crimping Contacts
Crimping 32pins A Series Connector
Silver Plated 16A Female Crimping Contacts
Crimping 32pins A Series Connector
Gold Plated 16A Male Crimping Contacts
Crimping 32pins A Series Connector
Gold Plated 16A Female Crimping Contacts
Application Scenarios
Crimping 32pins A Series Connector
Wind Power Generation
It offers plug-and-play modules for power, control, and other subsystems, plus highly reliable connections for traction and signal systems, meeting extreme environment demands.
Crimping 32pins A Series Connector
Transportation Railway
We provide high-performance heavy-duty connectors for wind power, enhancing reliability and reducing lifecycle costs in clean energy systems.
Company Profile
Crimping 32pins A Series Connector

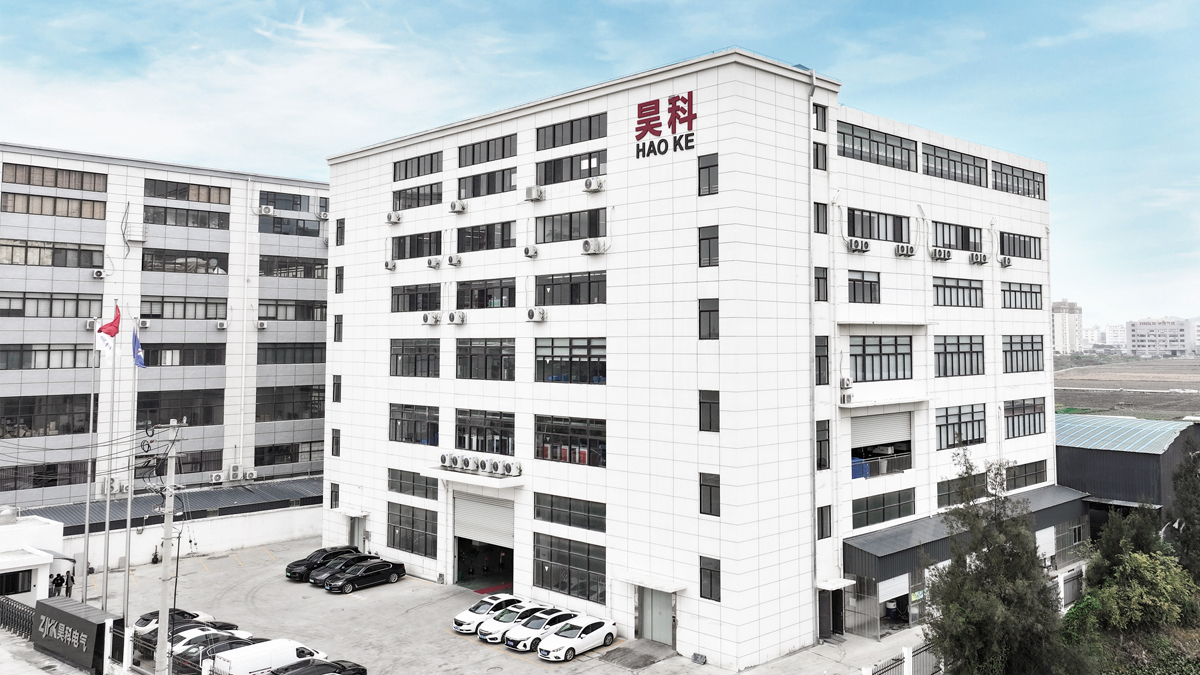

We engineer reliable and innovative connector solutions for global industries. With modern manufacturing capabilities and international certifications (UL, CQC, CE, UKCA, EAC), we partner with leading companies to provide customized, intelligent connection technologies that foster mutual growth.
