Specifications
MOQ :
5pcs/30pcs/50pcs
Model Number :
HE-016-MZ/HE-016-FZ
Place of Origin :
China
Rated Current :
16A
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Durability :
500cycles
Contacts :
16 Pins
Housings :
16B Series
Brand Name :
ZJHK
Delivery Time :
5~7 work days
Voltage Rating :
500V
Payment Terms :
T/T
Part No. :
09330162801/0933162901
Price :
$4.8/$4.5/$4.2
Description

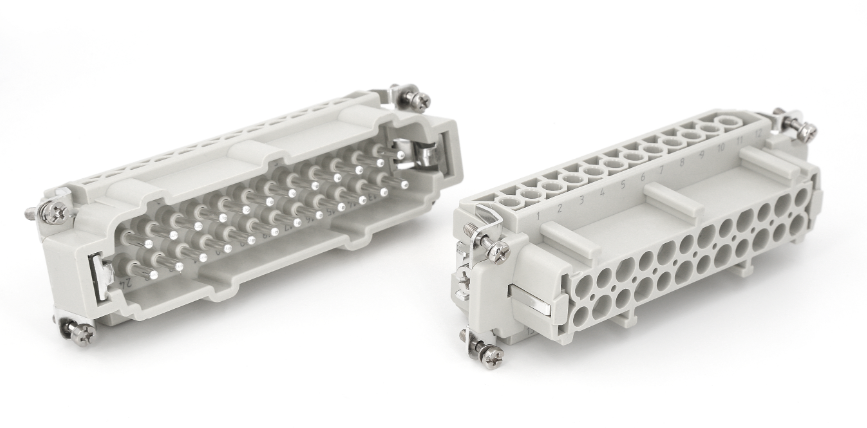

Heavy Duty Connector Quick Lock 16 Position
This insert is a standard ferrule of the HE series, designed for versatile applications across multiple industries. Its simple operation and single specification make it particularly suitable for hot runner systems. The direct plug-in connection method enables fast and efficient installation, ideal for projects with tight deadlines.
Heavy Duty Connector Quick Lock 16 Pos Heavy Duty Connector Quick Lock 16 Pos
Product Specifications
Specifications DIN EN 60 664
Standards DIN EN 61 984
Termination Method Quick Lock
Gender Male and Female
Number of Contacts 16
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree 3
Rated Voltage (UL/CSA) 600V
Flammability (UL94) V0
Mechanical Working Life ≥500 mating cycles
Contacts Material Copper Alloy
Technical Drawings

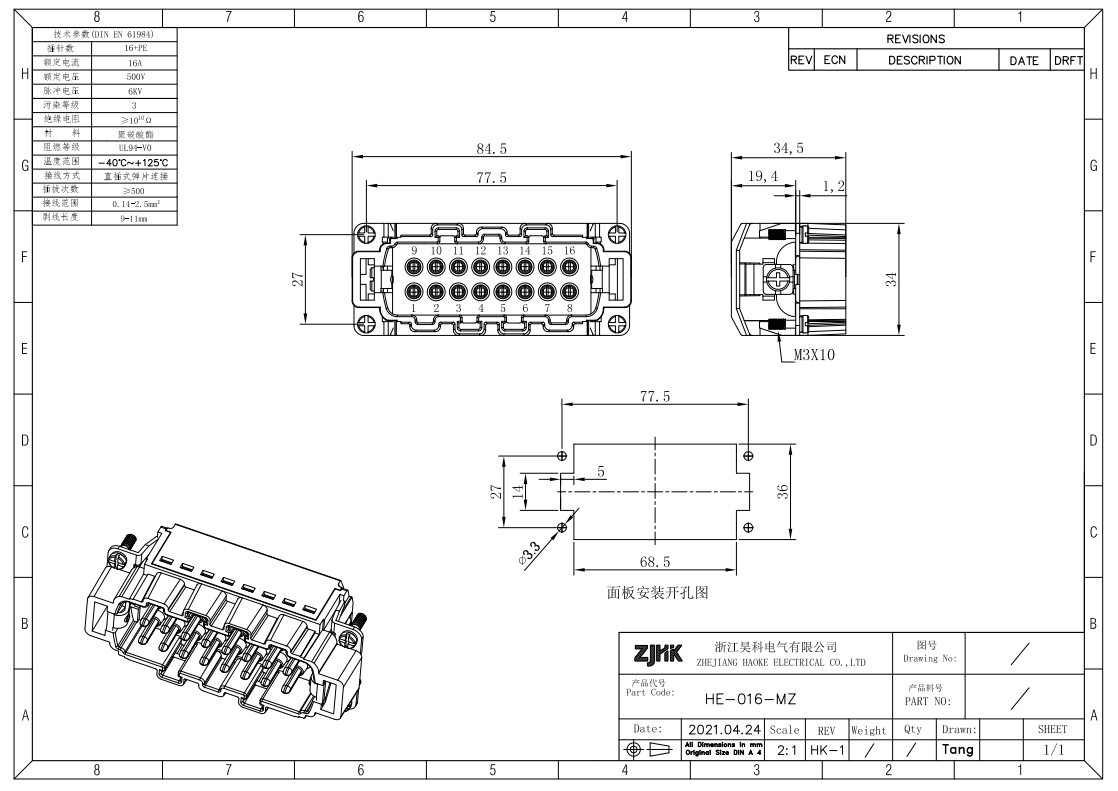

HE-016-MZ
Heavy Duty Connector Quick Lock 16 Pos

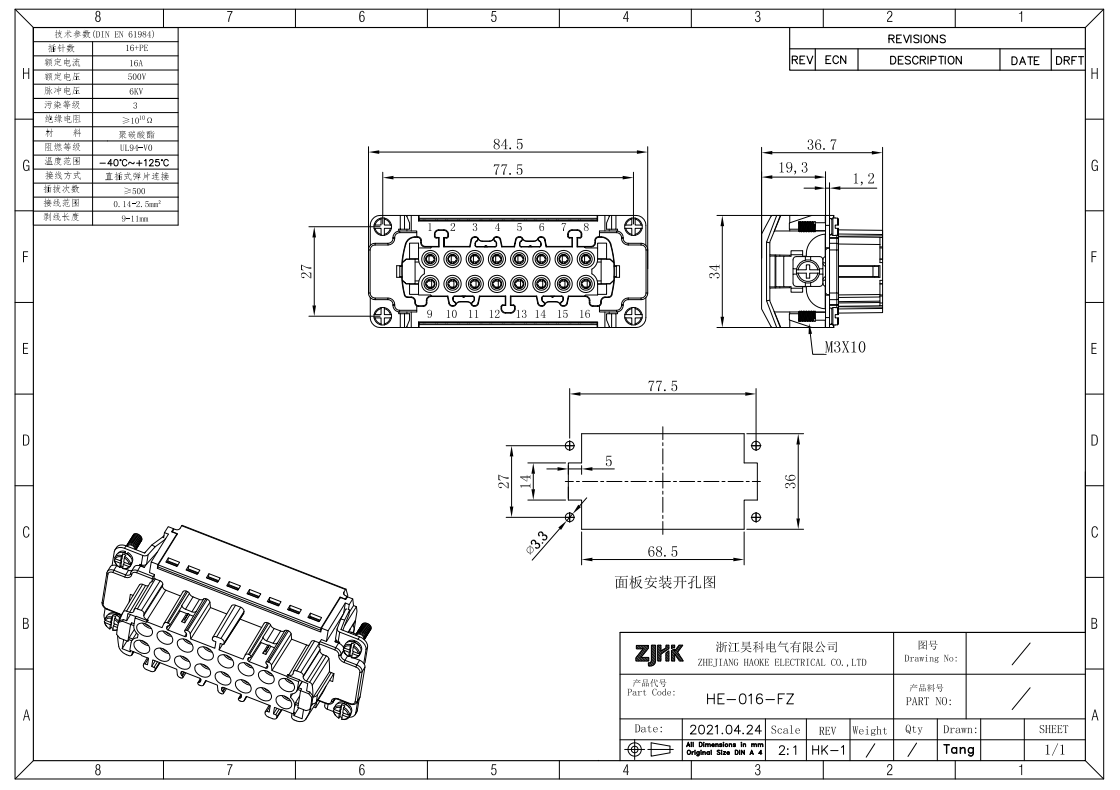

HE-016-FZ
Heavy Duty Connector Quick Lock 16 Pos
Product Overview
Heavy Duty Connector Quick Lock 16 Pos

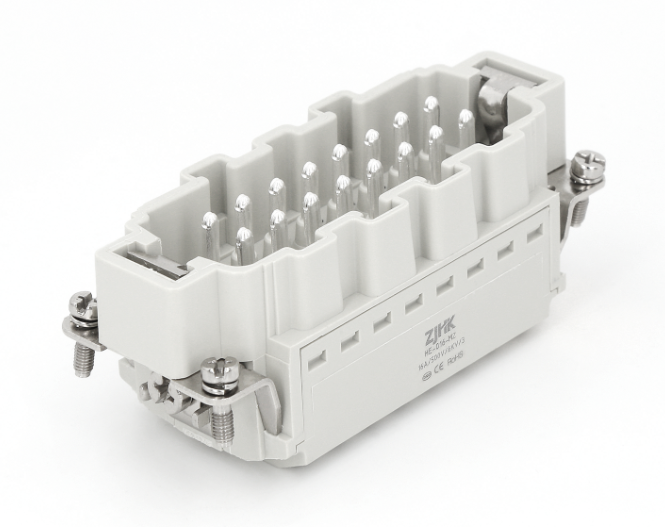

This male insert features 24 pins with each pin rated for 16A current. The copper alloy contacts operate reliably within a temperature range of -40°C to 125°C. The insert body is constructed from polycarbonate, offering excellent impact resistance and high temperature performance. The quick lock terminal system (orange spring clip) automatically clamps wires upon insertion, enabling tool-free wiring for simplified assembly and maintenance.

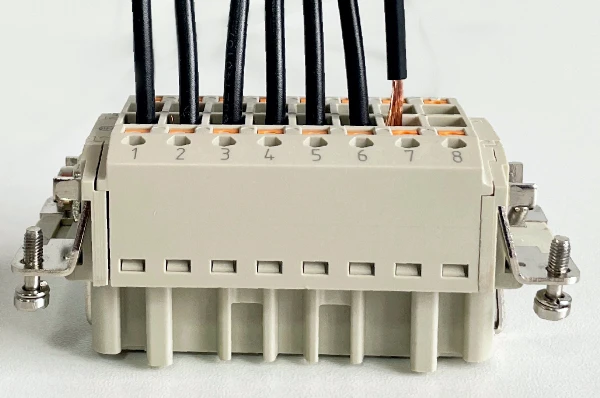

Quick Lock Terminal System
Heavy Duty Connector Quick Lock 16 Pos
Product Development Background
With rising labor costs impacting product competitiveness, industrial equipment manufacturers require optimized basic components to improve work efficiency. Our heavy-duty connector addresses this need by streamlining fundamental process steps.
Functional Description
For cabinet installations, plug-in connectors can be pre-installed and connected later. This approach minimizes wiring harness length within cabinets, maintaining neatness and standardization while optimizing space utilization.
Application Scenarios
Construction Industry
Heavy Duty Connector Quick Lock 16 Pos
The construction industry's evolving requirements for reliability, diversification, high-rise applications, and environmental protection are driving construction machinery development. Heavy-duty connectors provide reliable support with their variety of configurations, high current capacity, and robust protection performance.
Solar Power Systems
Heavy Duty Connector Quick Lock 16 Pos

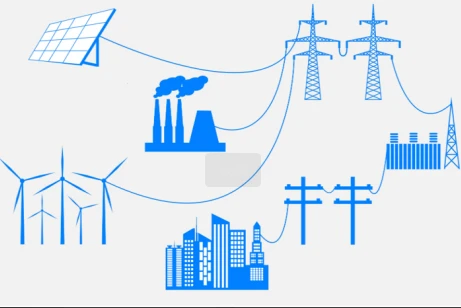

Heavy-duty connectors are extensively used in solar power generation inverters, wind power variable speed systems, thermal power high and low voltage switchgear, power transmission vacuum circuit breakers, substation power distribution cabinets, and smart grid junction boxes.
About Our Company
Our Team
Heavy Duty Connector Quick Lock 16 Pos
We maintain professional production, technical, and sales teams totaling over 130 people, providing comprehensive services to ensure complete customer satisfaction.

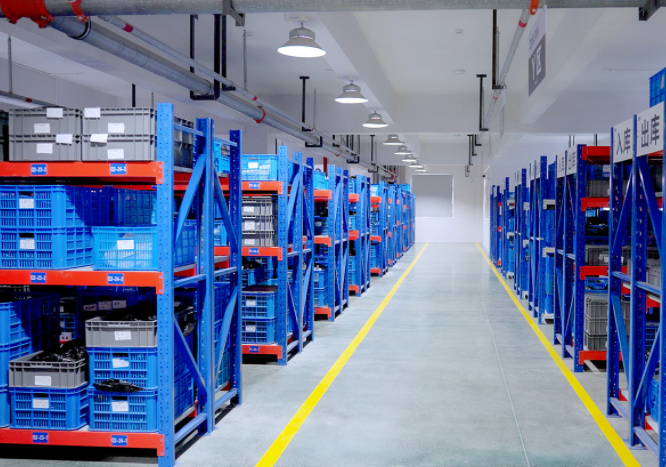

Our Workshop
Heavy Duty Connector Quick Lock 16 Pos
Our facilities include injection molding, assembly, casing finishing, and pin workshops, covering the entire heavy-duty connector production chain. This integrated approach enables effective quality control and reliable delivery schedules.
