24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector
Specifications
Package :
Indivisual Packing in Box
Contact Material :
Copper Alloy with Silver Plating
Brand Name :
ZJHK
Pollution Degree :
3
Model Number :
HE-024-M/HE-024-F
Gender :
Male/Female options
Operating Temperature Range :
-40°C to +125°C
Connector Type :
Rectangular
Macthing Housing Size :
24B
Place of Origin :
China
Protectionrating :
IP65
Payment Terms :
T/T
Rated Current :
16A
Price :
$5.33/$5/$4.67
Delivery Time :
5~7 work days
MOQ :
5pcs/30pcs/50pcs
Contact Type :
Screw
Nos Of Contact :
24
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Description
24Pin 16A Screw Terminal Heavy Duty Connector
24Pin 16A Screw Terminal Heavy Duty Connector 24Pin 16A Screw Terminal Heavy Duty Connector
HE-024 standard connectors are compatible with 24B hoods and housings and feature screw terminal connections that eliminate the need for professional tools. These connectors are easy to install and particularly suitable for demanding work environments.
Product Specifications
Parameter Specification
Termination method Screw terminal
Certification Gender
Number of contacts 24
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Rated Voltage Acc.to UL Csa 600V
Insulation Resistance ≥10¹⁰Ω
Material Polycarbonate
Limiting Temperature -40℃...+125℃

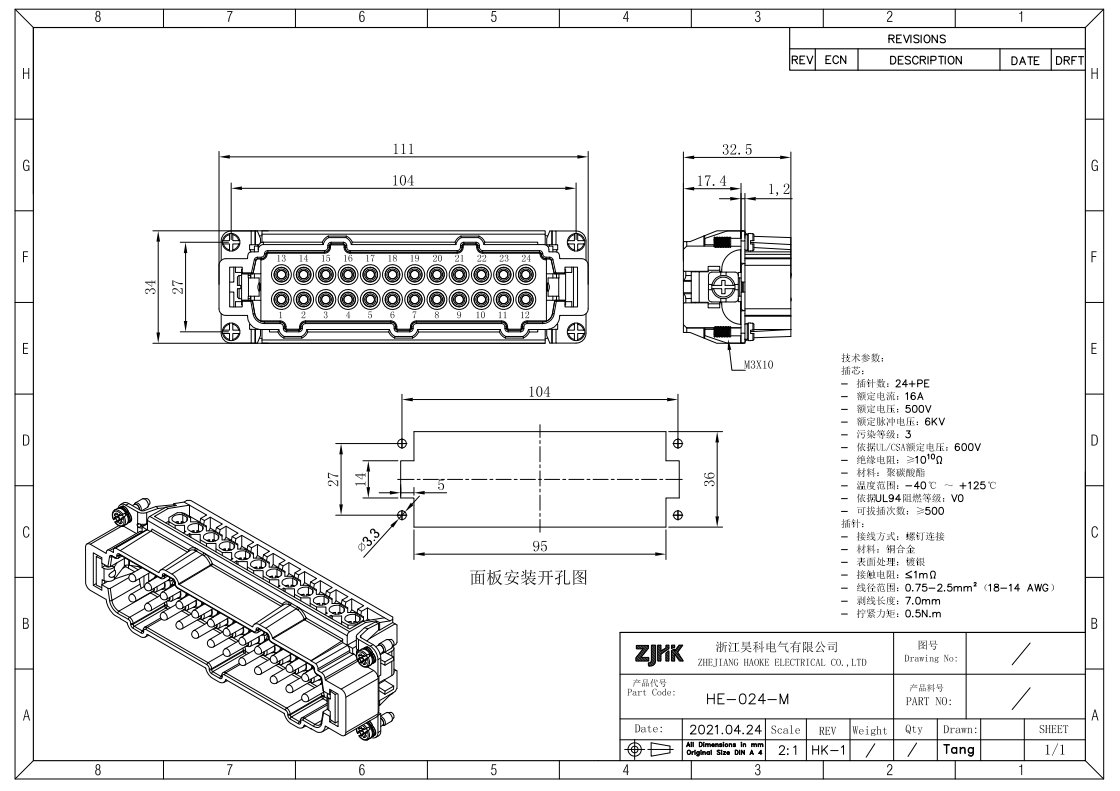

Product Drawings

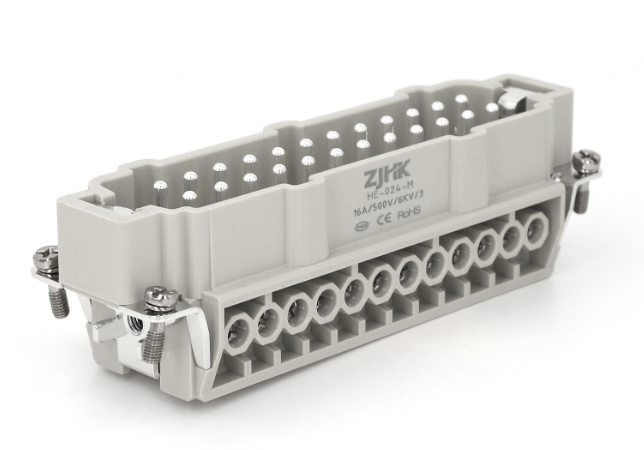

HE-024-M
24Pin 16A Screw Terminal Heavy Duty Connector

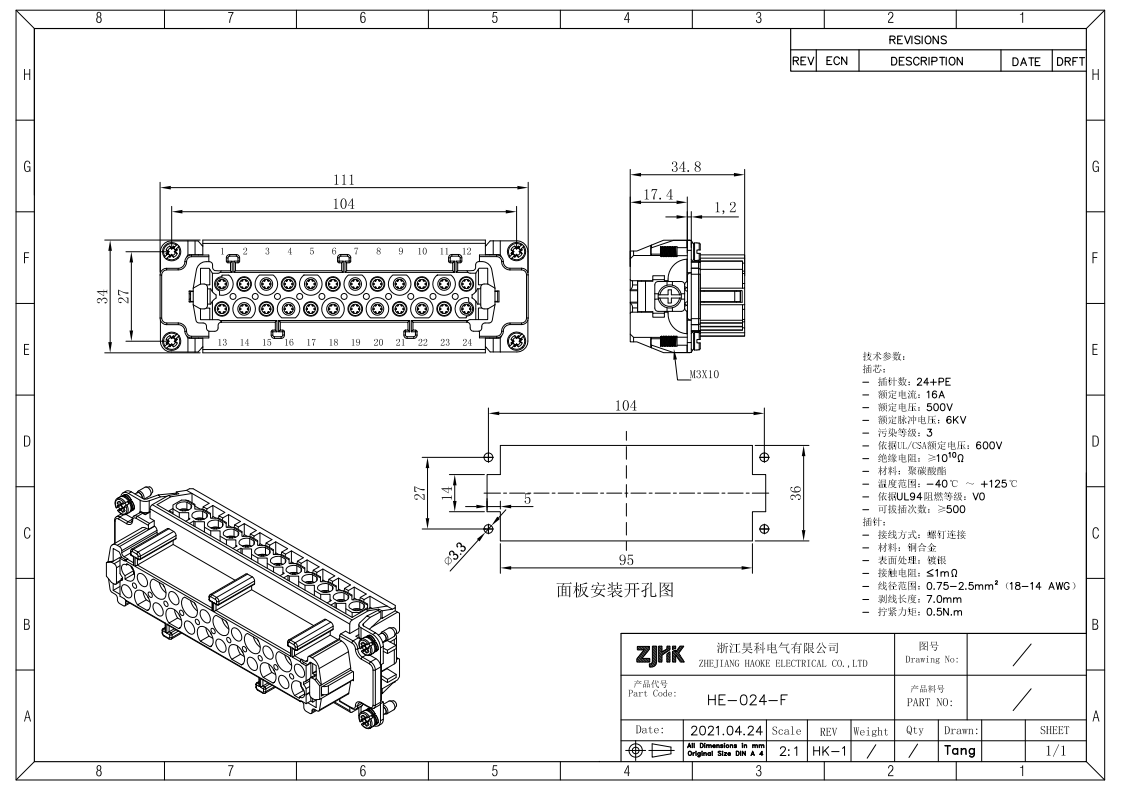

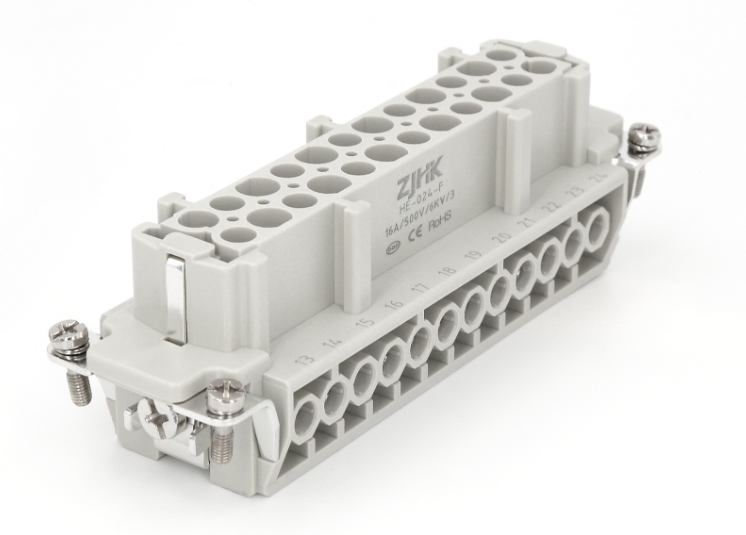

HE-024-F
24Pin 16A Screw Terminal Heavy Duty Connector
Product Overview
24Pin 16A Screw Terminal Heavy Duty Connector

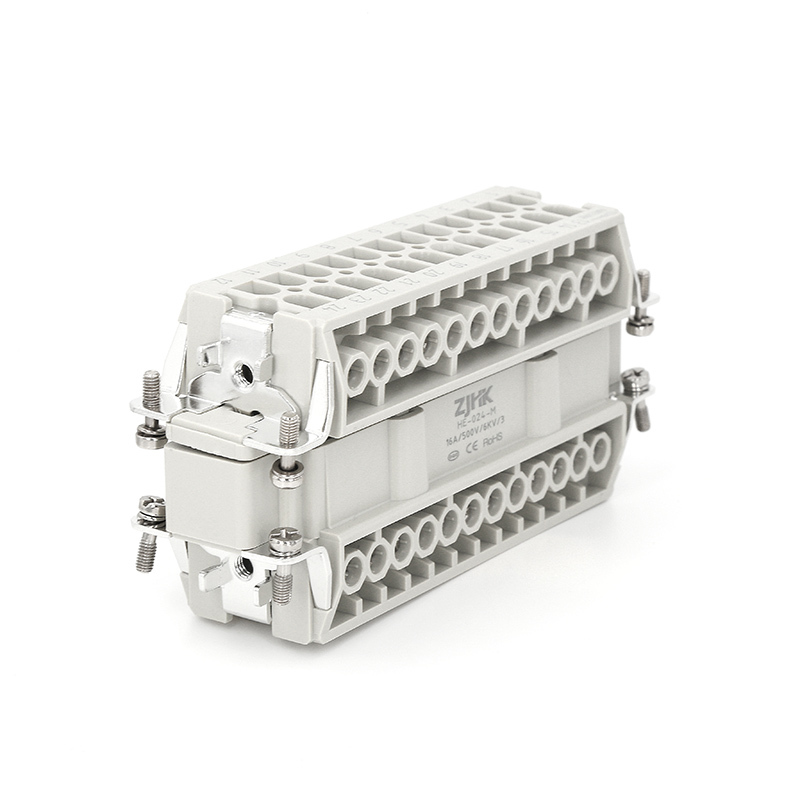

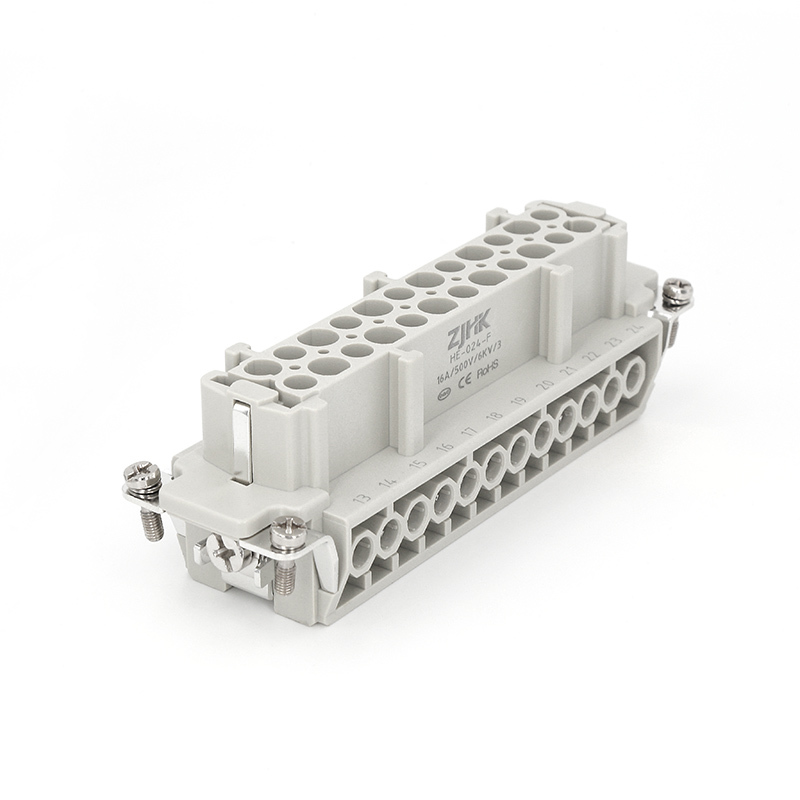

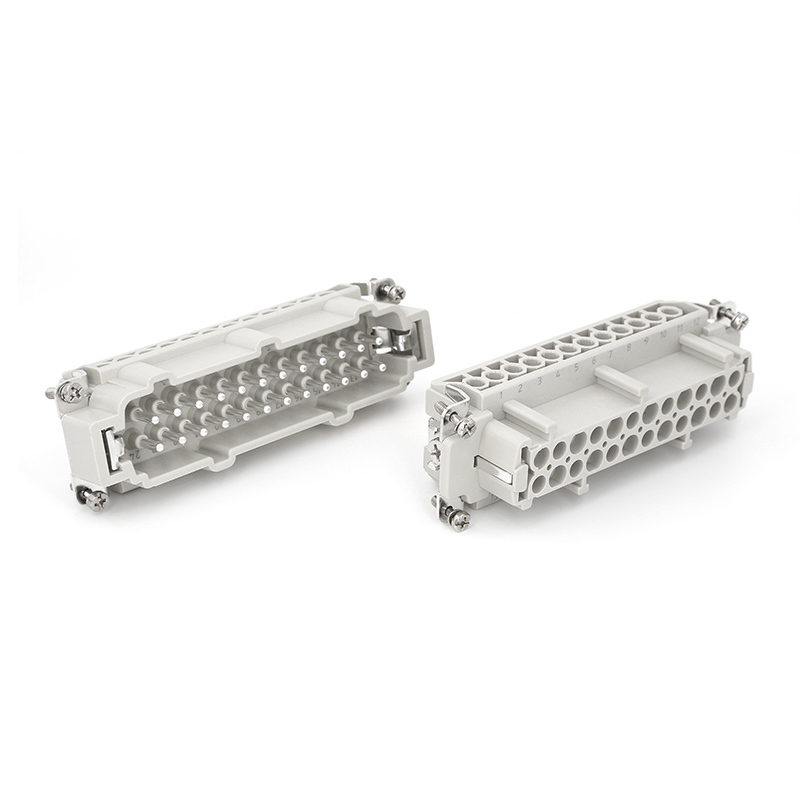

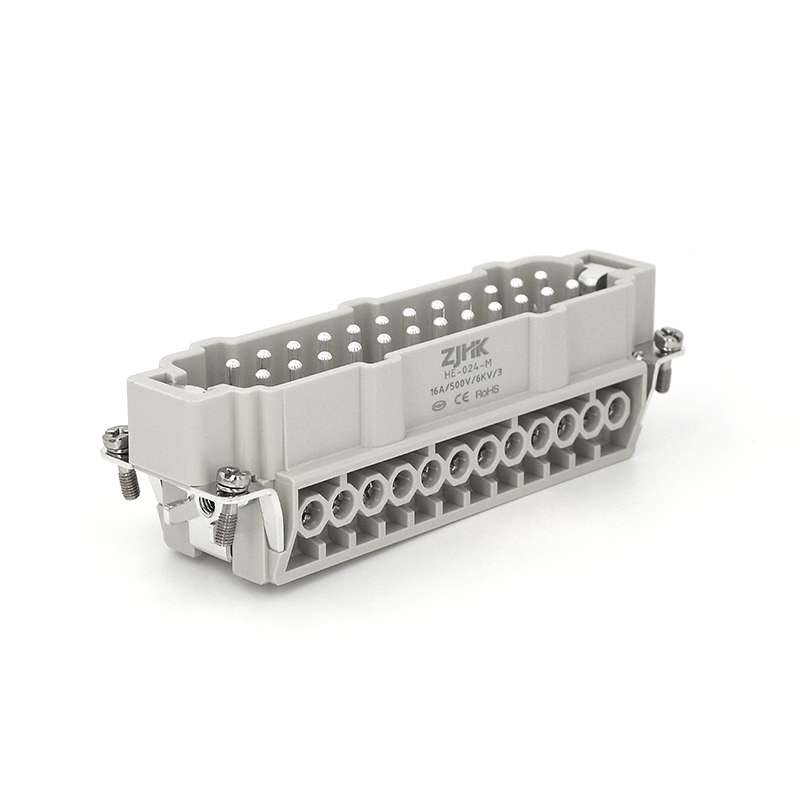

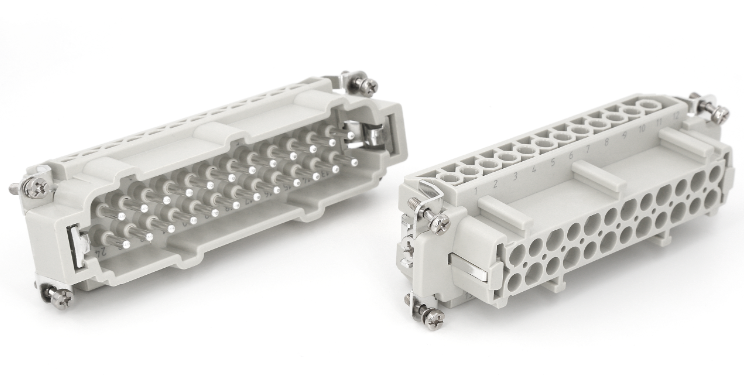

The connector features 24 plug-in cores manufactured from copper alloy. The light gray polycarbonate shell provides insulation protection, adaptation, and installation fixation, while the metal screws on the side facilitate assembly and secure fastening.
Product Series Expansion
24Pin 16A Screw Terminal Heavy Duty Connector

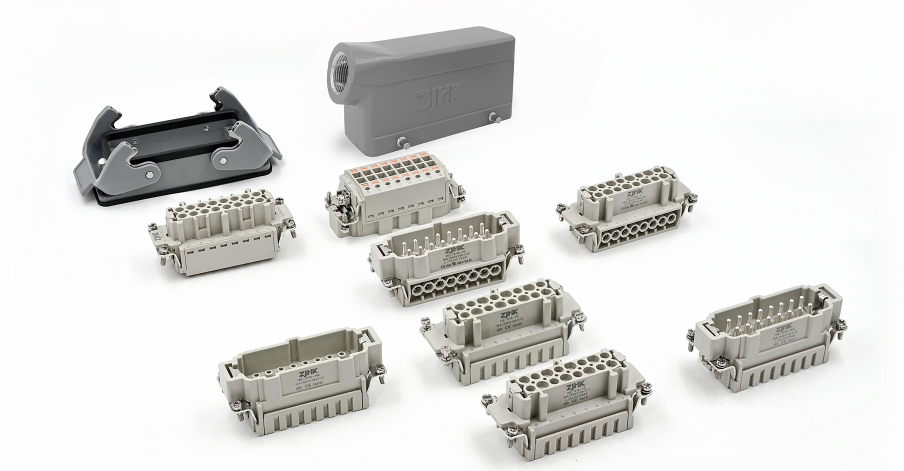

The HE series represents one of our core product lines. We offer multiple series designed for different application fields, along with complementary products including hoods, housings, cable glands, and specialized tools. Contact us for consultation and ordering.
Laboratory & Equipment
24Pin 16A Screw Terminal Heavy Duty Connector
Skyray Instrument
24Pin 16A Screw Terminal Heavy Duty Connector

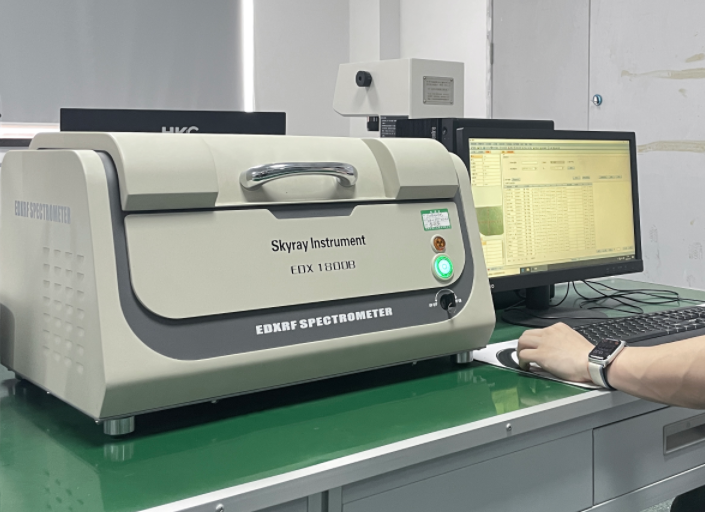

EDXRF Spectrometer
24Pin 16A Screw Terminal Heavy Duty Connector

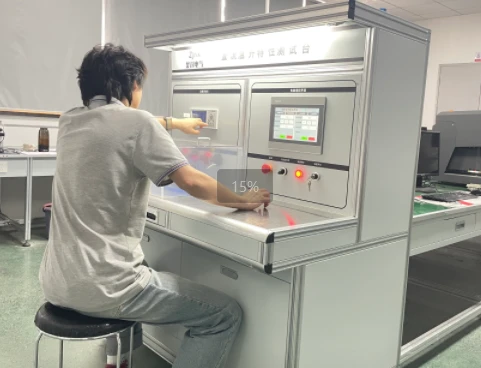

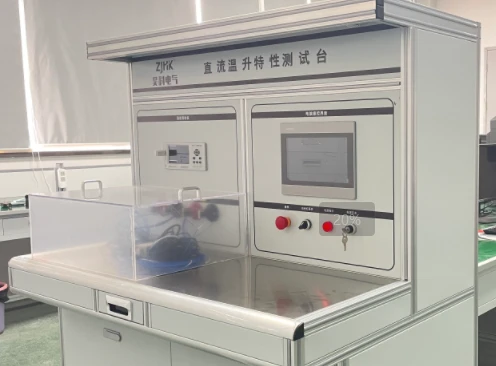

DC Test Bench
24Pin 16A Screw Terminal Heavy Duty Connector
Professional Tester
Application Scenarios
24Pin 16A Screw Terminal Heavy Duty Connector
Automation Industry
Heavy-duty connectors enable simultaneous transmission of power and signals through a single connector, optimizing automated equipment wiring and facilitating efficient engineering applications.
24Pin 16A Screw Terminal Heavy Duty Connector

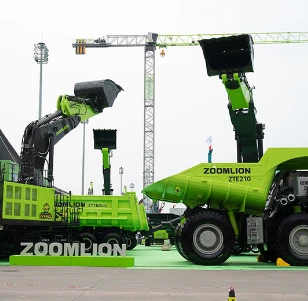

Construction Machinery
Meeting construction industry demands for reliability, diversification, high-rise construction, and strict environmental standards, construction machinery development shows promising growth.
24Pin 16A Screw Terminal Heavy Duty Connector
Hot Runner Industry
Heavy-duty connectors with 4-pin, 16-pin, and 24-pin configurations are extensively utilized in hot runner systems, temperature control boxes, and extrusion equipment.
24Pin 16A Screw Terminal Heavy Duty Connector
Wind Energy
Heavy-duty connectors provide connection components and solutions for wind turbine pitch control systems, cabin systems (electrical control cabinet, slip ring, braking system, yaw system, converter system, communication system), and tower systems.
Why Choose Zhejiang Haoke Electric?
24Pin 16A Screw Terminal Heavy Duty Connector
In the competitive heavy-duty connector industry, Zhejiang Haoke Electric Co., Ltd. has established expertise through focused development. With a comprehensive industrial layout and commitment to quality excellence, we maintain a leading position in the industry and have become synonymous with "stability."
"For heavy-duty connectors, Haoke is more stable!" This statement reflects Haoke Electric's years of dedication to heavy-duty connector technology, driven by innovation and supported by rigorous quality management. Looking forward, ZJHK will continue to focus on customer needs, offering richer product selections and more reliable performance as a trusted choice in global industrial connectivity solutions.
