16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
16Pos Cage clamp Male and Female Insert
Specifications
Connection Type :
Cage-clamp
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Price :
$5.33/$5/$4.67
Payment Terms :
T/T
Model Number :
HE-016-MS/HE-016-FS
Pollution Degree :
3
Place of Origin :
China
MOQ :
5pcs/30pcs/50pcs
Delivery Time :
5~7 work days
Operating Temperature :
-40~+125℃
Ingressprotection :
IP65
Number Of Contacts :
16
Current Rating :
16A per contact
Brand Name :
ZJHK
Macthing Housing Size :
16B
Package :
Indivisual Packing in Box
Voltage Rating :
500V
Description

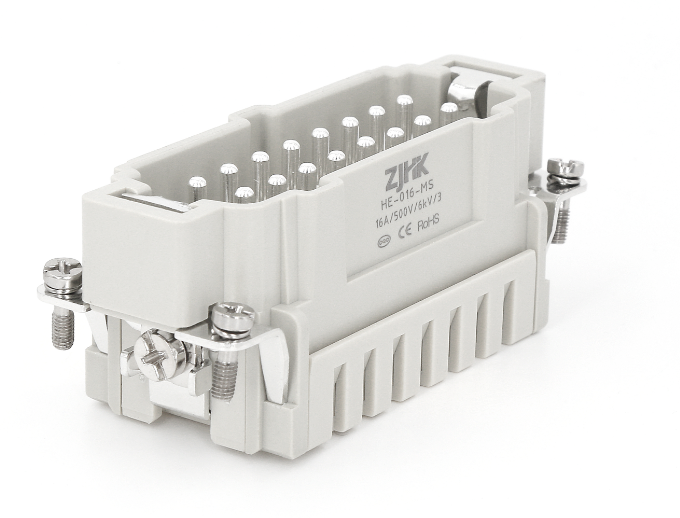

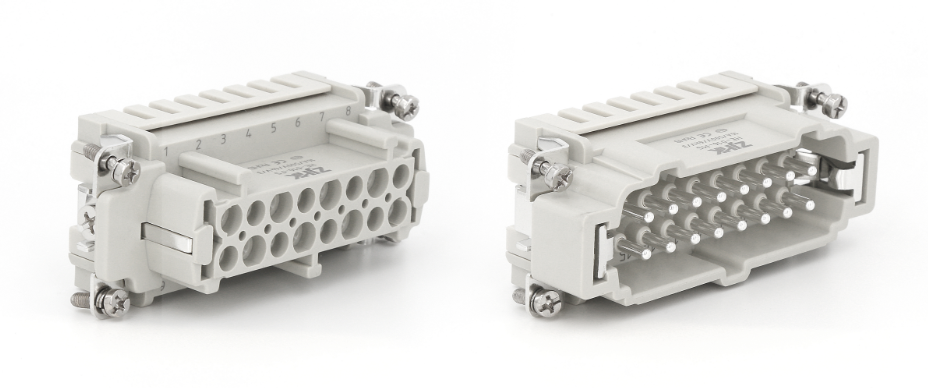

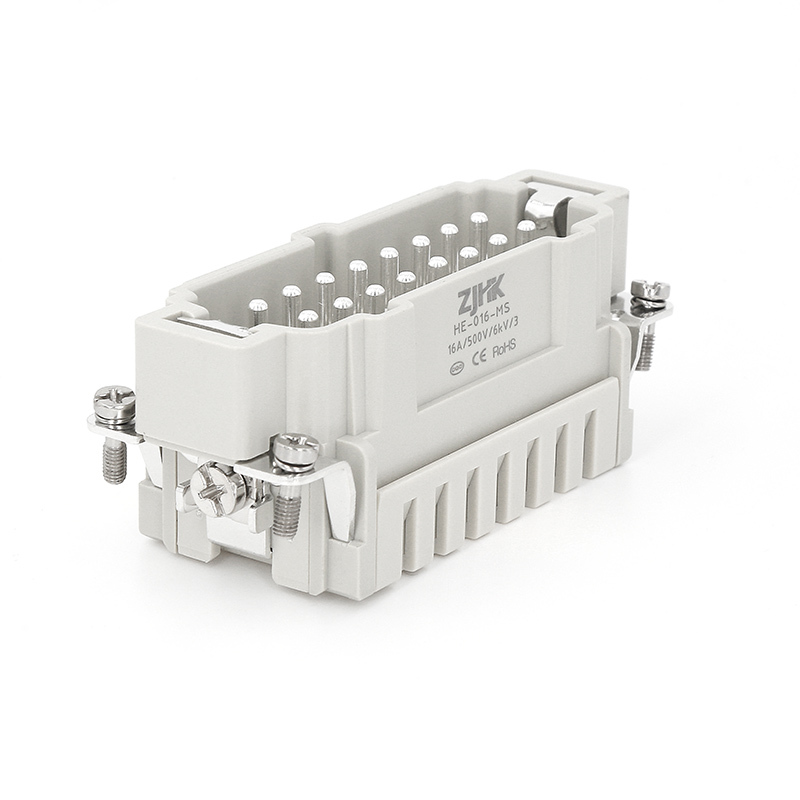

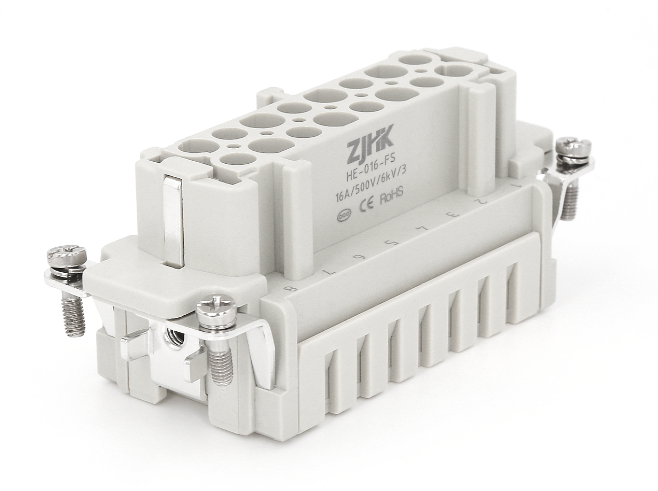

16-Position Cage Clamp Male and Female Insert

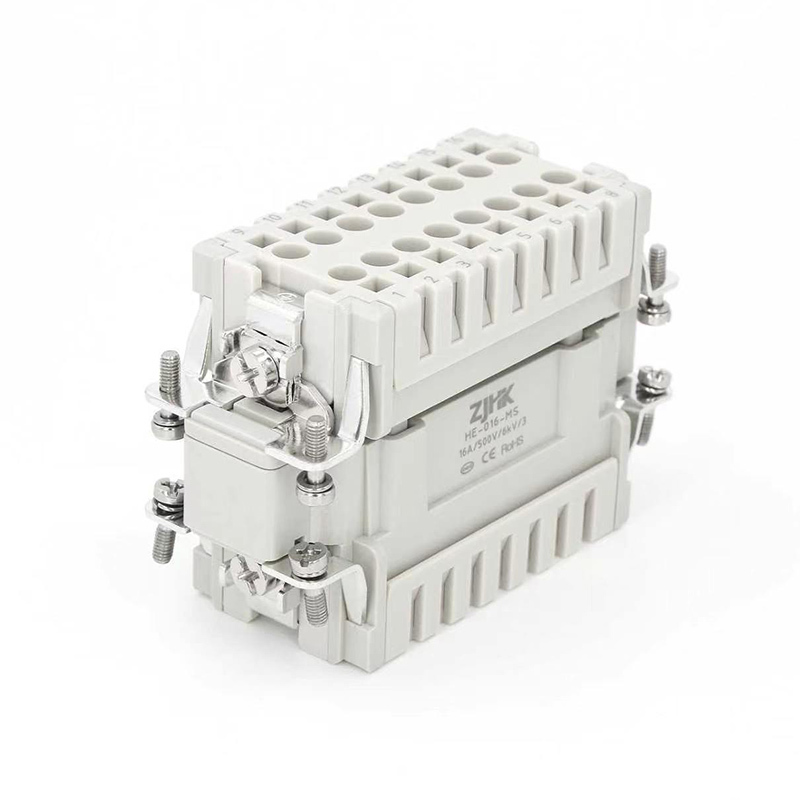

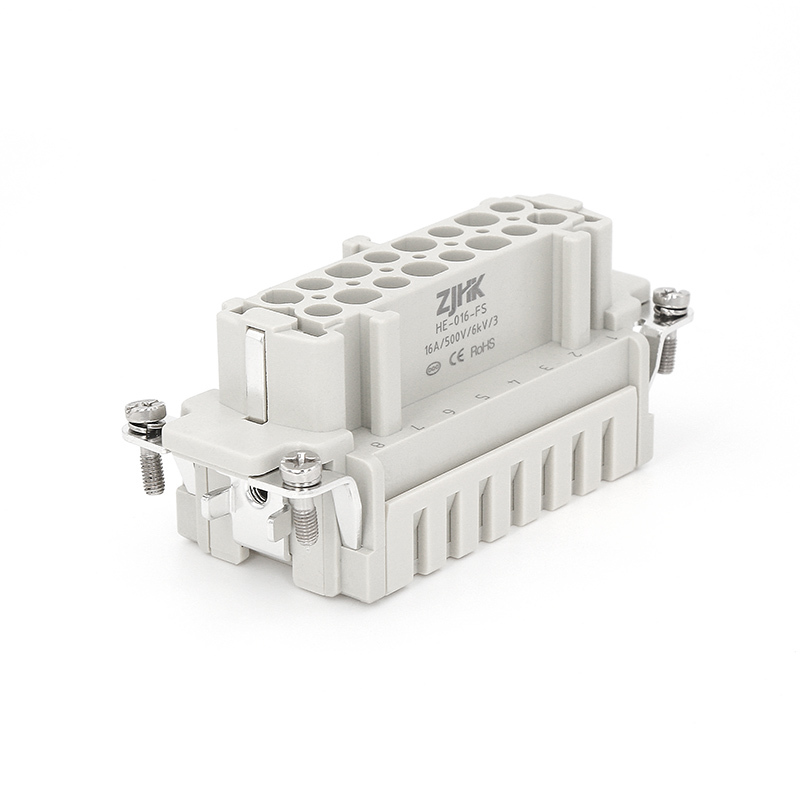

HE-016-MS (Male) and HE-016-FS (Female) are 16-pin spring-loaded connectors from the HE series, compatible with 16B housing sizes. These connectors feature spring-loaded wiring technology that simplifies installation—simply strip the wire and insert it directly to the bottom, eliminating the need for screwdrivers. The increased pin count significantly enhances wiring efficiency, making a noticeable difference when installing multiple terminals in control cabinets.
16Pos Cage clamp Male and Female Insert 16Pos Cage clamp Male and Female Insert
Product Specifications
Terminal Method Cage-clamp
Gender Male and Female
Rated Current 16 Ampere
Rated Voltage 500 Voltage
Rated Impulse Voltage 6kV
Pollution Degree Ⅲ
Rated Voltage According to UL CSA 600V
Contacts Number 16
Material Polycarbonate
Working Temperature -40℃ to +125℃
Technical Drawings

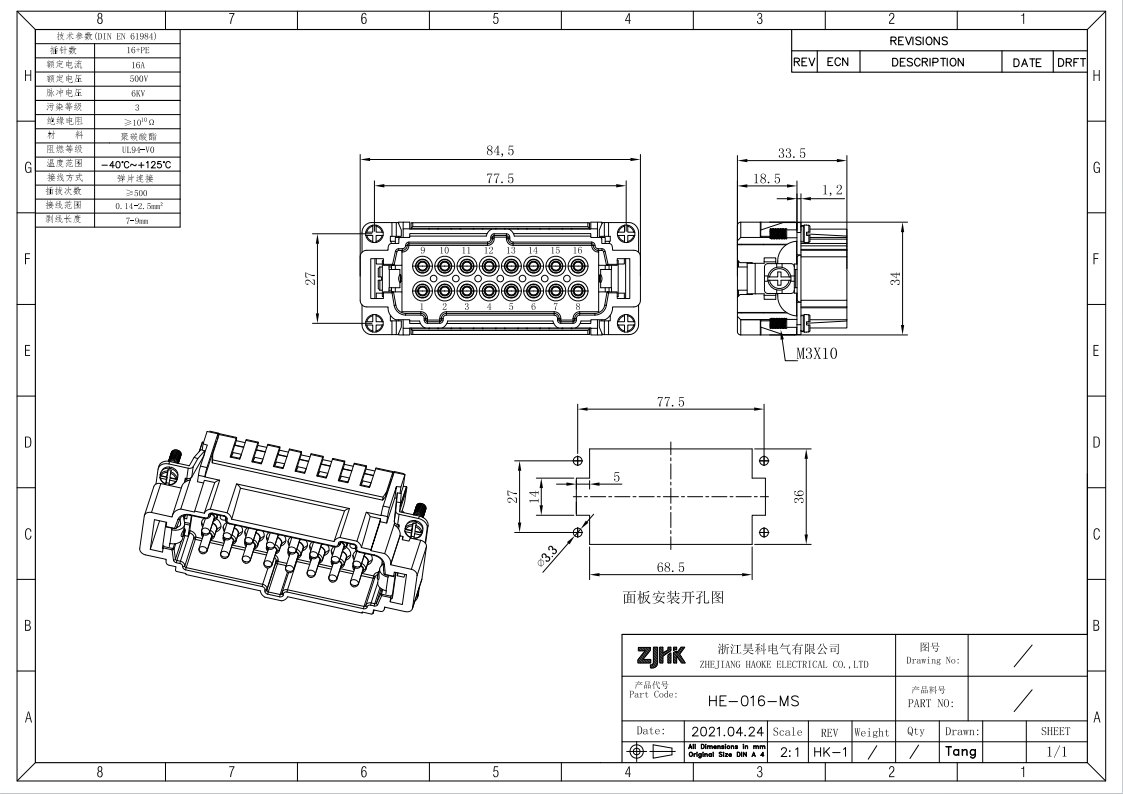

HE-016-MS
16Pos Cage clamp Male and Female Insert

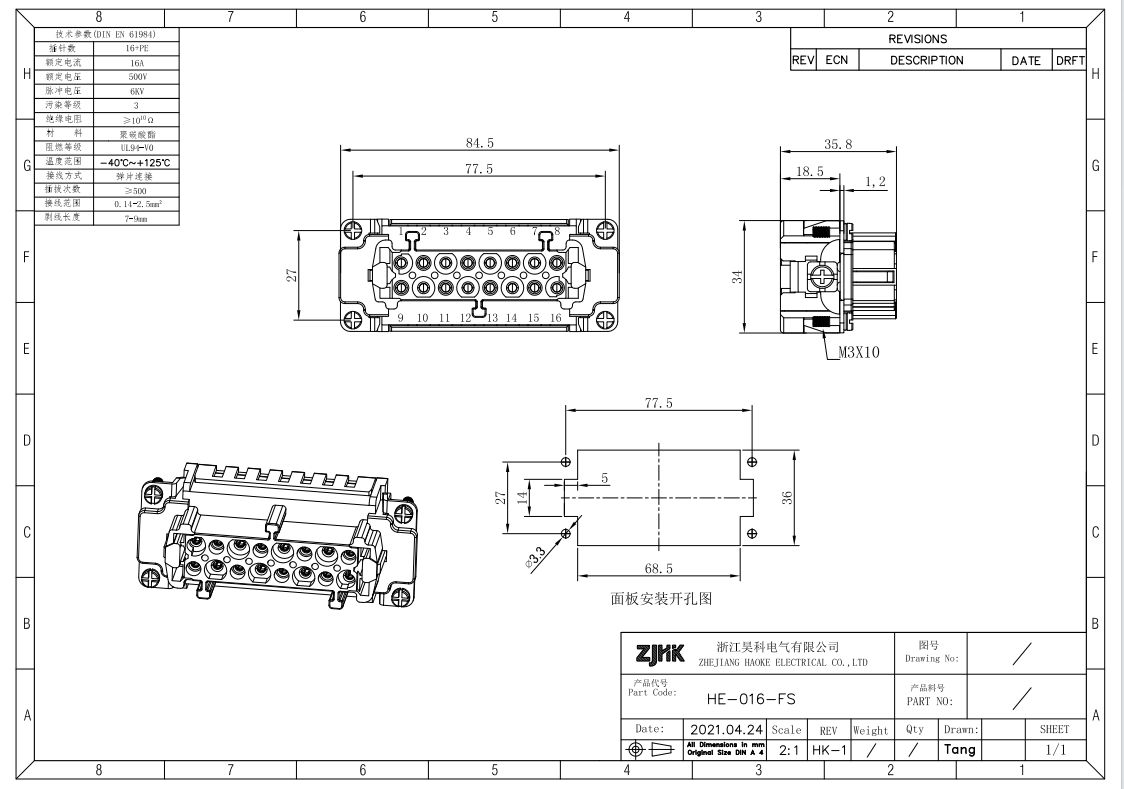

HE-016-FS
16Pos Cage clamp Male and Female Insert

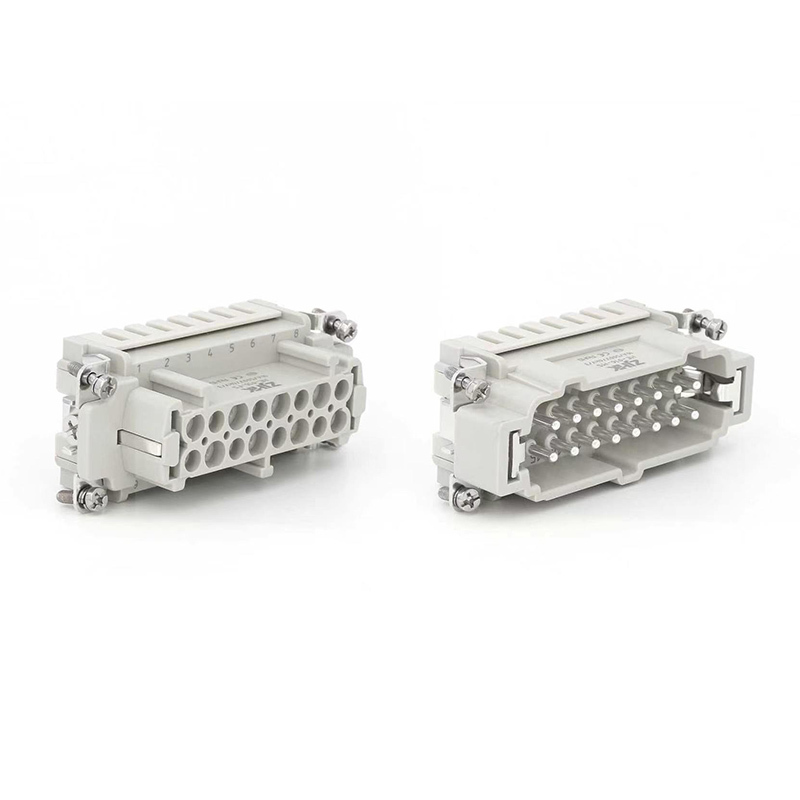

Product Overview
16Pos Cage clamp Male and Female Insert
These connectors feature a rated current of 16A and voltage of 500V, meeting requirements for standard industrial power distribution and signal transmission. The housing is constructed from flame-retardant V0-grade polycarbonate, while the pins are made of silver-plated copper alloy, ensuring low contact resistance and stable signal transmission. The spring-loaded structure maintains consistent contact force over extended periods, preventing loosening due to vibration. Minimal maintenance is required after wiring, making these connectors ideal for multi-line applications in automated equipment and control cabinets.

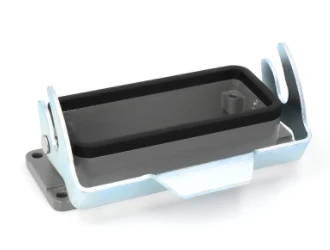

Compatible Housings
16B Series Hoods and Housings
16Pos Cage clamp Male and Female Insert

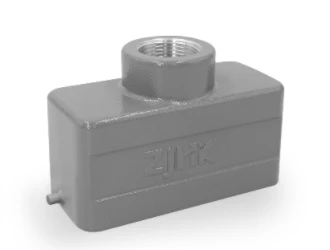

H16B-TE-2B
Size: 16B
Protection Grade: IP65
Structure: Hood, Top Entry
16Pos Cage clamp Male and Female Insert

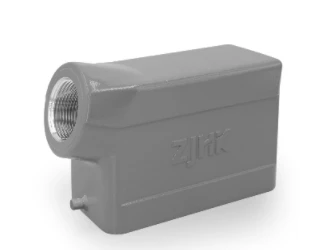

H16B-SE-2B
Size: 16B
Protection Grade: IP65
Structure: Hood, Side Entry
16Pos Cage clamp Male and Female Insert
H16B-BK-IL
Size: 16B
Protection Grade: IP65
Structure: Housing, Bulkhead Mounting
16Pos Cage clamp Male and Female Insert

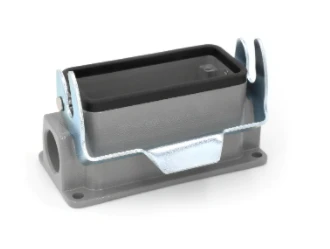

H16B-SF-1L
Size: 16B
Protection Grade: IP65
Structure: Housing, Surface Mounting
Application Scenarios
Aviation Field
The engine serves as the aircraft's power source, and its control system is critical for proper operation and performance. Heavy-duty connectors link engine sensors, actuators, and control units, transmitting various control signals and monitoring data. Engines operate under high temperatures and significant vibration conditions. The high-temperature and vibration-resistant properties of heavy-duty connectors ensure reliable connections between engine control system components even in these demanding environments. This enables the control unit to accurately monitor engine status in real-time and adjust control parameters promptly, ensuring efficient and stable engine operation.
16Pos Cage clamp Male and Female Insert
