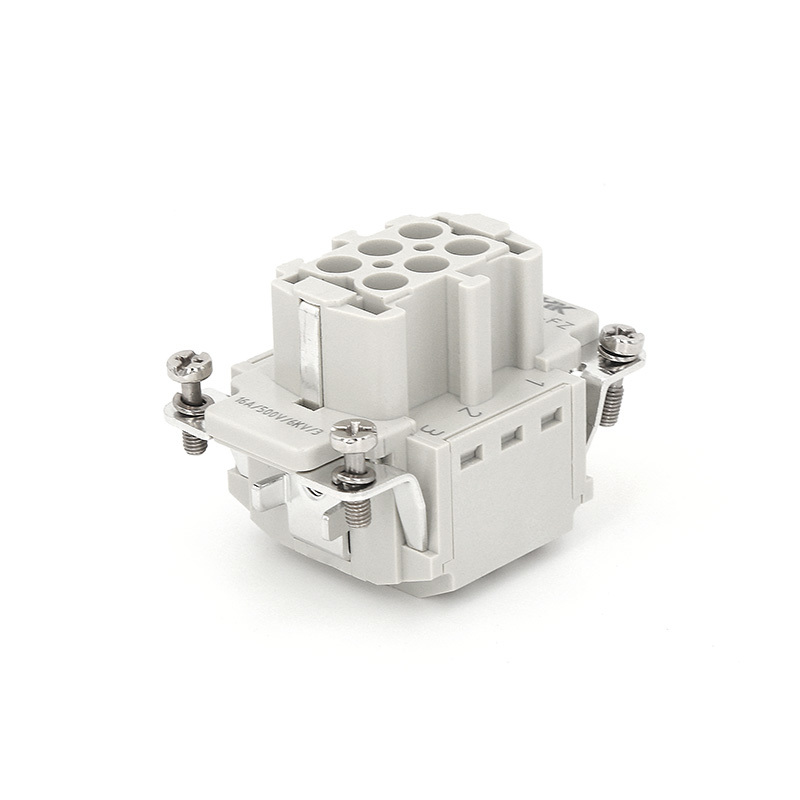

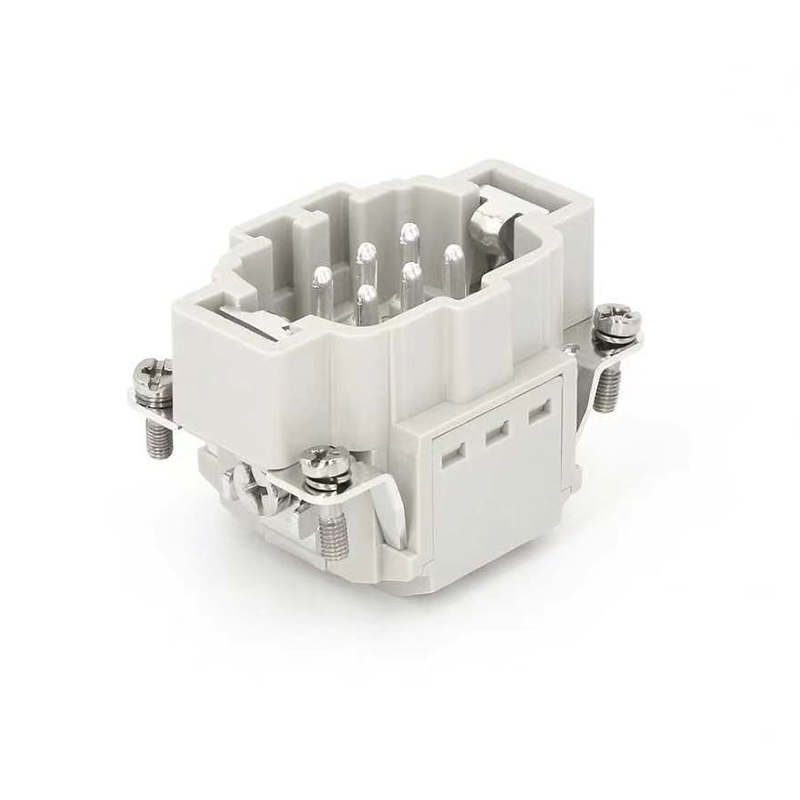

6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector
Specifications
Model Number :
HA-010-MZ/HA-010-FZ
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Brand Name :
ZJHK
MOQ :
5pcs/30pcs/50pcs
Payment Terms :
T/T
Place of Origin :
China
Price :
$2.4/$2.25/$2.1
Delivery Time :
5~7 work days
Description

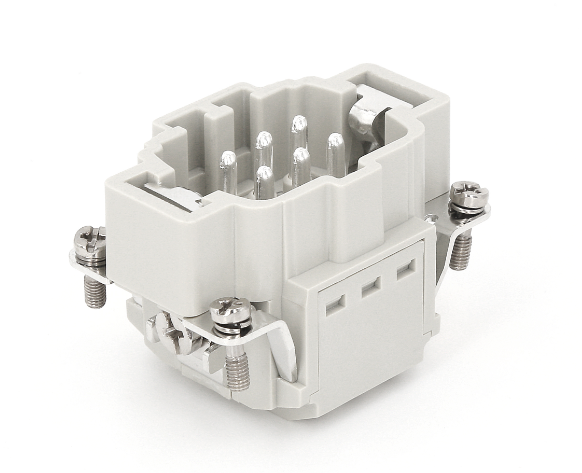

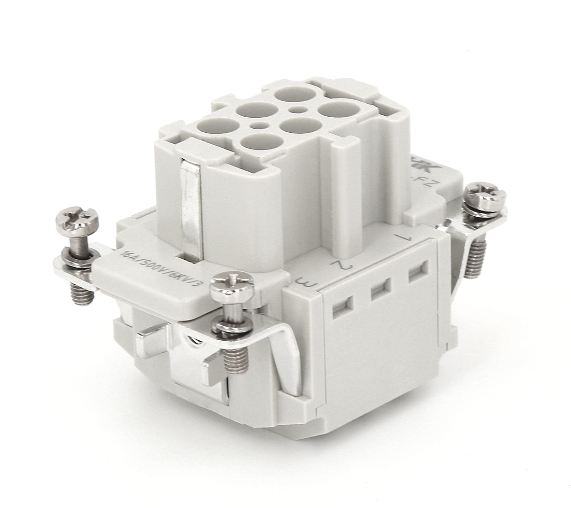

6 Pin 16A Quick Locking Connector
6 Pin 16A Quick Locking Connector 6 Pin 16A Quick Locking Connector
This standard 6-pin connector insert is compatible with 6B hoods and housings, featuring a quick lock terminal system that significantly reduces on-site debugging time. Ideal for projects with tight construction schedules, it delivers efficient and convenient performance for industrial applications.
Key Features
  • Quick lock terminal for rapid installation
  • Compatible with standard 6B hoods and housings
  • Reduces on-site debugging time
  • Ideal for time-sensitive projects

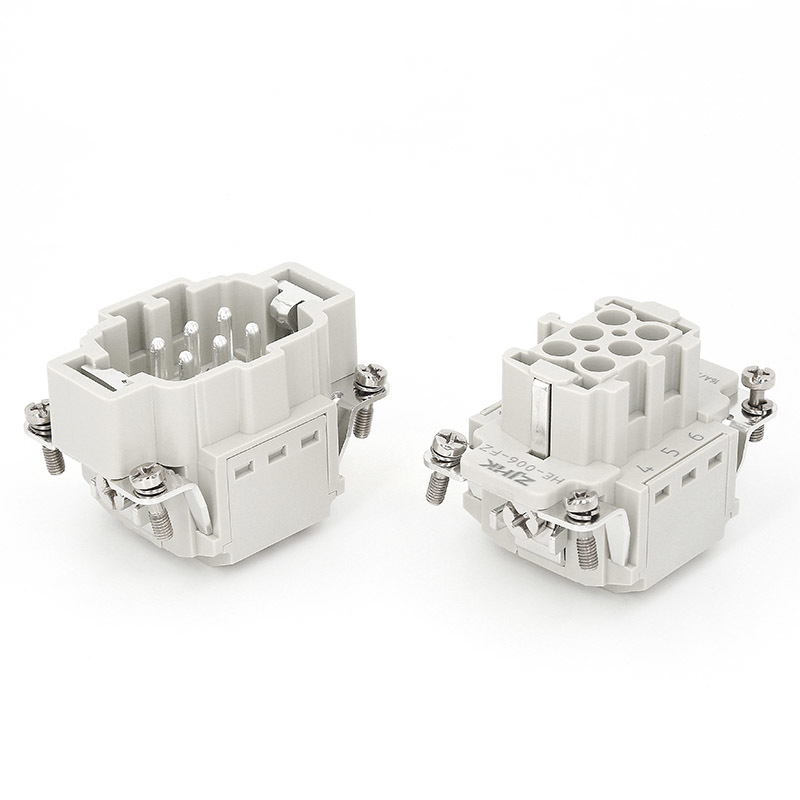

  • Available in male and female configurations
Technical Specifications
Specifications DIN EN 60 664
DIN EN 61 984
Termination Method Quick lock
Gender Male/Female
Model HE-006-MZ/HE-006-FZ
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Pollution Degree Ⅲ
Rated Voltage (UL/CSA) 600V


Products Details

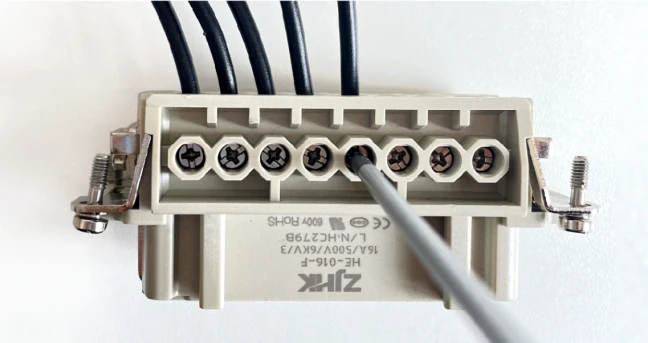

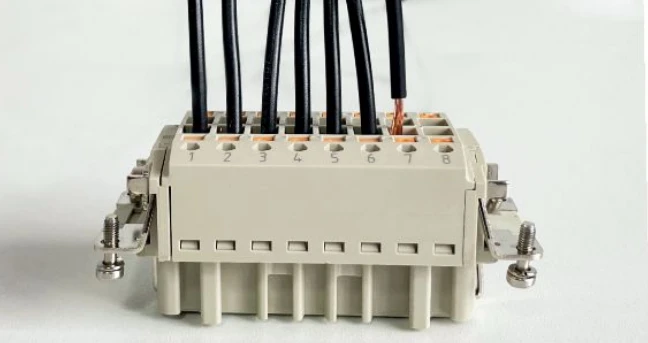

Screw Terminal VS Quick Lock Terminal6 Pin 16A Quick Locking Connector 6 Pin 16A Quick Locking Connector

The traditional connection method cannot achieve pre-installation of connectors on the cabinet. It is necessary to first fix the base on the cabinet, then connect the wires to the core components, and finally fix the core components on the base.Quick lock terminal allows connectors to be pre-installed on the cabinet and then wired.


Assemble Method

6 Pin 16A Quick Locking Connector

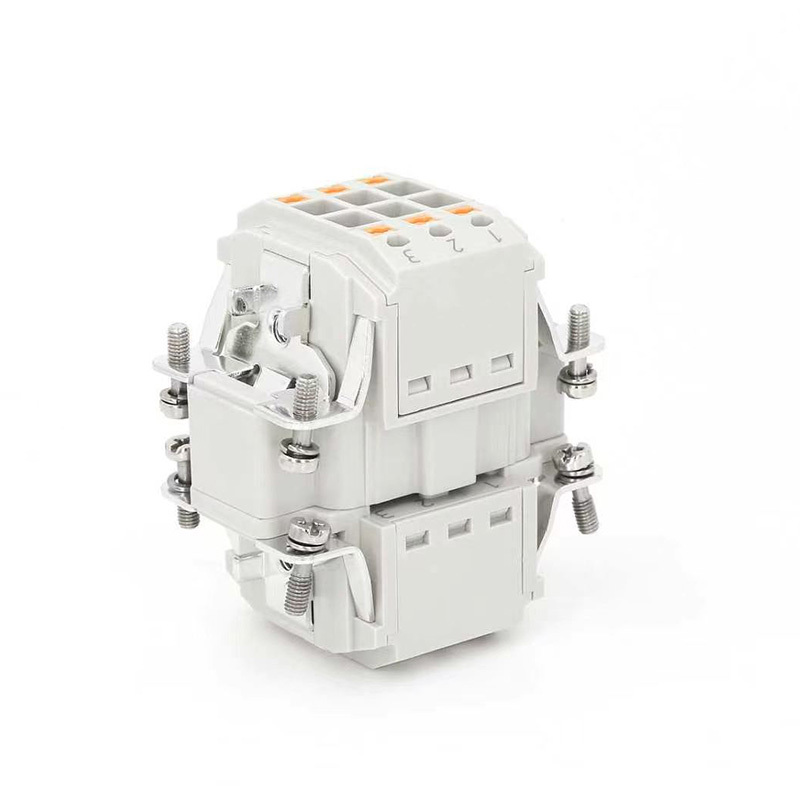

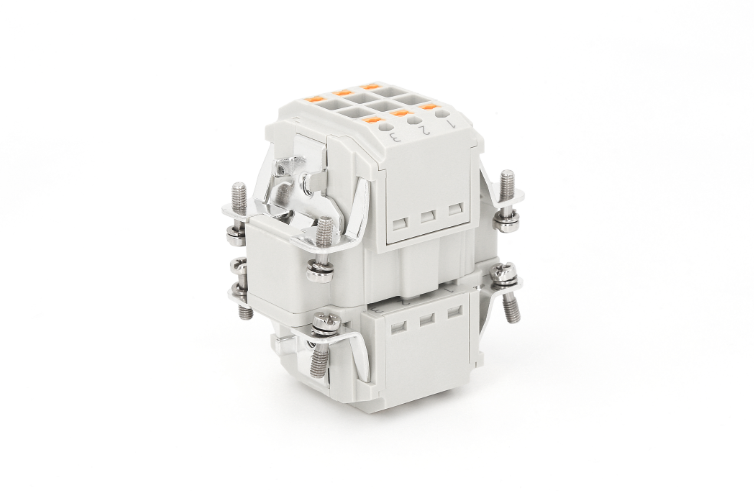

The maximum distance between connectors is 21 millimeters. Align the male plug (with a pin) with the female plug (with a socket, spring clip, etc.), accurately align through the guiding structure, and push the pin into the female plug socket. Shrapnel clips pins to achieve electrical connection.


FAQ

What's the delivery time?

It usually takes 7~10 days for bulk order, 1~3 days for small order is enough. Custom orders will take more time.

How is the quality of your products?

We have passed CE, RoHS, CQC UL and other certifications, and passed the ISO9001:2008 quality management system certification.

If there is a product quality problem, how to solve it?

We provide 12 months warranty, if there is any quality problem, we will recall the goods and replace them in time.
