Forged ASTM DIN GB Oil Cylind Hydraulic Cylinder
Forged ASTM DIN GB Oil Cylind Hydraulic Cylinder
Forged ASTM DIN GB Oil Cylind Hydraulic Cylinder
Forged ASTM DIN GB Oil Cylind Hydraulic Cylinder
Forged ASTM DIN GB Oil Cylind Hydraulic Cylinder
Forged ASTM DIN GB Oil Cylind Hydraulic Cylinder
Specifications
MOQ :
1 piece
Delivery Time :
30-50 days
Heat treatment :
N+T Q+T
Certification :
ISO9001：2008，BV,SGS, IST, UL，CTI
Model Number :
cylinder
Payment Terms :
L/C, T/T
Smelting Process :
EF+LF+VD
Forging reduction ratio :
≥3:1
Price :
Negotiable
Material standard :
ASTM or ASME
Supply Ability :
2000-4000Ton/month
UT standard :
EN10228.3:1998
Brand Name :
HUIXUAN
Packaging Details :
wood pallet,steel frame
Material :
4340
Place of Origin :
China
Description

ASTM DIN GB standard forged 4140 42 CrMo4 45 Oil Cylind Hydraulic Cylinder

Description:

Hydraulic cylinder is the key parts f petrochemical equipment, pressure vessels and other equipment the common material are 4140, 4340 and 45# steel

It conforms to the standards of JB/T4730, EN 13445-2002 and ASME

Material smelting process: EF + LF + VD

Manufacturing equipment is 60MN hydraulic press

Forging reduction ratio ≥3:1

UT standard is in accordance with the standard of JB/T5000.15-2007

Port of loading: FOB Shanghai port

Delivery time: 45 days

Process procedure:

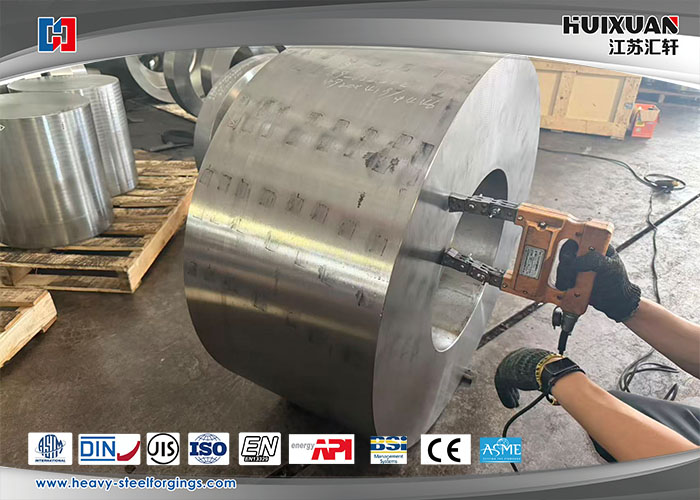

Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment

Features:

  1. High-precision dimensional tolerance;
  2. Excellent mechanical properties;
  3. Produce different dimension based on customer’s requirements;
  4. Advanced manufacture equipments and inspection devices;
  5. Excellent technical personality;
  6. Control the production procedure strictly;
  7. Pay attention on the package protection;
  8. Quality full service.

Specifications:

Description hydraulic cylinder
material 4340
Material standard ASTM or ASME

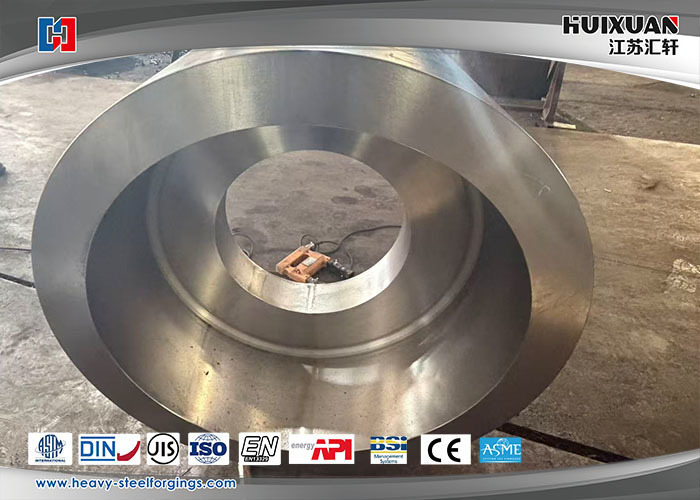

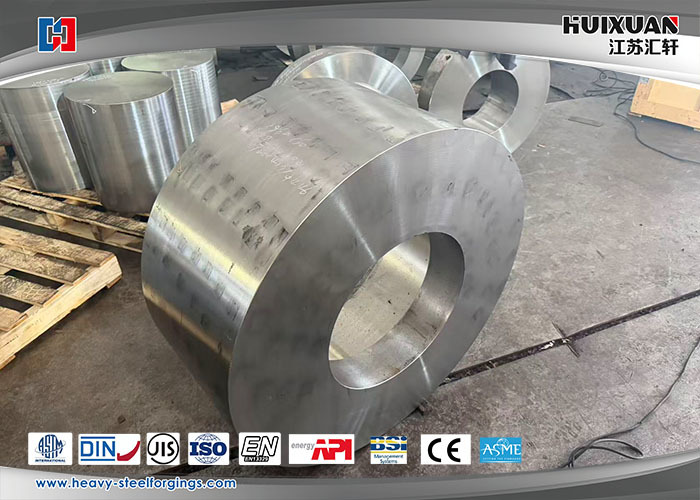

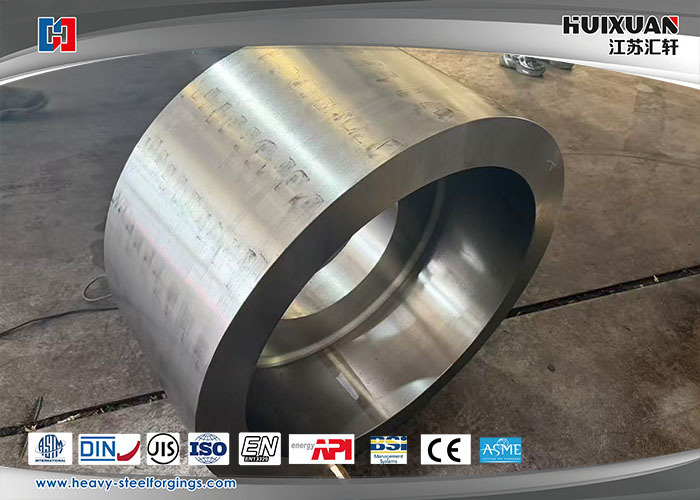

Dimension Outer diameter: 1850mm, inner diameter: 1368mm and L: 2448mm
N.W 24.6 tons
Smelting Process: EF+LF+VD
Process Ingot→heat→forging→Heat treatment(Normalizing+tempering)→Inspection→rough machining→UT→2nd Heat treatment→finishing machining→Inspection
UTstandard

EN10228.3:1998
